STM Sinewave Inverter Drive Module (Grid Sharing) + CT + 1602 LCD disl

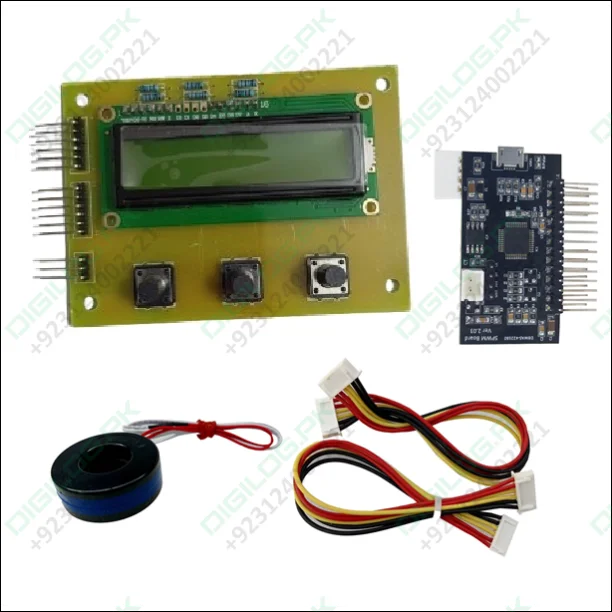

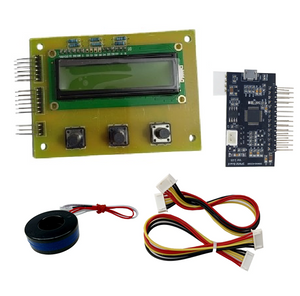

Name: STM Sinewave Inverter Drive Module (Grid Sharing) + CT + 1602 LCD dislay board + Cable Set
Brand: Digilog Electronics
SKU: b209,krt26
Price: 2630.0 PKR
Availability: InStock
Rating: 5.0 (1 reviews)

Home

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + 1602 LCD dislay board + Cable Set

Rs 2,630 PKR

Pickup available at Digilog Electronics

Usually ready in 2 hours

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + 1602 LCD dislay board + Cable Set

Rs 2,630 PKR

Availability: In stock

SKU: b209,krt26

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + 1602 LCD dislay board + Cable Set

✅
⭐	Premium Quality	Products designed for reliability and durability.
🚚	Fast Shipping	Quick delivery to your doorstep.
🔒	Secure Payments	Multiple safe payment options are available.

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + 1602 LCD dislay board + Cable Set

Description:

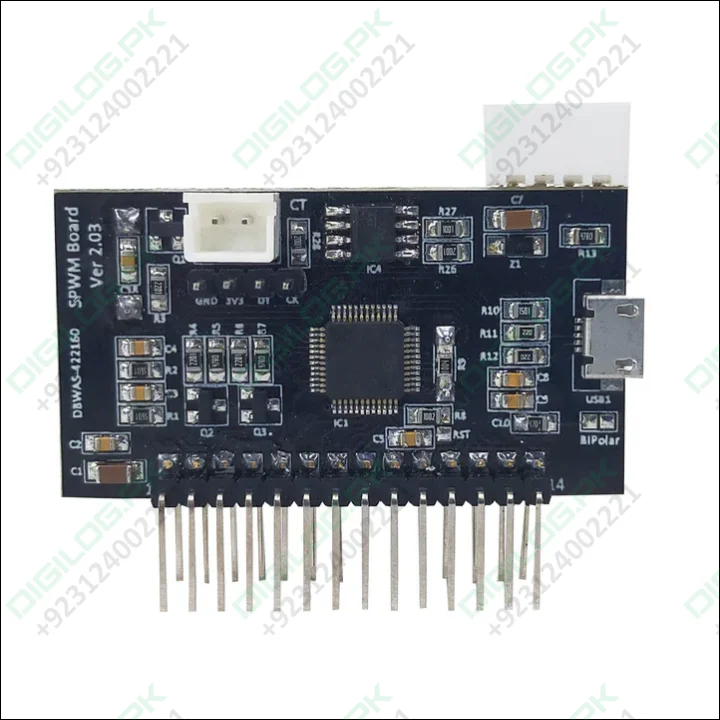

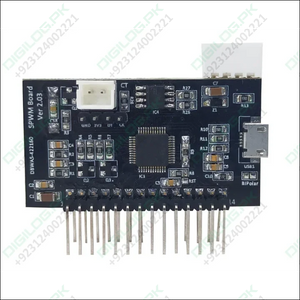

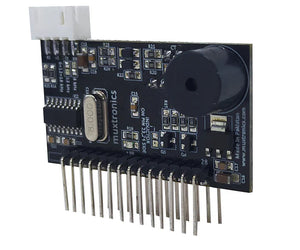

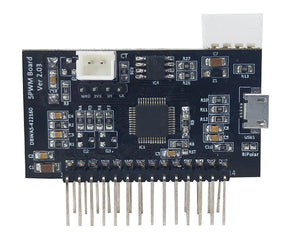

High-Efficiency Sinusoidal Pulse Width Modulation Board with Interactive Visual Interface and Control Buttons.

Specifications:

Feature	Details
Operating Voltage	5V DC
Carrier Frequency	6 kHz, 12 kHz, and 18 kHz (User selectable)
Output Frequency	50Hz (fixed)
Operating Temperature	0°C ~ 55°C
Operating Mode	Unipolar, Bipolar (User selectable)
Dimensions	Board: 100 x 73 mm, Display: 65 x 14 mm
PWM Output	3.3 volts, 20 mA (max)
Communication	1 x USART (RS232-C), 1 x USB (VCOM 2.0)
Audible Warnings	DC buzzer

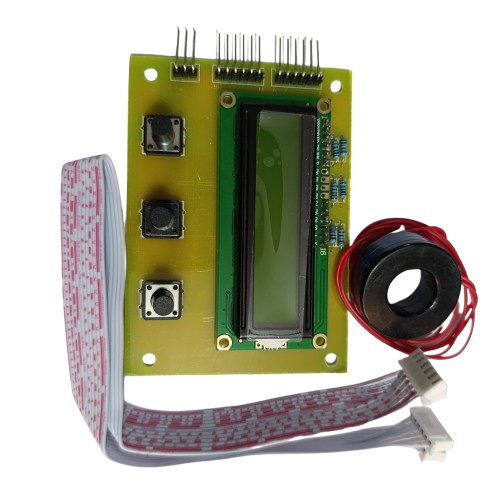

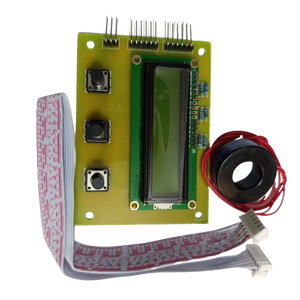

Display Controller	HD44780 Hitachi
Character Dimensions	5x8 dots per character
Display Format	16x2 characters
Interface	Parallel: 4-bit parallel mode
CT Input	CT input with 36.5 Ohm burden resistor (0-100 Ampere full scale)
Human Interaction	4x tactile push buttons (momentary)

Key Features:

Compact and Efficient: Delivers high performance in a small form factor.
Interactive Design: Equipped with an intuitive control interface and visual feedback.
Reliable Performance: Operates effectively in diverse conditions and projects.
Wide Compatibility: Perfect for educational, professional, and DIY applications.

Empower your electronic projects with the STM-SPWM Board, designed to bring efficiency and precision to your work.
