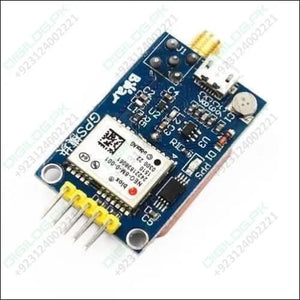

Gps Module Neo 6m Satellite Positioning Micro Usb 51 Mcu For Stm32 Arduino

Gps Module Neo 6m Satellite Positioning Micro Usb 51 Mcu For Stm32 Arduino

Regular price Rs 1,600
Regular price Sale price Rs 1,600
Sale Sold out
Shipping calculated at checkout.

SKU:B10,krt191,IMP50,Th25,A

NOTIFY ME WHEN IN STOCK

Module NEO-6M U-BLOX comes with a USB Micro interface, no longer need to use USB-TTL and other tools.6 module is ideal for battery-operated mobile devices with very strict cost and space constraints. The 51-channel u-blox 6 positioning engine boasts a Time-To-First-Fix (TTFF) of under 1 second. GPS. Set aside a TTL interface, easily use the USB-TTL or external MCU control to receive. The dedicated acquisition engine, with 2 million correlators, is capable of massive parallel time/frequency space searches, enabling it to find satellites instantly. Innovative design and technology suppresses jamming sources and mitigates multipath effects, giving NEO-6M GPS receivers excellent navigation performance even in the most challenging environments.

Features And Specifications Of GPS Neo-6m Satellite Positioning Module Development Board NEO-6M 6M for Arduino STM32 C51 51 MCU Microcontroller:

  • Get 51 STM32 microcontroller routine
  • The module can use together with Arduino.
  • It comes with a Micro USB interface and UART communication.

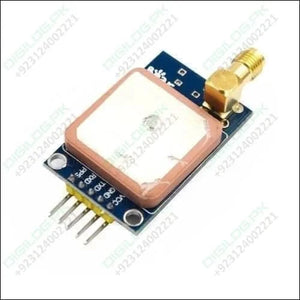

  • Passive ceramic antenna and Passive antenna amplifier are included.
  • SMA interface can be directly connected to an active antenna SMA
  • Size:39*25.5mm

GPS second pulse signal PPS one second, its role is used to indicate the time of the whole second, and the moment is usually marked with the rising edge of the PPS pulse. Because GPS can give UTC time, but the user will receive a time delay, then in order to fine timing, the introduction of the rising edge of the PPS signal to mark UTC the whole second moment, the accuracy can be nanoseconds, and there is no cumulative error.

Package Include:

  • 1 x GPS Module Neo-6M

Best online shopping website for GPS Module Neo 6m Satellite Positioning 51 MCU Stm32 Compatible Arduino at cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkur Peshawar Rawalpindi and all over Pakistan

Gps Module Neo 6m Satellite Positioning Micro Usb 51 Mcu For

Gps Module Neo 6m Satellite Positioning Micro Usb 51 Mcu For

View full details

Description

Module NEO-6M U-BLOX comes with a USB Micro interface, no longer need to use USB-TTL and other tools.6 module is ideal for battery-operated mobile devices with very strict cost and space constraints. The 51-channel u-blox 6 positioning engine boasts a Time-To-First-Fix (TTFF) of under 1 second. GPS. Set aside a TTL interface, easily use the USB-TTL or external MCU control to receive. The dedicated acquisition engine, with 2 million correlators, is capable of massive parallel time/frequency space searches, enabling it to find satellites instantly. Innovative design and technology suppresses jamming sources and mitigates multipath effects, giving NEO-6M GPS receivers excellent navigation performance even in the most challenging environments.

Features And Specifications Of GPS Neo-6m Satellite Positioning Module Development Board NEO-6M 6M for Arduino STM32 C51 51 MCU Microcontroller:

  • Get 51 STM32 microcontroller routine
  • The module can use together with Arduino.
  • It comes with a Micro USB interface and UART communication.
  • Passive ceramic antenna and Passive antenna amplifier are included.
  • SMA interface can be directly connected to an active antenna SMA
  • Size:39*25.5mm

GPS second pulse signal PPS one second, its role is used to indicate the time of the whole second, and the moment is usually marked with the rising edge of the PPS pulse. Because GPS can give UTC time, but the user will receive a time delay, then in order to fine timing, the introduction of the rising edge of the PPS signal to mark UTC the whole second moment, the accuracy can be nanoseconds, and there is no cumulative error.

Package Include:

  • 1 x GPS Module Neo-6M

Best online shopping website for GPS Module Neo 6m Satellite Positioning 51 MCU Stm32 Compatible Arduino at cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkur Peshawar Rawalpindi and all over Pakistan
