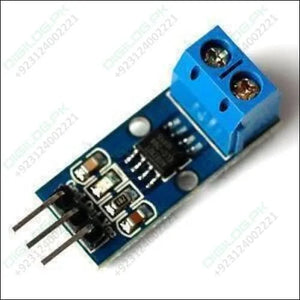

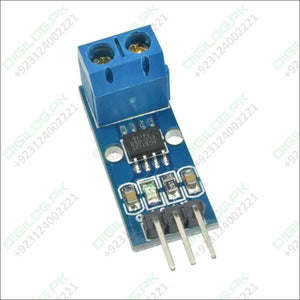

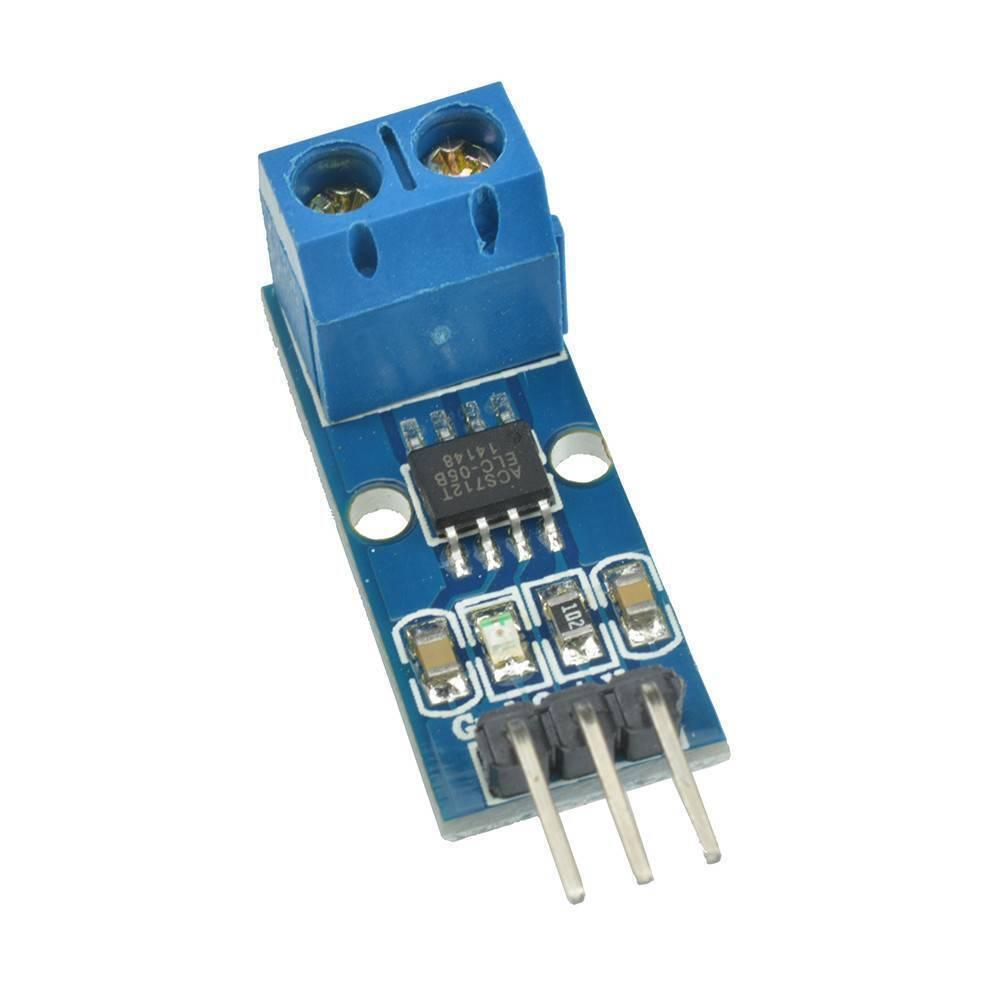

20A Range Current Sensor Module ACS712
Frequently Bought Together
Customers building this project usually buy these together.
Pickup available at Digilog Electronics
Usually ready in 2 hours
20A Range Current Sensor Module ACS712 consists of a precise, low-offset, linear Hall circuit with a copper conduction path located near the surface of the die. Applied current flowing through this copper conduction path generates a magnetic field which the Hall IC converts into a proportional voltage. Sensing and controlling current flow is a fundamental requirement in a wide variety of applications including, over-current protection circuits, battery chargers, switching mode power supplies, digital watt meters, programmable current sources, etc.
This ACS721 current module is based on ACS712 sensor, which can accurately detect AC or DC current. The maximum AC or DC that can be detected can reach 20A, and the present current signal can be read via analog I / O port of Arduino. There is also the 30A and 5A version for your choice are available on our portal.
Note: ACS712 is based on the principle of the Hall test, please use this field to avoid an impact!
You can by ACS712 20a range current sensor in cheap price form digilog.pk website. We have ACS712 5A, ACS712 30A AND ACS758 sensors.
Package Includes :
1 x 20A Range Current Sensor Module ACS712
Specifications and Features :
- Module Dimensions: 31 x 13 x 14 mm (LxWxH)
- Weight: 3 gm.
- Supply Voltage: 4.5V~5.5V DC
- Measure Current Range: -20A~ 20A
- Sensitivity: 100mV/A
- The current sensor chips: ACS712_ELC-20A.
- Pin 5V power supply, onboard power indicator.
- There is no the detection current through, the output voltage is VCC / 2.
- The module can be measure plus or minus 20 amps, corresponding to the analog output of 185 mV / A.
