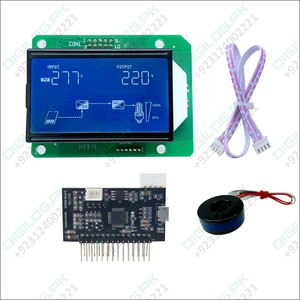

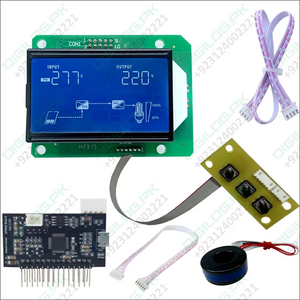

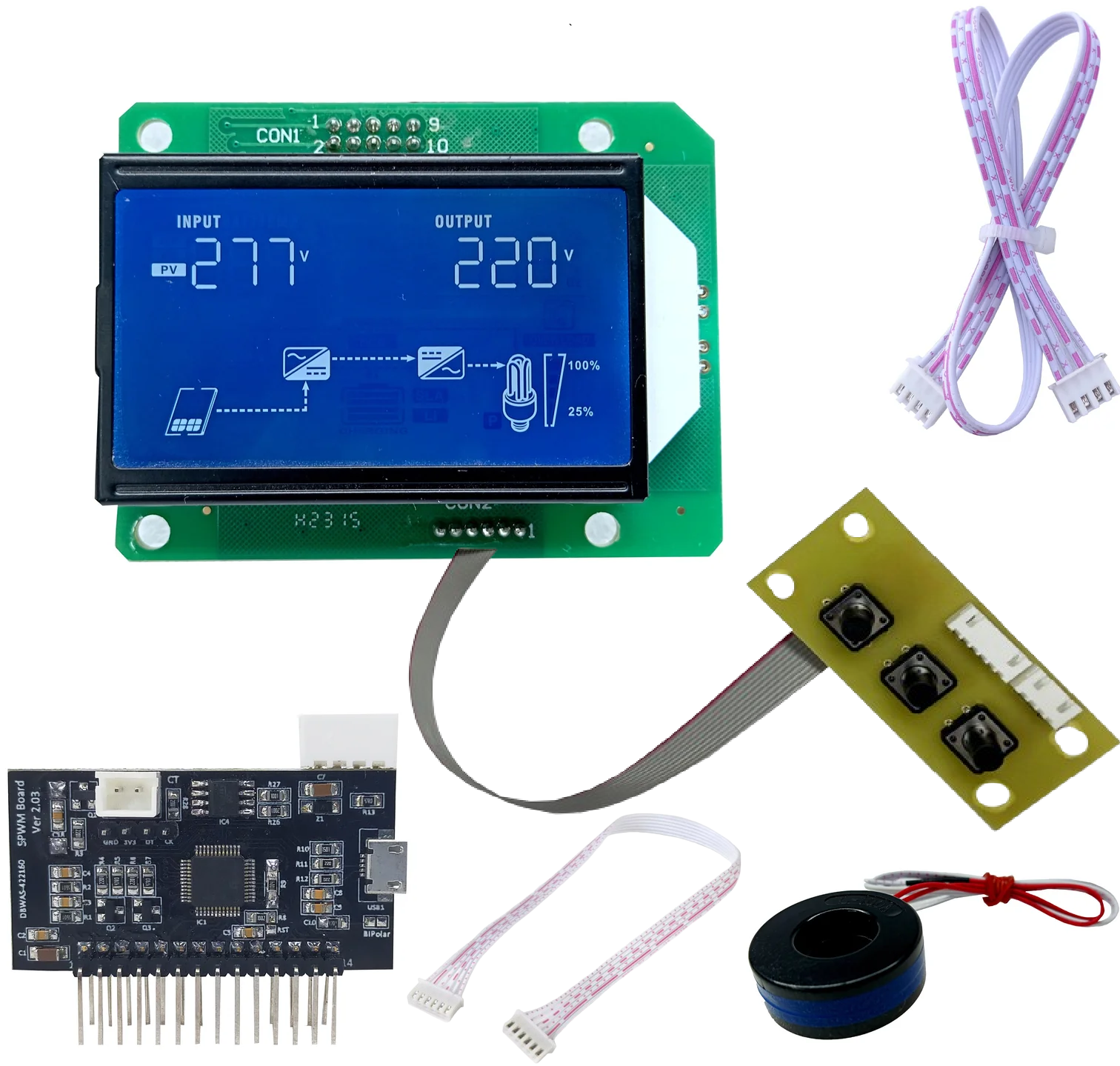

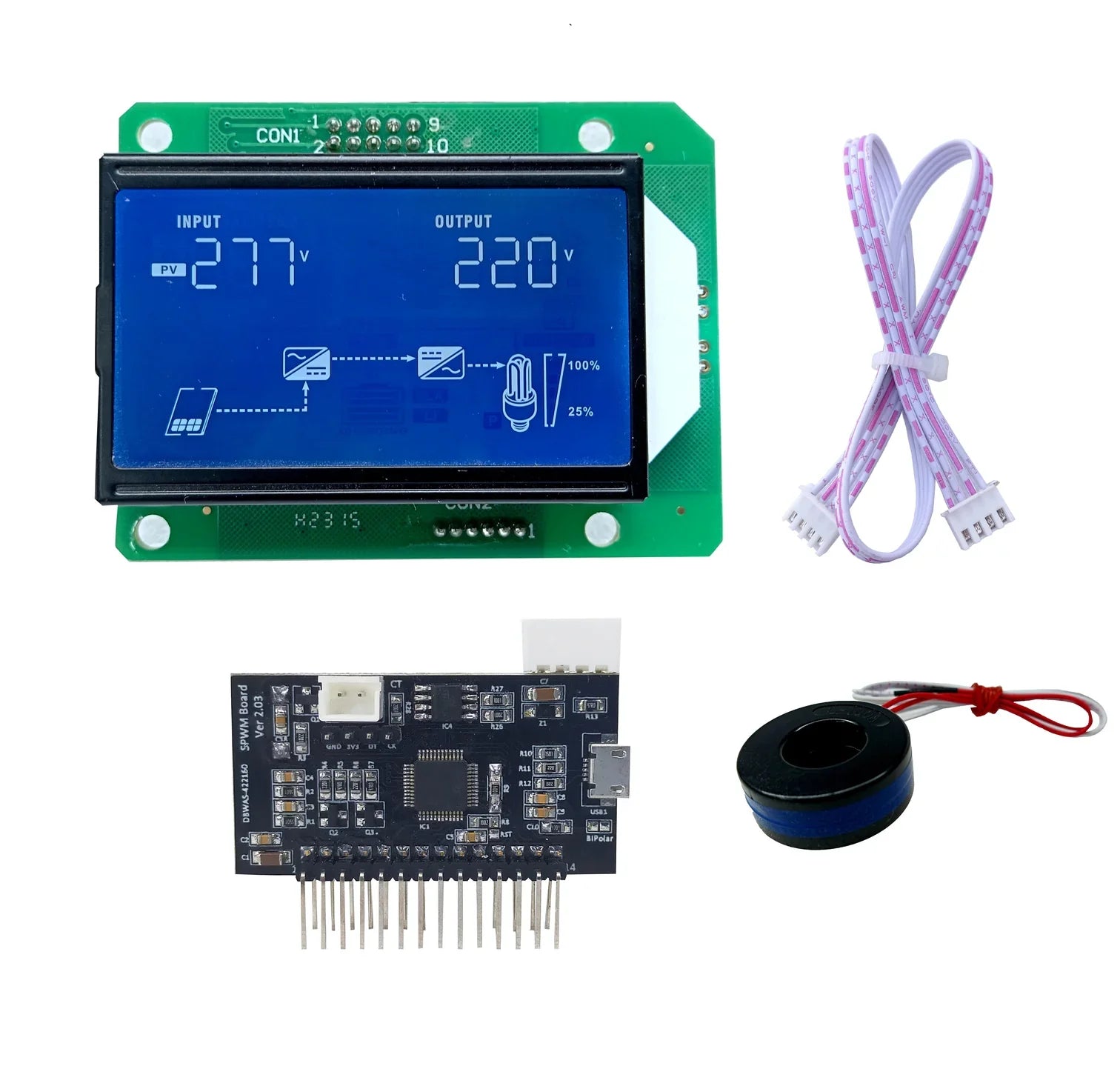

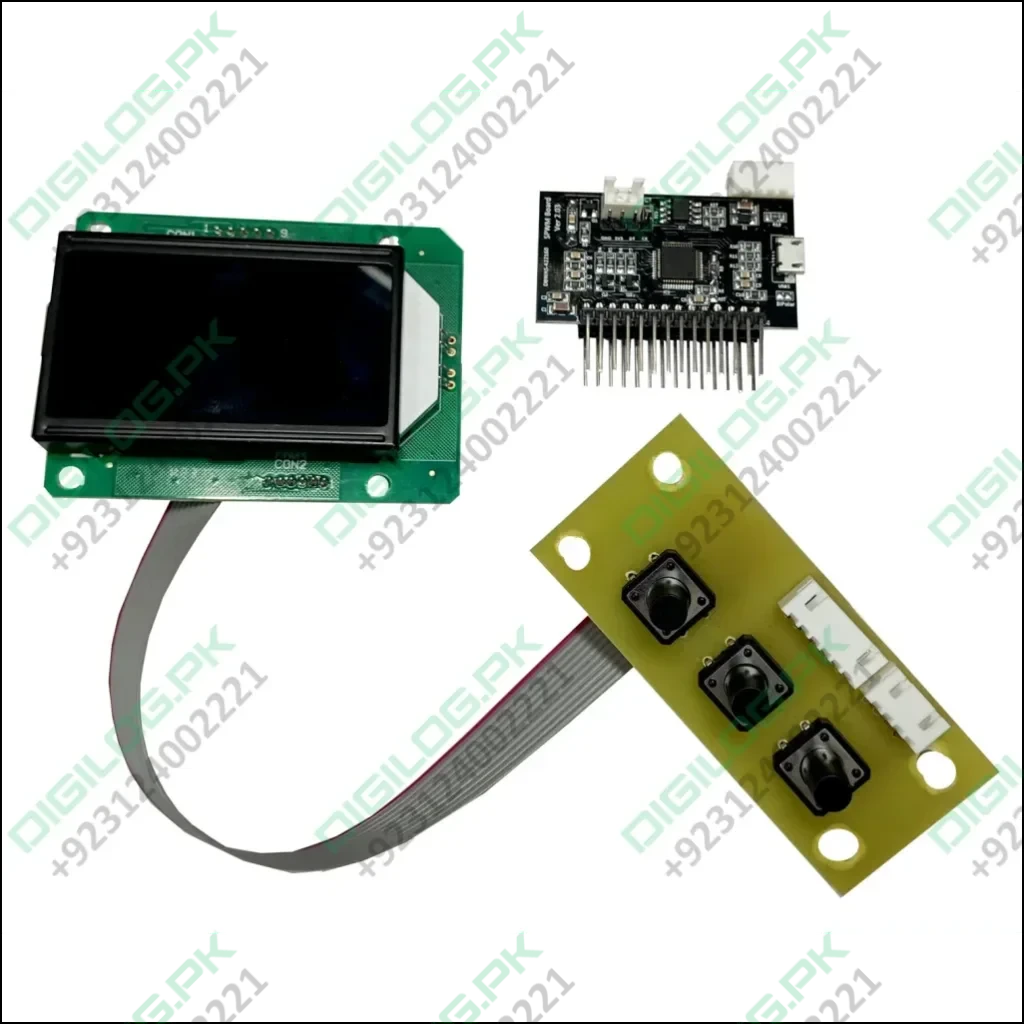

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - kit: blue LCD showing 277 V input and 220 V output, SPWM board, three-button keypad, ribbon cables and a current transformer.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a blue LCD display, a black circuit board, a CT sensor, and a cable.

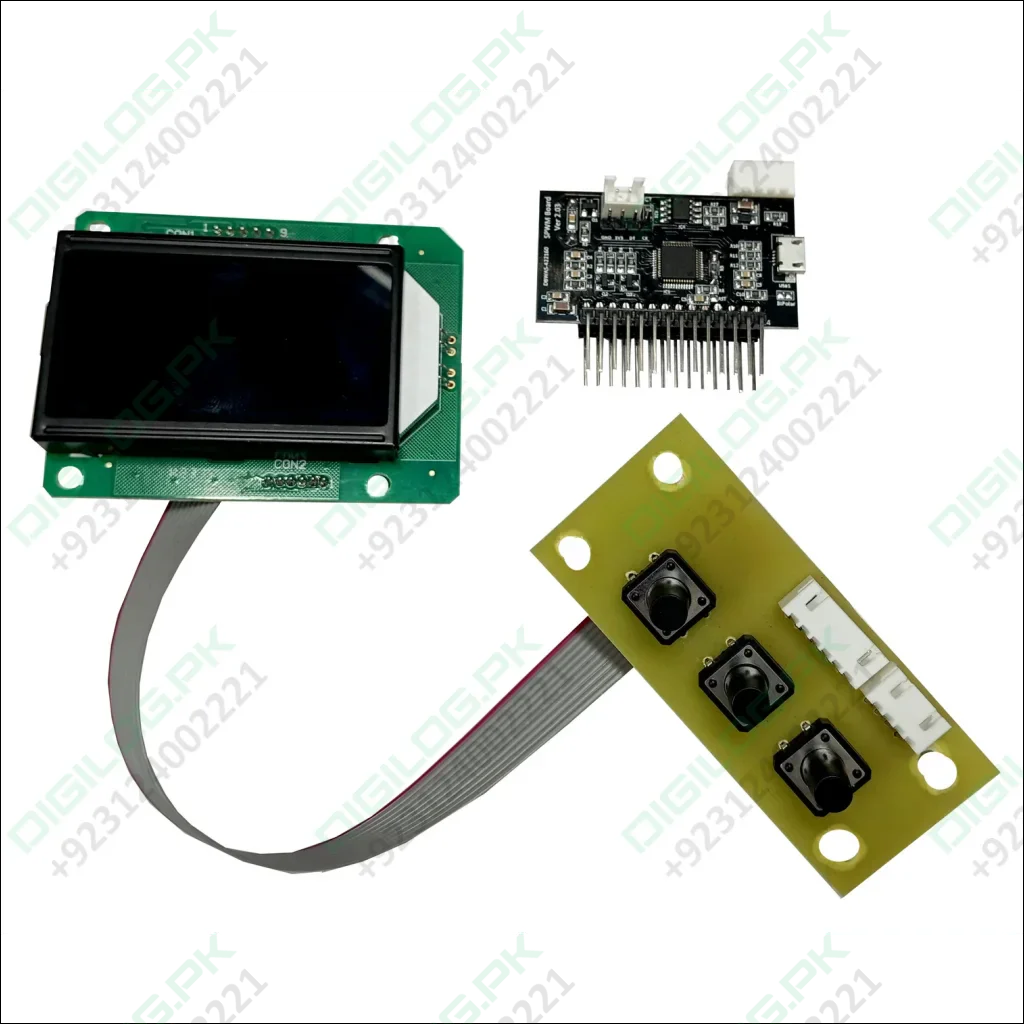

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - with a black controller board, a green LCD display module, and a control board with three buttons connected by a ribbon.

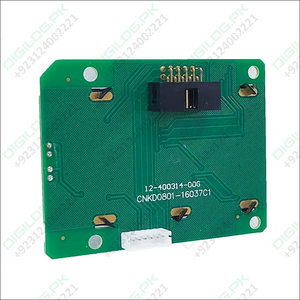

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a green circuit board with a digital display, multiple ports, blue connectors, and various electronic components.

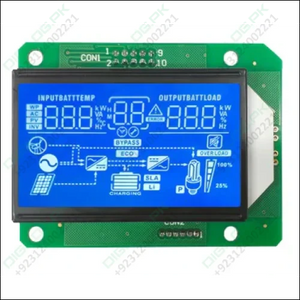

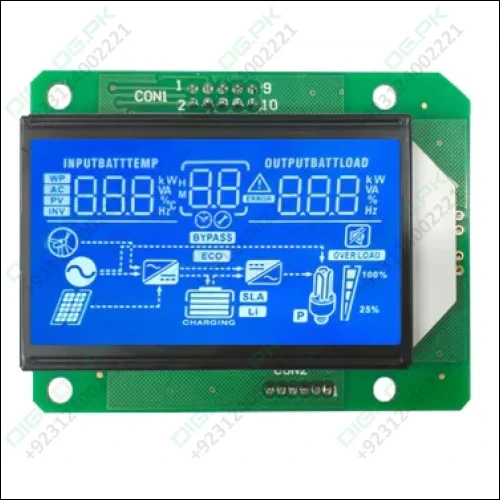

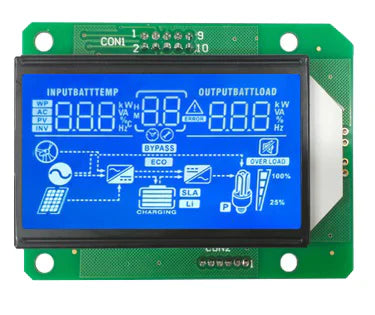

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a rectangular green circuit board with a blue backlit LCD screen displaying icons.

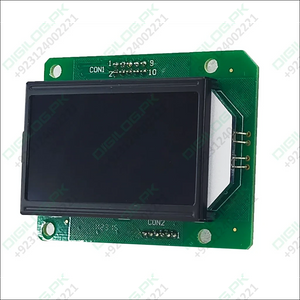

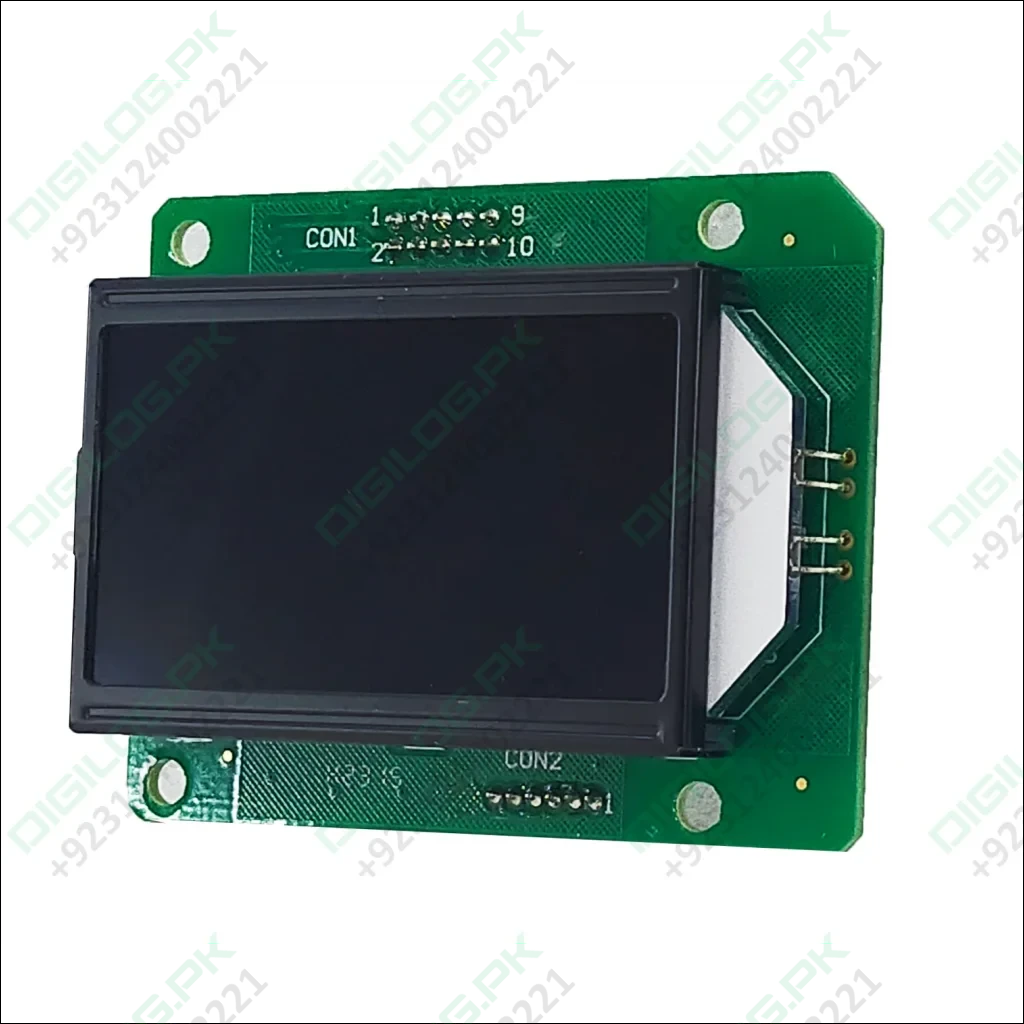

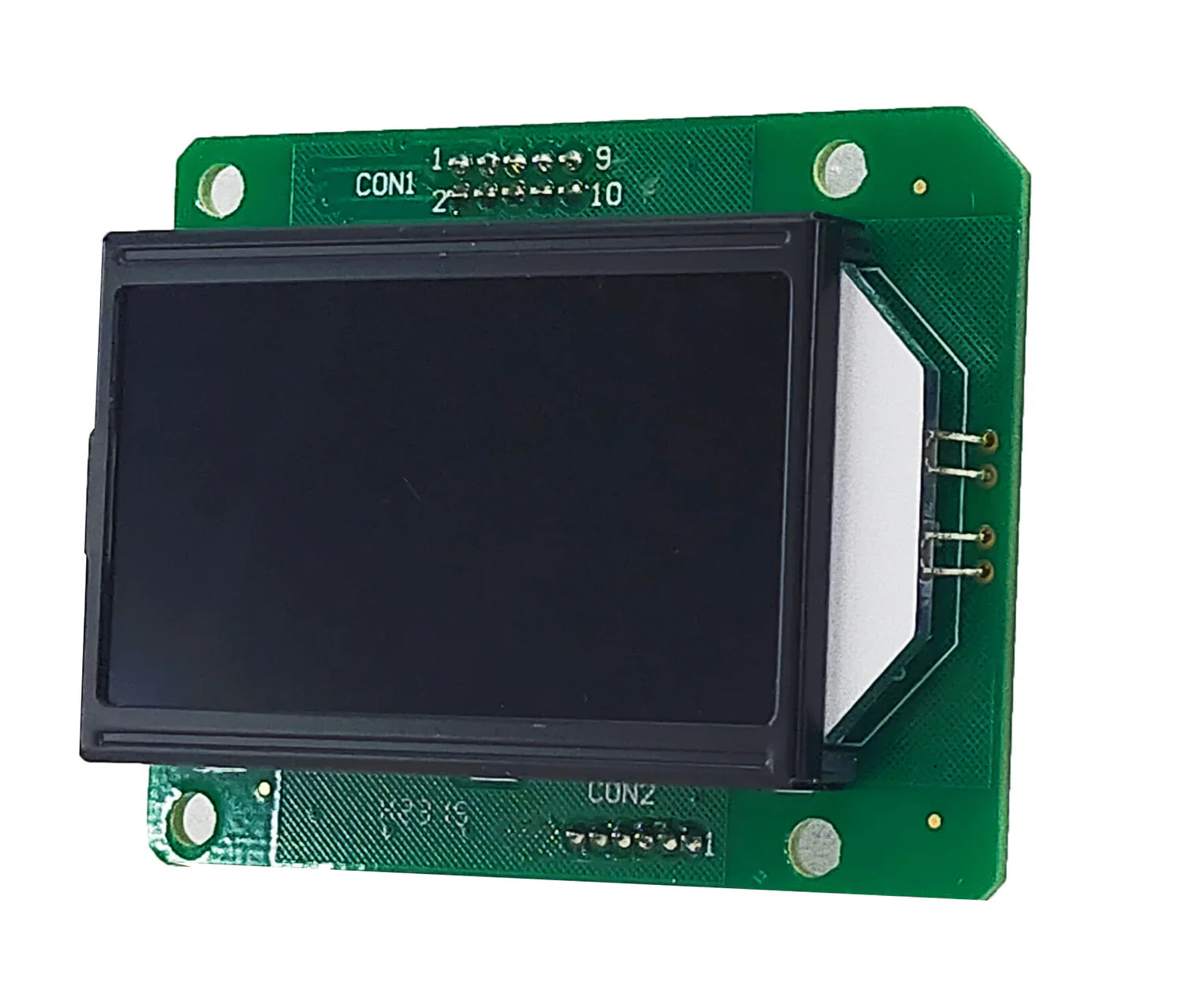

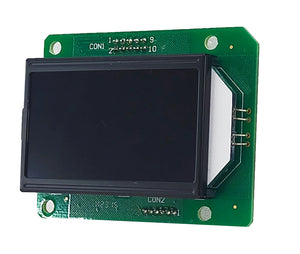

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a green rectangular circuit board featuring a black rectangular LCD screen and two pin connectors.

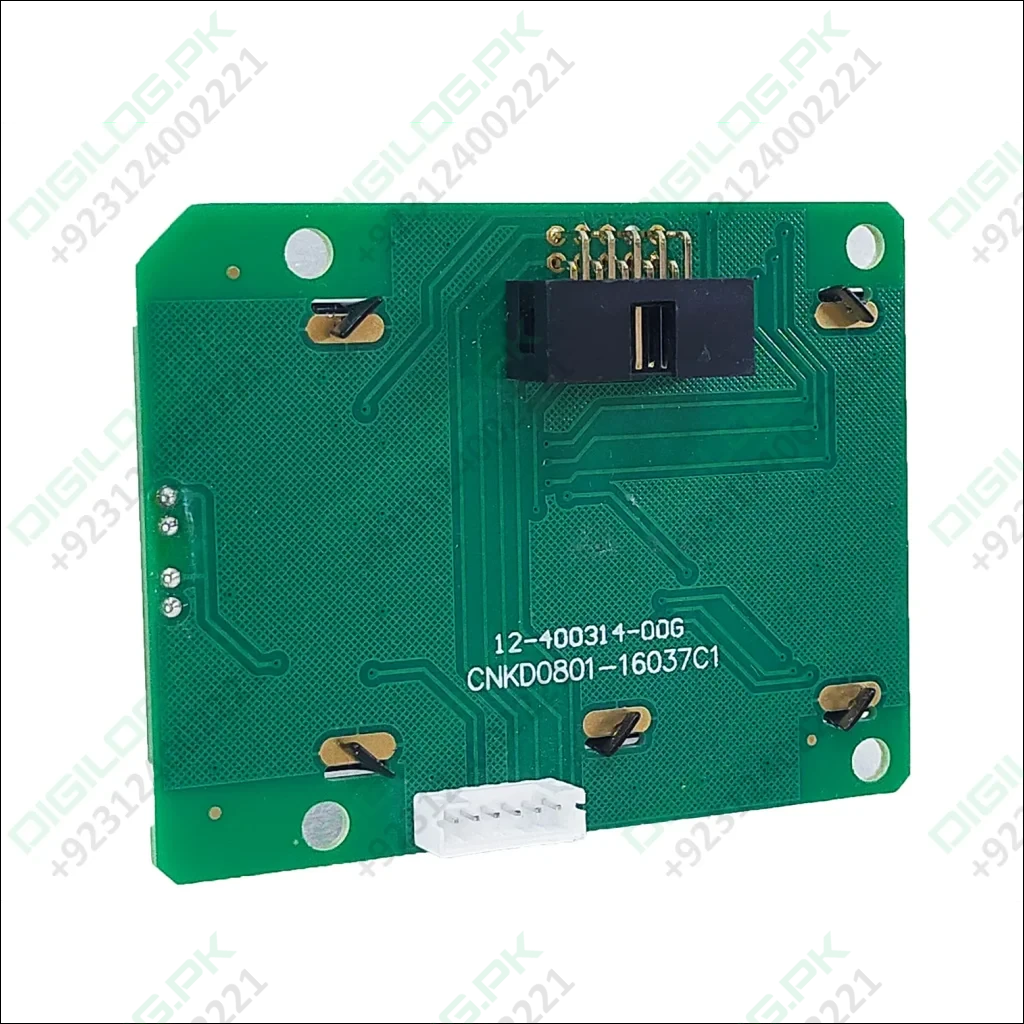

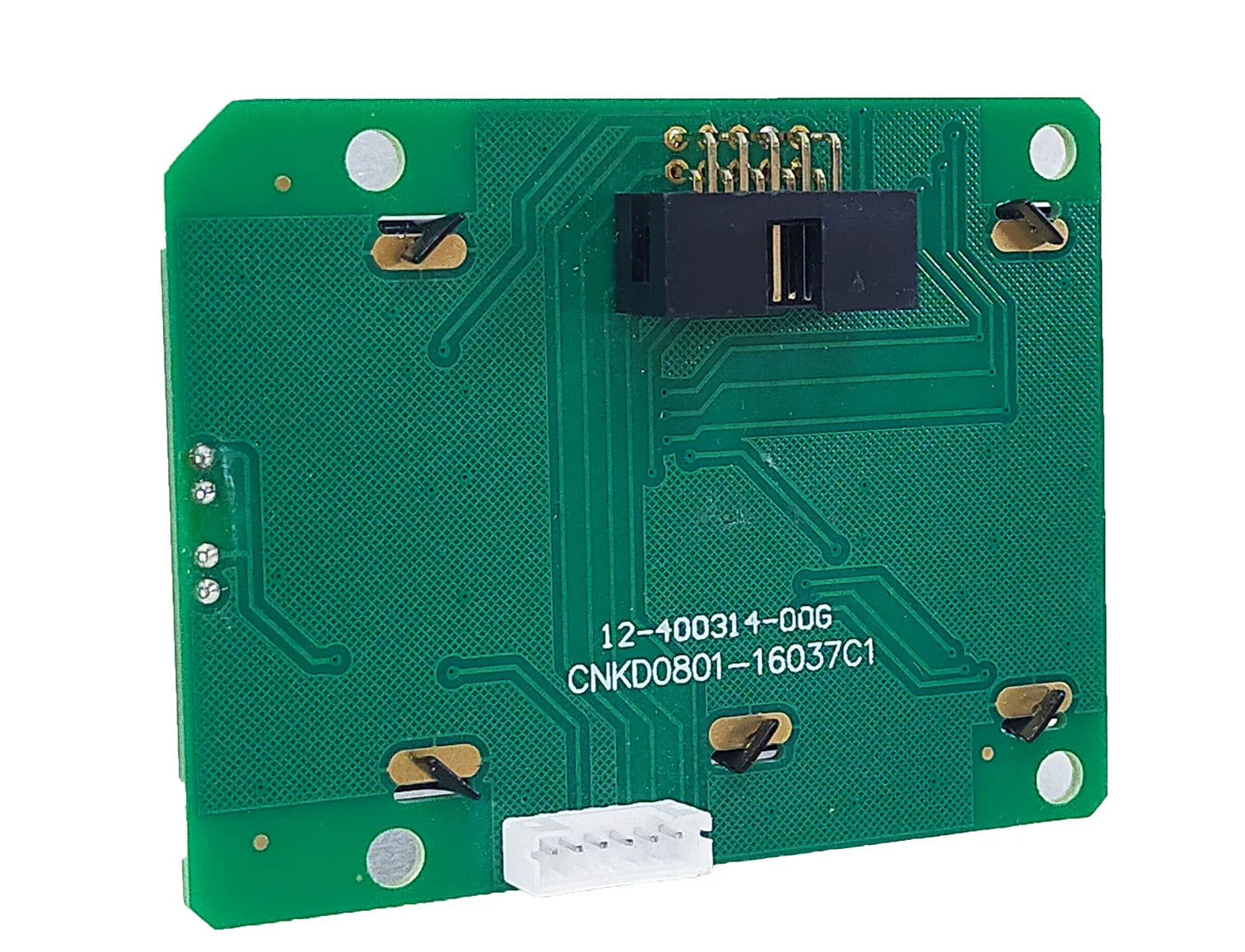

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a green rectangular PCB with a black multi-pin connector, a white header, and printed text.

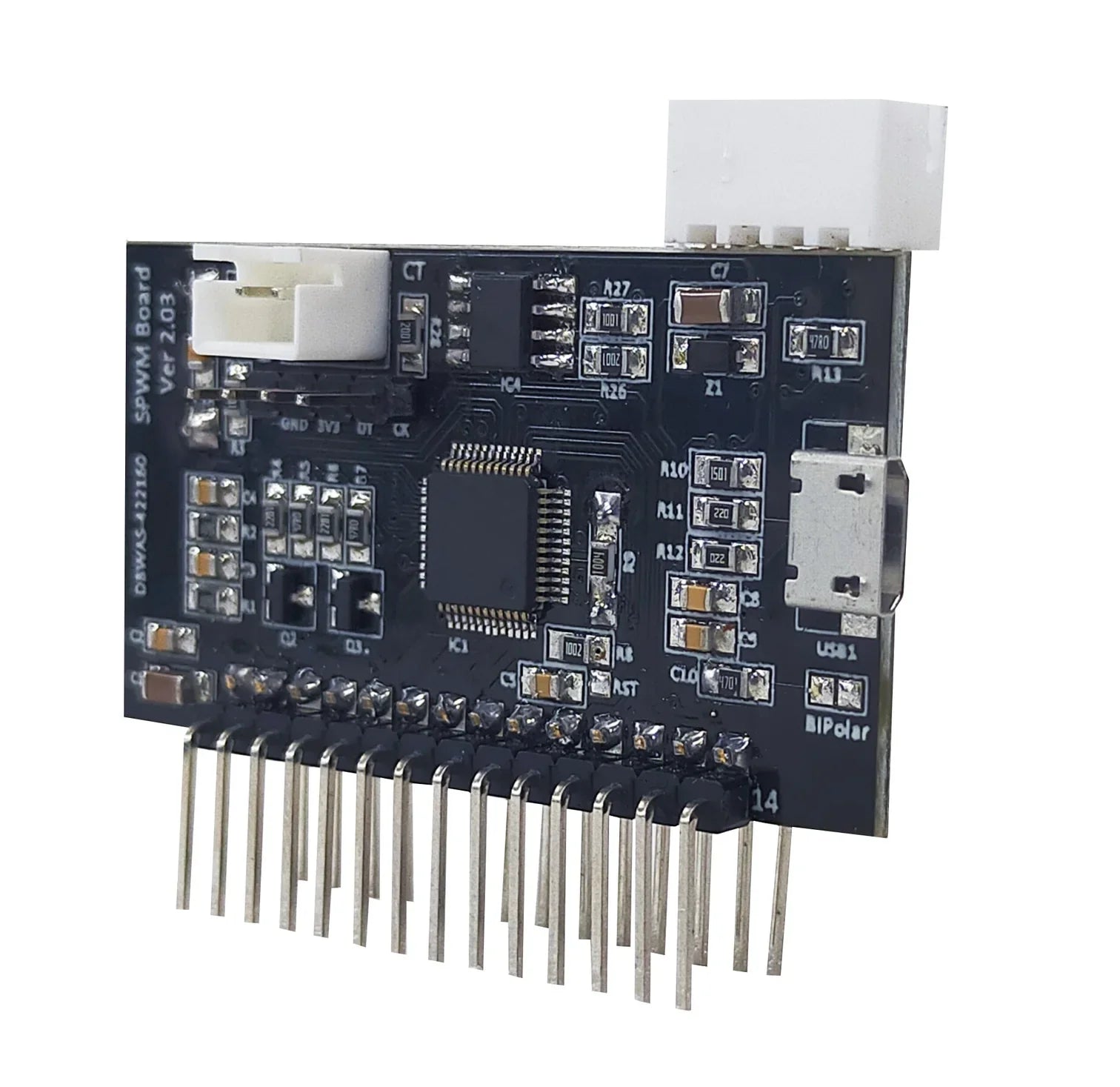

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a black circuit board with a white connector, a micro USB port, and a row of metal pins along the bottom edge.

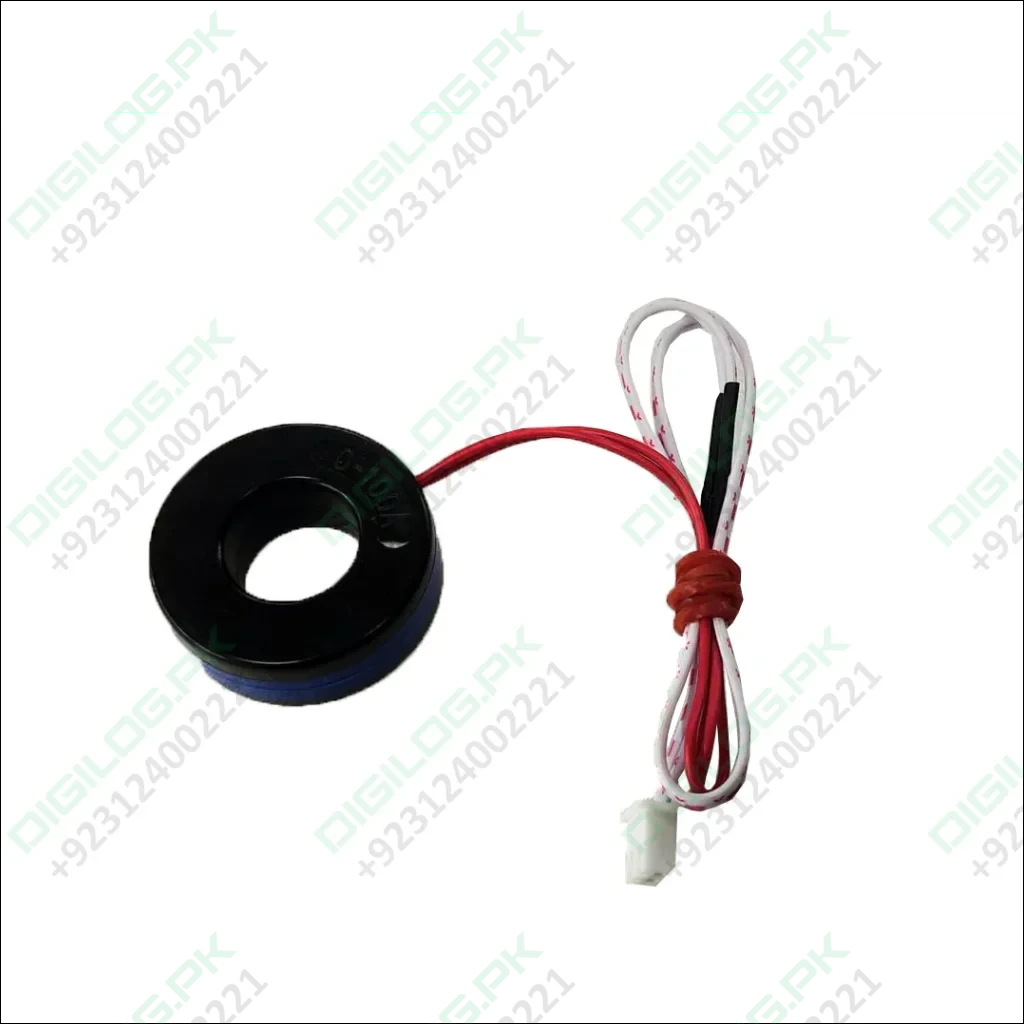

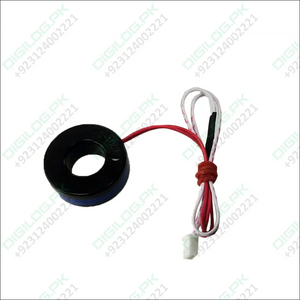

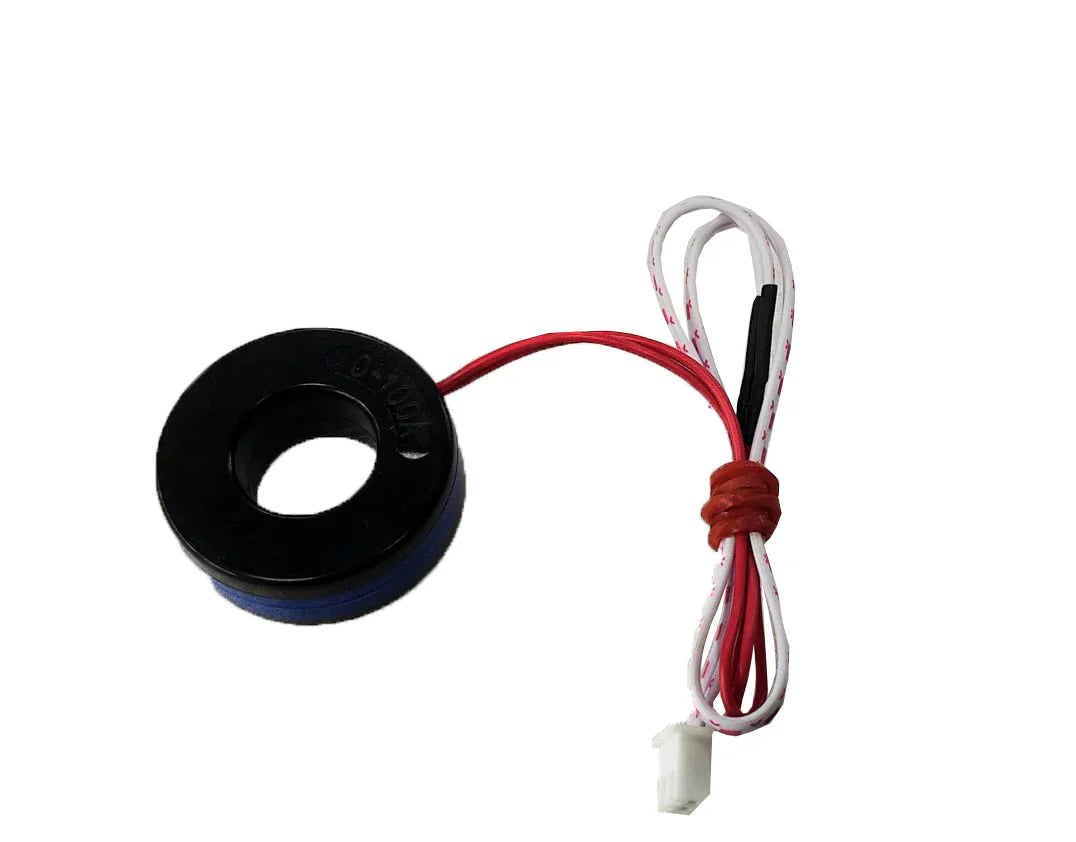

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a black circular current transformer with red and white wires ending in a small white connector.

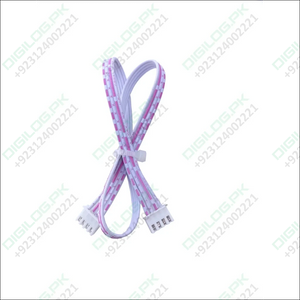

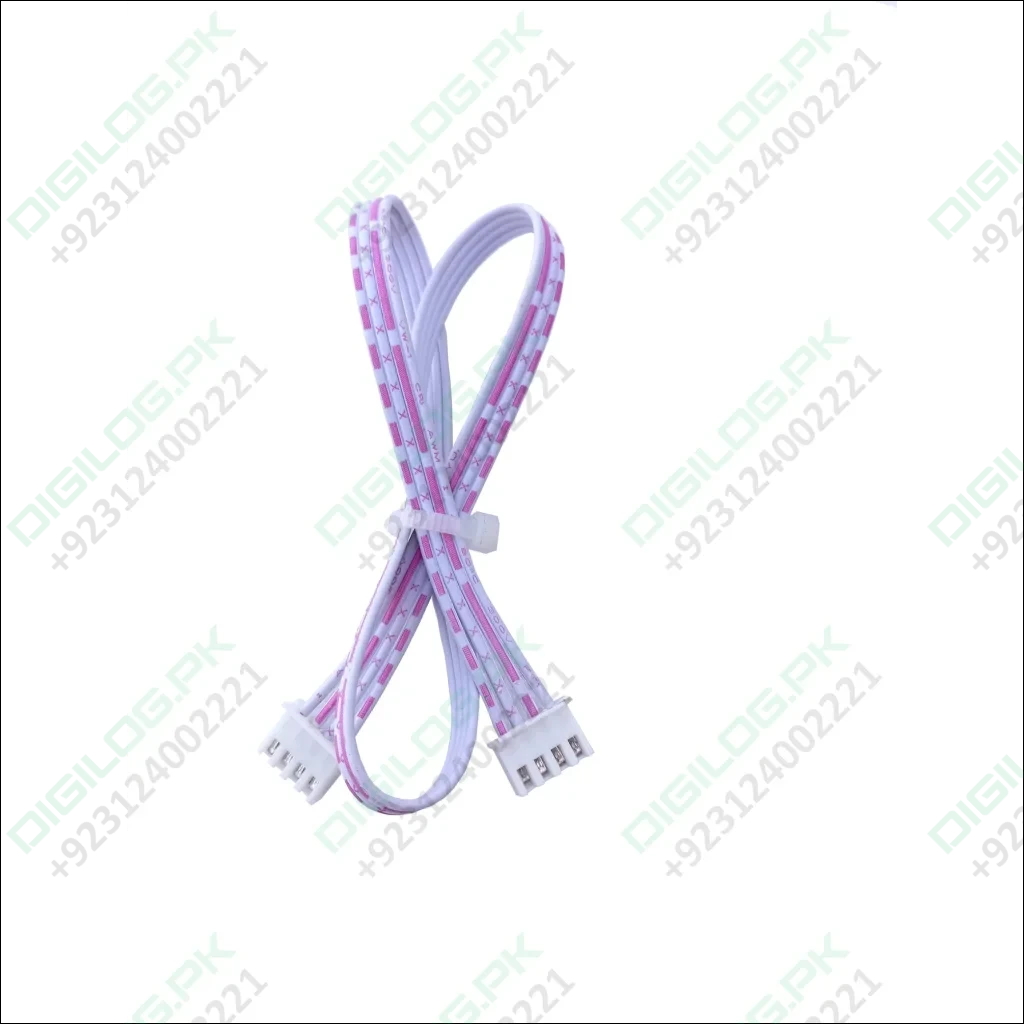

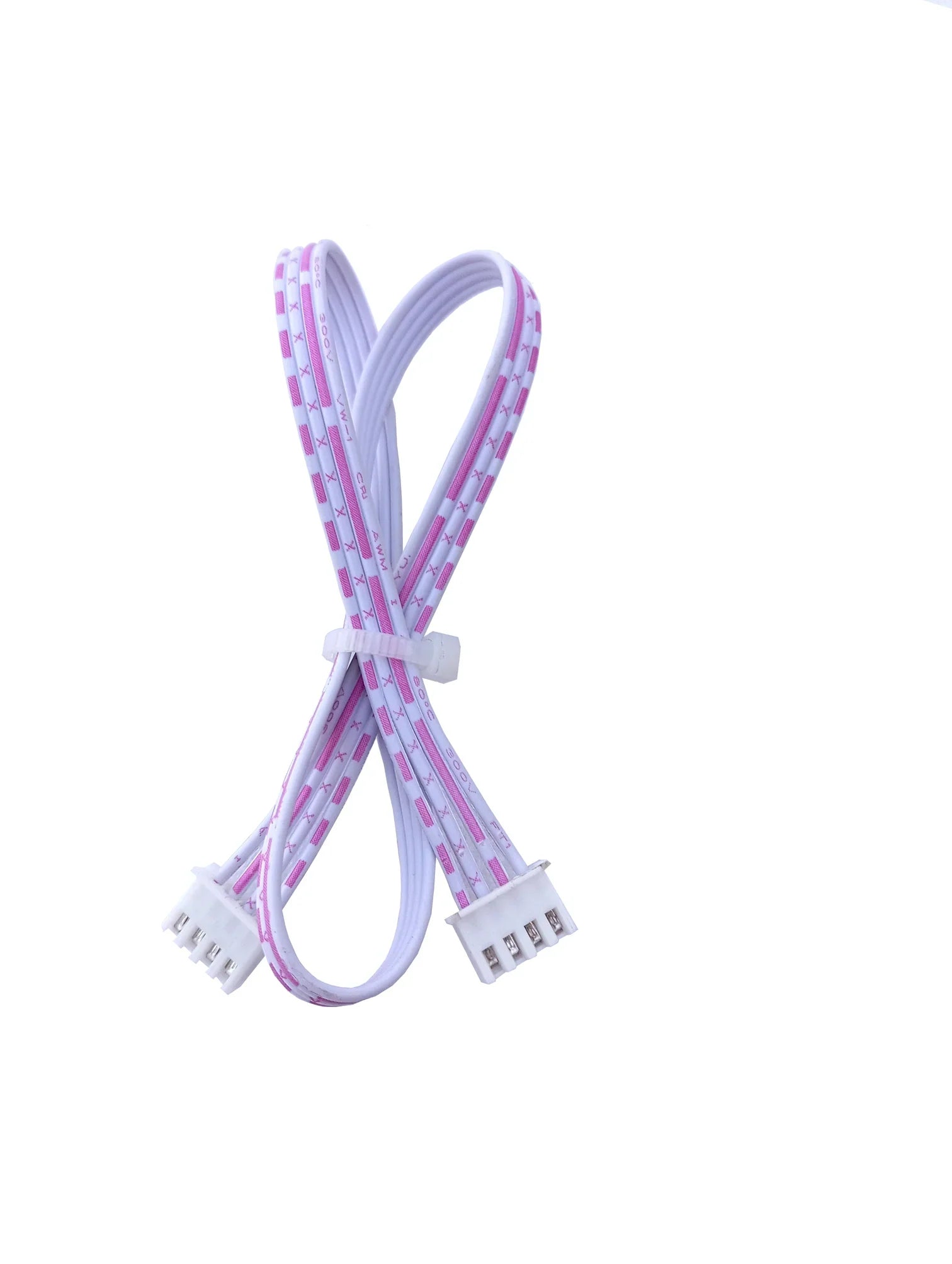

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - + CT + Hybrid Style Display Board IDM-7 accessory cable with white 4-pin connectors on both ends.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - kit: blue LCD showing 277 V input and 220 V output, SPWM board, three-button keypad, ribbon cables and a current transformer.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a blue LCD display, a black circuit board, a CT sensor, and a cable.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - with a black controller board, a green LCD display module, and a control board with three buttons connected by a ribbon.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a green circuit board with a digital display, multiple ports, blue connectors, and various electronic components.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a rectangular green circuit board with a blue backlit LCD screen displaying icons.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a green rectangular circuit board featuring a black rectangular LCD screen and two pin connectors.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a green rectangular PCB with a black multi-pin connector, a white header, and printed text.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a black circuit board with a white connector, a micro USB port, and a row of metal pins along the bottom edge.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - a black circular current transformer with red and white wires ending in a small white connector.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - + CT + Hybrid Style Display Board IDM-7 accessory cable with white 4-pin connectors on both ends.

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7

Sale price Rs 3,180
SKU: b96,krt12
Log in to use Wishlist
Add to Compare

Pickup available at Digilog Electronics

Usually ready in 2 hours

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - kit: blue LCD showing 277 V input and 220 V output, SPWM board, three-button keypad, ribbon cables and a current transformer.

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7 - kit: blue LCD showing 277 V input and 220 V output, SPWM board, three-button keypad, ribbon cables and a current transformer.
STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board IDM-7
Sale priceRs 3,180

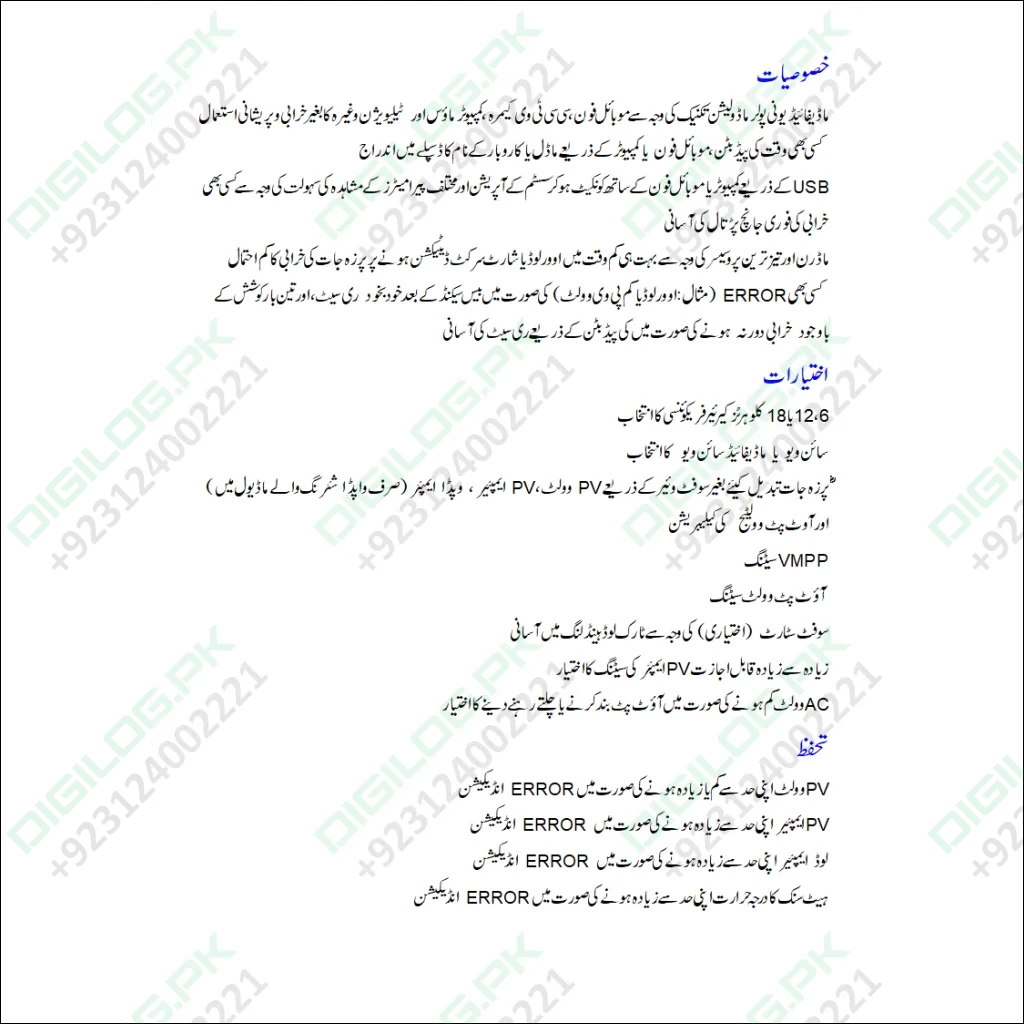

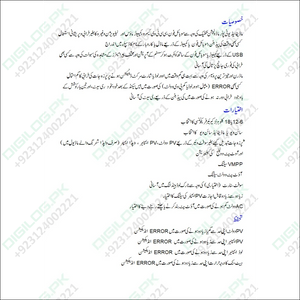

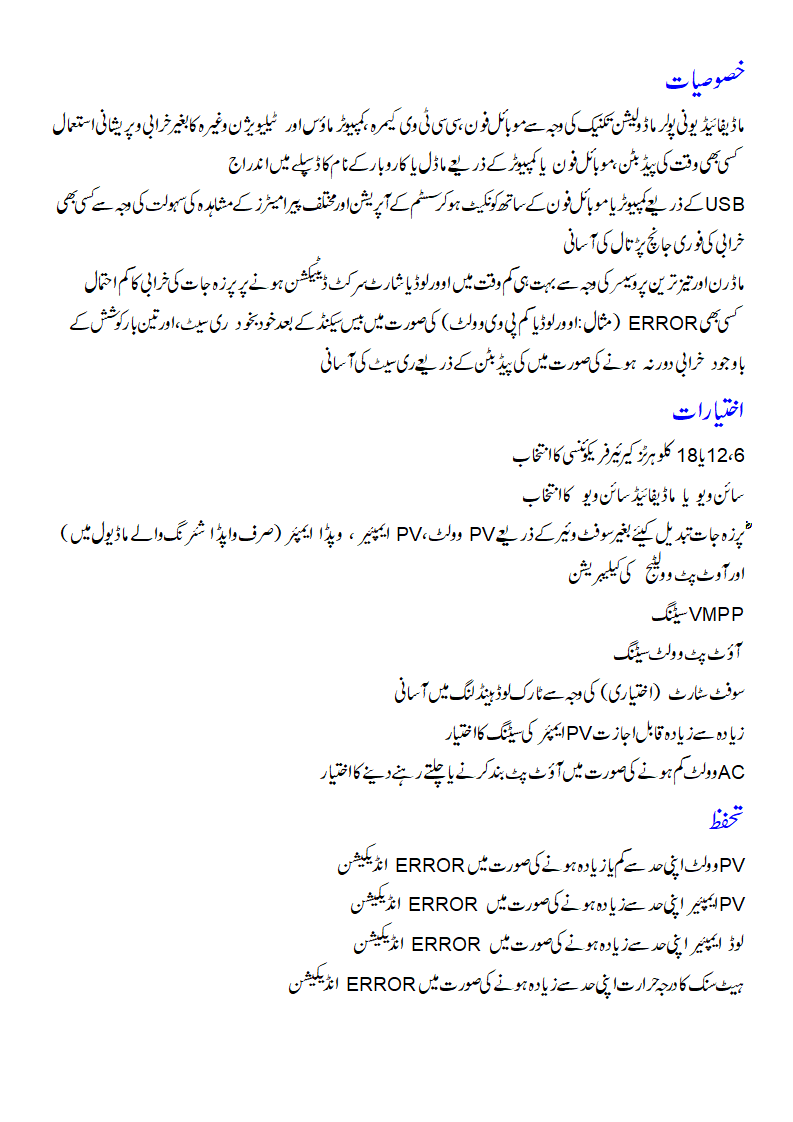

✅ User Manual Download
⭐ Premium Quality Products designed for reliability and durability.
🚚 Fast Shipping Quick delivery to your doorstep.
🔒 Secure Payments Multiple safe payment options are available.

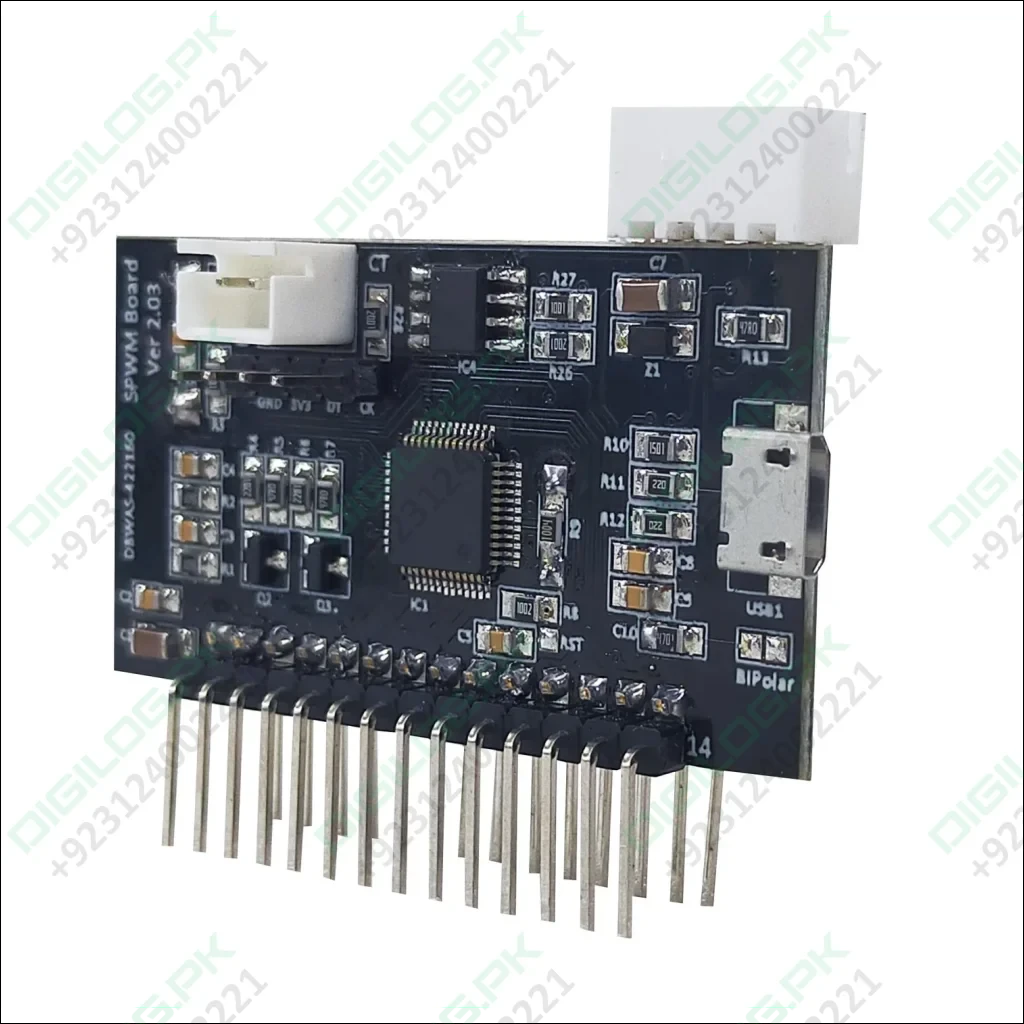

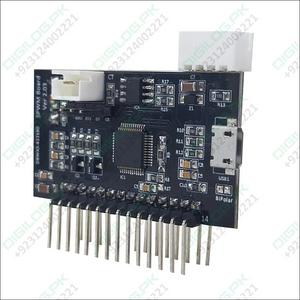

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + Hybrid Style Display Board

Description:
High-Efficiency Sinusoidal Pulse Width Modulation Board with Compact Design and Versatile Functionality.

Specifications:

Feature Details
Operating Voltage 5V DC
Carrier Frequency 6 kHz, 12 kHz, and 18 kHz (User selectable)
Output Frequency 50Hz (fixed)
Operating Temperature 0°C ~ 55°C
Operating Mode Unipolar, Bipolar (User selectable)
Dimensions 51mm x 28mm
PWM Output 3.3 volts, 20 mA (max)
Communication 1 x USART (RS232-C), 1 x USB (VCOM 2.0)
Audible Warnings DC buzzer
Display Options 16x2 LCD Module, 20x4 LCD Module, HT1621 LCD Module, i-Mux TFT display
CT Input CT input with 36.5 Ohm burden resistor (0-100 Ampere full scale)

Key Features:

  • Compact Design: Efficient board size with easy integration capabilities.
  • Multiple Display Options: Compatible with various display modules for flexible project requirements.
  • Enhanced User Control: Includes tactile push buttons for improved interaction.
  • High Performance: Precise PWM output with carrier frequency adjustment.
  • Durable Build: Reliable operation in diverse environmental conditions.

The STM-SPWM Board is your ideal partner for high-performance electronics projects, combining precision, flexibility, and ease of use.

Frequently Bought Together

Hybride LCD Sticker Idm-7 Sticker For Graphical LCD Based Local Solar Inverter - a black rectangular sticker with a rounded left side, featuring an "i-mux" logo, a blank display window, and three buttons. Hybride LCD Sticker Idm-7 Sticker For Graphical LCD Based Local Solar Inverter - a black rectangular overlay with yellow text, a screen cutout, and three buttons, measured by a metal ruler.
Log in to use Wishlist
Add to Compare

Hybride LCD Sticker Idm-7 Sticker For Graphical LCD Based Local Solar Inverter

Sale priceRs 310

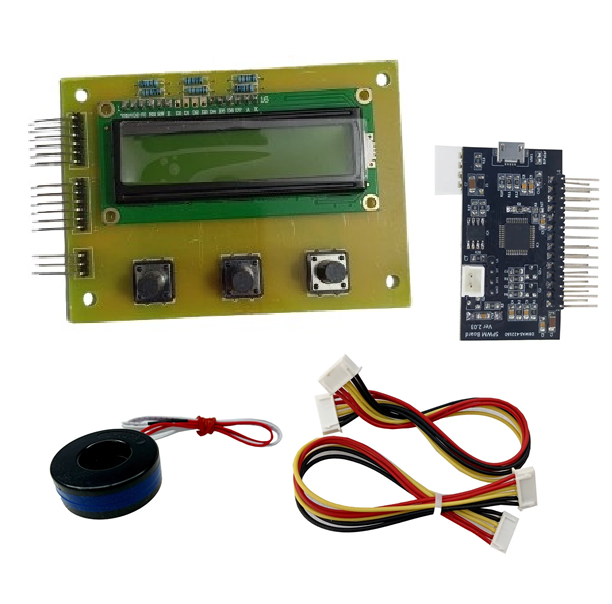

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + 1602 LCD dislay board + Cable Set - with three buttons, a black controller board, a current sensor, and cables. STM Sinewave Inverter Drive Module (Grid Sharing) + CT + 1602 LCD dislay board + Cable Set - shown with a blue 1602 LCD display, a black CT sensor, and a multi-colored ribbon cable set on a white background.
Log in to use Wishlist
Add to Compare

STM Sinewave Inverter Drive Module (Grid Sharing) + CT + 1602 LCD dislay board + Cable Set

Sale priceRs 2,630

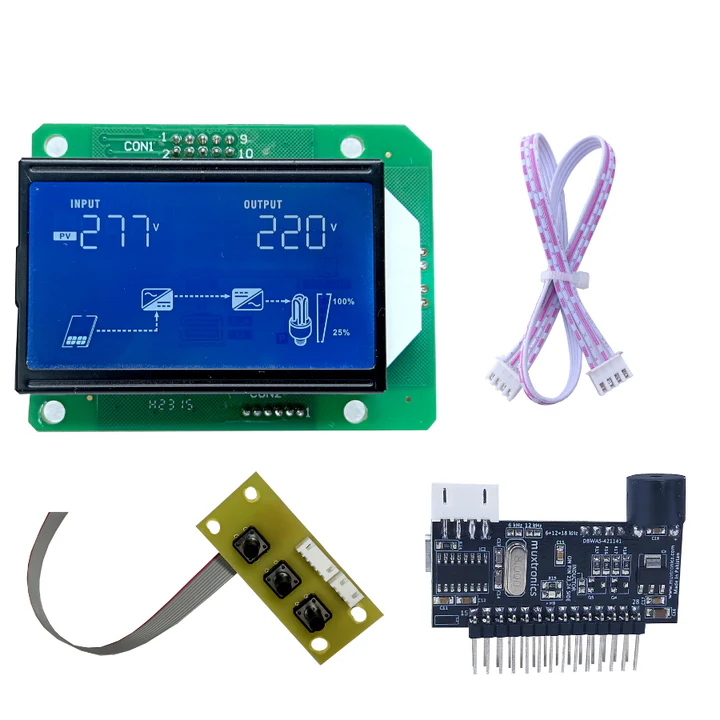

IDM8 Stm Sinewave Inverter Drive Module + Hybrid Style Display Board+ Cable Set - with a blue LCD display showing 277V input and 220V output, a button board, and a ribbon cable. IDM8 Stm Sinewave Inverter Drive Module + Hybrid Style Display Board+ Cable Set - and cable set shown as a flat-lay of components on a white background.
