STM Sinewave Inverter Drive Module Pin to pin replacement for dsPIC30F2010

Rs 1,520 PKR

Availability: Out of stock

SKU: b805,krt208

⭐	Compatability	Pin to pin replacement for dsPIC30F2010 uController
⭐	Premium Quality	Products designed for reliability and durability.
🚚	Fast Shipping	Quick delivery to your doorstep.
🔒	Secure Payments	Multiple safe payment options are available.

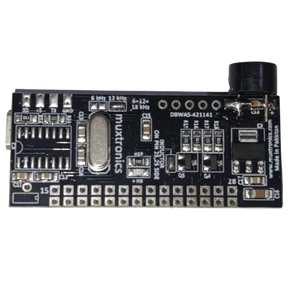

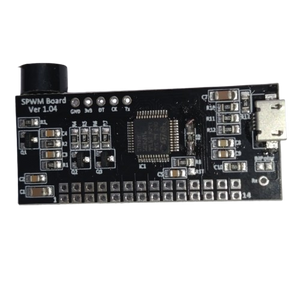

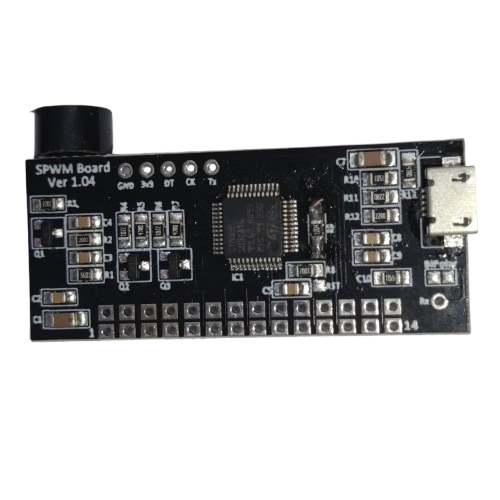

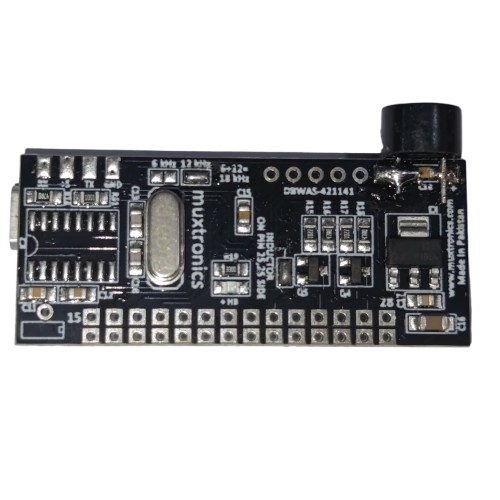

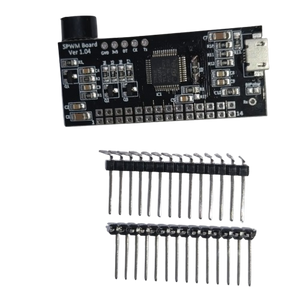

STM Sinewave Inverter Drive Module

High-Efficiency Sinusoidal Pulse Width Modulation Board

This high-performance SPWM board is designed for precision and efficiency and is suitable for various electronic applications.

Specifications

Feature	Details
Operating Voltage	5V DC
Carrier Frequency	6 kHz, 12 kHz and 18 kHz (User-selectable)
Output Frequency	50Hz (Fixed)
Dimensions	51mm x 22mm
Operating Temperature	0°C to 55°C
Operating Modes	Modified Unipolar/Bipolar (User-selectable)
Audible Warnings	Integrated DC buzzer
Communication Ports	1 x USART (RS232-C), 1 x USB (VCOM 2.0)
PWM Output	3.3V, 20 mA (Max)

Display Compatibility

Display Options	Description
16x2 LCD Module	Compact and easy-to-read display
20x4 LCD Module	Larger screen for more information
HT1621 LCD Module	Low-power, versatile display
i-Mux TFT Display	Advanced graphical interface

This STM-SPWM Board is the perfect solution for projects requiring sinusoidal PWM signals with advanced features like selectable carrier frequencies, dual operating modes, and multiple communication interfaces. Its compact size and compatibility with various displays make it ideal for modern applications.
