FR107 Diode | Fast Recovery Rectifier | Digilog.pk

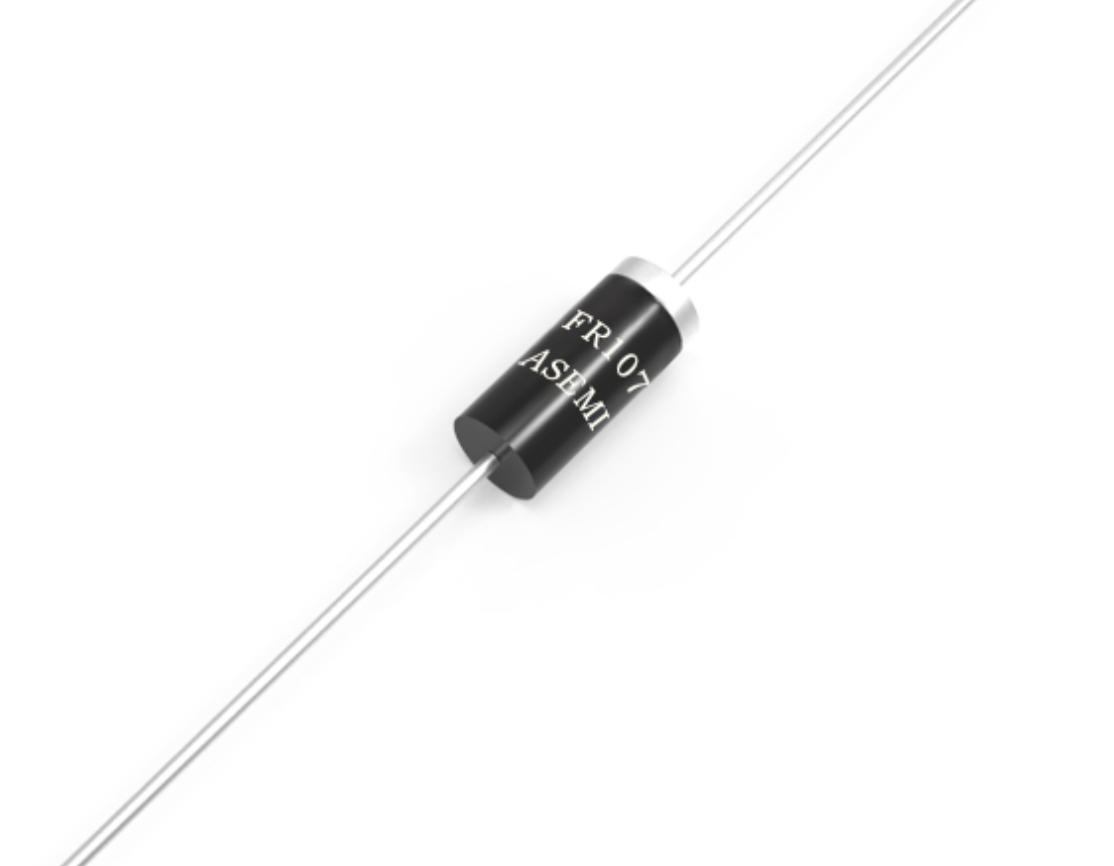

The FR107 Diode is a fast recovery rectifier diode, widely used in switching power supplies (SMPS), high-frequency rectification, freewheeling diodes, and DC power conversion. With a reverse voltage rating of 1000V and a current capacity of 1A, it ensures efficient and reliable high-speed rectification in electronic circuits.

Key Features

• Reverse voltage rating: 1000V, Forward current: 1A
• Ultra-fast reverse recovery time for high-speed switching applications
• Low forward voltage drop for efficient power conversion
• Ideal for SMPS, rectifiers, and freewheeling diodes
• Axial-lead package for easy PCB mounting

Applications

• Switch-mode power supplies (SMPS) for efficient rectification
• High-frequency rectification in DC-DC converters
• Freewheeling diode applications in motors and inductive circuits
• Voltage clamping and transient protection circuits
• General-purpose power rectification in electronic circuits

Related Products

• Schottky Diodes for High-Speed Switching
• Bridge Rectifier Modules
• DC-DC Buck Converter Modules

Learn More

• The Complete Guide to FR107 Diode: Everything You Need to Know
• FR107 diode 1.0a fast recovery diode.
• FR107: Datasheet

Frequently Asked Questions

What is the main function of the FR107 diode Rectifier?

The FR107 diode is used for fast recovery rectification, ensuring efficient power conversion in high-frequency applications.

Can the FR107 be used in power supply circuits?

Yes, the FR107 is ideal for switching power supplies (SMPS), DC-DC converters, and rectifiers.

What package type does the FR107 come in?

The FR107 diode is available in an axial-lead package, making it easy to integrate into PCB and circuit board designs.

Package Includes

• 1 x FR107 Fast Recovery Diode
