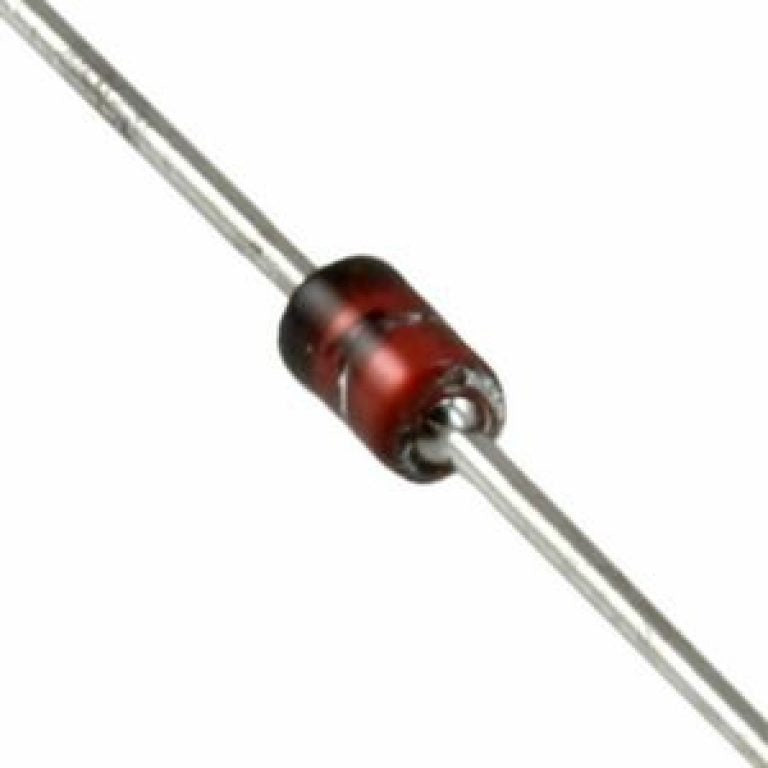

1N4744A 15V 1W Zener Diode – Voltage Regulation & Protection
The 1N4744A 15V 1W Zener Diode is a high-precision voltage regulation diode, commonly used in power supplies, voltage clamping, and overvoltage protection circuits. With a power dissipation of 1W and a Zener voltage of 15V, this diode ensures stable and reliable voltage control in electronic circuits, battery chargers, and signal conditioning system.
Key Features
- Voltage rating: 15V, Power dissipation: 1W
- Designed for voltage regulation and circuit protection
- Low dynamic impedance for stable voltage regulation
- Glass-passivated junction for high reliability and durability
- Axial-lead package for easy PCB integration
Applications
- Voltage regulation in power supply circuits
- Overvoltage protection in battery chargers and converters
- Voltage reference in precision measurement circuits
- Clamping and protection in microcontroller and embedded systems
- Current regulation in LED driver circuits
Related Products
Learn More
Frequently Asked Questions
What is the function of a Zener diode?
A Zener diode regulates voltage by maintaining a constant voltage across its terminals, making it ideal for power supply stabilization and overvoltage protection.
Can this diode be used in a voltage regulator circuit?
Yes, the 1N4744A Zener diode is designed for voltage regulation applications, ensuring a stable 15V output.
What package type does the 1N4744A come in?
The 1N4744A diode comes in an axial-lead package, making it easy to integrate into PCBs and electronic circuits.
Package Includes
- 1 x 1N4744A 15V 1W Zener Diode
