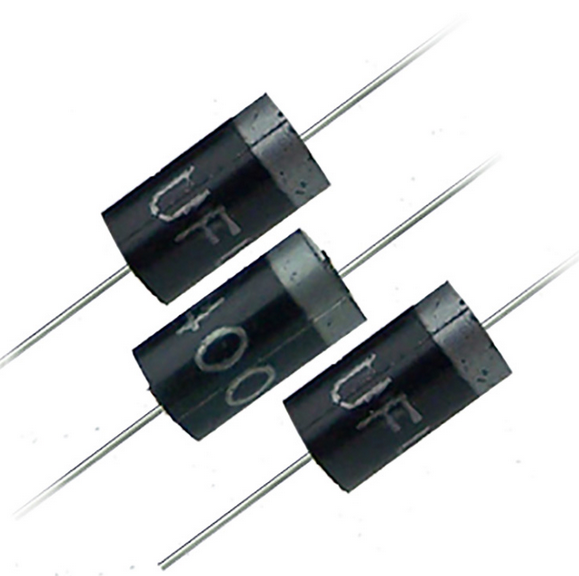

UF4007 Ultra Fast Diode - three black cylindrical electronic components with silver bands and wire leads, marked with the text UF4007.

UF4007 Ultra Fast Diode

Sale price Rs 20
SKU: b641,TMD100,Th50,KRT
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

UF4007 Ultra Fast Diode - three black cylindrical electronic components with silver bands and wire leads, marked with the text UF4007.
+
68µF 400V Electrolytic Capacitor - three brown cylindrical electrolytic capacitors with two metal leads each, showing 68µF and 420V printed on the body.
+
UC3843 Current Mode PWM Controller IC DIP-8 Package - a black 8-pin integrated circuit with white text showing UC3843AN printed on its top surface.
+
FR107 Diode | Fast Recovery Rectifier | Digilog.pk - a black cylindrical fast recovery rectifier with a silver cathode band and two axial wire leads, shown against a white background.
FR107 Diode | Fast Recovery Rectifier | Digilog.pk - a black cylindrical fast recovery rectifier with a silver cathode band and two axial wire leads, shown against a white background.
This item: UF4007 Ultra Fast Diode -
Sale price Rs 20
68µF 400V Electrolytic Capacitor - three brown cylindrical electrolytic capacitors with two metal leads each, showing 68µF and 420V printed on the body.
68µF 400V Electrolytic Capacitor -
Sale price Rs 60
UC3843 Current Mode PWM Controller IC DIP-8 Package - a black 8-pin integrated circuit with white text showing UC3843AN printed on its top surface.
UC3843 Current Mode PWM Controller IC DIP-8 Package -
Sale price Rs 40
FR107 Diode | Fast Recovery Rectifier | Digilog.pk - a black cylindrical fast recovery rectifier with a silver cathode band and two axial wire leads, shown against a white background.
FR107 Diode | Fast Recovery Rectifier | Digilog.pk -
Sale price Rs 10
Price for all:
Sale total price Rs 130

Pickup available at Digilog Electronics

Usually ready in 2 hours

UF4007 Ultra Fast Diode - three black cylindrical electronic components with silver bands and wire leads, marked with the text UF4007.

UF4007 Ultra Fast Diode

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
UF4007 Ultra Fast Diode - three black cylindrical electronic components with silver bands and wire leads, marked with the text UF4007.
UF4007 Ultra Fast Diode
Sale priceRs 20

UF4007 Ultra Fast Recovery Rectifier Diode

The UF4007 is a high-performance ultra-fast recovery rectifier diode designed for applications requiring fast switching speeds and low power loss. With a 1A current rating and 1000V reverse voltage capability, this diode is ideal for power electronics projects.

Key Features:

  • Ultra-fast recovery time for efficient switching
  • Maximum forward current: 1A
  • Peak reverse voltage: 1000V
  • Low forward voltage drop for reduced power dissipation
  • DO-41 axial package for easy through-hole mounting
  • Operating temperature range: -65°C to +150°C

Applications:

  • Switch-mode power supplies (SMPS)
  • DC-DC converters and inverters
  • Motor control circuits
  • Freewheeling and snubber circuits
  • High-frequency rectification
  • Arduino, Raspberry Pi, and ESP32 power projects

Technical Specifications:

  • Part Number: UF4007
  • Package: DO-41 (Axial)
  • Forward Current (IF): 1A
  • Reverse Voltage (VRRM): 1000V
  • Forward Voltage Drop (VF): 1.7V @ 1A
  • Recovery Time: Ultra-fast (typically 75ns)

Perfect for engineers, makers, and electronics enthusiasts working on power supply designs, motor controllers, and high-frequency switching applications in Pakistan.
