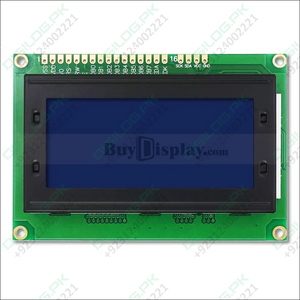

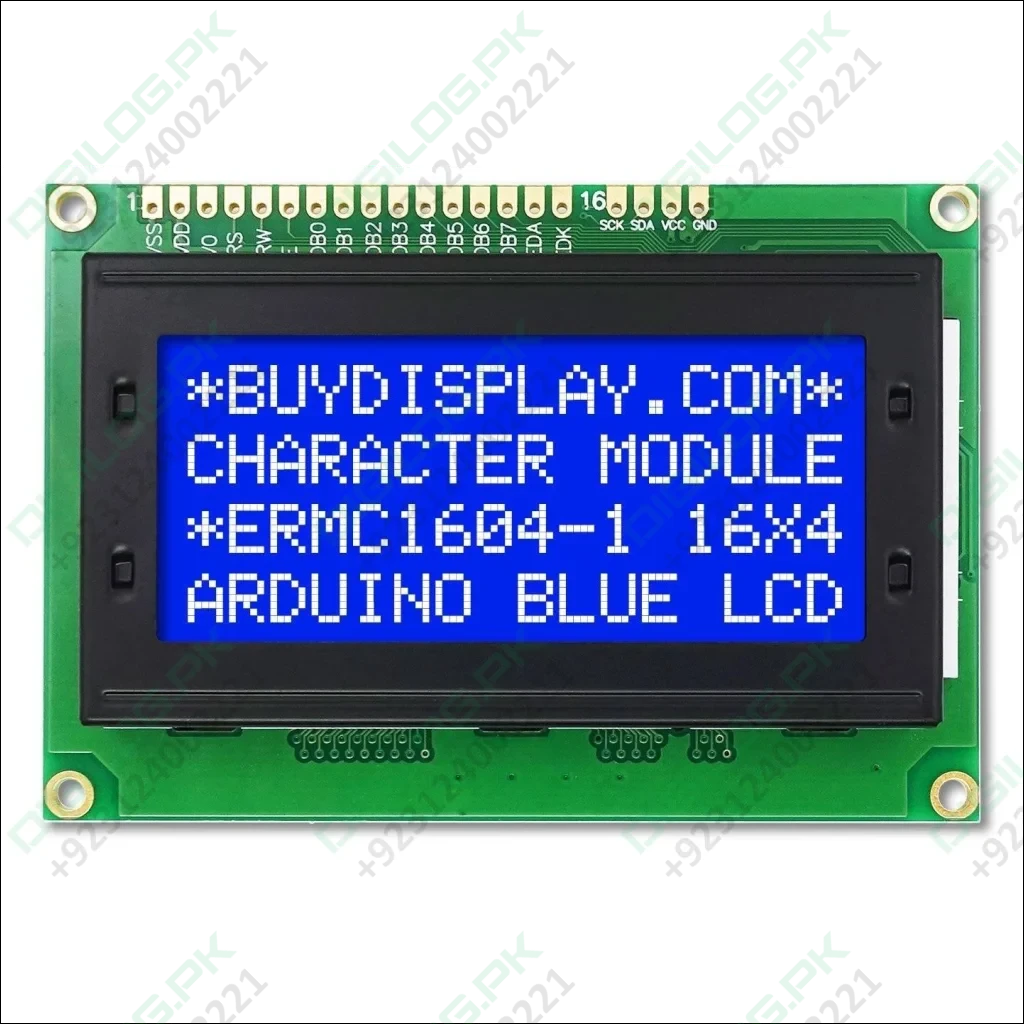

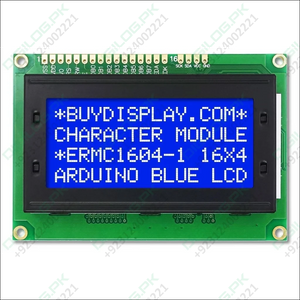

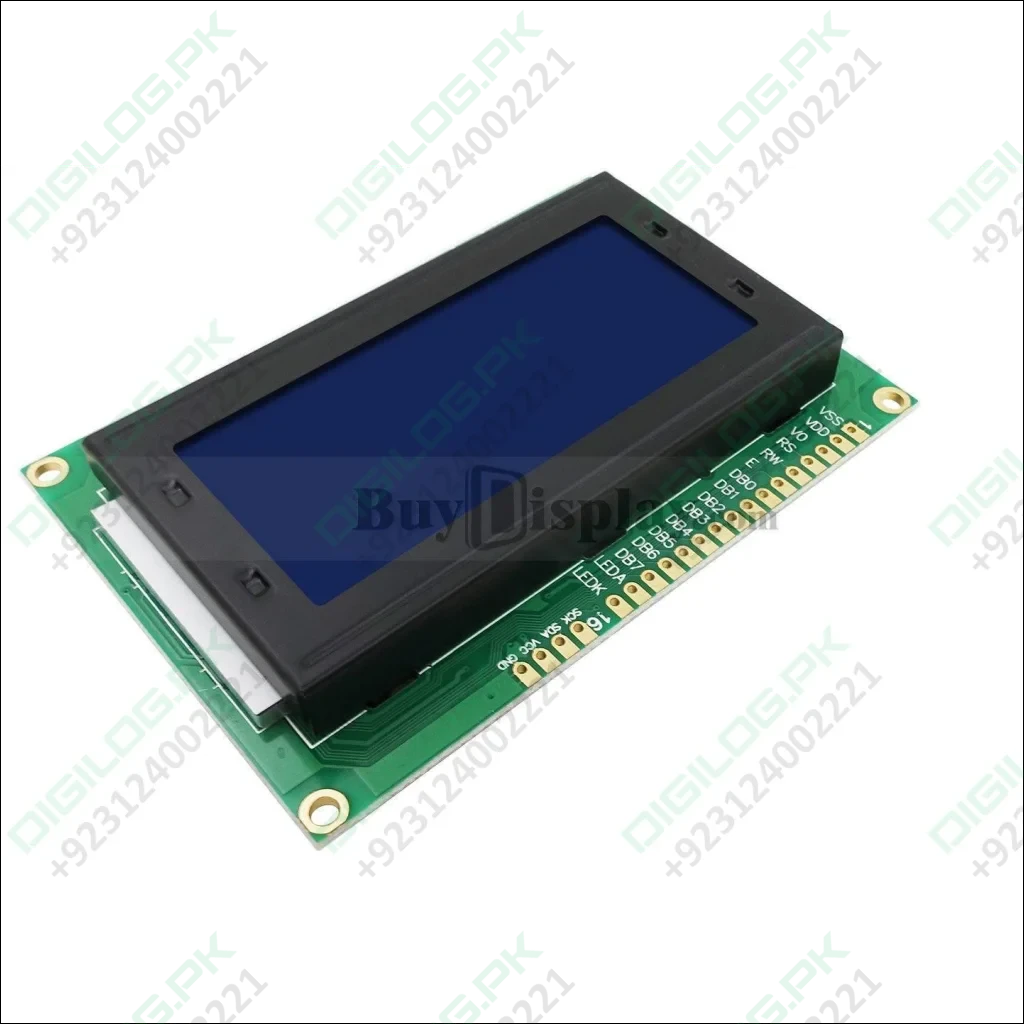

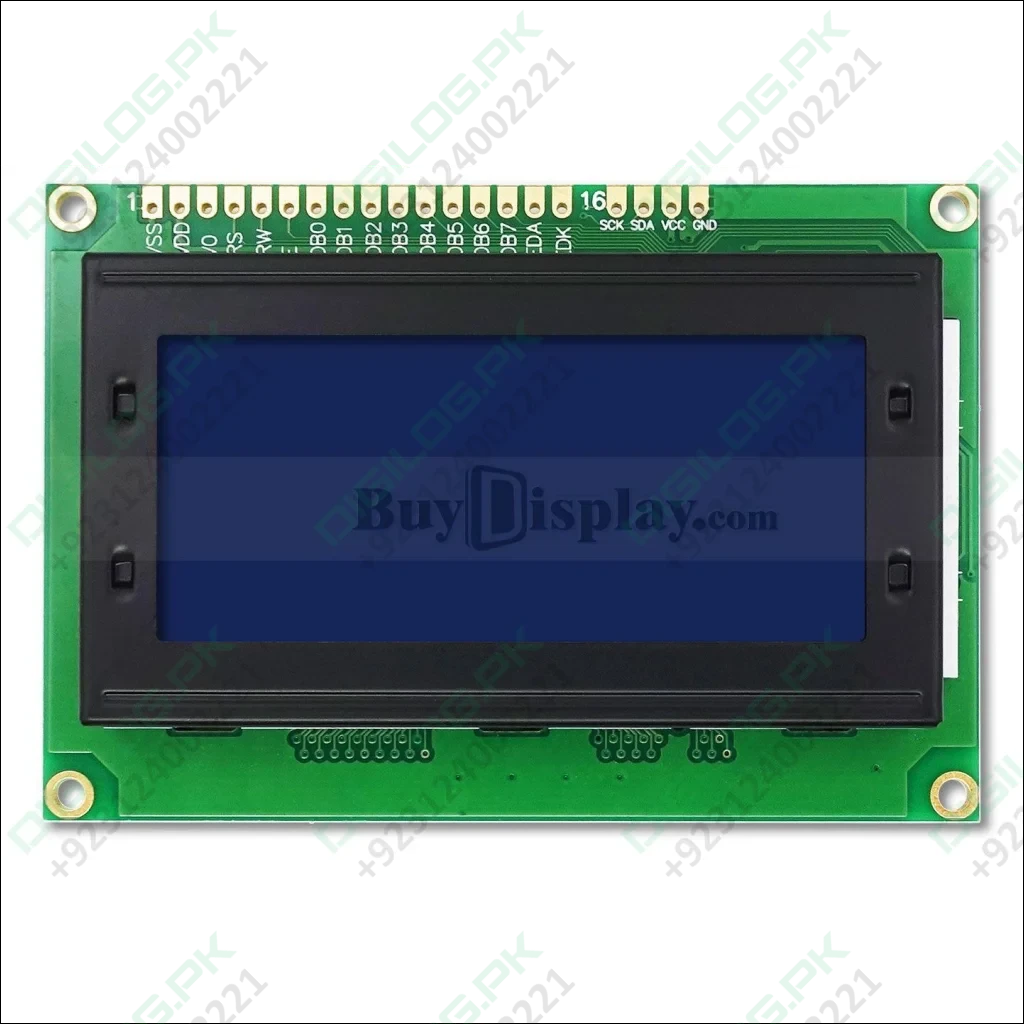

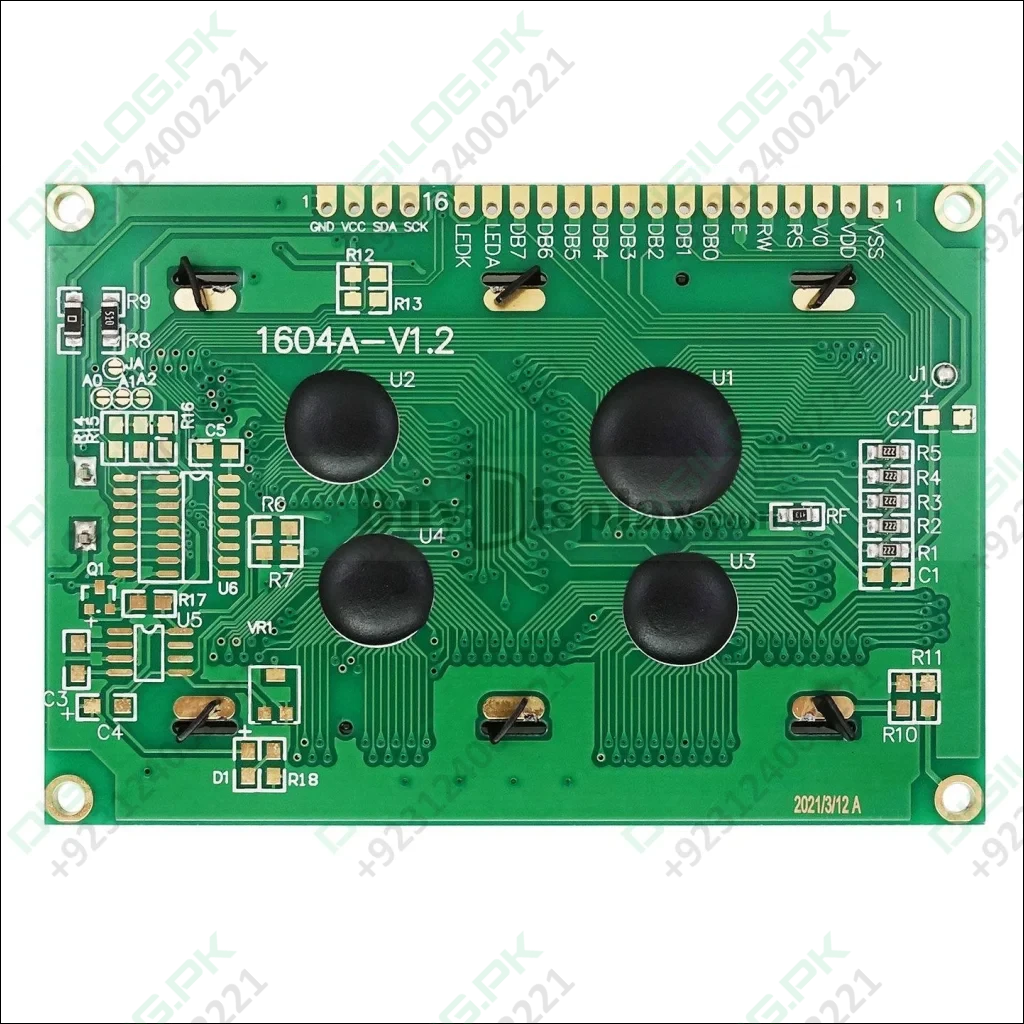

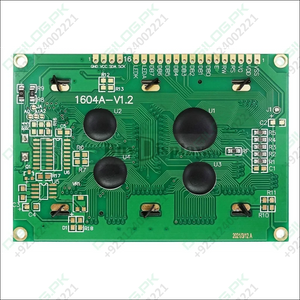

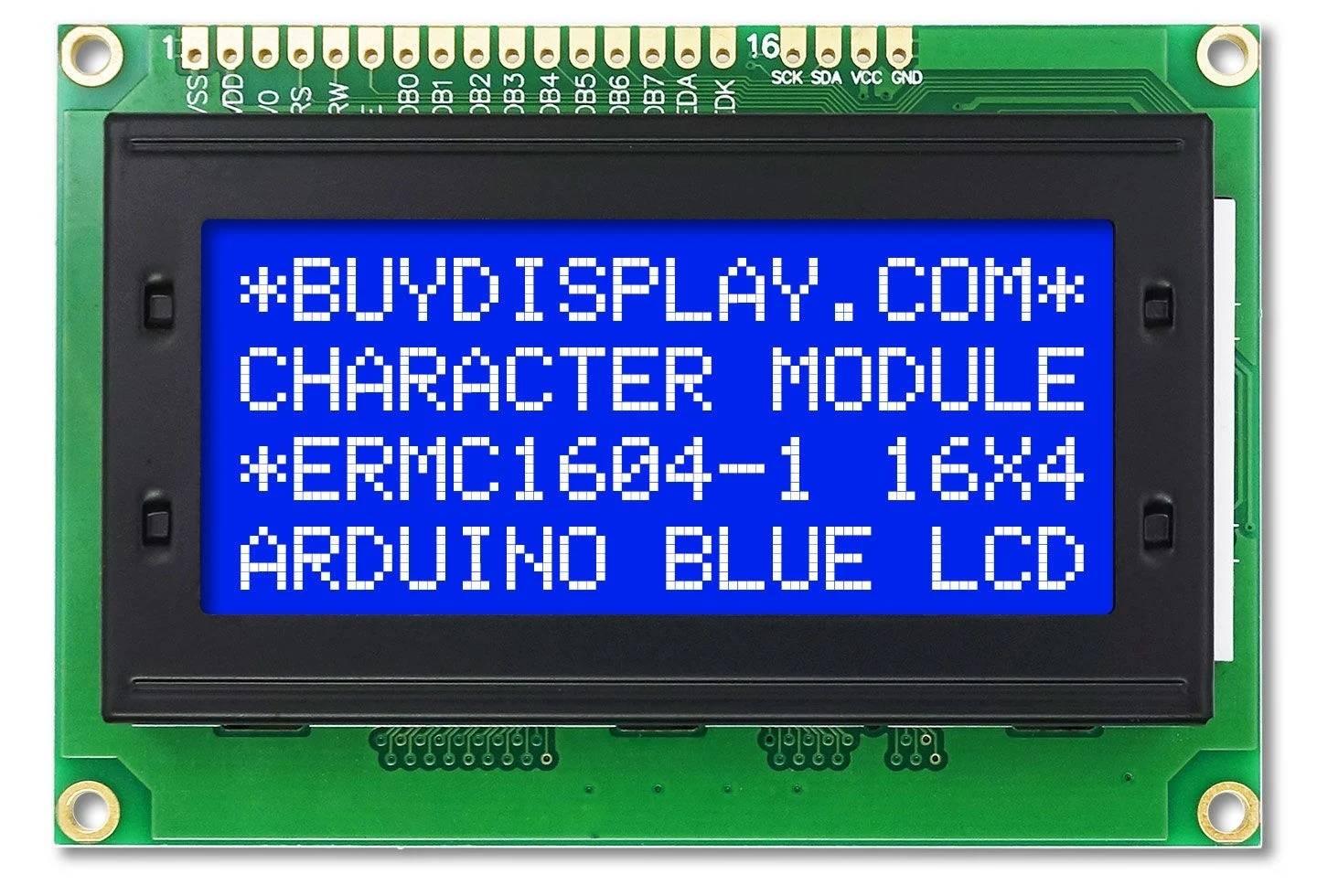

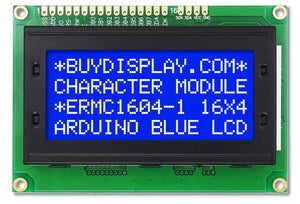

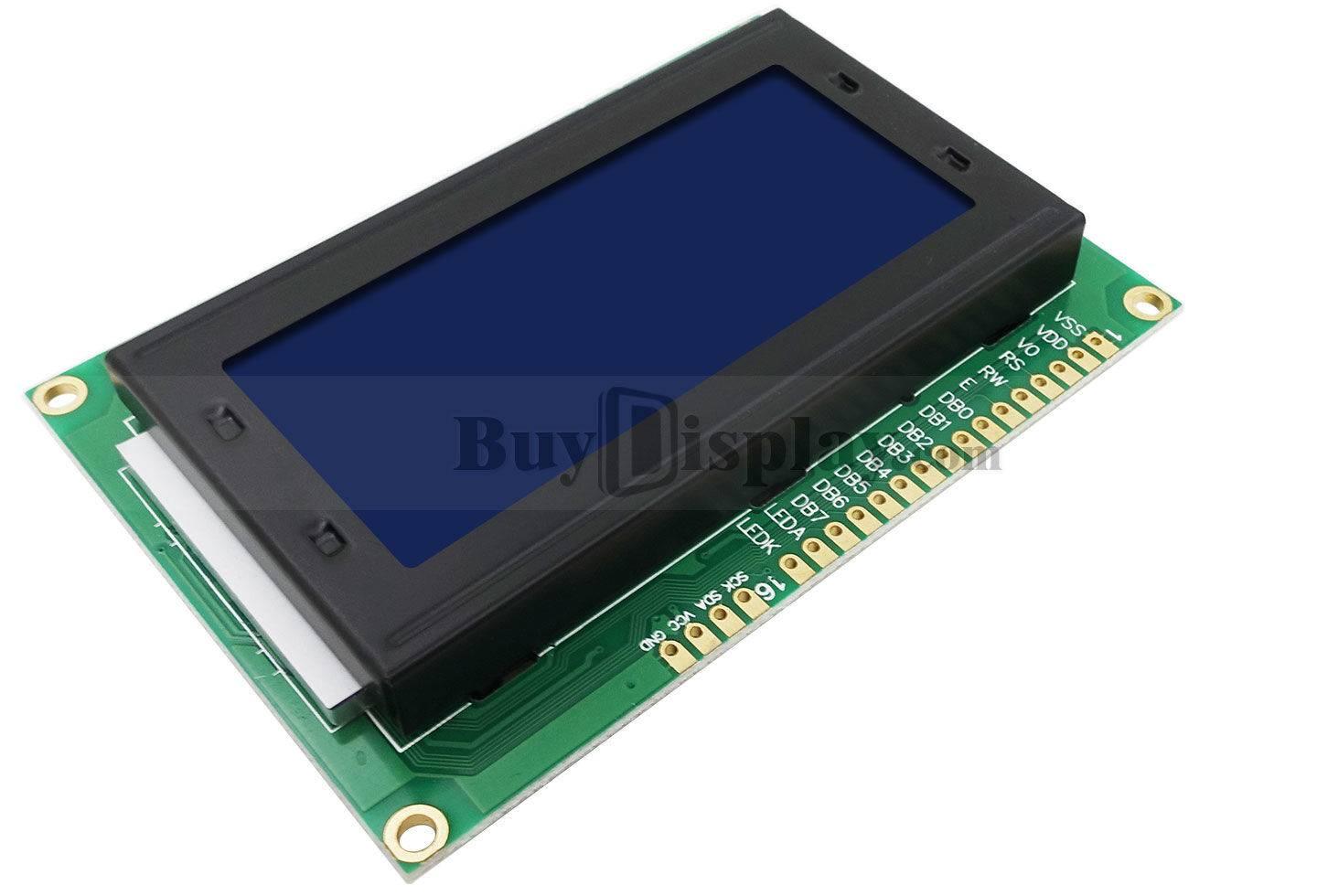

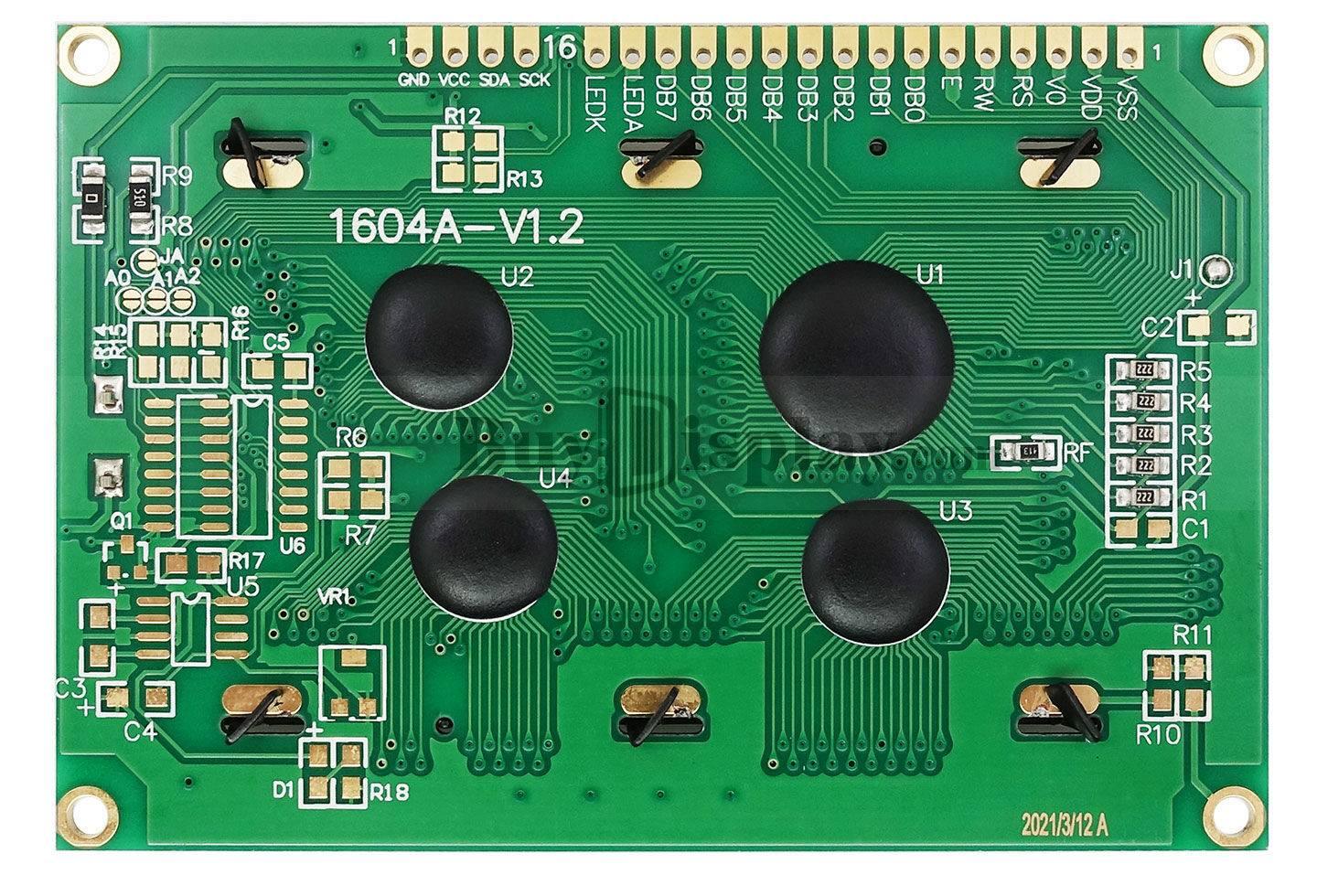

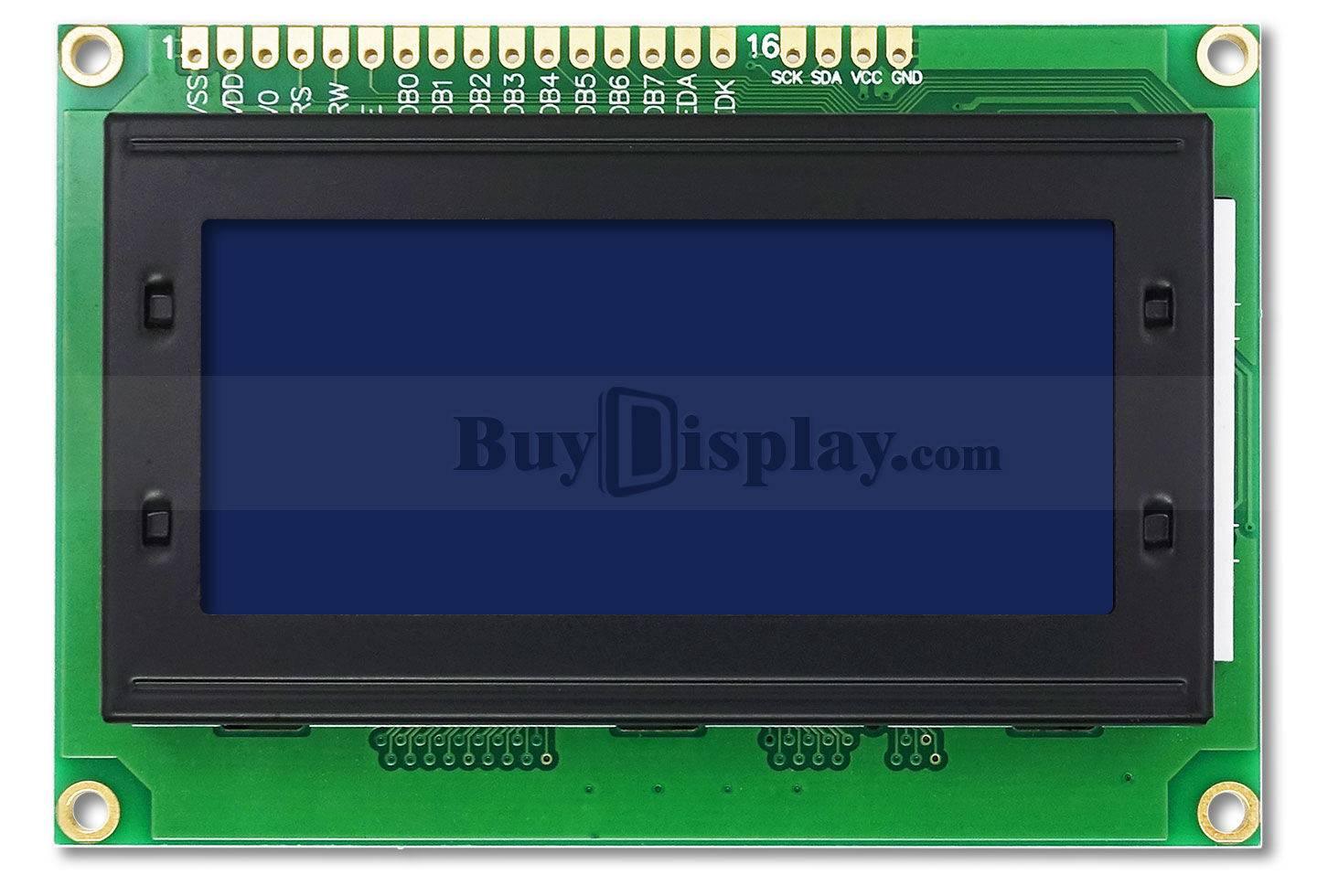

Blue Color 1604a Lcd 16x4 Lcd Display 1604 Lcd Display

Blue Color 1604A LCD 16X4 LCD Display is 16 characters wide,4 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with yellow green color included can be dimmed easily with a resistor or PWM,stn-lcd positive,dark blue text on the yellow green color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set.Optional 3.3v or 5v power supply and optional pin header connection.

It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.

Datasheet for Character LCD Module,Controller IC,Adapter Board

Format	Documents Name	Version	Language	Update Date	Size
	16x4 Character LCD Module Datasheet	1.0	English	Dec-09-2020	664K
	Controller IC SPLC780C Datasheet	1.1	English	Jul-09-2002	813K
	Single Row I2C Adapter Board Drawing	1.0	English	Jul-17-2019	203K

Tutorial - Arduino

Format	Documents Name	Version	Language	Update Date	Size
	Arduino Libraries and Examples for Character Display	1.0	English	Jul-23-2019	45K
	Interfacing I2C Adapter Board to Arduino	1.0	English	Aug-12-2019	97K

Package includes:

• 1x  LCD Display
