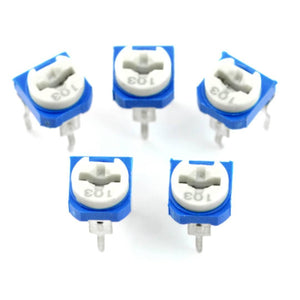

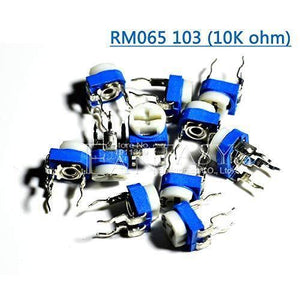

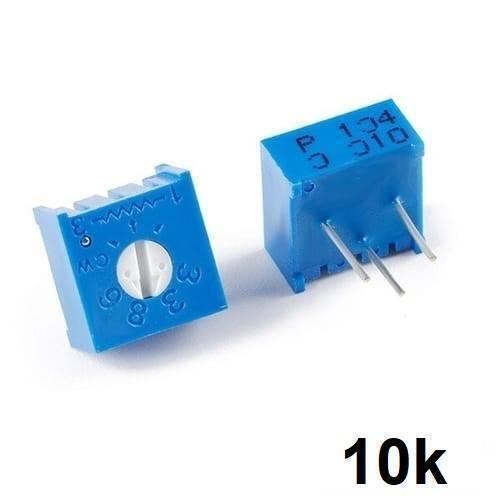

Cermet preset is a compact variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and cetner pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated.

Specifications:

1. Track Resistance: 10k
2. No. of Turns: 1
3. Resistance Tolerance: ± 10%
4. Temperature Coefficient: ± 100ppm/°C
5. Potentiometer Mounting: Through Hole
6. Adjustment Type: Top
7. Contact Resistance Variation +: 1%
8. Full Power Rating Temperature: 85°C
9. Lead Diameter: 0.5mm
10. Operating Temperature Range: -55°C to +125°C
11. Resistance: 10k
12. Resistor Element Material: Variable Rotary Cermet
