Description

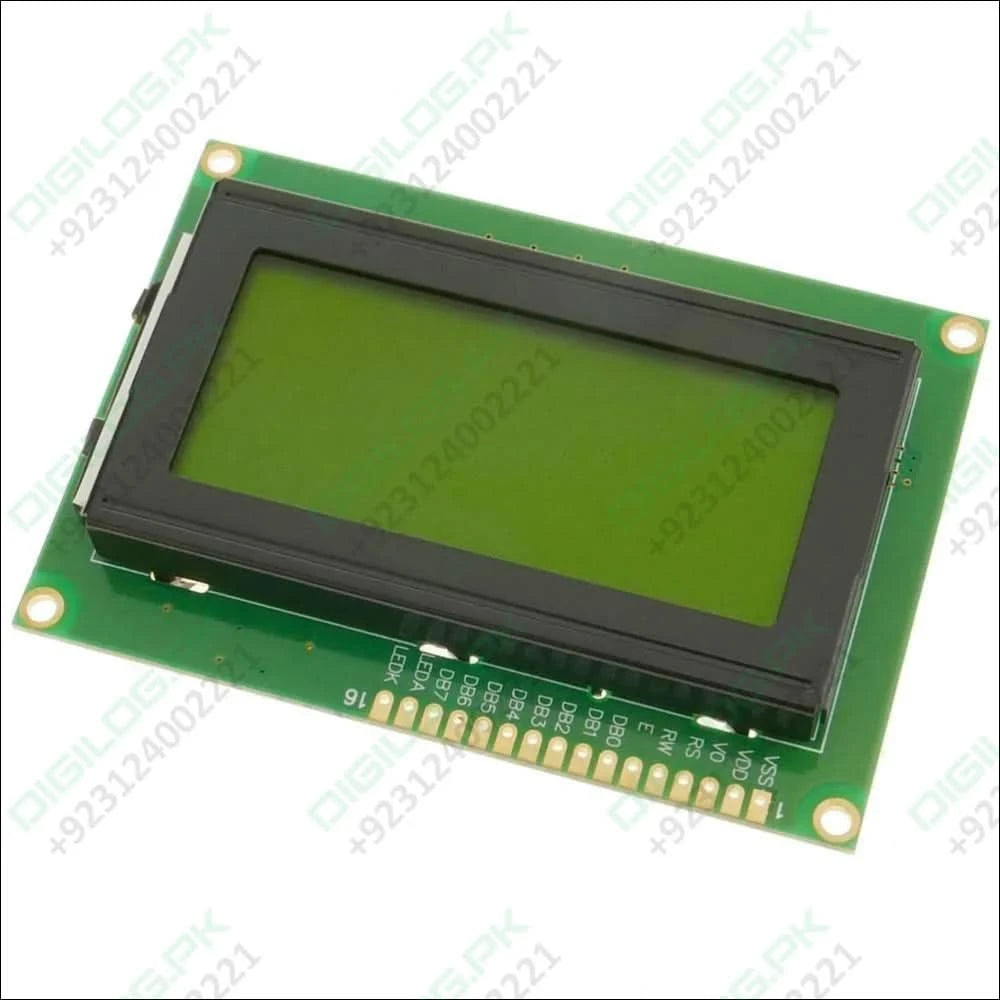

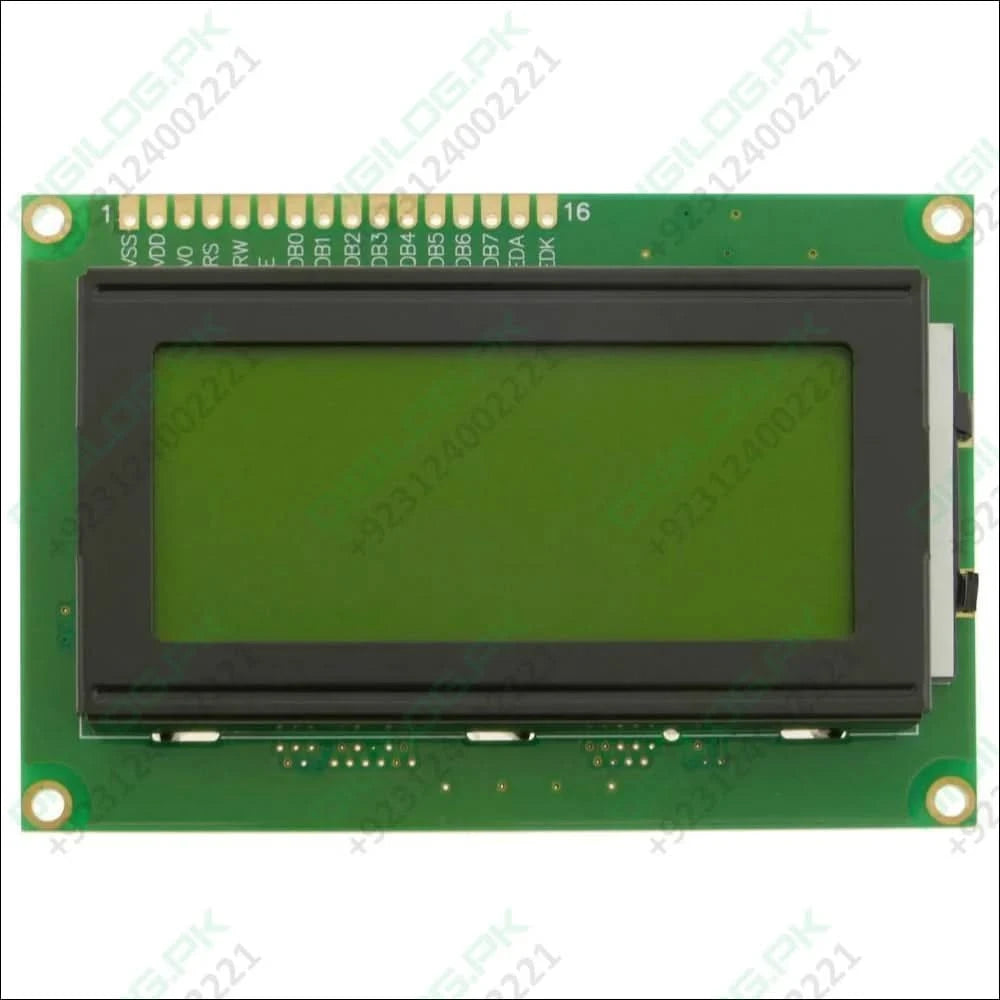

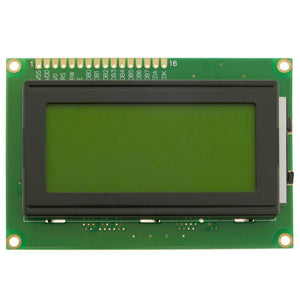

16x4 Character LCD Module 16*4 LCD Display can display 4 lines with 16 characters in each line. Divided into 4-bit and 8-bit data transmission methods. 1604 Green Character LCD provides rich command settings: clear display; cursor return to origin; display on/off; cursor on/off; display character flashes; cursor shift; display shift, etc.
Features And Specifications Of 1604Â 16x4Â Character LCD Display Module:
- Connection Pin Header
- Display Format 16x4 Character
- Outline Dimension 87.0(W)x60.0(H)x12.5(T)mm
- Interface 6800 4-bit Parallel, 6800 8-bit Parallel
- Viewing Direction 6:00
- Backlight Color Green
- Backlight Current (Typ) 45mA
- Power Supply(Typ) 3.5V / 5.0V
- Supply Current for LCM(Max) 1800uA
- Operating Temp -20℃~70℃
- Storage Temperature -30℃~80℃
Package Include:
-
1Â x LCD1604 16x4 Character Display Module LCM Blue Blacklight 5V for Arduino
