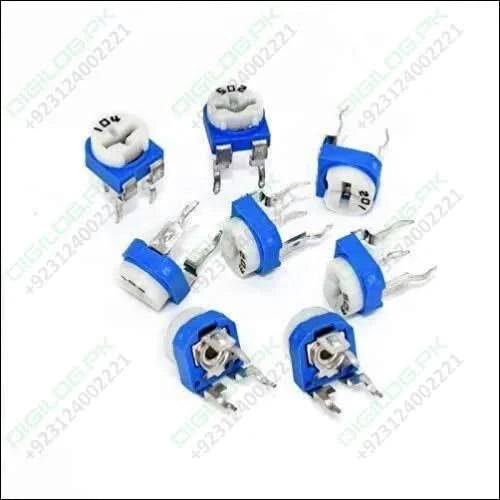

50k Rm065 Variable Resistor In Pakistan
50k Rm065 Variable Resistor In Pakistan

50k Rm065 Variable Resistor In Pakistan

Rs 15 PKR
SKU: B365
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

Cermet preset is a compact variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and cetner pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated.

Specifications:

  1. Track Resistance: 50k
  2. No. of Turns: 1
  3. Resistance Tolerance: ± 10%
  4. Temperature Coefficient: ± 100ppm/°C
  5. Potentiometer Mounting: Through Hole
  6. Adjustment Type: Top
  7. Contact Resistance Variation +: 1%
  8. Full Power Rating Temperature: 85°C
  9. Lead Diameter: 0.5mm
  10. Operating Temperature Range: -55°C to +125°C
  11. Resistance: 50k
  12. Resistor Element Material: Variable Rotary Cermet
