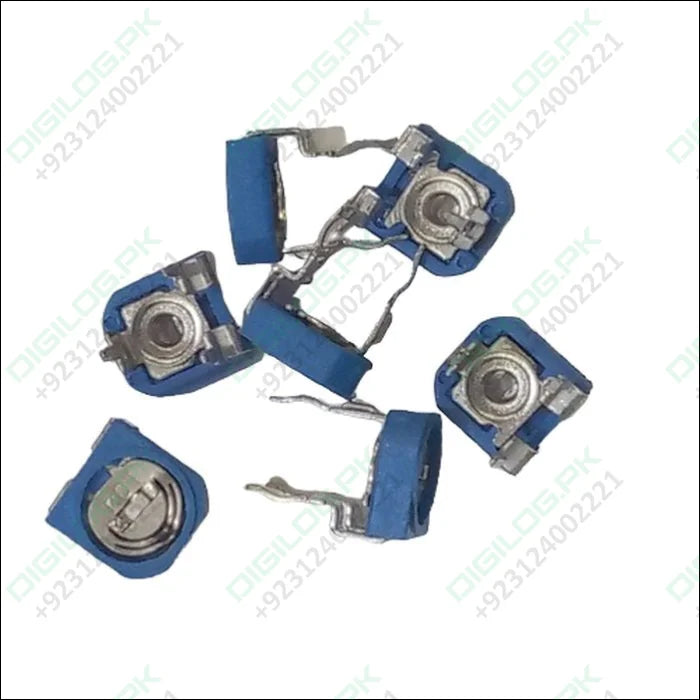

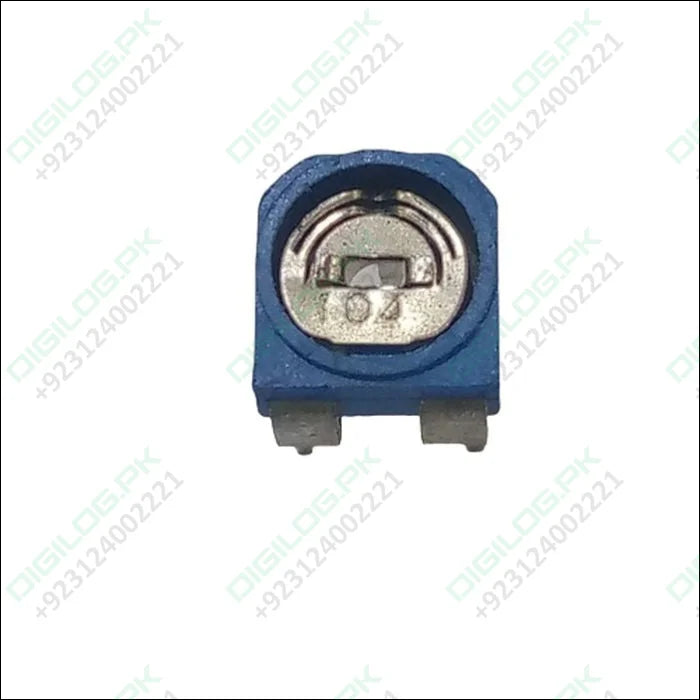

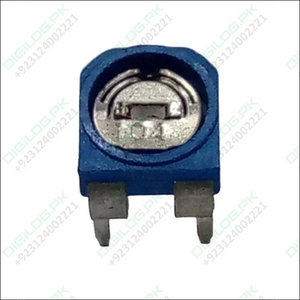

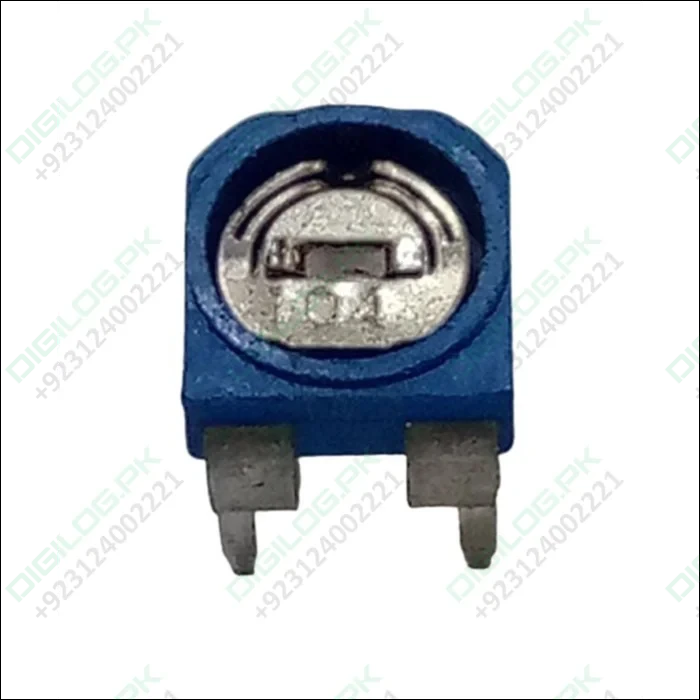

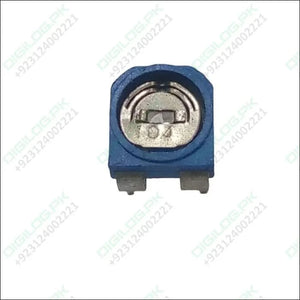

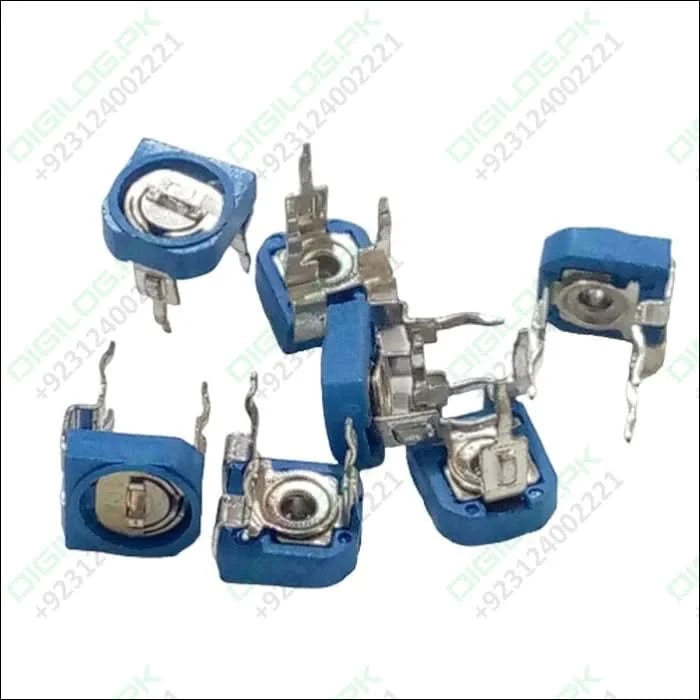

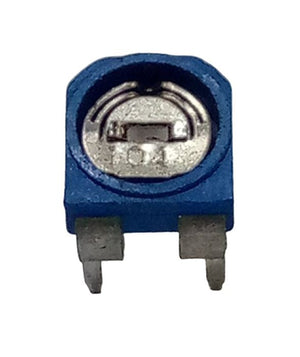

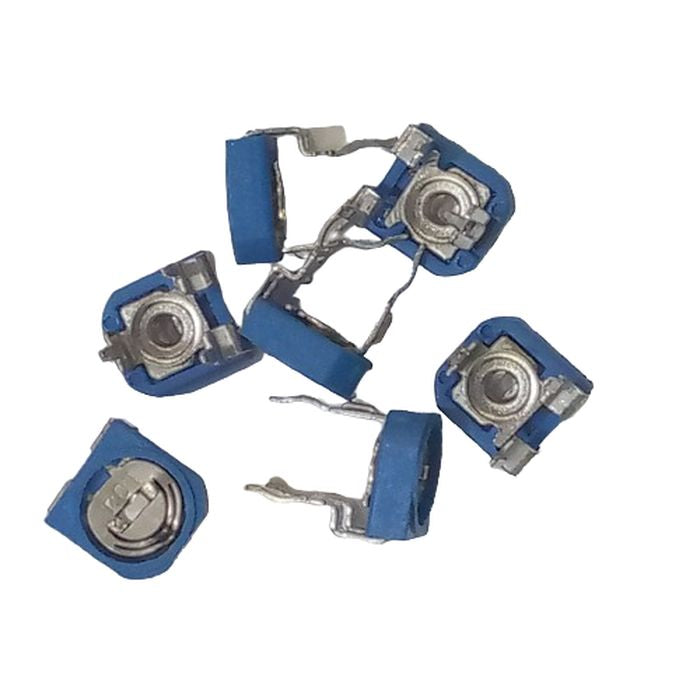

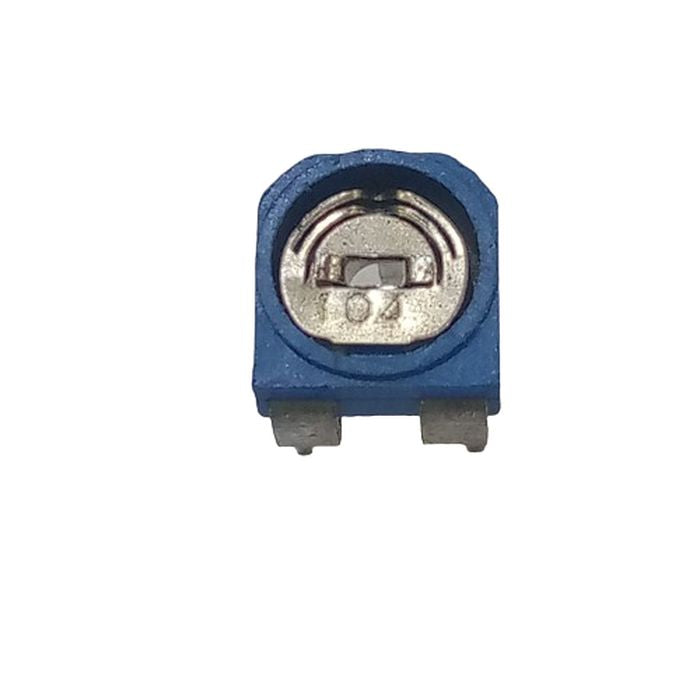

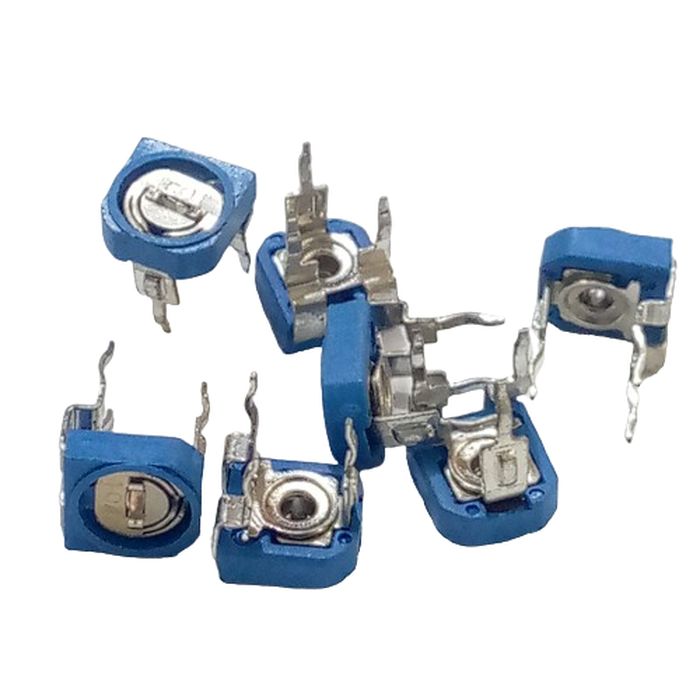

100k Rm065 Variable Resistor In Pakistan

100k Rm065 Variable Resistor In Pakistan

Regular price Rs 10
Regular price Sale price Rs 10
Sale Sold out
Shipping calculated at checkout.

SKU:b484

NOTIFY ME WHEN IN STOCK

Cermet preset is a compact variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and cetner pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated.

Specifications:

  1. Track Resistance: 100k
  2. No. of Turns: 1
  3. Resistance Tolerance: ± 10%
  4. Temperature Coefficient: ± 100ppm/°C
  5. Potentiometer Mounting: Through Hole
  6. Adjustment Type: Top
  7. Contact Resistance Variation +: 1%
  8. Full Power Rating Temperature: 85°C
  9. Lead Diameter: 0.5mm
  10. Operating Temperature Range: -55°C to +125°C
  11. Resistance: 100k
  12. Resistor Element Material: Variable Rotary Cermet
View full details

Description

Cermet preset is a compact variable resistor and pcb mountable with 3 terminal pins. The voltage between the terminal varies as the preset is rotated. The Variable resistors are used for variating voltage as per the need in a circuit. The outer two pins are connected to Vcc and 0V, and cetner pin outputs a variable volatge between 0v and Vcc as the rotary cermet is rotated.

Specifications:

  1. Track Resistance: 100k
  2. No. of Turns: 1
  3. Resistance Tolerance: ± 10%
  4. Temperature Coefficient: ± 100ppm/°C
  5. Potentiometer Mounting: Through Hole
  6. Adjustment Type: Top
  7. Contact Resistance Variation +: 1%
  8. Full Power Rating Temperature: 85°C
  9. Lead Diameter: 0.5mm
  10. Operating Temperature Range: -55°C to +125°C
  11. Resistance: 100k
  12. Resistor Element Material: Variable Rotary Cermet
