Blue Color 1604A LCD 16x4 LCD Display 1604 LCD Display
Pickup available at Digilog Electronics
Usually ready in 2 hours

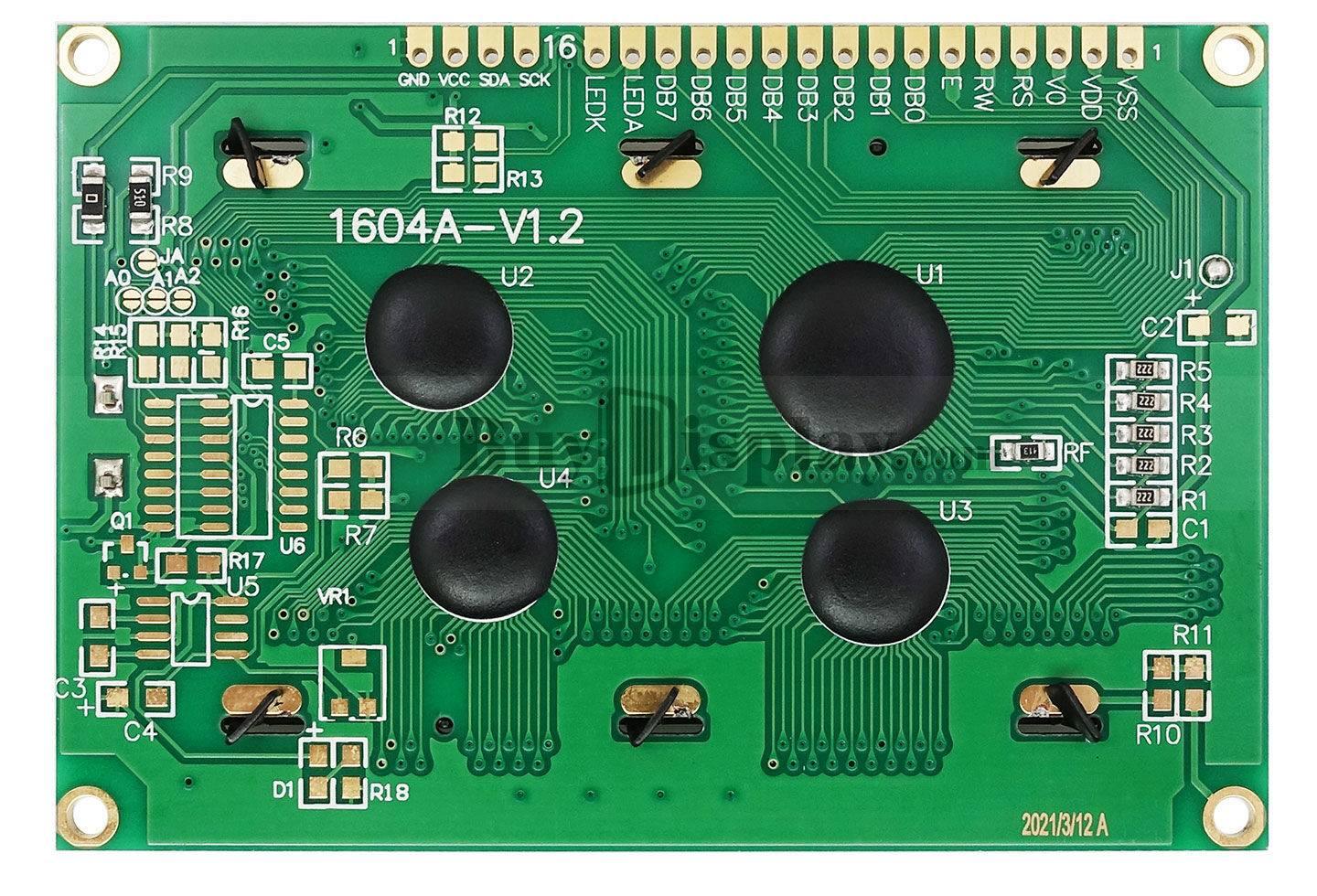

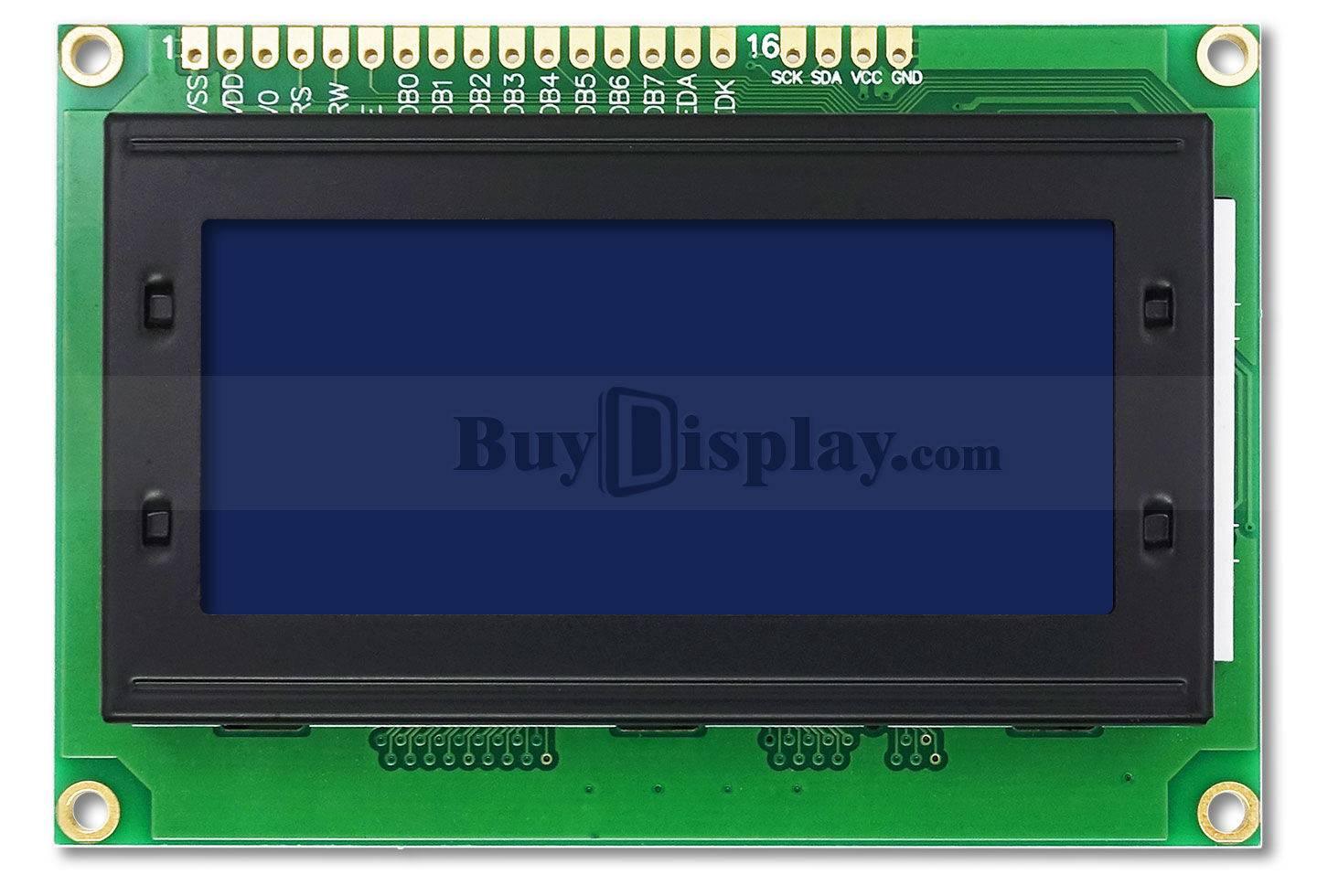

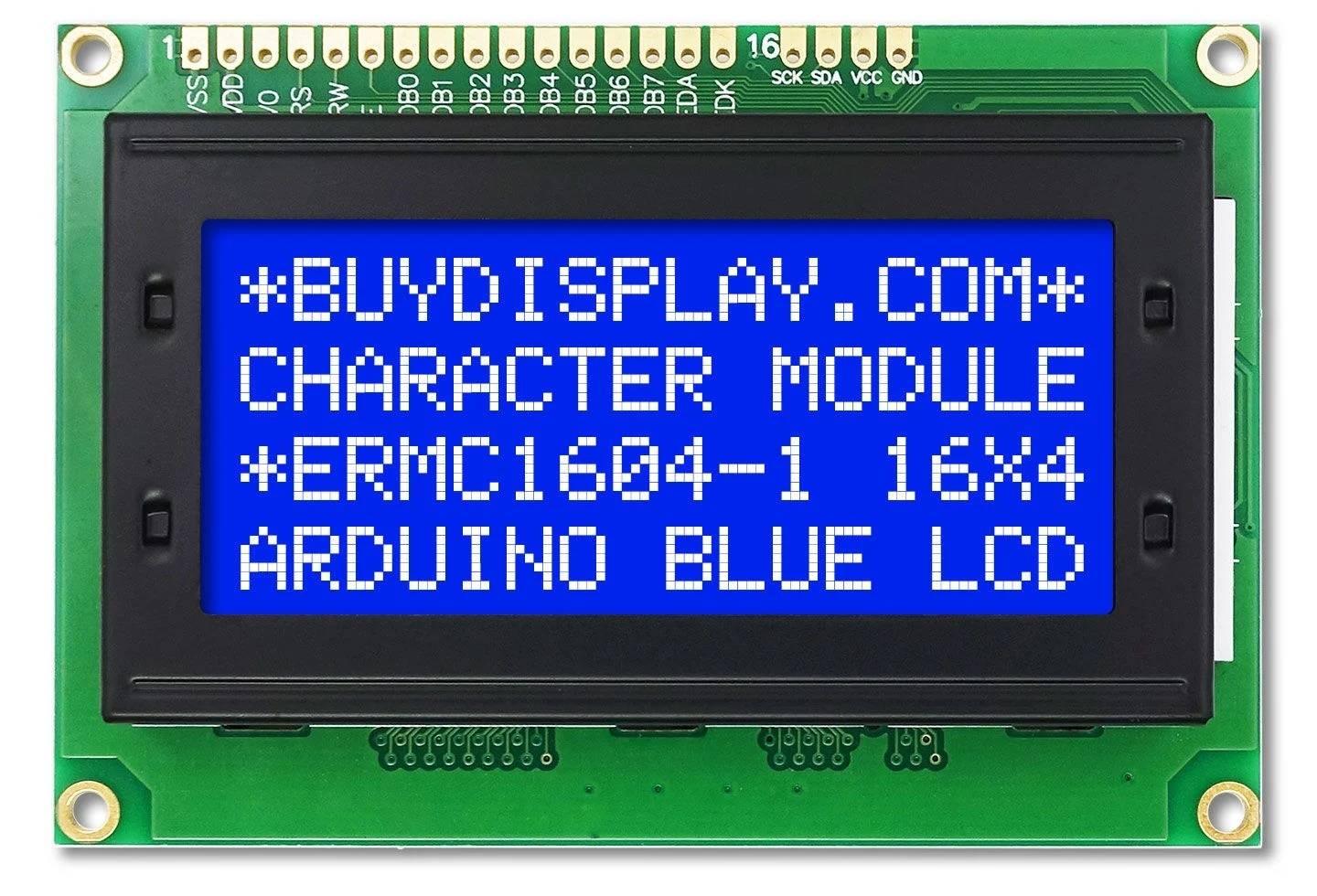

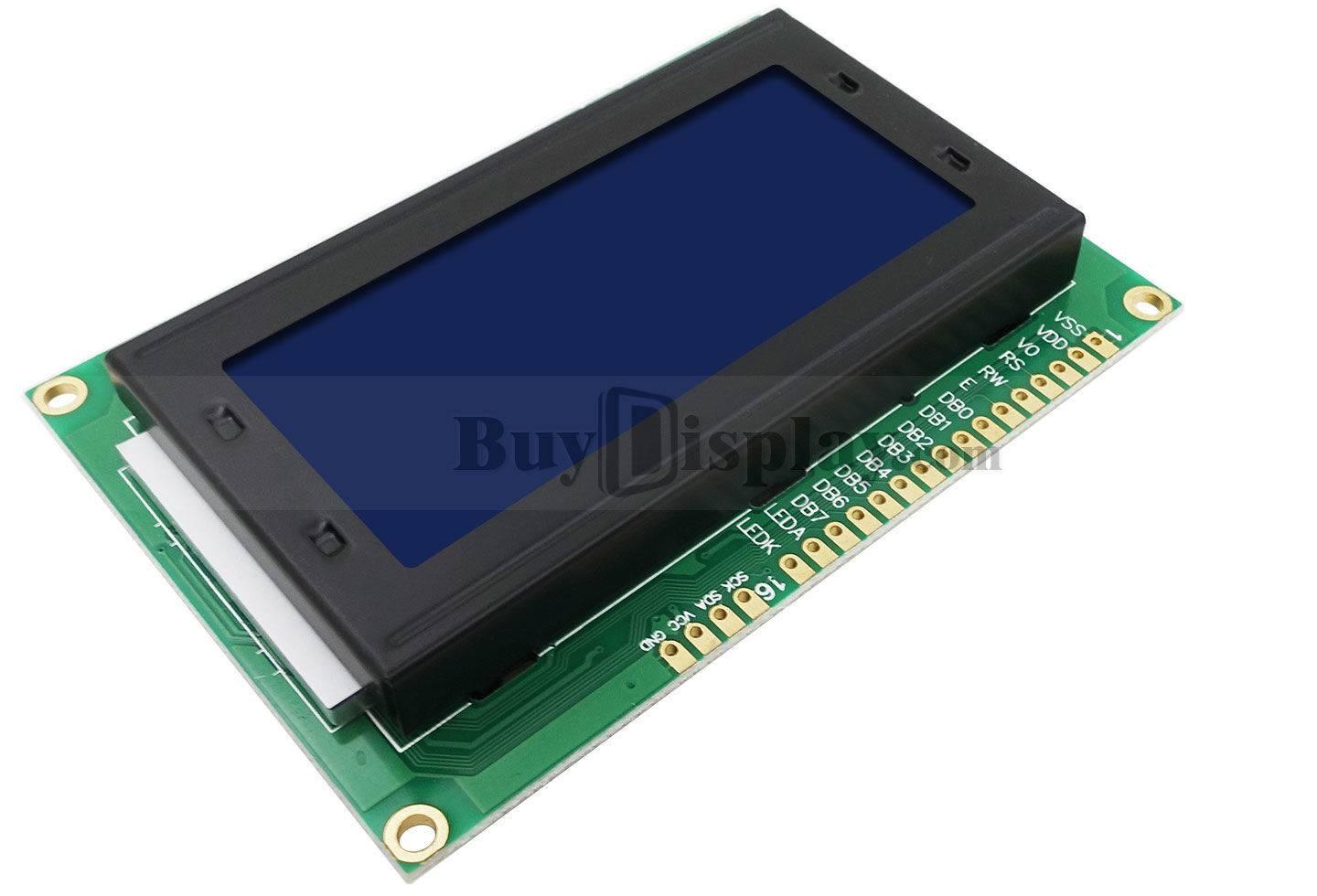

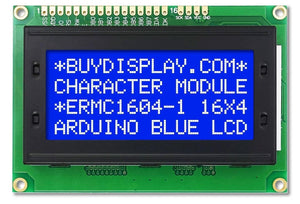

Blue Color 1604A LCD 16X4 LCD Display is 16 characters wide,4 rows character lcd module,SPLC780C controller (Industry-standard HD44780 compatible controller),6800 4/8-bit parallel interface,single led backlight with yellow green color included can be dimmed easily with a resistor or PWM,stn-lcd positive,dark blue text on the yellow green color,wide operating temperature range,rohs compliant,built in character set supports English/Japanese text, see the SPLC780C datasheet for the full character set.Optional 3.3v or 5v power supply and optional pin header connection.
It's easily controlled by MCU such as 8051,PIC,AVR,ARDUINO,ARM and Raspberry Pi.It can be used in any embedded systems,industrial device,security,medical and hand-held equipment.
Datasheet for Character LCD Module,Controller IC,Adapter Board
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
16x4 Character LCD Module Datasheet | 1.0 | English | Dec-09-2020 |
664K |
|
Controller IC SPLC780C Datasheet | 1.1 | English | Jul-09-2002 | 813K |
|
Single Row I2C Adapter Board Drawing | 1.0 | English | Jul-17-2019 | 203K |
Tutorial - Arduino
| Format | Documents Name | Version | Language | Update Date | Size |
|---|---|---|---|---|---|
 |
Arduino Libraries and Examples for Character Display | 1.0 | English | Jul-23-2019 |
45K |
|
Interfacing I2C Adapter Board to Arduino | 1.0 | English | Aug-12-2019 | 97K |
Package includes:
- 1x LCD Display
Frequently Bought Together
PCF8574 IIC I2c Serial Interface Adapter Module IIC I2C LCD Module

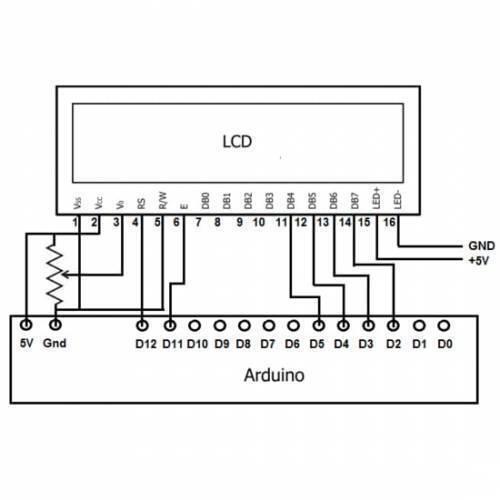

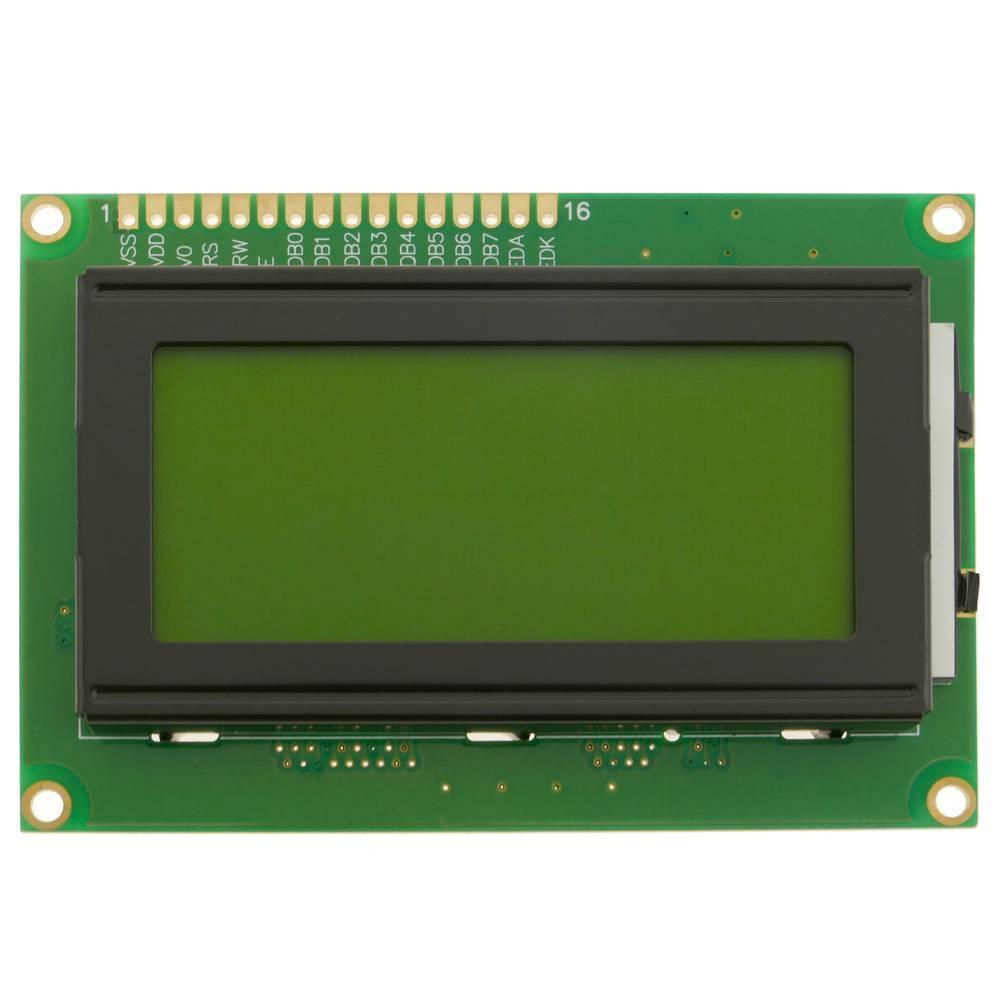

16x4 Character LCD 1604 Green LCD Display Module FDCC1604 Series For Arduino Raspberry Pi

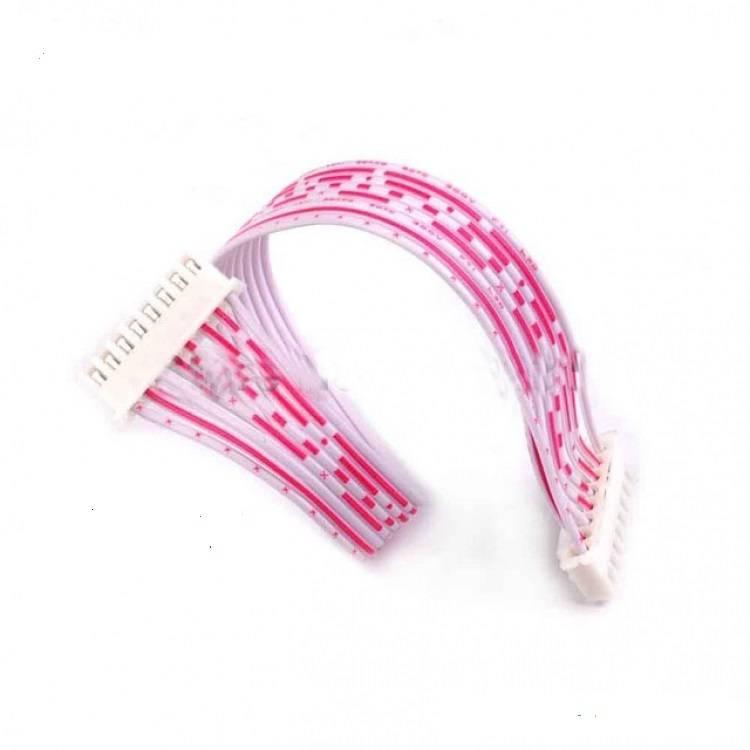

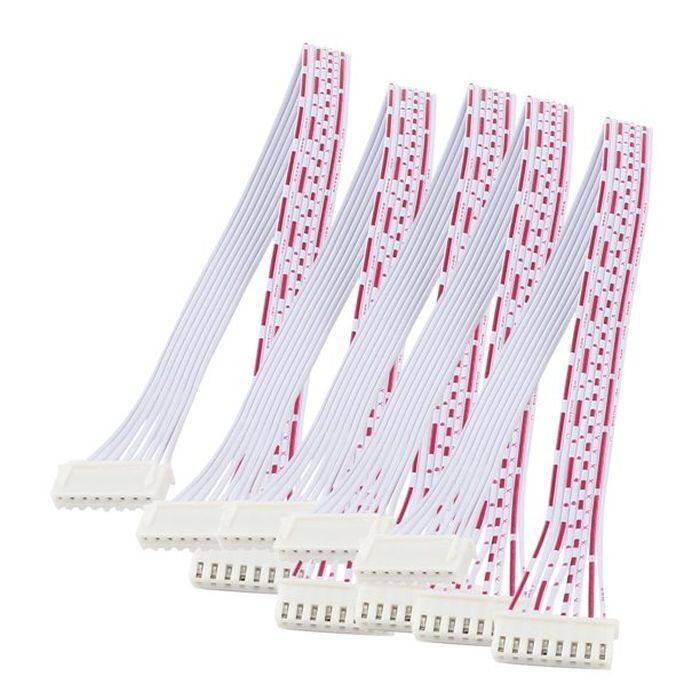

8 Wires 2.54mm Pitch Female To Female JST Xh Connector Cable Wire 6 Inch
