Name: CD4017 IC
Brand: Digilog Electronics
SKU: B470,KRT68,IMP200,Th100,A
Price: 100.0 PKR
Availability: InStock

Home ALL Products

CD4017 IC - a black 16-pin dual in-line package electronic component with white text markings on its top surface, shown from an angled perspective.

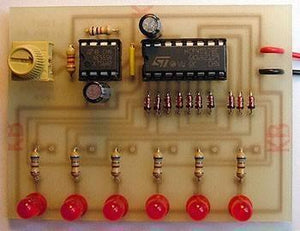

CD4017 IC - featured on a populated circuit board with a 555 timer, a yellow potentiometer, six red LEDs, resistors, and diodes.

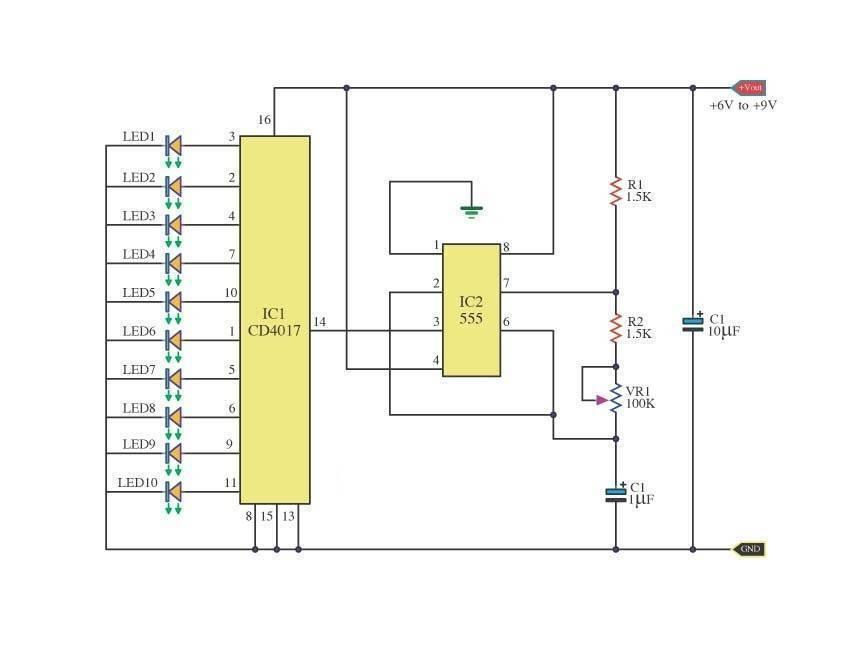

CD4017 IC - circuit diagram showing a yellow IC1 block connected to ten LEDs, a 555 timer IC, resistors, capacitors, and a variable resistor.

CD4017 IC

Rs 100

SKU: B470,KRT68,IMP200,Th100,A

Pickup available at Digilog Electronics

Usually ready in 2 hours

CD4017 IC

Rs 100

CD4017 IC IN PAKISTAN

Decade Cntr/Divid w/10 Decod Out, Divid-by-8 Cntr/Dvidr

Multi-purpose Multi-function ic.

Overview:

The CD4017BM/CD4017BC is a 5-stage divide-by-10 Johnson counter with 10 decoded outputs and a carryout bit. The CD4022BM/CD4022BC is a 4-stage divide-by-8 Johnson counter with 8 decoded outputs and a carry-out bit. These counters are cleared to their zero counts by a logical 1on their reset line. These counters are advanced on the positive edge of the clock signal
