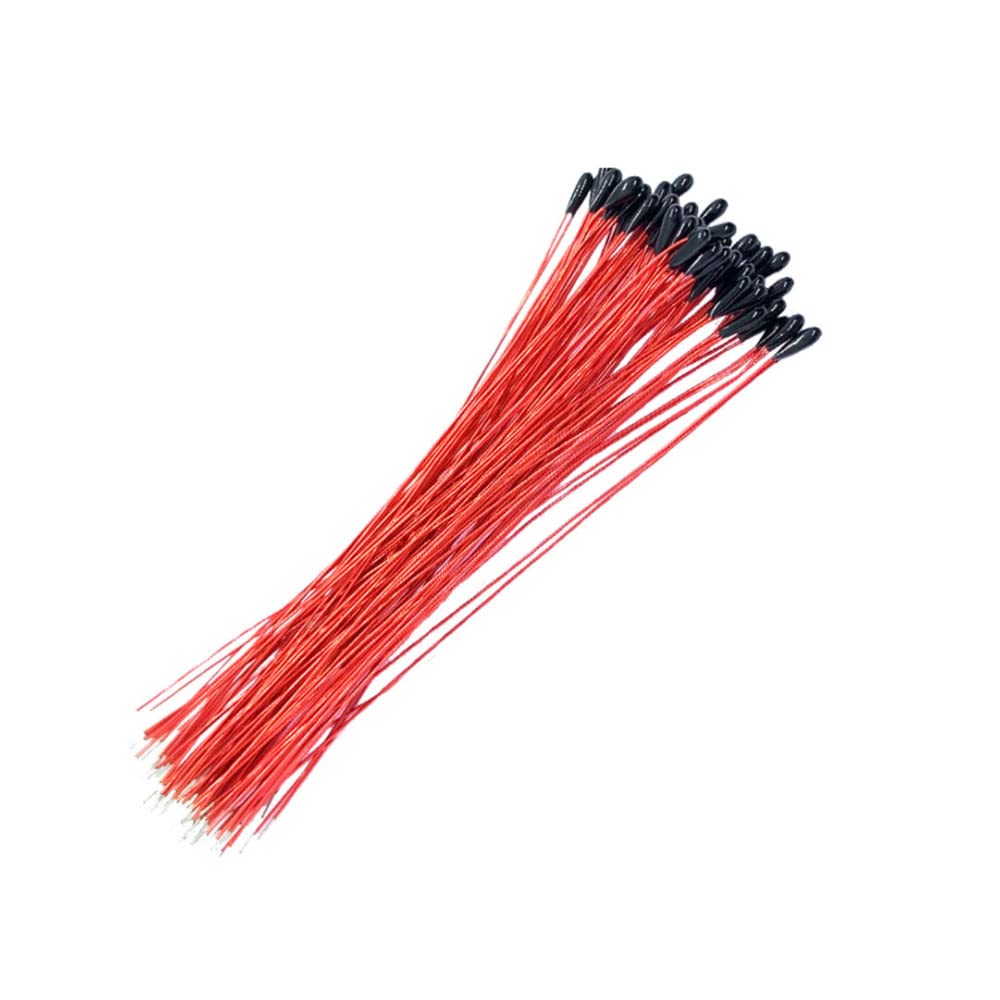

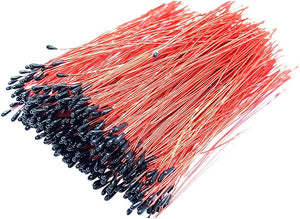

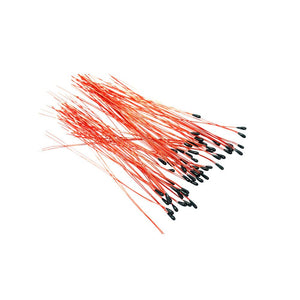

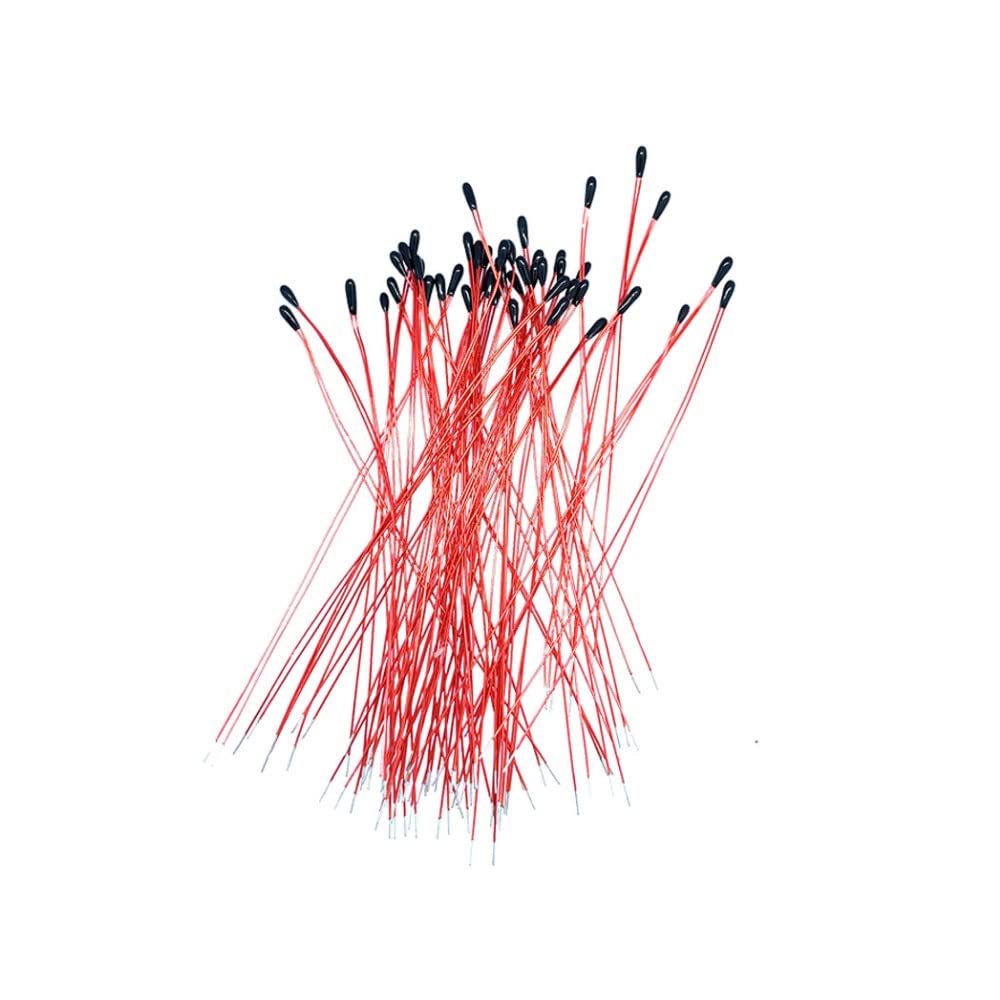

10K Precision NTC Thermistor — Accurate Temperature Sensing for Electronics Projects

The 10K Precision NTC Thermistor is a high-accuracy, negative temperature coefficient (NTC) resistor designed for reliable temperature measurement in a wide range of electronics applications. With a pearl-shaped bead encased in high-temperature fluorine plastic, it's built to perform in demanding environments from -40°C to +150°C.

Whether you're building a temperature-controlled system with an Arduino, ESP32, or Raspberry Pi, this thermistor delivers precise, repeatable readings right out of the box.

Key Specifications

• Resistance at 25°C: 10kΩ ±1%
• Resistance at 37°C: 5,998Ω ±0.5%
• Operating Range: -40°C to +150°C (±5% accuracy)
• B25/85 Value: 3960K ±1.00%
• Temperature Coefficient: Negative (NTC)
• Lead Insulation: High-temperature fluorine plastic
• Form Factor: Pearl-shaped bead with leads

Common Applications

• Temperature sensing & monitoring circuits
• Arduino, ESP32, and Raspberry Pi Pico projects
• Inrush current limiting
• HVAC and industrial temperature control
• Medical and wearable devices
• Battery management systems (BMS)

NTC vs PTC — What's the Difference?

NTC (Negative Temperature Coefficient) thermistors like this one decrease in resistance as temperature rises — making them ideal for temperature sensing and inrush current limiting. PTC thermistors do the opposite and are typically used as resettable fuses for overcurrent protection.

NTC vs RTD — Which Should You Choose?

Compared to Resistance Temperature Detectors (RTDs), NTC thermistors offer higher sensitivity within a focused temperature range, making them the preferred choice for precision sensing in embedded systems and DIY electronics. RTDs cover wider ranges but at higher cost and complexity.

Buy the 10K Precision NTC Thermistor in Pakistan from Digilog Electronics — your trusted source for quality electronic components with fast nationwide delivery.
