UNI-T UT285C Three-Phase Power Quality Analyzer 1000A – Price in Pakistan

Name: UNI-T UT285C Three-Phase Power Quality Analyzer (1000A Clamp Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software
Brand: UNI-T
SKU: UT285C-1000A
Price: 656250.0 PKR
Availability: InStock
Rating: 0.00 data-number-of-reviews=0 data-number-of-questions=0> No reviews (0 data-number-of-questions=0> No reviews reviews)

Home

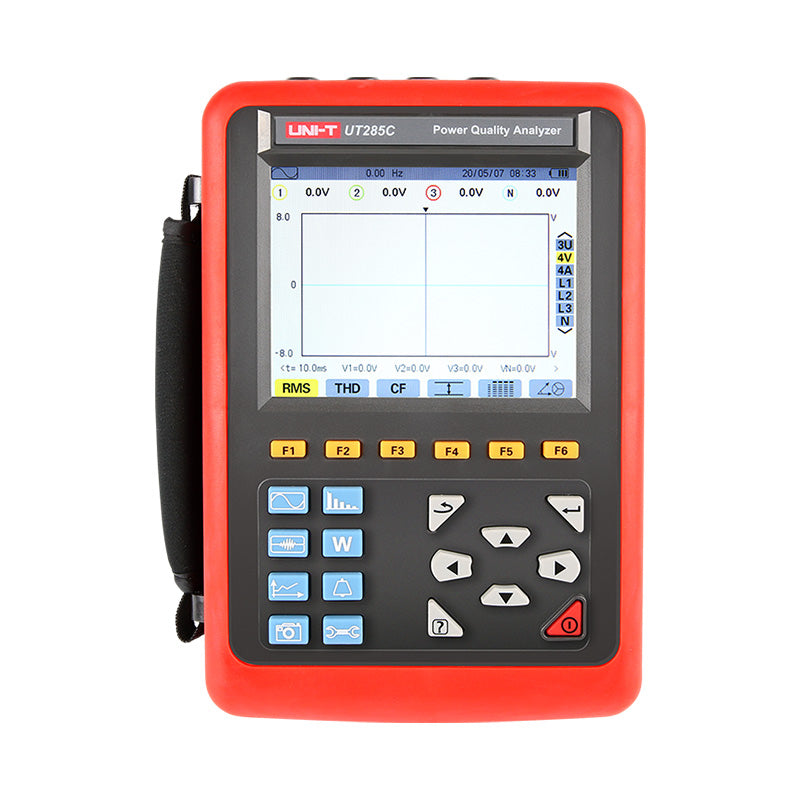

UNI-T UT285C three-phase power quality analyzer front

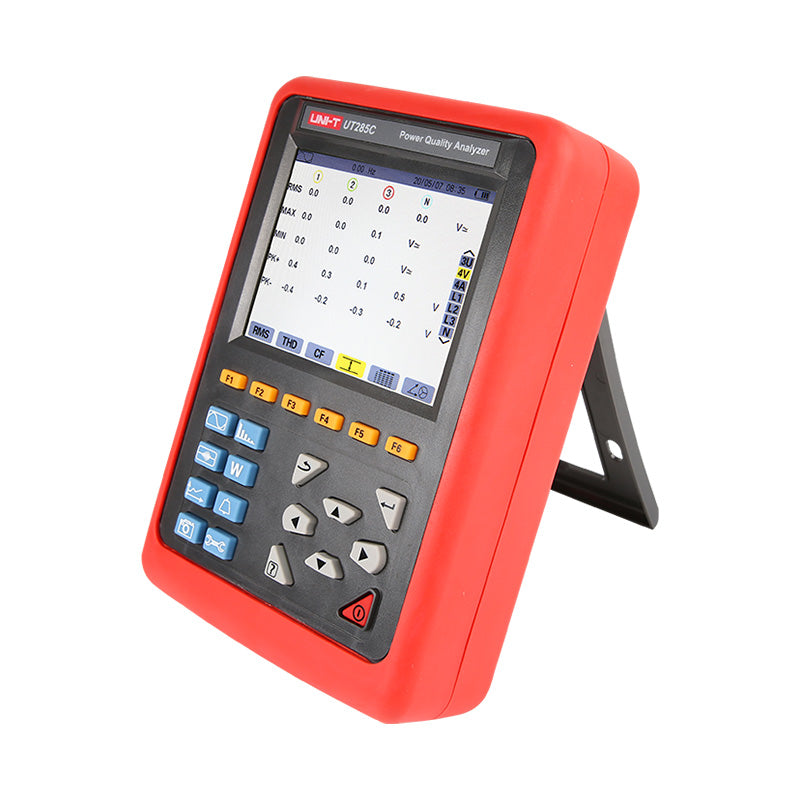

UNI-T UT285C power quality analyzer display detail

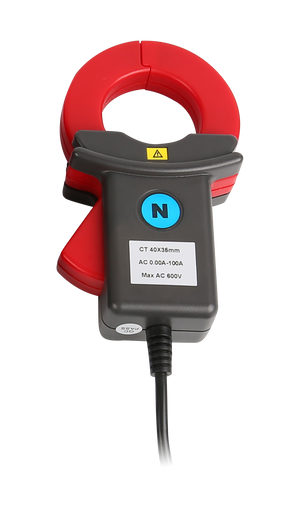

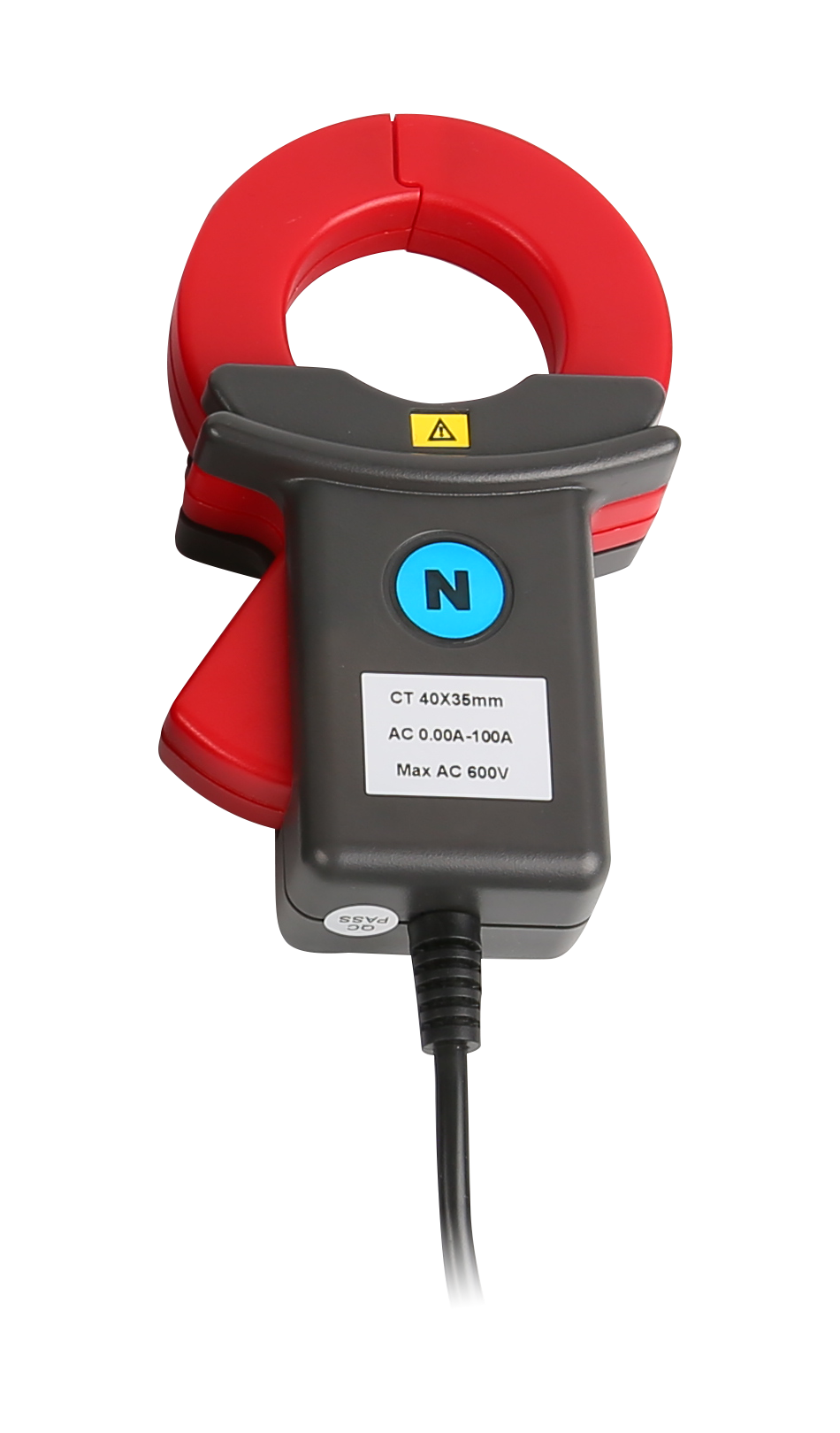

UNI-T UT285C analyzer with current clamps and accessories

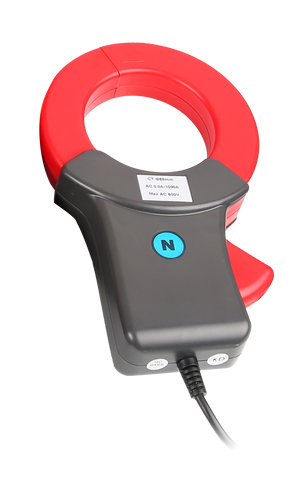

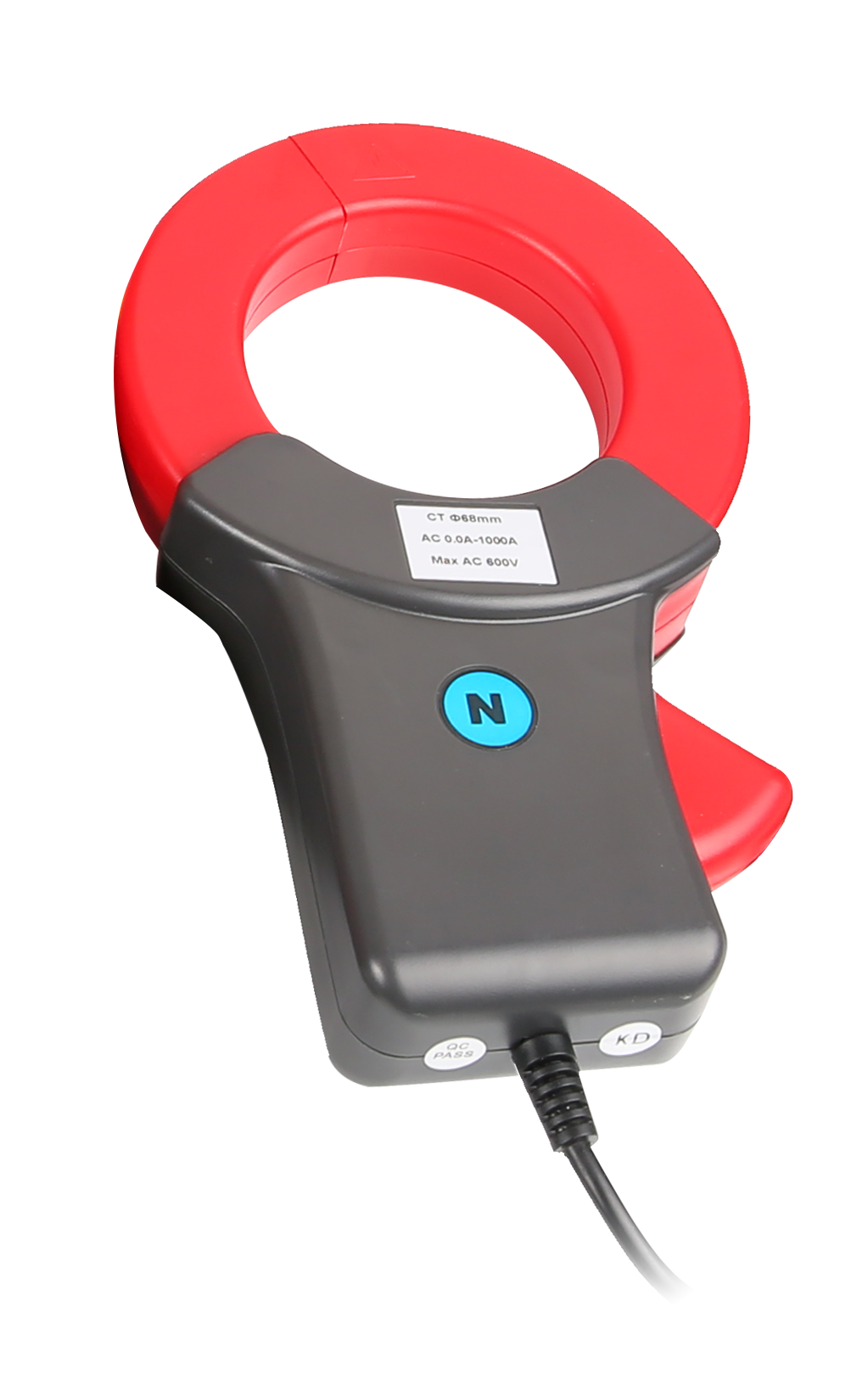

UNI-T UT285C analyzer test leads and clips

New

UNI-T UT285C Three-Phase Power Quality Analyzer (1000A Clamp Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software

Rs 656,250 PKR

Pickup available at Digilog Electronics

Usually ready in 2 hours

UNI-T UT285C Three-Phase Power Quality Analyzer (1000A Clamp Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software

Rs 656,250 PKR

Availability: Add to cart

SKU: UT285C-1000A

UNI-T UT285C Three-Phase Power Quality Analyzer (1000A Clamp Set) – True RMS, Active/Reactive/Apparent Power, THD Harmonics to 50th, Flicker, Unbalance, 4-Channel Waveform, USB/PC Software

UNI-T UT285C (1000A configuration) — Professional three-phase power quality analyzer for energy audits, load studies and power-quality diagnostics, supplied with four 1000A current clamps. Genuine UNI-T product supplied by Digilog.pk with user manual, PC software and warranty.

Key Features

Three-phase True RMS voltage (to 1000V L-N / 2000V L-L) & current
Active, reactive & apparent power — per phase and total
Power factor, displacement factor (COSΦ), transformer K-factor
Harmonics & THD to the 50th order, flicker (PST), 3-phase unbalance
4-channel real-time voltage/current waveform display
USB interface + PC software for logging & reporting
Supplied with 4 × 1000A current clamps

Technical Specifications

Type	Three-phase power quality analyzer
Current (this set)	4 × 1000A clamp (068B); optional 10A/100A/6000A flex
Voltage	1.0 ~ 1000 V (L-N), 1.0 ~ 2000 V (L-L)
Power	Active / reactive / apparent, per-phase & total
Harmonics	THD up to 50th order
Analysis	Flicker (PST), unbalance, K-factor, PF/DPF
Interface	USB + PC software
