UNI-T UT681C Network Cable Tester – RJ45 / RJ11 / BNC, Fast/Slow/Scan/Full Test Modes, 19-LED, Open/Short/Crossover, LAN Coax Ethernet Tester
Pickup available at Digilog Electronics
Usually ready in 2 hours
UNI-T UT681C Network Cable Tester – RJ45 / RJ11 / BNC, Fast/Slow/Scan/Full Test Modes, 19-LED, Open/Short/Crossover, LAN Coax Ethernet Tester

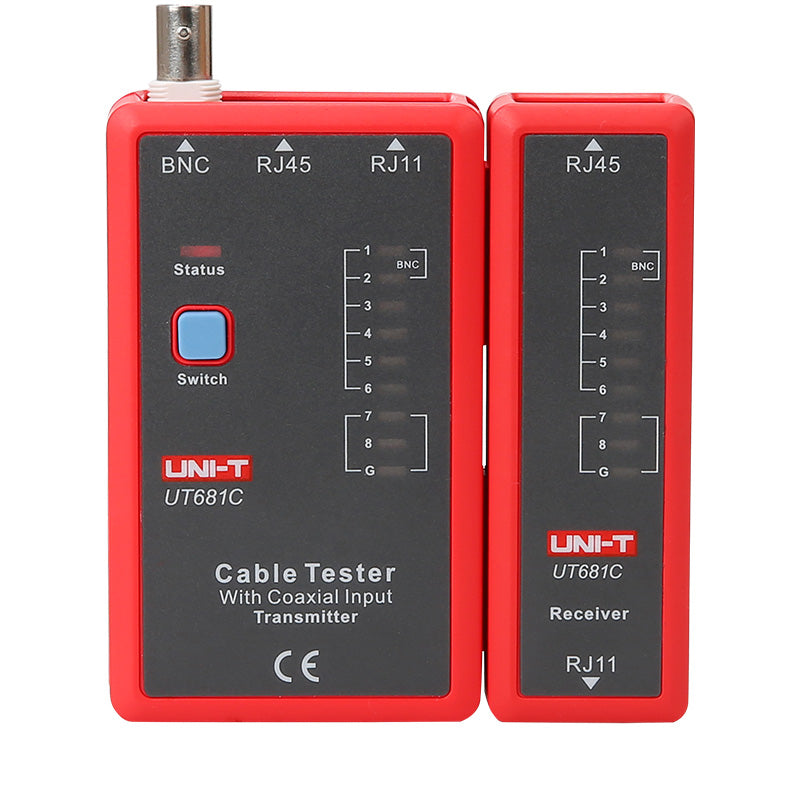

UNI-T UT681C is a handheld network cable tester for RJ45, RJ11 and BNC (coax, via adaptor). It offers fast, slow, scan and full-display test modes with a 19-LED display and detects short, open and crossover faults on shielded or unshielded cable. Genuine UNI-T supplied by Digilog.pk with manual and warranty.
Key Features

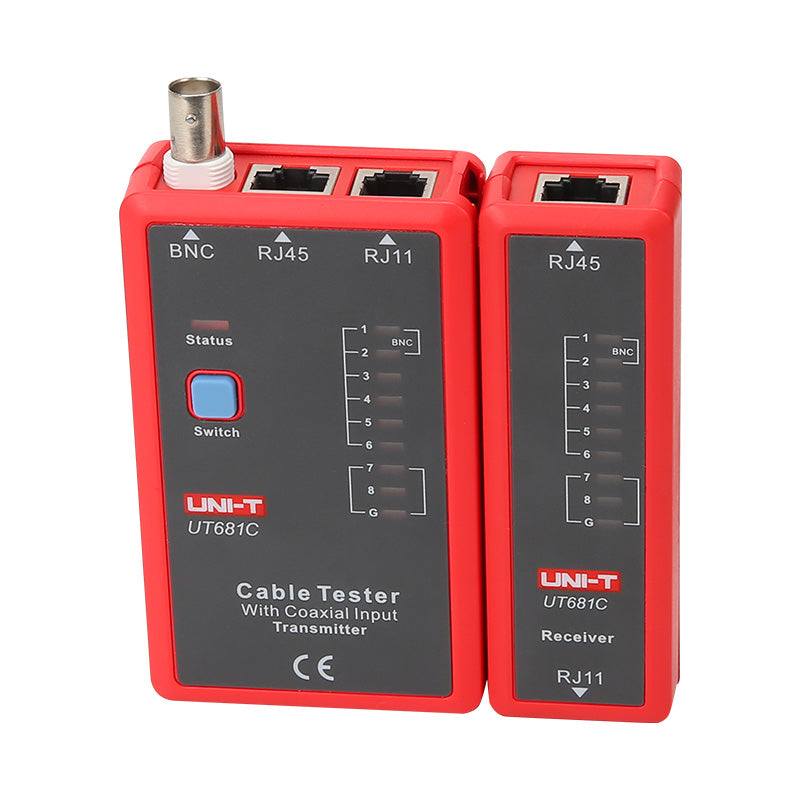

- Tests RJ45 / RJ11 / BNC (BNC via included RJ45-to-BNC adaptor)

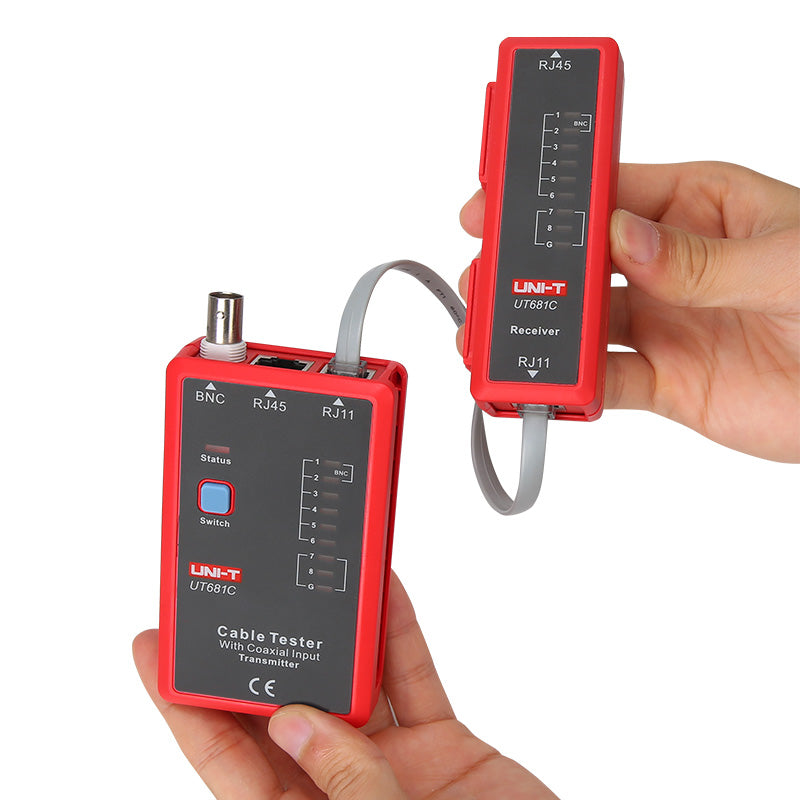

- Fast, slow, scan and full-display test modes; 19-LED wiring display
- Detects short circuit, open circuit and crossover; shielded/unshielded indication
- Single-key operation; manual and 10-minute auto shutdown
- 9V battery with low-battery detection
Technical Specifications
| Test Ports | RJ45, RJ11, BNC |
|---|---|
| Test Modes | Fast, slow, scan, full |
| Wiring Display | 19 LEDs |
| Faults Detected | Short / open / crossover |
| Shield Test | Shielded & unshielded |
| Power | 9V battery |
| Auto Off | ~10 min |
| Safety | CE EN61326 |
What's in the Box
- UT681C transmitter
- UT681C receiver
- RJ45-to-BNC adaptor
- 9V battery
- English user manual
- Gift box
Downloads
Certifications: CE, RoHS | HS Code: 9030.89
