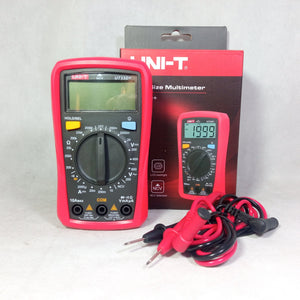

UNI-T UT33D+ Plus Digital Multimeter

The new generation UNI-T UT33D+ redefines performance standards for introductory digital multimeters, delivering exceptional reliability. Its innovative industrial design ensures durability and can withstand a 2-meter drop. The new LCD display layout provides better visibility and enhances the overall user experience.

The UT33+ series features significantly improved safety standards, ensuring users can work confidently. It's lightweight, compact, and easy to handle during field operations—ideal for technicians, electricians, and beginners alike.

This series combines innovation, safety, and usability, making it a perfect choice for accurate, reliable, and professional-level testing in CAT II 600V environments.

Features

• Clear LCD display

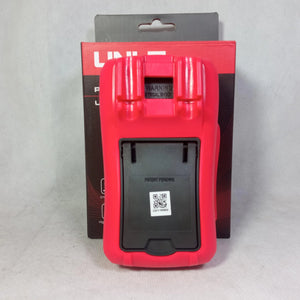

• Comfortable protective cover with test lead hanging groove
• 2-meter drop test with precision protection
• Loud buzzer sound; Ergonomic design
• Unique battery test feature: Displays 'Good', 'Low', and 'Bad' statuses when testing 1.5V / 9V / 12V batteries
• NCV (Non-Contact Voltage) detection
• Auto power off / Auto backlight off
• Diode test / Continuity buzzer
• Manual range selection

Specifications

• DC Voltage: 200mV / 2V / 20V / 200V / 600V ±(0.5%+2)
• AC Voltage: 200V / 600V ±(1.2%+3)
• DC Current: 2000μA / 20mA / 200mA / 10A ±(1%+2)
• Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 20MΩ / 200MΩ ±(0.8%+2)
• Display Count: 2000

General Characteristics

• Power: 1.5V battery (R03) x 2
• Display Size: 66mm x 51mm
• Product Color: Red and Grey
• Net Weight: 206g (batteries included)
• Product Size: 134mm x 77mm x 47mm
• Standard Accessories: Batteries, test leads
• Individual Packing: Gift box, English manual
• Qty per Carton: 60 pcs
• Carton Measurement: 640mm x 310mm x 350mm
• Carton Gross Weight: 19.8kg

Package Includes

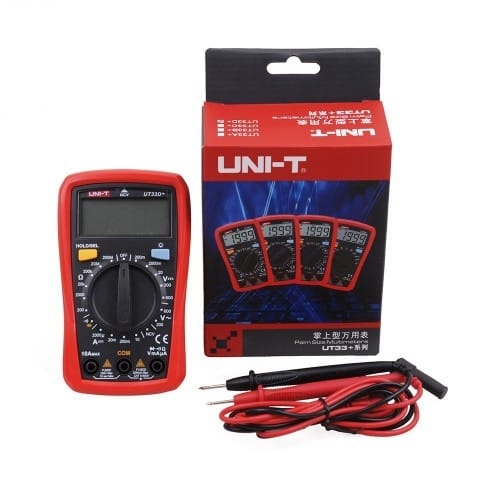

• 1 x UNI-T UT33D+ Palm Size Digital Multimeter
