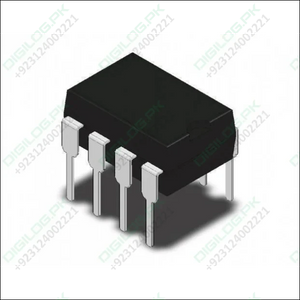

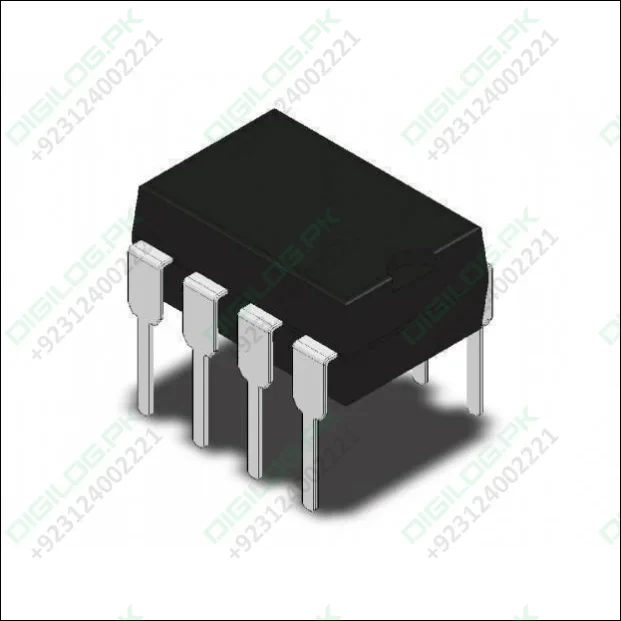

SN75176AP DIP 8 Rs 422 485 Line Driver - a black 8-pin integrated circuit chip with metallic pins, shown in a close-up, angled view.

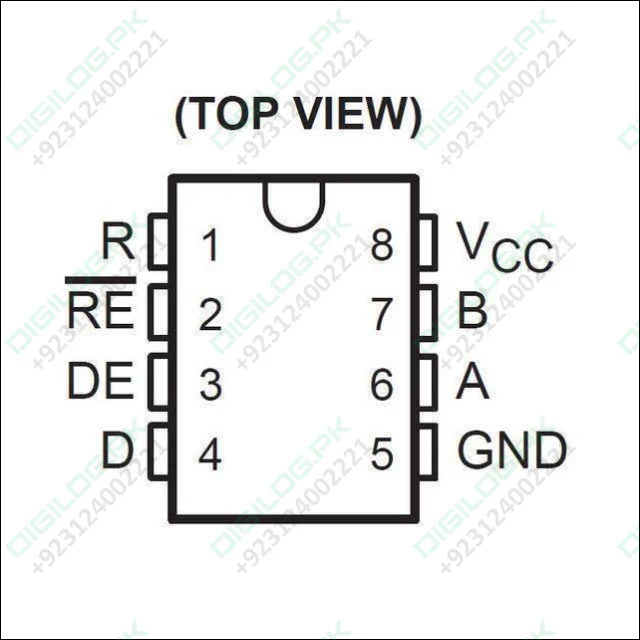

SN75176AP DIP 8 Rs 422 485 Line Driver - a black and white pinout diagram showing an 8-pin integrated circuit with labels for pins 1 through 8.

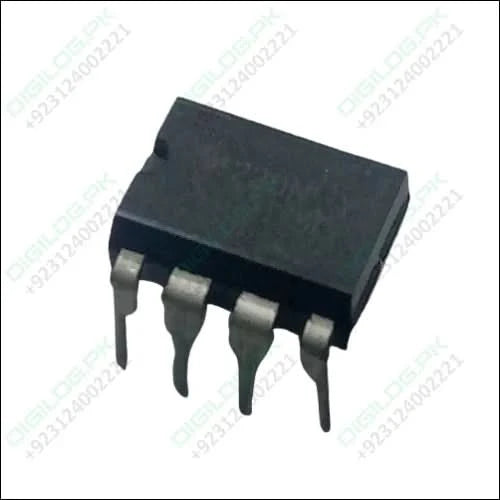

SN75176AP DIP 8 Rs 422 485 Line Driver - a black, rectangular electronic integrated circuit component with eight metal pins extending from its sides.
SN75176AP DIP 8 Rs 422 485 Line Driver - a black, rectangular 8-pin integrated circuit component shown from an elevated angle.
SN75176AP DIP 8 Rs 422 485 Line Driver - a black 8-pin integrated circuit chip with metallic pins, shown in a close-up, angled view.

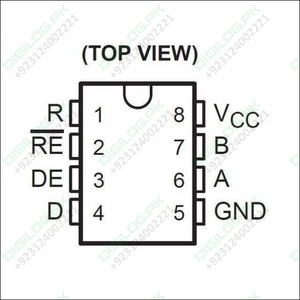

SN75176AP DIP 8 Rs 422 485 Line Driver - a black and white pinout diagram showing an 8-pin integrated circuit with labels for pins 1 through 8.

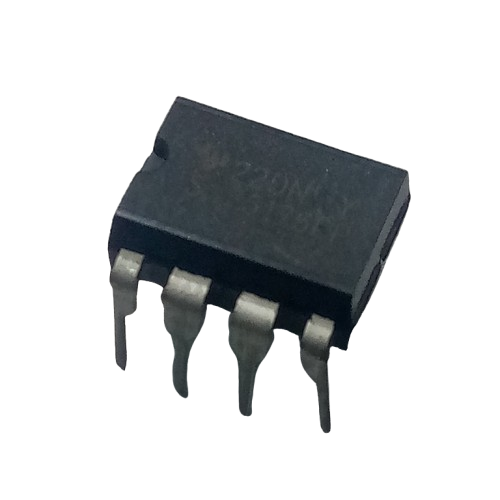

SN75176AP DIP 8 Rs 422 485 Line Driver - a black, rectangular electronic integrated circuit component with eight metal pins extending from its sides.
SN75176AP DIP 8 Rs 422 485 Line Driver - a black, rectangular 8-pin integrated circuit component shown from an elevated angle.

SN75176AP DIP 8 Rs 422 485 Line Driver

Sale price Rs 130
SKU: B513,LS10,TH5
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

SN75176AP DIP 8 Rs 422 485 Line Driver - a black 8-pin integrated circuit chip with metallic pins, shown in a close-up, angled view.
+
MAX485 RS485 Communication IC - shown as two black, rectangular, eight-pin integrated circuit chips with silver-coloured metal legs.
+
ULN2803 ULN2803A ULN2803A IC - a circular arrangement of nine black, rectangular 18-pin integrated circuit chips with silver metal pins on a white background.
+
4 Pin Connector PCB Mount Right Angle, Bent Screw Terminal - shown as a pair of green plastic connectors, one with screw terminals and one with pins.
4 Pin Connector PCB Mount Right Angle, Bent Screw Terminal - shown as a pair of green plastic connectors, one with screw terminals and one with pins.
This item: SN75176AP DIP 8 Rs 422 485 Line Driver -
Sale price Rs 130
MAX485 RS485 Communication IC - shown as two black, rectangular, eight-pin integrated circuit chips with silver-coloured metal legs.
MAX485 RS485 Communication IC -
Sale price Rs 70
ULN2803 ULN2803A ULN2803A IC - a circular arrangement of nine black, rectangular 18-pin integrated circuit chips with silver metal pins on a white background.
ULN2803 ULN2803A ULN2803A IC -
Sale price Rs 70
4 Pin Connector PCB Mount Right Angle, Bent Screw Terminal - shown as a pair of green plastic connectors, one with screw terminals and one with pins.
4 Pin Connector PCB Mount Right Angle, Bent Screw Terminal -
Sale price Rs 60
Price for all:
Sale total price Rs 330

Pickup available at Digilog Electronics

Usually ready in 2 hours

SN75176AP DIP 8 Rs 422 485 Line Driver - a black 8-pin integrated circuit chip with metallic pins, shown in a close-up, angled view.

SN75176AP DIP 8 Rs 422 485 Line Driver

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
SN75176AP DIP 8 Rs 422 485 Line Driver - a black 8-pin integrated circuit chip with metallic pins, shown in a close-up, angled view.
SN75176AP DIP 8 Rs 422 485 Line Driver
Sale priceRs 130

Differential Bus Transceiver

The SN75176A differential bus transceiver is a monolithic integrated circuit designed for bidirectional data communication on multipoint bus transmission lines. It is designed for balanced transmission lines and meets ANSI Standard EIA/TIA-422-B and ITU Recommendation V.11.

Features:

* Bidirectional Transceiver

* Meets or Exceeds the Requirements of ANSI Standards EIA/TIA-422-B and ITU Recommendation V.11

* Designed for Multipoint Transmission on Long Bus Lines in Noisy Environments

* 3-State Driver and Receiver Outputs

* Individual Driver and Receiver Enables

* Wide Positive and Negative Input/Output Bus Voltage Ranges

* Driver Output Capability . . . +/-60mA Max

* Thermal-Shutdown Protection

* Driver Positive- and Negative-Current Limiting

* Receiver Input Impedance . . . 12kOhm Min

* Receiver Input Sensitivity . . . +/-200mV

* Receiver Input Hysteresis . . . 50mV Typ

* Operates From Single 5V Supply

* Low Power Requirements
