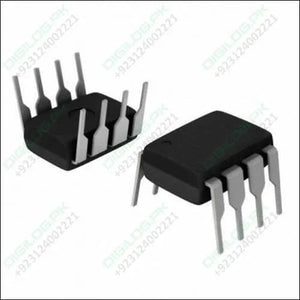

MAX485 RS485 Communication IC - shown as two black, rectangular, eight-pin integrated circuit chips with silver-coloured metal legs.

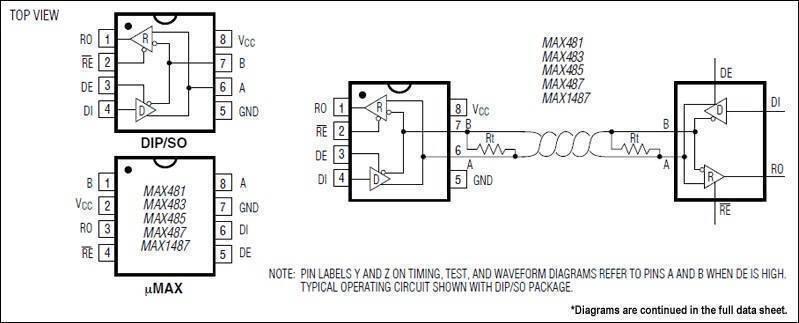

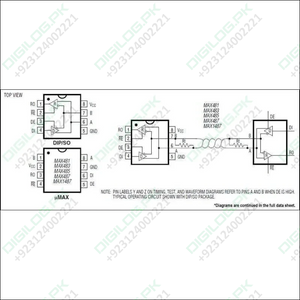

MAX485 RS485 Communication IC - pinout configurations for DIP/SO and µMAX packages alongside a typical operating circuit schematic.
MAX485 RS485 Communication IC - shown as two black, rectangular, eight-pin integrated circuit chips with silver-coloured metal legs.
MAX485 RS485 Communication IC - pinout configurations for DIP/SO and µMAX packages alongside a typical operating circuit schematic.

MAX485 RS485 Communication IC

Sale price Rs 70
SKU: B164,IMP100,Th50,A
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

MAX485 RS485 Communication IC - shown as two black, rectangular, eight-pin integrated circuit chips with silver-coloured metal legs.
+
SN75176AP DIP 8 Rs 422 485 Line Driver - a black 8-pin integrated circuit chip with metallic pins, shown in a close-up, angled view.
+
MAX232 Max 232 TTL Serial To RS232 Converter - a black 16-pin integrated circuit chip with silver metal pins, labeled "MAXIM MAX232CPE +0905".
+
RTC DS1307 IC Real Time Clock - a black, eight-pin integrated circuit chip with white text markings on its top surface.
RTC DS1307 IC Real Time Clock - a black, eight-pin integrated circuit chip with white text markings on its top surface.
This item: MAX485 RS485 Communication IC -
Sale price Rs 70
SN75176AP DIP 8 Rs 422 485 Line Driver - a black 8-pin integrated circuit chip with metallic pins, shown in a close-up, angled view.
SN75176AP DIP 8 Rs 422 485 Line Driver -
Sale price Rs 130
MAX232 Max 232 TTL Serial To RS232 Converter - a black 16-pin integrated circuit chip with silver metal pins, labeled "MAXIM MAX232CPE +0905".
MAX232 Max 232 TTL Serial To RS232 Converter -
Sale price Rs 130
RTC DS1307 IC Real Time Clock - a black, eight-pin integrated circuit chip with white text markings on its top surface.
RTC DS1307 IC Real Time Clock -
Sale price Rs 80
Price for all:
Sale total price Rs 410

Pickup available at Digilog Electronics

Usually ready in 2 hours

MAX485 RS485 Communication IC - shown as two black, rectangular, eight-pin integrated circuit chips with silver-coloured metal legs.

MAX485 RS485 Communication IC

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map

The MAX485 connects a 5 V microcontroller’s serial port to a two-wire RS-485 bus. It sends and receives data over the same pair of wires, one direction at a time. Use it in industrial controllers, remote sensor networks or Modbus RTU projects where the controller handles the protocol.

MAX485 specifications

  • Supply voltage: 5 V
  • Maximum data rate: 2.5 Mbps
  • Communication mode: half-duplex, with one driver and one receiver
  • Protection: driver current limiting and thermal shutdown

Pin connections

Connect the controller’s TX to DI and its RX to RO. Pins A and B connect to the RS-485 pair. For direction control, tie DE and active-low RE together: drive them high to transmit or low to receive.

View the MAX485 datasheet and pin diagram at Analog Devices.

Package Includes

  • 1 × MAX485 RS485 transceiver IC
