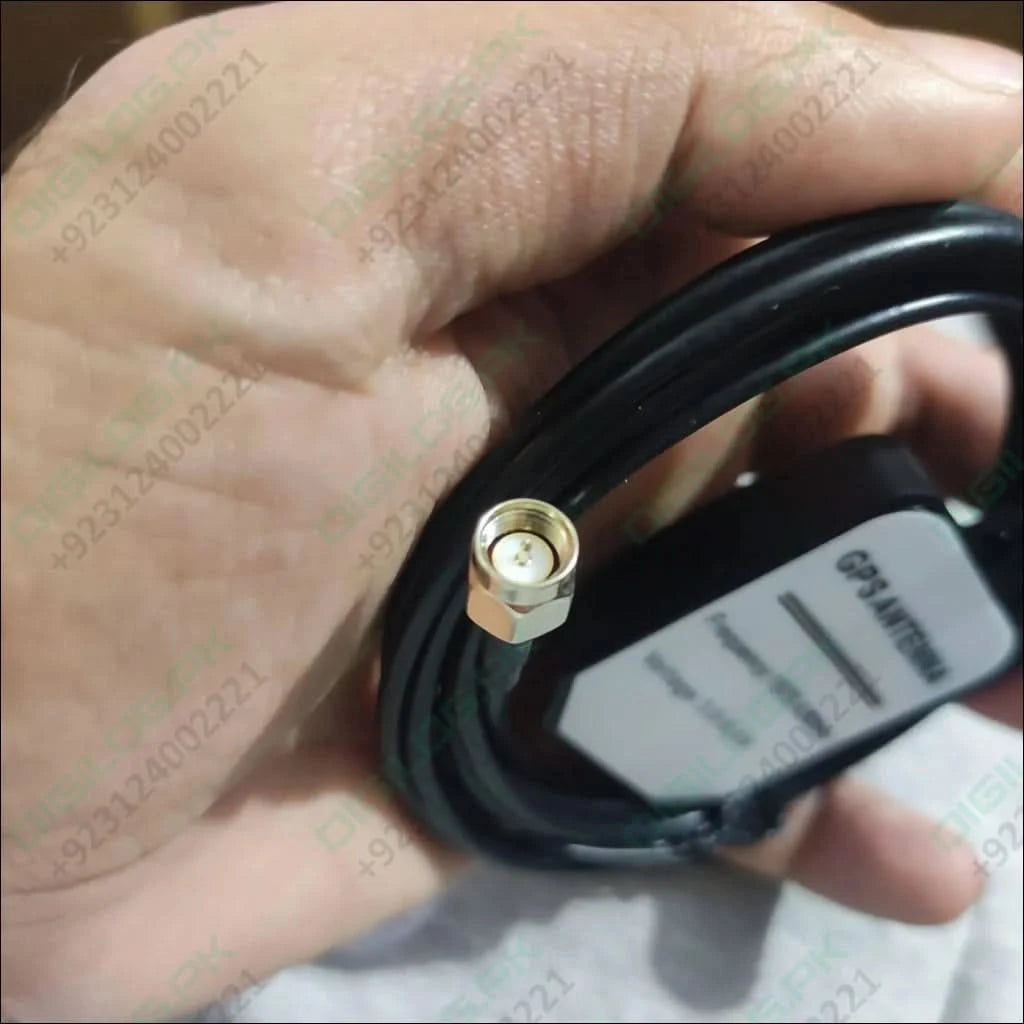

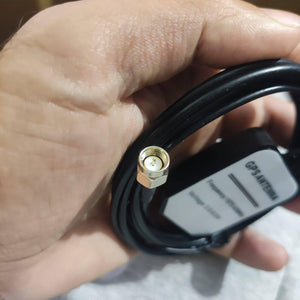

GPS Antenna External Active Antenna For GPS – 3-5V 28DB - held in a hand, showing a black rectangular antenna with a white label and a gold-coloured SMA connector on a cable.

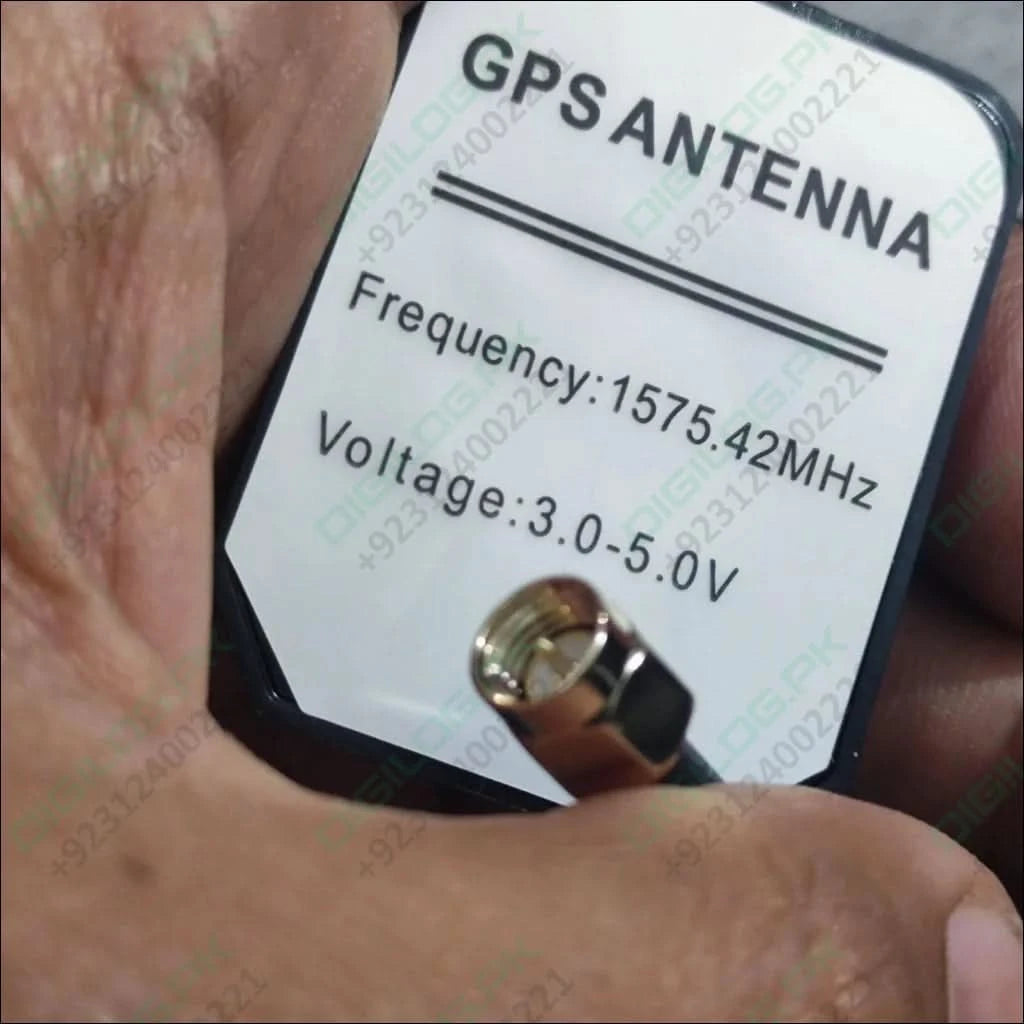

GPS Antenna External Active Antenna For GPS – 3-5V 28DB - a close-up showing the white label with frequency and voltage specifications and the attached gold-coloured connector.

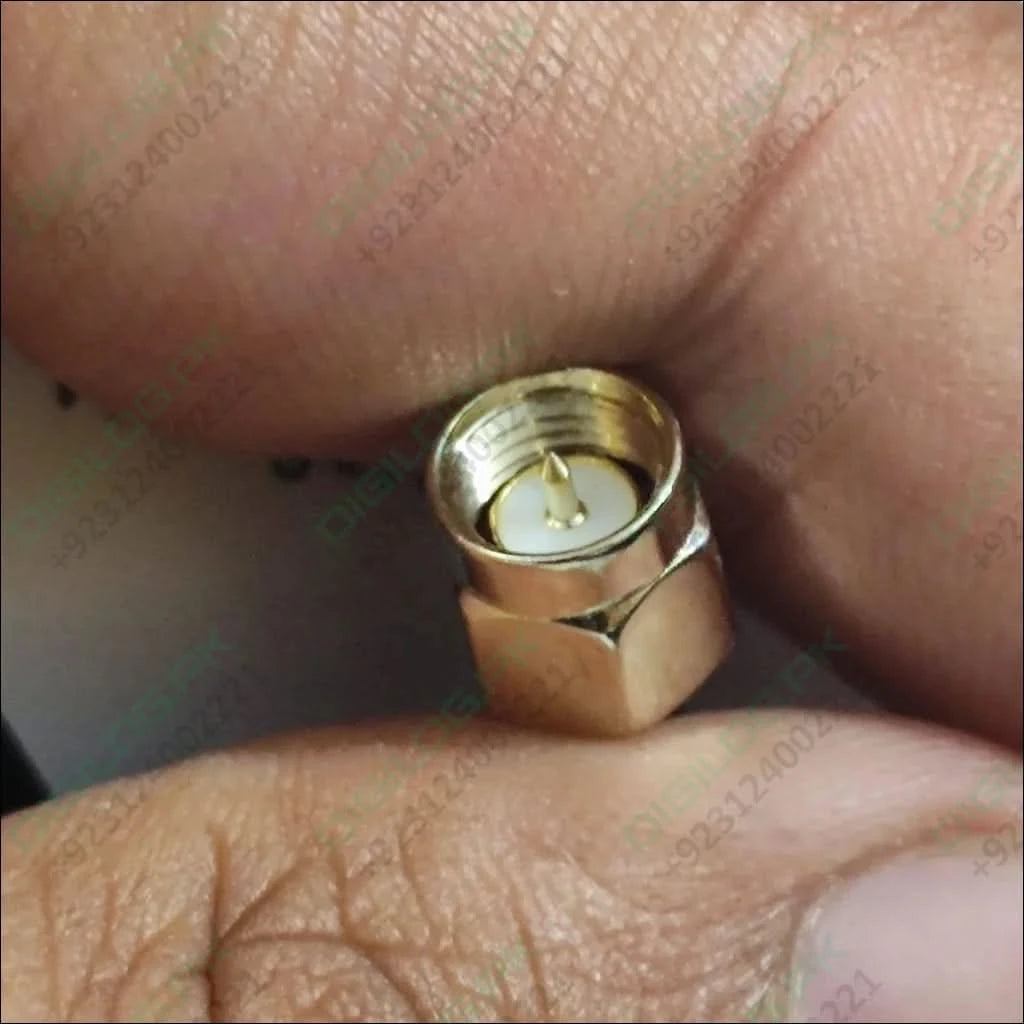

GPS Antenna External Active Antenna For GPS – 3-5V 28DB - a close-up view of the gold-coloured SMA male connector with a central pin.

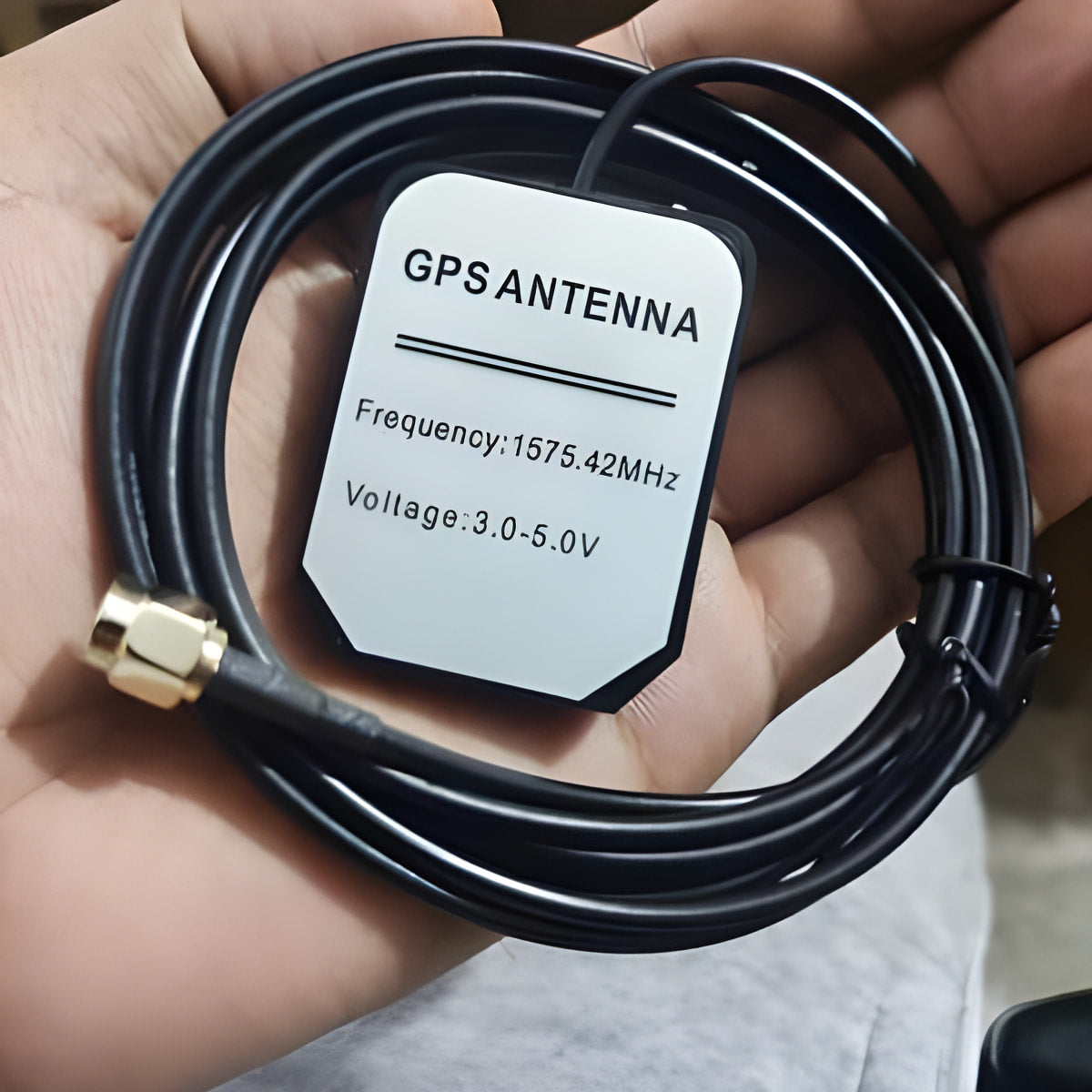

GPS Antenna External Active Antenna For GPS – 3-5V 28DB - a black square antenna with a cable ending in a gold-colored SMA connector held in a hand.
GPS Antenna External Active Antenna For GPS – 3-5V 28DB - a close-up of the gold-coloured SMA connector and the black antenna housing with a white label.
GPS Antenna External Active Antenna For GPS – 3-5V 28DB - held in a hand, showing a black rectangular antenna with a white label and a gold-coloured SMA connector on a cable.
GPS Antenna External Active Antenna For GPS – 3-5V 28DB - a close-up showing the white label with frequency and voltage specifications and the attached gold-coloured connector.
GPS Antenna External Active Antenna For GPS – 3-5V 28DB - a close-up view of the gold-coloured SMA male connector with a central pin.
GPS Antenna External Active Antenna For GPS – 3-5V 28DB - a black square antenna with a cable ending in a gold-colored SMA connector held in a hand.
GPS Antenna External Active Antenna For GPS – 3-5V 28DB - a close-up of the gold-coloured SMA connector and the black antenna housing with a white label.

GPS Antenna External Active Antenna For GPS – 3-5V 28DB

Sale price Rs 760
SKU: B311,IMP500,Th250,krt42,65
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

GPS Antenna External Active Antenna For GPS – 3-5V 28DB - held in a hand, showing a black rectangular antenna with a white label and a gold-coloured SMA connector on a cable.
+
GPS Module Neo 6m Satellite Positioning Micro USB 51 MCU For STM32 Arduino - a blue rectangular circuit board featuring a silver GPS chip, a micro USB port, a gold antenna connector, and a five-pin header.
+
NEO 7M GPS Module Micro USB satellite Positioning Module - with a square ceramic antenna, a gold-coloured SMA connector, and a five-pin header labeled VCC, GND, TXD, RXD, and PPS.
+
GY-GPS6MV2 Neo-6m GPS Module - a black circuit board with a micro-USB port, a silver GPS chip, and a separate five-pin yellow header connector.
GY-GPS6MV2 Neo-6m GPS Module - a black circuit board with a micro-USB port, a silver GPS chip, and a separate five-pin yellow header connector.
This item: GPS Antenna External Active Antenna For GPS – 3-5V 28DB -
Sale price Rs 760
GPS Module Neo 6m Satellite Positioning Micro USB 51 MCU For STM32 Arduino - a blue rectangular circuit board featuring a silver GPS chip, a micro USB port, a gold antenna connector, and a five-pin header.
GPS Module Neo 6m Satellite Positioning Micro USB 51 MCU For STM32 Arduino -
Sale price Rs 1,620
NEO 7M GPS Module Micro USB satellite Positioning Module - with a square ceramic antenna, a gold-coloured SMA connector, and a five-pin header labeled VCC, GND, TXD, RXD, and PPS.
NEO 7M GPS Module Micro USB satellite Positioning Module -
Regular price Rs 2,160 Sale price Rs 1,420
GY-GPS6MV2 Neo-6m GPS Module - a black circuit board with a micro-USB port, a silver GPS chip, and a separate five-pin yellow header connector.
GY-GPS6MV2 Neo-6m GPS Module -
Sale price Rs 1,520
Price for all:
Regular total price Rs 6,060 Sale total price Rs 5,320

Pickup available at Digilog Electronics

Usually ready in 2 hours

GPS Antenna External Active Antenna For GPS – 3-5V 28DB - held in a hand, showing a black rectangular antenna with a white label and a gold-coloured SMA connector on a cable.

GPS Antenna External Active Antenna For GPS – 3-5V 28DB

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
GPS Antenna External Active Antenna For GPS – 3-5V 28DB - held in a hand, showing a black rectangular antenna with a white label and a gold-coloured SMA connector on a cable.
GPS Antenna External Active Antenna For GPS – 3-5V 28DB
Sale priceRs 760

Give your Ultimate GPS V3 a boost with this external active antenna. This GPS antenna draws about 10mA and will give you an additional 28 dB of gain. The antenna is magnetic so it will stick to the top of a car or truck (or any other steel structure)Comes with a standard SMA connector on the end.

Specifications Of GPS Antenna – External Active Antenna – 3-5V 28dB :

  1. Operating Frequency T1 1575.42±1.023 MHz
  2. Output Impedance 50 ohms
  3. Polarization R.H.C.P.
  4. Bandwidth 10 MHz min. @S11<=-10 dB
  5. Gain at 10° elevation -1 dBic Typ.
  6. Axial Ratio 3.0 dB Typ.
