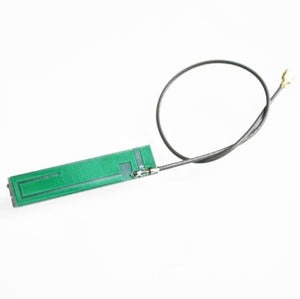

SIM800L GSM Module Micro SIM Card Board Registered With Pta Pre Soldered - a green rectangular PCB with a trace pattern connected to a black coaxial cable with a small gold connector.
SIM800L GSM Module Micro SIM Card Board Registered With Pta Pre Soldered - a red circuit board with a silver metal shield, a SIM card slot, and an attached antenna with adhesive.
SIM800L GSM Module Micro SIM Card Board Registered With Pta Pre Soldered - a green rectangular PCB with a trace pattern connected to a black coaxial cable with a small gold connector.

SIM800L GSM Module Micro SIM Card Board Registered With Pta Pre Soldered

Sale price Rs 3,000
SKU: B823,IMP100,TH50
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

SIM800L GSM Module Micro SIM Card Board Registered With Pta Pre Soldered - a red circuit board with a silver metal shield, a SIM card slot, and an attached antenna with adhesive.
+
GPS Module Neo-6m V2 Ublox - a blue circuit board with four pins and an external square antenna connected by a short black cable.
+
MQ3 Alcohol Sensor Detector Gas Sensor Module - a blue circuit board with a cylindrical orange sensor housing and four metal connector pins.
+
GPS Module Neo 6m Satellite Positioning Micro USB 51 MCU For STM32 Arduino - a blue rectangular circuit board featuring a silver GPS chip, a micro USB port, a gold antenna connector, and a five-pin header.
GPS Module Neo 6m Satellite Positioning Micro USB 51 MCU For STM32 Arduino - a blue rectangular circuit board featuring a silver GPS chip, a micro USB port, a gold antenna connector, and a five-pin header.
This item: SIM800L GSM Module Micro SIM Card Board Registered With Pta Pre Soldered -
Sale price Rs 3,000
GPS Module Neo-6m V2 Ublox - a blue circuit board with four pins and an external square antenna connected by a short black cable.
GPS Module Neo-6m V2 Ublox -
Sale price Rs 1,010
MQ3 Alcohol Sensor Detector Gas Sensor Module - a blue circuit board with a cylindrical orange sensor housing and four metal connector pins.
MQ3 Alcohol Sensor Detector Gas Sensor Module -
Sale price Rs 360
GPS Module Neo 6m Satellite Positioning Micro USB 51 MCU For STM32 Arduino - a blue rectangular circuit board featuring a silver GPS chip, a micro USB port, a gold antenna connector, and a five-pin header.
Price for all:
Sale total price Rs 5,990

Pickup available at Digilog Electronics

Usually ready in 2 hours

SIM800L GSM Module Micro SIM Card Board Registered With Pta Pre Soldered - a red circuit board with a silver metal shield, a SIM card slot, and an attached antenna with adhesive.

SIM800L GSM Module Micro SIM Card Board Registered With Pta Pre Soldered

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map

The SIM800L is available in Pakistan. Sim800L is a cheap and portable GSM module breakout board with all the capabilities of the larger SIM900 gsm module and shields.  Smallest SIM800L GPRS GSM Module has a microSIM card core board quad-band TTL serial port. This is a GPRS GSM module based on the SIMCom SIM800L, which is a GSM GRPS Quad-Band module. You can add voice, text, SMS, and data to your project with this module. Sim800L is an ideal solution for M2M applications, suitable for automotive, industrial and PDA, personal tracking, electricity environment detection, wireless POS, smart metering, and other M2M applications, to provide comprehensive GSM / GPRS text messaging, voice and data transmission services.

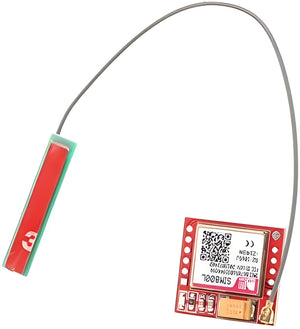

Here is an image of the product with external antenna

Sim800l Gsm Module Micro Sim Card Board Registered With Pta

Tutorial:

SPECIFICATION Of SIM800L GSM Module.

  1. Quad-band 850/900/1800/1900MHz
  2. GPRS mobile station class B
  3. Supports Real-Time Clock
  4. Supply voltage range 3.4V ~ 4.4V
  5. Supports A-GPS
  6. Supports 3.0V to 5.0V logic level
  7. Micro SIM Card
  8. Compact size 23mm x 35mm x 5.6mm
  9. Low power consumption, 1mA in sleep mode
  10. GPRS multi-slot class12 connectivity: max. 85.6kbps (down-load/up-load)
  11. Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands).

DOCUMENTS

  1. Datasheet
  2. AT Command Manual
  3. TCP-IP Application Note
  4. IP Application Note
  5. SSL Application Note
  6. Email Application Note
  7. Software library

TUTORIALS

  1. http://www.ayomaonline.com/programming/quickstart-sim800-sim800l-with-arduino/
  2. http://www.seeedstudio.com/recipe/358-the-ultimate-child-tracker.html

Package Included:

   1 x Pre Soldered Headers SIM800L GSM Module Registered With PTA
