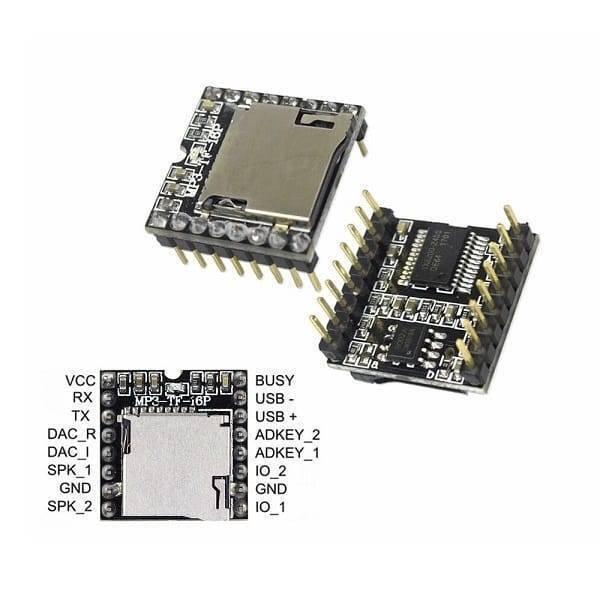

Open Source Mp3-tf-16p Mini Mp3 Player Module With Serial Port

Open Source Mp3-tf-16p Mini Mp3 Player Module With Serial Port

Regular price Rs 550
Regular price Sale price Rs 550
Sale Sold out
Shipping calculated at checkout.

SKU:B816,krt71,A,IMP30,TH15

NOTIFY ME WHEN IN STOCK

It is a compact and inexpensive MP3 module that can be connected directly to the speaker. Module with battery power supply, speaker, the keypad can be used alone, or through the serial port control, as the Arduino UNO or any microcontroller with a serial port module. The module itself perfectly integrated hardware decodes MP3, WAV, WMA.

While the software supports TF card drivers to support FAT16, FAT32 file systems. It can be done by the simple serial command that plays the specified music, as well as how to play music and other functions, without tedious low-level, easy to use, stable, and reliable.

Specification:

  1. Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
  2. 24 -bit DAC output, support for dynamic range 90dB, SNR support 85dB
  3. Fully supports FAT16, FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NOR FLASH
  4. A variety of control modes, I/O control mode, serial mode, AD button control mode
  5. Advertising sound waiting for function, the music can be suspended. when advertising is over in the music continue to play
  6. Audio data sorted by folder supports up to 100 folders, every folder can hold up to 255 songs
  7. 30 level adjustable volume, 6 -level EQ adjustable

Package Includes:

  • 1 x Open source MP3-TF-16P Mini MP3 Player Module With Serial Port



View full details

Description

It is a compact and inexpensive MP3 module that can be connected directly to the speaker. Module with battery power supply, speaker, the keypad can be used alone, or through the serial port control, as the Arduino UNO or any microcontroller with a serial port module. The module itself perfectly integrated hardware decodes MP3, WAV, WMA.

While the software supports TF card drivers to support FAT16, FAT32 file systems. It can be done by the simple serial command that plays the specified music, as well as how to play music and other functions, without tedious low-level, easy to use, stable, and reliable.

Specification:

  1. Supported sampling rates (kHz): 8/11.025/12/16/22.05/24/32/44.1/48
  2. 24 -bit DAC output, support for dynamic range 90dB, SNR support 85dB
  3. Fully supports FAT16, FAT32 file system, maximum support 32G of the TF card, support 32G of U disk, 64M bytes NOR FLASH
  4. A variety of control modes, I/O control mode, serial mode, AD button control mode
  5. Advertising sound waiting for function, the music can be suspended. when advertising is over in the music continue to play
  6. Audio data sorted by folder supports up to 100 folders, every folder can hold up to 255 songs
  7. 30 level adjustable volume, 6 -level EQ adjustable

Package Includes:

  • 1 x Open source MP3-TF-16P Mini MP3 Player Module With Serial Port
