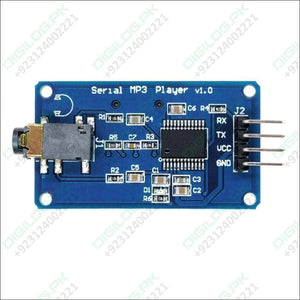

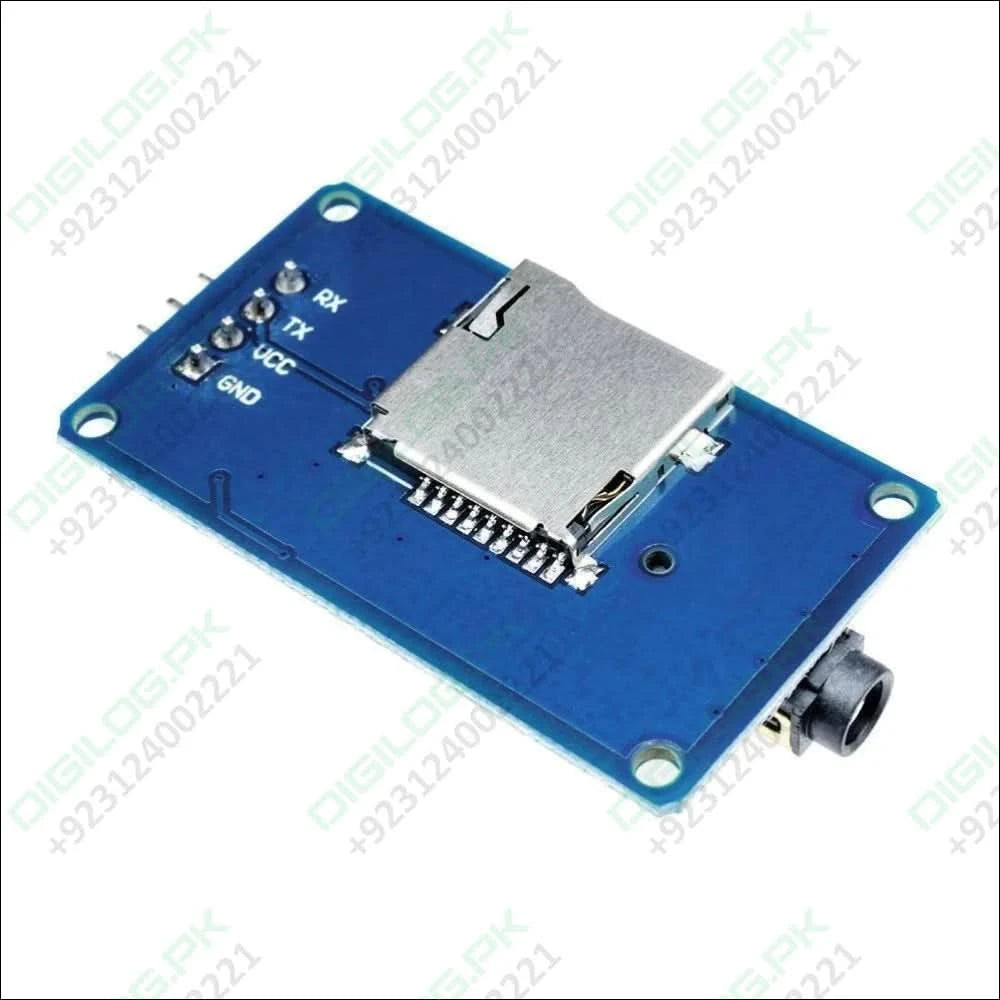

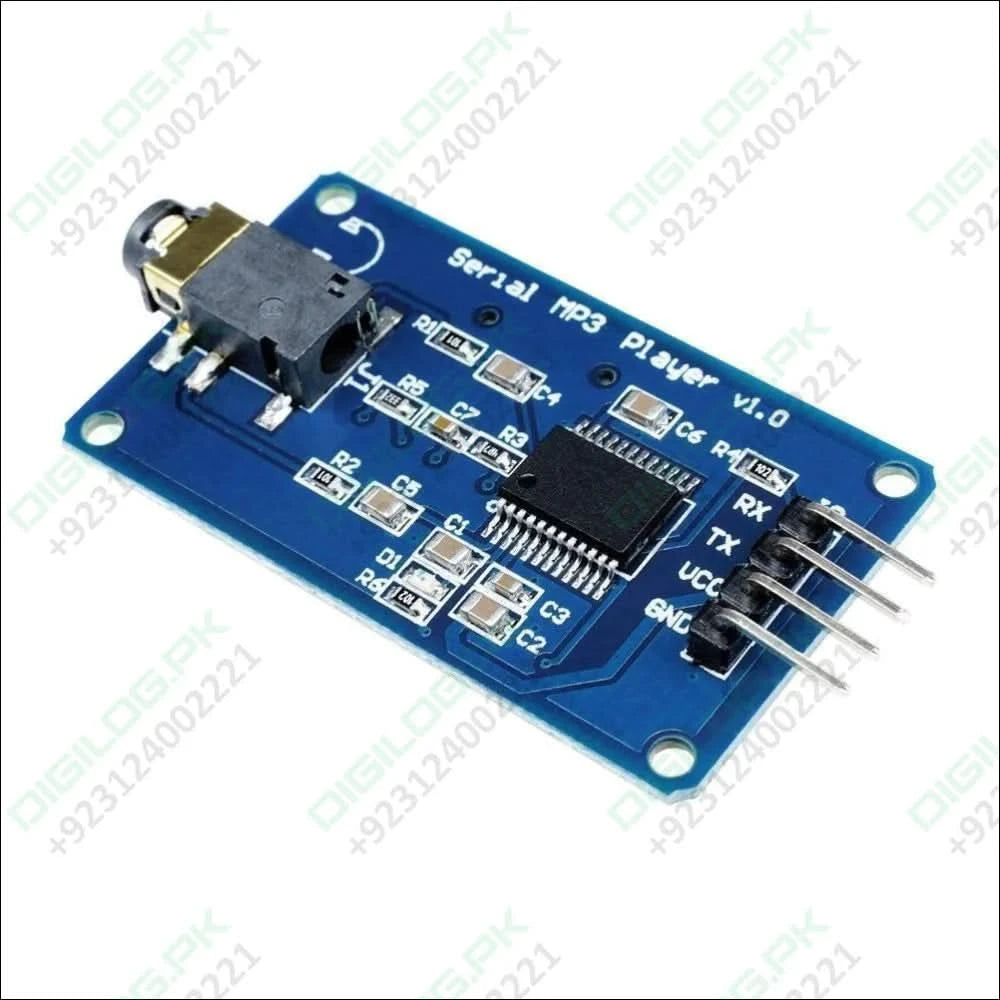

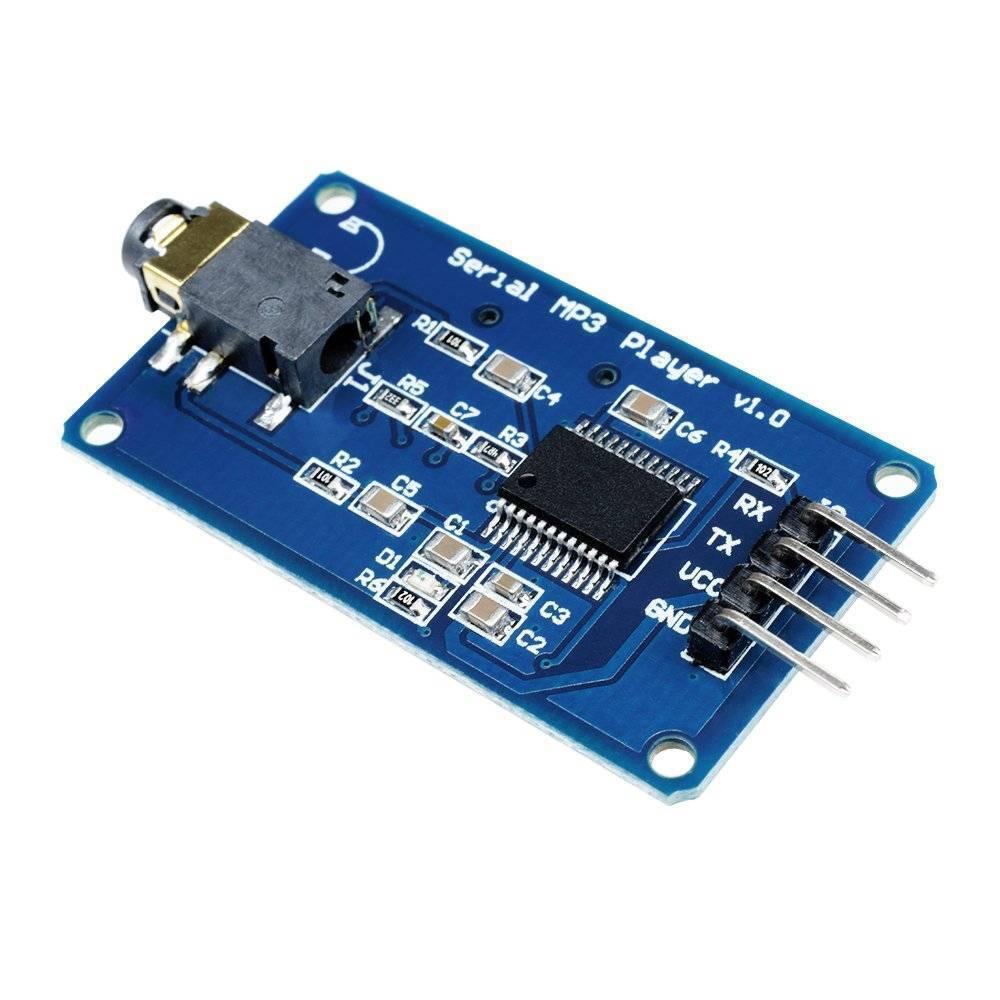

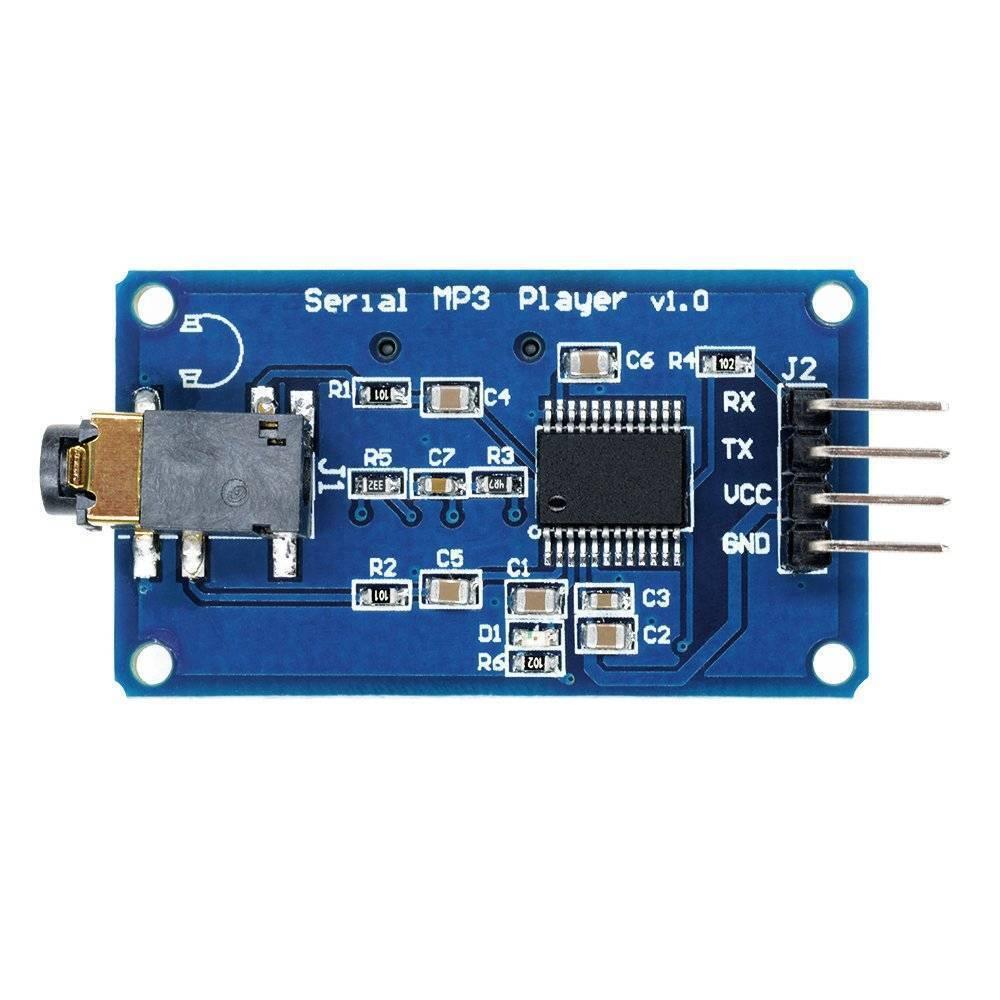

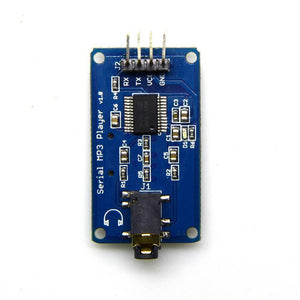

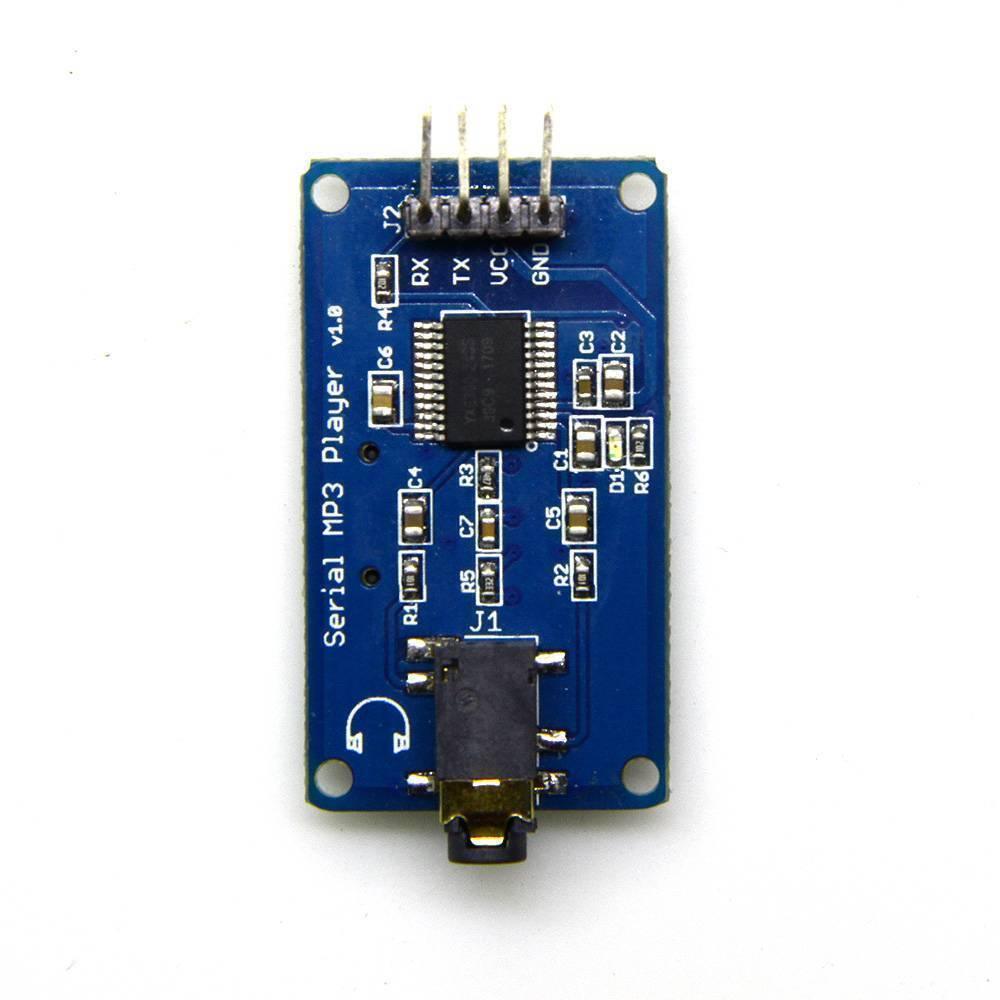

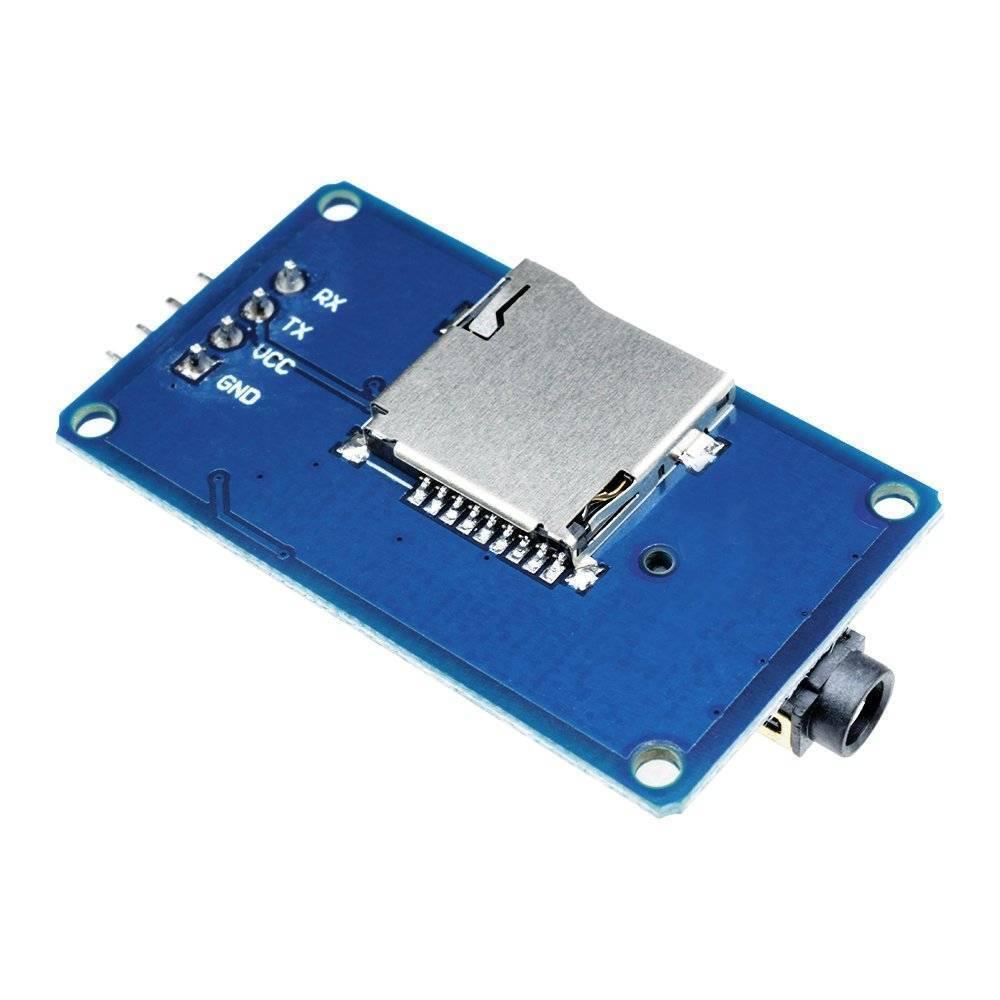

YX5300 MP3 Music Player Module: Versatile Audio Control

Enhance your projects with the YX5300 MP3 Music Player Module. This versatile module offers high-quality MP3 audio playback and supports various file formats (8kHz-48kHz). Easily control playback functions (songs, volume, mode) using UART commands from your MCU (Arduino, AVR, ARM, PIC). The built-in TF card slot allows for convenient audio file storage.

Features:

1. Support sampling frequency (kHz): 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48
2. Support file format: MP3 / WAV
3. Support Micro SD card, Micro SDHC Card
4. 30 class adjustable volume
5. UART TTL serial control playback mode, baud rate is 9600bps
6. Power supply can be 3.2 ~ 5.2VDC

Instructions/ helpful Code:

Save mp3 files in sd card and here is test code

send + to arduino from serial terminal of arduino for next song and – for previous song.

//www.hallroad.org

// 11-25-2016 test code for mp3 module

#include

SoftwareSerial mp3 ( 5 , 6 ) ;//5=rx , 6=tx

static uint8_t cmdbuf[8] = {0};

char serial_byte=0;

char song_no=1;

void command(int8_t cmd, int16_t dat)

{

delay(20);

cmdbuf [ 0 ] = 0x7e ; // byte start

cmdbuf [ 1 ] = 0xFF ; // Version

cmdbuf [ 2 ] = 0x06 ; // number of bytes command

cmdbuf [ 3 ] = cmd ; // command

cmdbuf[4] = 0x00; // 0x00 = no feedback, 0x01 = feedback

cmdbuf [ 5 ] = ( int8_t ) ( dat >> 8 ) ; // PARAMETR DAT1

cmdbuf [ 6 ] = ( int8_t ) ( dat ) ; // PARAMETR DAT2

cmdbuf [ 7 ] = 0xef ; // Bajt konczacy

for (uint8_t i = 0; i < 8; i++)

{

mp3.write(cmdbuf[i]);

}

}

void setup()

{

Serial.begin(9600);

mp3.begin(9600);

delay ( 500 ) ; // We look forward to 500ms initialization

command ( 0x09 , 0x0002 ) ; // Select SD card as a source

delay ( 200 ) ; // Czekamu 200ms for initialization

command ( 0x06 , 0x0064 ) ; // Set the volume to 30

command ( 0x03 , song_no );

}

void loop() {

if(serial_byte==’+’)

{if(song_no<11) {serial_byte=0;song_no++;command ( 0x03 , song_no );}}

else if (serial_byte==’-‘)

{if(song_no>1) {serial_byte=0;song_no–;command ( 0x03 , song_no );}}

}

void serialEvent() {

if (Serial.available()) {

serial_byte = (char)Serial.read();

if (Serial.available())

char i= Serial.read();

}

}

Package includes:

• 1x  MP3 Music Player UART Control Serial  Module
