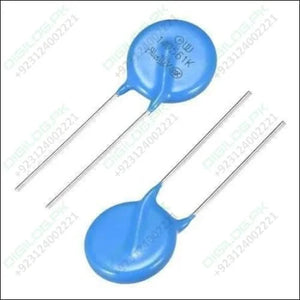

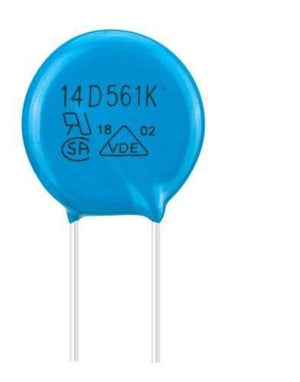

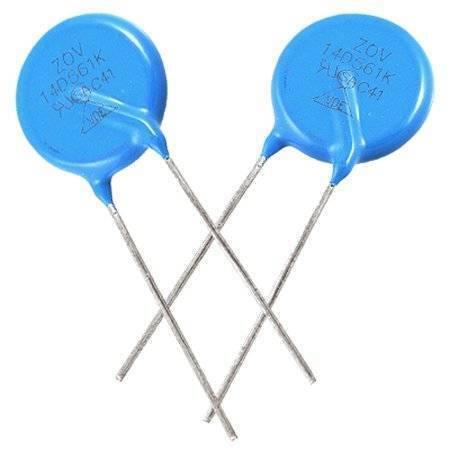

14d561k Mov Metal Oxide Varistor
Description
The 14d561k Mov Metal Oxide Varistor is radial leaded varistors that provide ideal circuit protection for surge voltages By offering higher surge ratings than ever before available in such small discs. The maximum peak surges current rating can reach up to 6KA (8/20 μs pulse) to protect against high peak surges, including indirect lightning strike interference, system switching transients, and abnormal fast transients from the power source.
If you don't know about Varistor, then watch this video.
Features of 14d561k Mov Metal Oxide Varistor:
- Wide operating voltage (V1mA) ranges from 8V to 1800V
- Fast responding to transient over-voltage
- Large absorbing transient energy capability
- Low clamping ratio and no following-on current
- Meets MSL level 1, per J-STD-020
Specifications:
| Maximum AC Volts | 350VAC |
| Maximum DC Volts | 460VDC |
| Current-Surge | 4.5kA |
| Package / Case | * |
| Varistor Voltage | 560V |
| Energy | 125J |
| Number of Circuits | 1 |
| RoHS Status | RoHS Compliant |
Package Include:
1x MOV-14D561K
