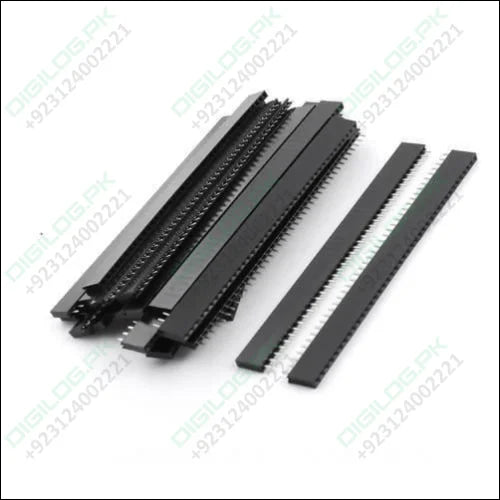

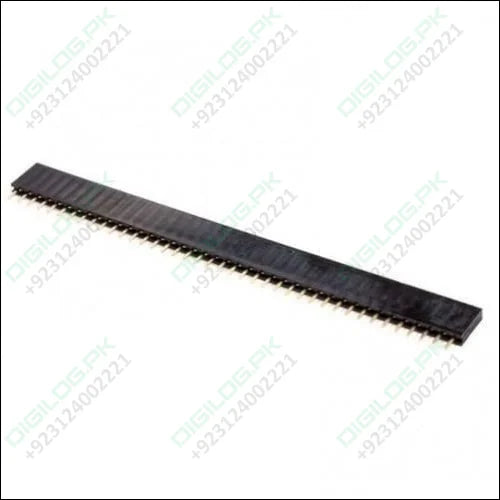

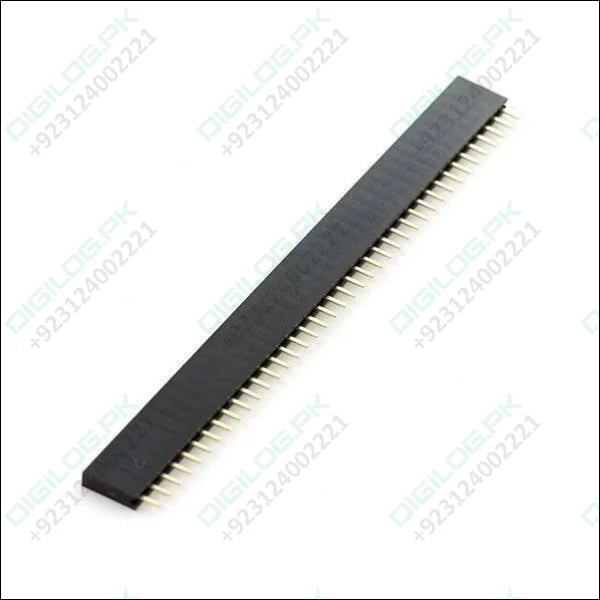

2.54mm Pitch 40 Pin Single Row Female Header Strip

2.54mm Pitch 40 Pin Single Row Female Header Strip

Regular price Rs 40
Regular price Sale price Rs 40
Sale Sold out
Shipping calculated at checkout.

SKU:B413,KRT174,IMP500,Th150,S

NOTIFY ME WHEN IN STOCK

This 2.54mm Pitch 40 Pin Single Row Female Header Strip is commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs. 40 Pin Single Row Female Header Strip, the standard spacing is the same as on most solderless breadboards and matches 0.1 male header strips. Our straight female headers are available in a variety of commonly used pin counts. A single row of the 40-holes female header can be cut to size with a pair of wire-cutters. We use them extensively in our SparkFun Original boards. They mate very well with break away male headers.

We have also 40 pins round female header strip, 40 pins round male header strip, Red color 40pins header strip etc.

Features of 2.54mm Pitch 40 Pin Single Row Female Header Strip:

  • 0.1" straight female header strips are commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs.
  • The standard spacing is the same as on most solderless breadboards.
  • High-quality material, easy to use.
  • Straight mounting angle.
  • Use in mostly in electric products as an electric component.

Specifications of 2.54mm Pitch 40 Pin Single Row Female Header Strip:

  1. Receptacle Style: Square
  2. Number of Pins: 40
  3. Pin Spacing: 0.1″ (2.54 mm)
  4. Receptacle Depth: 6 mm
  5. Current rating: 3.0 AMP
  6. Operation temperature: -40°C to +105°C
  7. Contact resistance: 20mΩ Max
  8. Insulation resistance: 1000MΩ Min
  9. Withstanding Voltage: AC/DC 1000V
  10. Insulator Material: Polyester (UL94V-0) 30% Glass Fiber PBT
  11. Contact material: Brass

Package Includes:

1 x 40 Pin Single Row Female Header Strip

Best Online Shopping website for 40 Pin Single Row Female Header Strip in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.

Female Headers

2.54mm Pitch 40 Pin Single Row Female Header Strip

2.54mm Pitch 40 Pin Single Row Female Header Strip

Female Headers

View full details

Description

This 2.54mm Pitch 40 Pin Single Row Female Header Strip is commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs. 40 Pin Single Row Female Header Strip, the standard spacing is the same as on most solderless breadboards and matches 0.1 male header strips. Our straight female headers are available in a variety of commonly used pin counts. A single row of the 40-holes female header can be cut to size with a pair of wire-cutters. We use them extensively in our SparkFun Original boards. They mate very well with break away male headers.

We have also 40 pins round female header strip, 40 pins round male header strip, Red color 40pins header strip etc.

Features of 2.54mm Pitch 40 Pin Single Row Female Header Strip:

  • 0.1" straight female header strips are commonly used as low-cost connectors for custom-made cables or perforated prototyping PCBs.
  • The standard spacing is the same as on most solderless breadboards.
  • High-quality material, easy to use.
  • Straight mounting angle.
  • Use in mostly in electric products as an electric component.

Specifications of 2.54mm Pitch 40 Pin Single Row Female Header Strip:

  1. Receptacle Style: Square
  2. Number of Pins: 40
  3. Pin Spacing: 0.1″ (2.54 mm)
  4. Receptacle Depth: 6 mm
  5. Current rating: 3.0 AMP
  6. Operation temperature: -40°C to +105°C
  7. Contact resistance: 20mΩ Max
  8. Insulation resistance: 1000MΩ Min
  9. Withstanding Voltage: AC/DC 1000V
  10. Insulator Material: Polyester (UL94V-0) 30% Glass Fiber PBT
  11. Contact material: Brass

Package Includes:

1 x 40 Pin Single Row Female Header Strip

Best Online Shopping website for 40 Pin Single Row Female Header Strip in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.

Female Headers

2.54mm Pitch 40 Pin Single Row Female Header Strip

2.54mm Pitch 40 Pin Single Row Female Header Strip

Female Headers

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

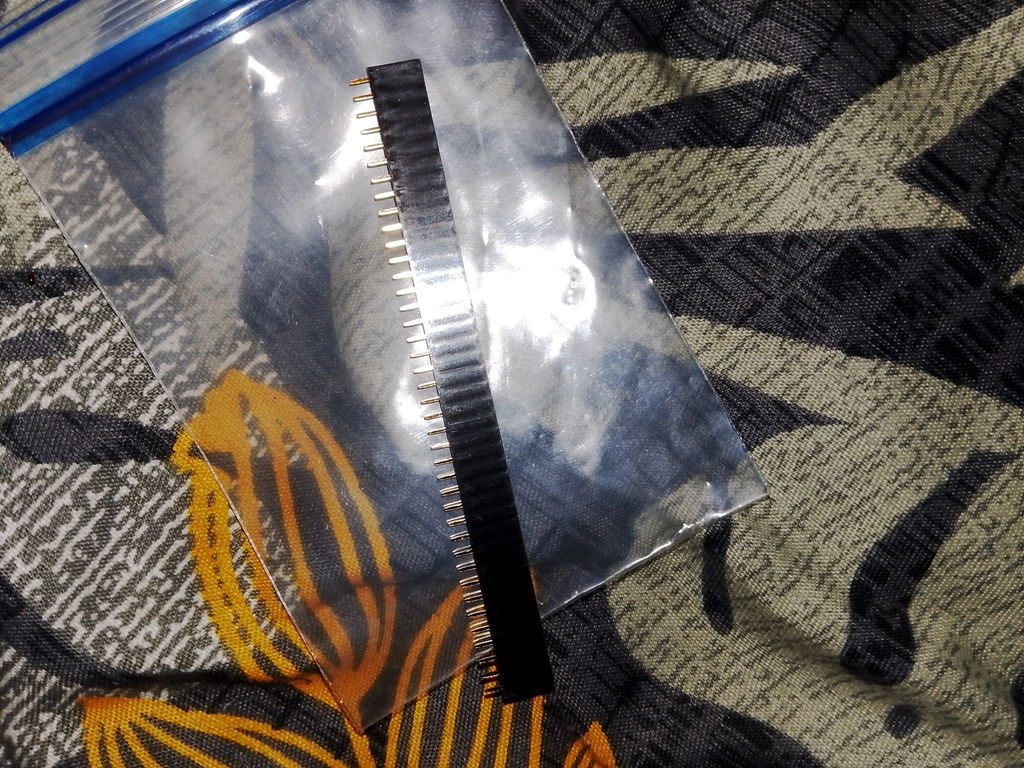

M
