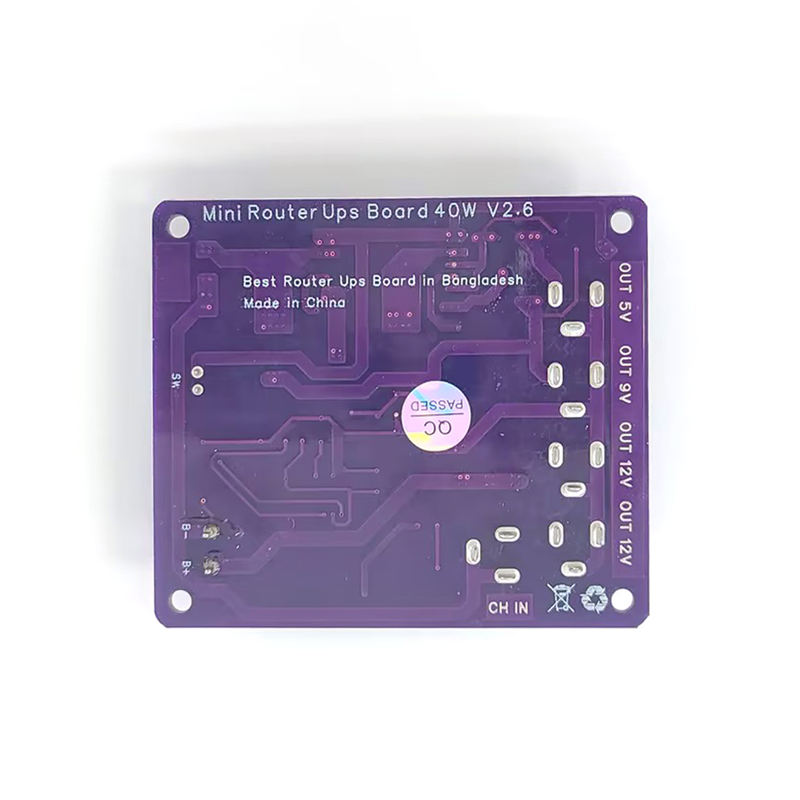

Mini Router UPS Board 40W V2.6 for Router & Modem in Pakistan
Frequently Bought Together
Customers building this project usually buy these together.
Pickup available at Digilog Electronics
Usually ready in 2 hours
Mini Router UPS Board 40W V2.6 — Load Shedding Mein Bhi Router Chalta Rahe.
Pakistan mein load shedding ke dauran bhi apna WiFi router, modem, ya CCTV camera uninterrupted chalao — Mini Router UPS Board V2.6 ke saath. Ghar, office, aur IoT projects ke liye perfect backup power solution.
Specifications

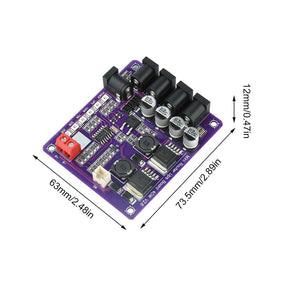

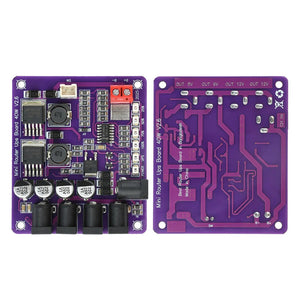

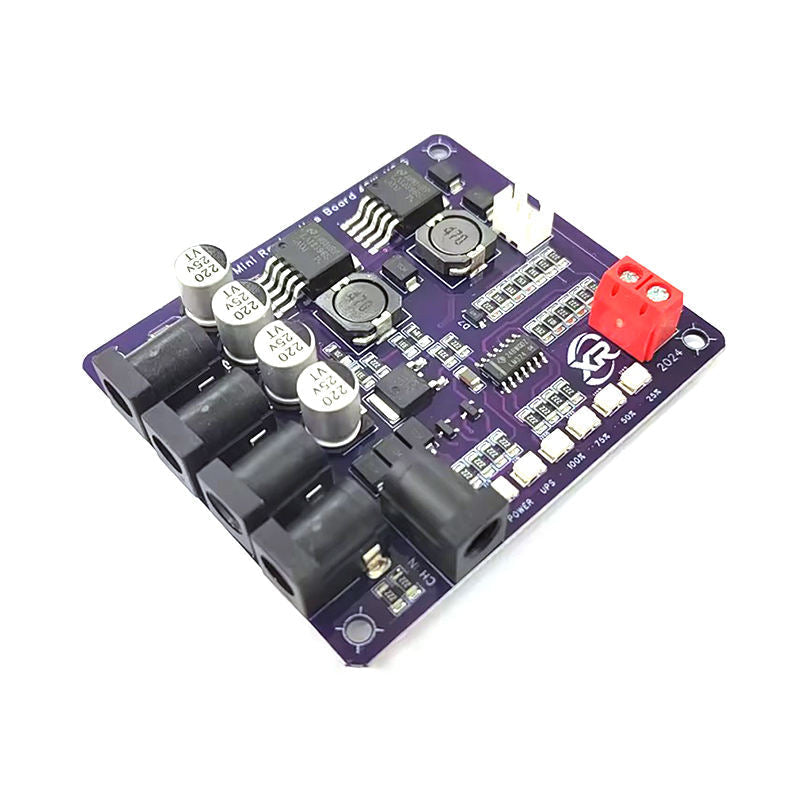

- Model: Mini Router UPS Board V2.6
- Max Output Power: 40W (Peak 47.5W) [VERIFY]
- Input Voltage: 12.6V – 13.0V (2A–5A)
- Battery Type: 3S LiPo 18650 (11.1V nominal)
- Battery Full Charge: 12.6V
- Battery Low Cutoff: 10.5V
- Port 1 Output: 12V @ 1.5A
- Port 2 Output: 12V @ 1.5A
- Port 3 Output: 9V @ 2A
- Port 4 Output: 5V @ 2A
- Output Accuracy: 99% (±0.05V tolerance)
- Battery Indicator: LED — 100% / 75% / 50% / 25%
- Components: All SMD
- Protections: Short Circuit, High Voltage, Overvoltage, Polarity (±)
- Weight: 32g

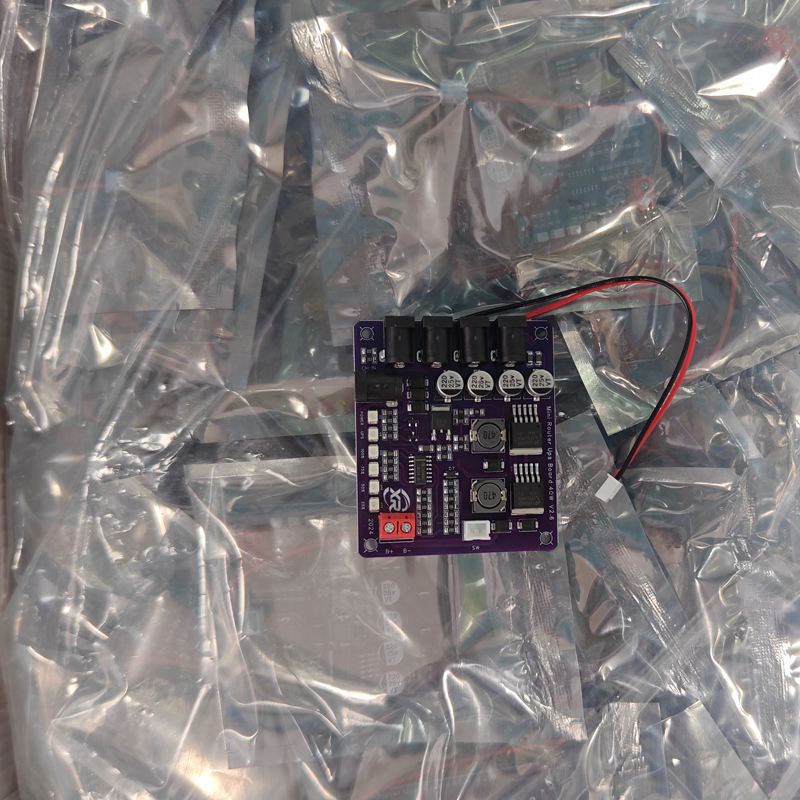

- Package Includes: 1× UPS Power Module, 1× Terminal Cable
Kahan Use Hota Hai? (Use Cases)
- 🌐 WiFi Router Backup — Load shedding mein bhi internet connection maintain karo
- 📡 Modem & DSL Devices — PTCL, Nayatel, StormFiber modems ke liye ideal
- 📷 CCTV Cameras — 12V IP cameras ko uninterrupted power do
- 🤖 IoT & Robotics Projects — ESP32, Arduino, Raspberry Pi projects mein portable power source
- 🏠 Smart Home Automation — Home automation hubs aur sensors ke liye reliable DC backup
Kaise Connect Karein? (Wiring Guide)
Battery Connection
3S LiPo 18650 Battery
(+) Red Wire → Board B+ Terminal
(-) Black Wire → Board B- Terminal
Input Power (Charger/Adapter)
(+) → Board IN+ Terminal (12.6V–13V DC)
(-) → Board IN- Terminal
Output Devices
Port 1 (12V 1.5A) → Router / Modem
Port 2 (12V 1.5A) → CCTV Camera / Second Device
Port 3 (9V 2A) → 9V Devices
Port 4 (5V 2A) → ESP32 / Arduino / NodeMCU
[VERIFY] Confirm polarity markings on your specific board before connecting battery.
Aksar Pooche Jane Wale Sawal (FAQ)
Q: Kaunsi battery use karni chahiye?
3S LiPo 18650 battery use karein (11.1V nominal, 12.6V full charge). 2S battery is not compatible — voltage range match nahi karega.
Q: Kitni der tak router chala sakta hai?
Battery capacity par depend karta hai. 3000mAh 3S pack ke saath ek typical 12V/1A router ko approximately 2–3 hours backup milta hai. [VERIFY with actual battery]
Q: Kya yeh surge/thunder protection deta hai?
Nahi — yeh board short circuit, overvoltage, aur polarity protection deta hai, lekin lightning/surge protection nahi hai. Separate surge protector use karein sensitive setups ke liye.
Q: Kya ESP32 ya Arduino directly connect ho sakta hai?
Haan — Port 4 (5V @ 2A) se ESP32, Arduino Uno/Nano, NodeMCU, aur Wemos boards directly power ho sakte hain.
Package Contents

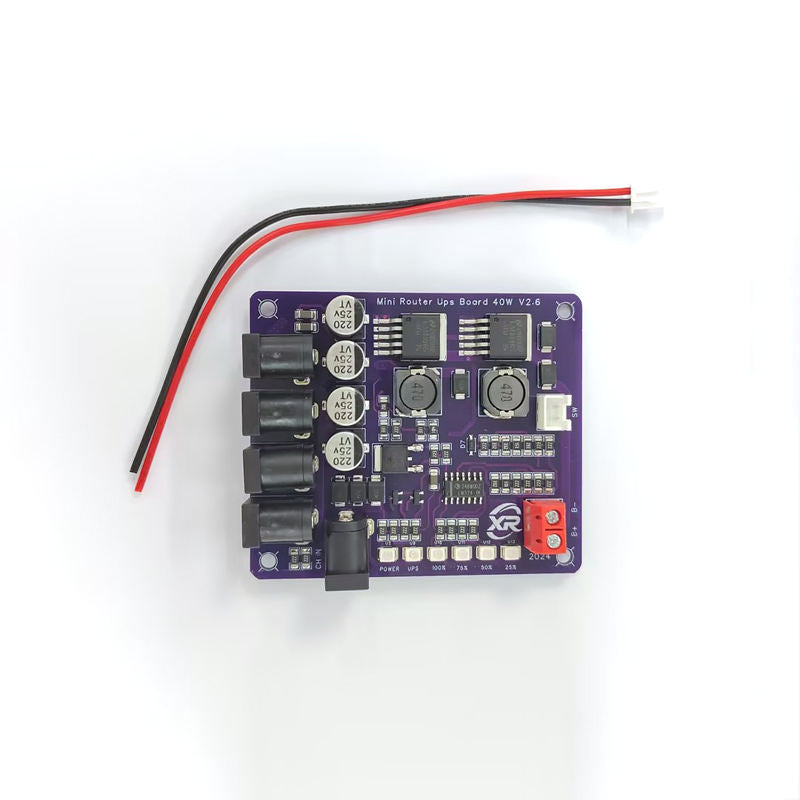

- 1× Mini Router UPS Board 40W V2.6
- 1× Terminal Cable
- Battery included nahi hai — alag se purchase karein
