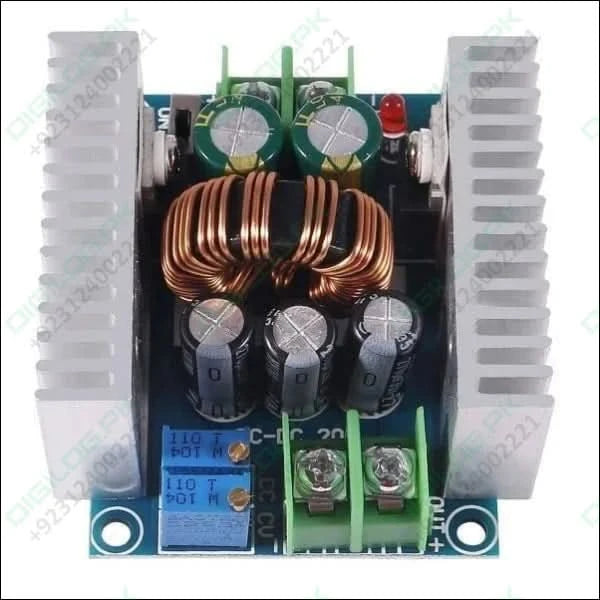

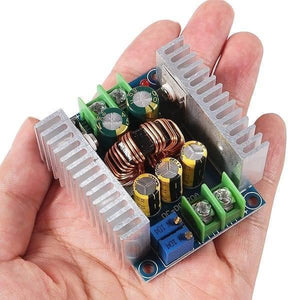

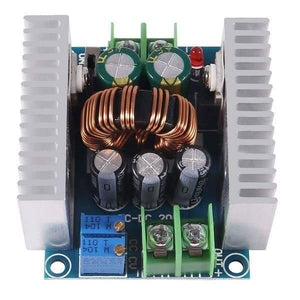

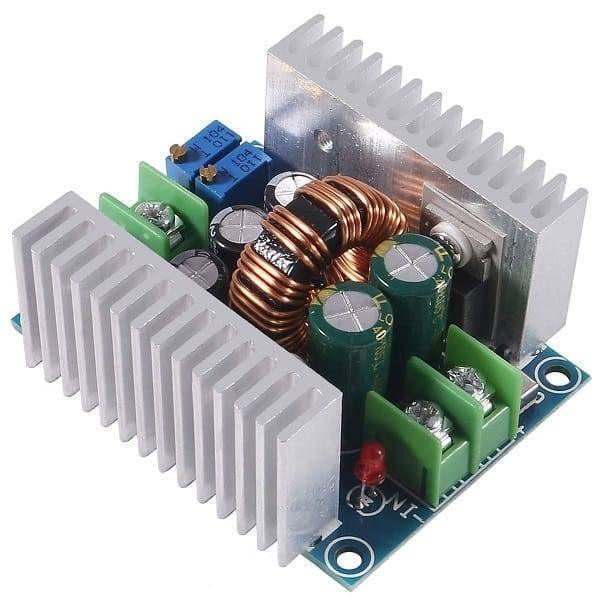

300w 20a Adjustable Dc-dc Step Down Buck Converter Voltage Regulator Power Supply Module

300w 20a Adjustable Dc-dc Step Down Buck Converter Voltage Regulator Power Supply Module

Regular price Rs 1,400
Regular price Sale price Rs 1,400
Sale Sold out
Shipping calculated at checkout.

SKU:B271,KRT34,IMP100,Th50,S

NOTIFY ME WHEN IN STOCK

The 300W 20A DC-DC Step-down Adjustable Constant Current Module can be used to get adjustable output voltage ranges from 1.2V to 36V. The module provides a wide range of current output up to 20 A. With the heat sink mounted it can easily manage to run high power applications continuously (provided that for continuous high power output you need to use a cooling fan on the heat sink).

Features:

  • Scope: High-power LED constant current driver, rechargeable lithium batteries 4V, 6V, 12V, 14V, 24V battery charging; nickel-cadmium nickel-metal hydride batteries (battery) charging, solar panels, wind generators.
  • Output voltage: continuously adjustable (1.25-36V) (applied to the input voltage is higher than the output voltage applications can boost).
  • Turn lights Current: current value * (0.1), turn the lamp current, and constant value linkage, such as the constant value of 3A.
  • Turn the lamp current is set to a constant current of 0.1 times (0.1 x 3A = 0.3A), when the constant 2A, when adjusted to the current value, then turn the lamp current constant current of 0.1 times (0.1 x 2A = 0.2A).
  • This version is fixed 0.1 times (actually turning the lamp current value is probably not very accurate) is full of instructions for charging.
  • Minimum pressure: 1V.
  • Output Ripple: about the ripple 50mV (without noise) 20M bandwidth (for reference) Input 24V Output 12V 5A measured.
  • Operating temperature: -10 to + 75 (please note the actual use of the power tube temperature, the temperature is too high, please enhance heat dissipation).

Specifications:

  1. Color: Silver
  2. Material: Metal
  3. Size: Approx. 60 x 52 x 27mm / 2.36 x 2.05 x 1.06”
  4. Input Voltage: DC 6-40V (10V to 40V is suggested)
  5. Output Voltage: DC 1.2-36V
  6. Output Current: 20A(max.), 15A (suggested)
  7. Efficiency: 97% (24V to 12V, 20A)
  8. Output Ripple: ≤50mV
  9. Wiring Method: Terminal
  10. Short Circuit Protection: Self-recovery (cannot short circuit for a long time)

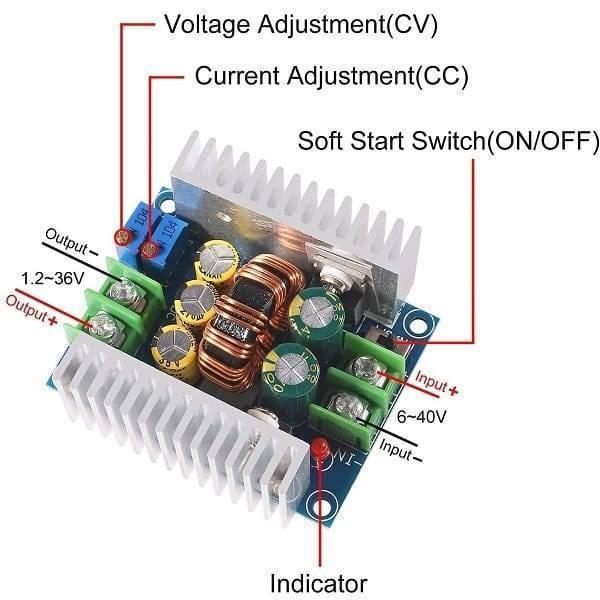

  11. VO+: Output positive
  12. VO-: Output negative
  13. +IN: Input positive
  14. -IN: Input negative

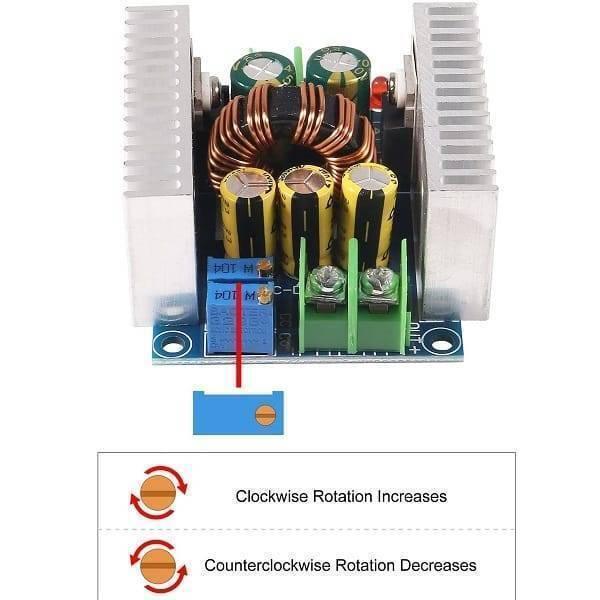

  15. CV: Output voltage adjustment
  16. CC: Output current adjustment
  17. EN: Enable, low voltage level shut off output; suspension, high voltage level is effective
  18. When input and output is common grounded, no-load CV output constant voltage, CC output constant current
  19. Working Temperature: -10°C-75°C

Applications:

  • High-power LED driver.
  • Lithium battery(or lead accumulator) charge.
  • Vehicle-mounted power supply.
  • Low voltage system power supply.
  • 6V, 12V, 14V, 24V battery charge.
  • On-board laptop power supply.
  • Regulated power supply.
  • Low voltage power supply system.

Package Includes:

  • 1 x 300W 20A Adjustable DC-DC Buck Converter Voltage Regulator Power Module

Best online shopping website for 300W 20A Adjustable DC-DC Buck Converter Voltage Regulator Power Module at a cheap price in Lahore Islamabad Karachi Faislabad Multan Quetta Sukkkur Peshawar Rawalpindi Gujranwala and all over Pakistan.
