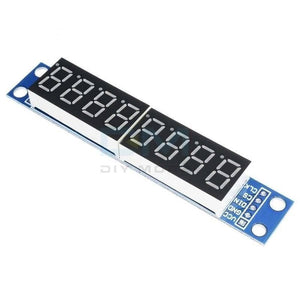

This is MAX7219 Based Serial 8-Digit 7 Segment LED Display Module. This is also called LED Tube Display. This LED module Arduino has an integrated serial input/output common-cathode display drivers, which connects the microprocessor and 8 digit 7-segment digital LED display. A convenient four-wire serial interface can connect all common microprocessor. From this 7 segment module, each data can be addressed in the update without rewriting all displays. MAX7219 module display also allows the user to select each data encoding or no coding. The 7 segment display module arduino also has a 150µA low-power shutdown mode, analogue and digital brightness control, a scan-limit register allows the user to display 1-8 bit data.

Features Of MAX7219 LED 8 Digit 7 Segment Panel Arduino:

• 100% Brand new and high quality
• MAX7219 digital display control module
• This module is compatible with 5V and 3.3V microcontrollers.
• You can use it FOR ARDUINO
• MAX7219 is an integrated serial input/output common-cathode display driver,
• which connects your microprocessor to a 7-segment digital LED display with 8 digits.
• Only three IO ports are used to drive the eight-digit display.
• MAX7219 supports flicker-free displays as well as cascading displays.

Specifications Of Seven Segment Display Module:

1. No of Digits: 8
2. Power: 5V
3. Interface Type: SPI, QSPI, MICROWIRE Serial Interface
4. Maximum Clock: 10MHz
5. Digit LED Color: Bright RED
6. Cascading Ability: Can be chained or cascaded to drive unlimited units
7. Display Driver: MAX7219
8. Material: PCB + Electronic Components
9. Size: 82 * 15 * 18mm
10. Weight; 15 Gram

Related Documents and Downloads

• MAX7219 Datasheet
• Sample code for Arduino

Package Includes

• 1 x MAX7219 Module, the colour of PCB maybe green or blue or black (Tested and QC-OK module)
