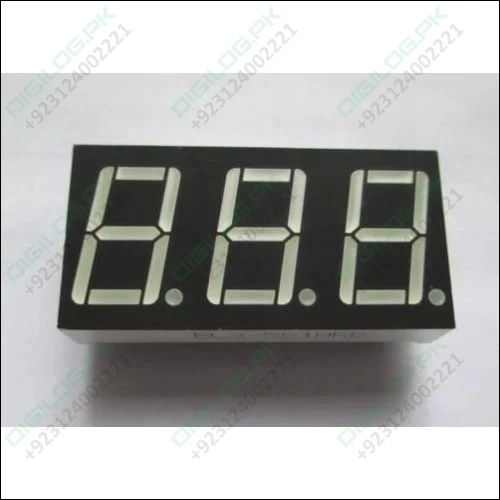

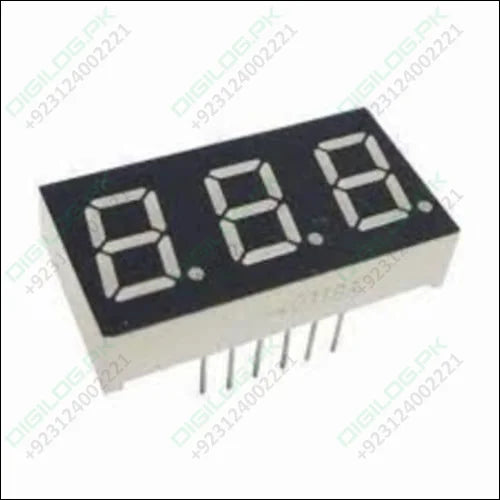

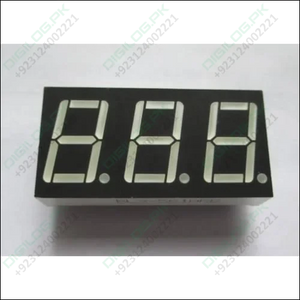

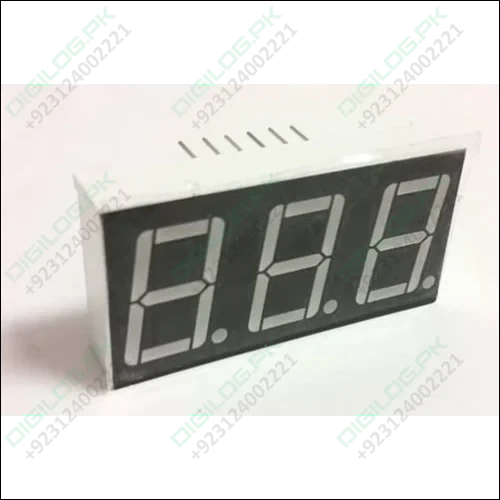

3 Digit 7 Segment Common Anode Red Color Display

3 Digit 7 Segment Common Anode Red Color Display

Regular price Rs 40
Regular price Sale price Rs 40
Sale Sold out
Shipping calculated at checkout.

SKU:B591,KRT108,L10,Th5

NOTIFY ME WHEN IN STOCK

3 Digit 7 Segment Common Anode Red Color Display display features one decimal point per digit. Common Anode Red Color Display individually controllable apostrophe and colon points. The LEDs have a forward voltage of 3VDC and a max forward current of 20mA. This is the way the display works. It’s multiplexed, so you select the digit by setting its pin (we’ll get into pins later) HIGH, and you select the segment by setting its pin LOW. You display multiple digits at once by rapidly cycling through them. Uses Timer, Counter, Watch, Stopwatch, Token Display machine, And Endless applications that you can think.

We have also different common anode display screens like 4 digits 7 segment, 2 digits 7 segments etc.

Features of 3 Digit 7 Segment Common Anode Red Color Display:

  • Excellent segment uniformity.
  • Sold state reliability.
  • Industrial standard size.
  • Low power consumption.
  • The product itself will remain within RoHS compliant Version

Specifications of 3 Digit 7 Segment Common Anode Red Color Display:

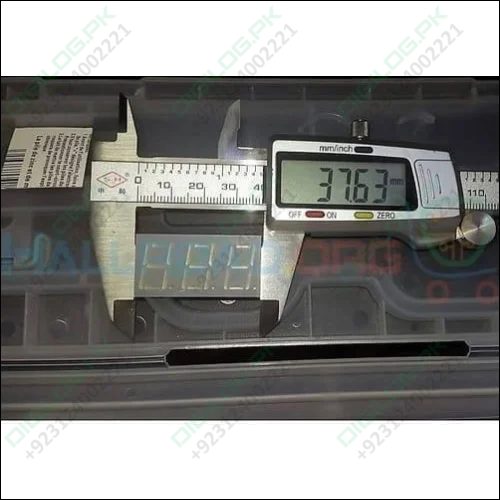

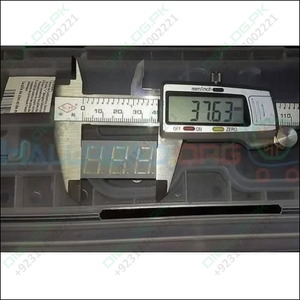

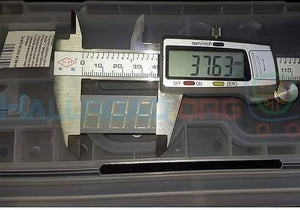

  1. Height: 38mm

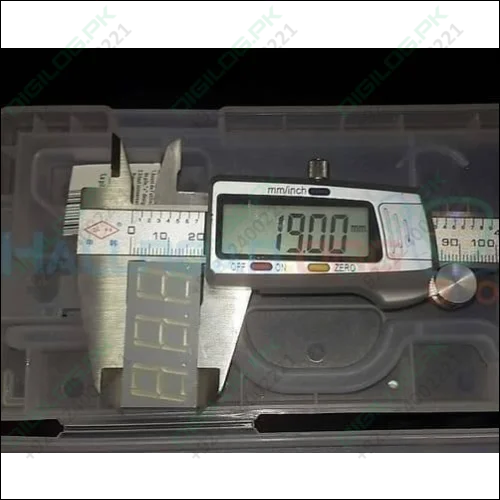

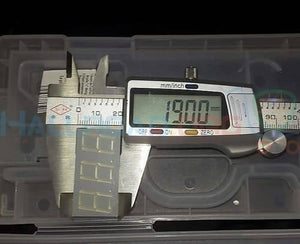

  2. Width: 19mm
  3. Terminals Number: 12
  4. Terminals Pitch: 2mm/0.08"
  5. Each Display Bit Size: 14.2mm x 8mm/0.56" x 0.31"
  6. Material: Plastic, Metal
  7. Colour: Black, White
  8. Operating voltage: 3.3V Red high-quality light

Image result for 3 digit display 7 segment red color applications



Package Includes:

1 x 3 Digit 7 Segment Common Anode Red Color Display
