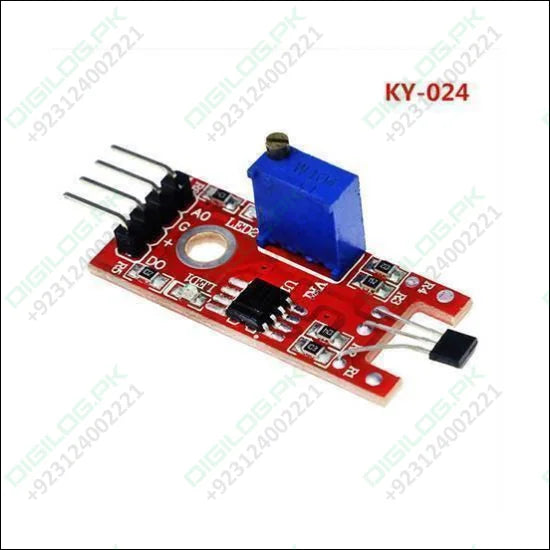

KY024 Magnetic Hall Effect Sensor - module featuring a red PCB, a blue potentiometer, a black sensor component, and four connection pins.

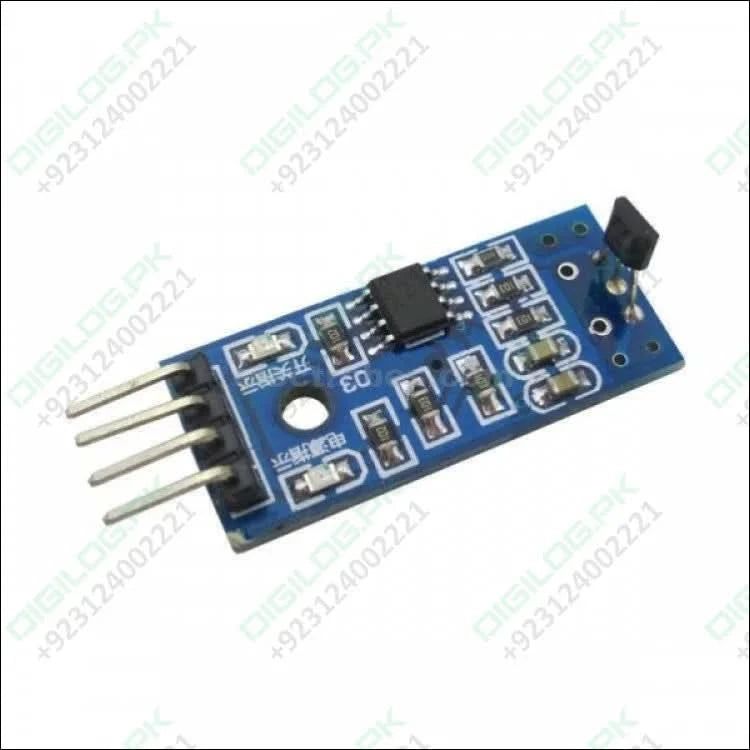

KY024 Magnetic Hall Effect Sensor - module featuring a blue rectangular circuit board with a four-pin header and a black sensor component.

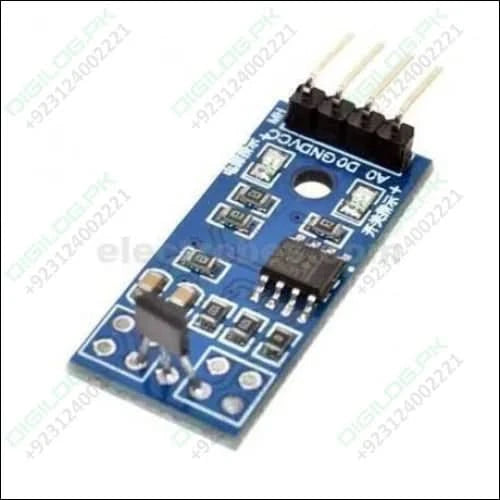

KY024 Magnetic Hall Effect Sensor - a blue rectangular circuit board with a black sensor, an integrated circuit, and four output pins.

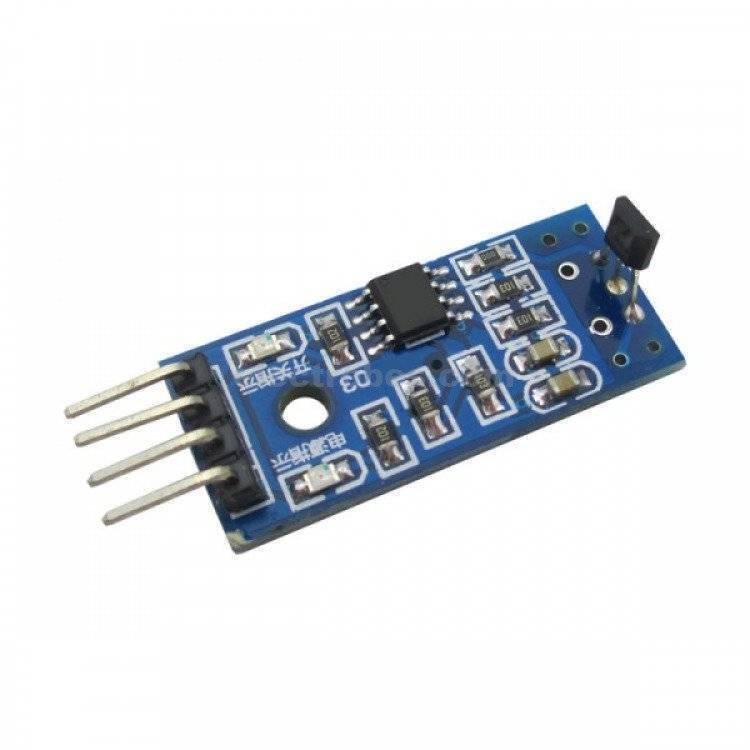

KY024 Magnetic Hall Effect Sensor - with a blue circuit board, a four-pin header, an integrated circuit, and a black sensor component.
KY024 Magnetic Hall Effect Sensor - module featuring a red PCB, a blue potentiometer, a black sensor component, and four connection pins.
KY024 Magnetic Hall Effect Sensor - module featuring a blue rectangular circuit board with a four-pin header and a black sensor component.
KY024 Magnetic Hall Effect Sensor - a blue rectangular circuit board with a black sensor, an integrated circuit, and four output pins.
KY024 Magnetic Hall Effect Sensor - with a blue circuit board, a four-pin header, an integrated circuit, and a black sensor component.

KY024 Magnetic Hall Effect Sensor

Sale price Rs 150
SKU: B705,krt6,IMP200,Th100,SA
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

KY024 Magnetic Hall Effect Sensor - module featuring a red PCB, a blue potentiometer, a black sensor component, and four connection pins.
+
Ky 003 Hall Magnetic Force Sensor Module For Arduino Hall Effect - a black rectangular circuit board with a three-pin connector on one end and a small sensor on the other.
+
Ky-025 Reed Switch Sensor - the red circuit board, blue potentiometer, LM393 chip, four-pin connector, and a close-up of the glass reed switch.
+
A3144E Hall Effect Sensor 44E - a close-up of a small black three-pin electronic component resting on a palm, with "3144" and "64551" printed on the face.
A3144E Hall Effect Sensor 44E - a close-up of a small black three-pin electronic component resting on a palm, with "3144" and "64551" printed on the face.
This item: KY024 Magnetic Hall Effect Sensor -
Sale price Rs 150
Ky 003 Hall Magnetic Force Sensor Module For Arduino Hall Effect - a black rectangular circuit board with a three-pin connector on one end and a small sensor on the other.
Ky 003 Hall Magnetic Force Sensor Module For Arduino Hall Effect -
Sale price Rs 110
Ky-025 Reed Switch Sensor - the red circuit board, blue potentiometer, LM393 chip, four-pin connector, and a close-up of the glass reed switch.
Ky-025 Reed Switch Sensor -
Sale price Rs 110
A3144E Hall Effect Sensor 44E - a close-up of a small black three-pin electronic component resting on a palm, with "3144" and "64551" printed on the face.
A3144E Hall Effect Sensor 44E -
Sale price Rs 30
Price for all:
Sale total price Rs 400

Pickup available at Digilog Electronics

Usually ready in 2 hours

KY024 Magnetic Hall Effect Sensor - module featuring a red PCB, a blue potentiometer, a black sensor component, and four connection pins.

KY024 Magnetic Hall Effect Sensor

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
KY024 Magnetic Hall Effect Sensor - module featuring a red PCB, a blue potentiometer, a black sensor component, and four connection pins.
KY024 Magnetic Hall Effect Sensor
Sale priceRs 150

Technical data / Short description

Chipset: A3141 | OP-amplifier: LM393
A magnetic field is detected by the sensor and will be printed as an analog voltage value. You can control the sensitivity of the sensor with the potentiometer.
Digital out: If a magnetic field is detected by the sensor, a signal will be printed here
Analog out: Direct measurement of the sensor unit

LED1: Shows that the sensor is supplied with voltage
LED2: Shows that the sensor detects a magnetic field
Pinout

Functionality of the sensor

The sensor has 3 main components on its circuit board. First, the sensor unit at the front of the module which measures the area physically and sends an analog signal to the second unit, the amplifier. The amplifier amplifies the signal, according to the resistant value of the potentiometer, and sends the signal to the analog output of the module.
The third component is a comparator which switches the digital out and the LED if the signal falls under a specific value.
You can control the sensitivity by adjusting the potentiometer.

Please notice: The signal will be inverted; that means that if you measure a high value, it is shown as a low voltage value at the analog output.


This sensor doesn’t show absolute values (like exact temperature in °C or magnetic field strength in mT).
It is a relative measurement: you define an extreme value to a given normal environment situation and a signal will be sent if the measurement exceeds the extreme value.

It is perfect for temperature control (KY-028), the proximity switch (KY-024, KY-025, KY-036), detecting alarms (KY-037, KY-038) or rotary encoder (KY-026).
