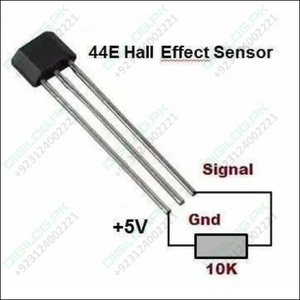

The device includes an on-chip Hall voltage generator for magnetic sensing, a comparator that amplifies the Hall voltage, and a Schmitt trigger to provide switching hysteresis for noise rejection, and open-collector output. An internal bandgap regulator is used to provide temperature compensated supply voltage for internal circuits and allows a wide operating supply range.

If a magnetic flux density larger than threshold Bop, DO is turned on (low). The output state is held until a magnetic flux density reversal falls below Brp causing DO to be turned off (high).

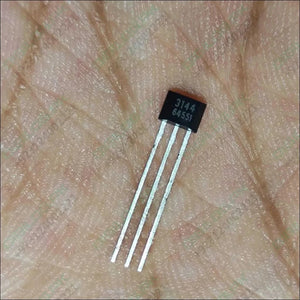

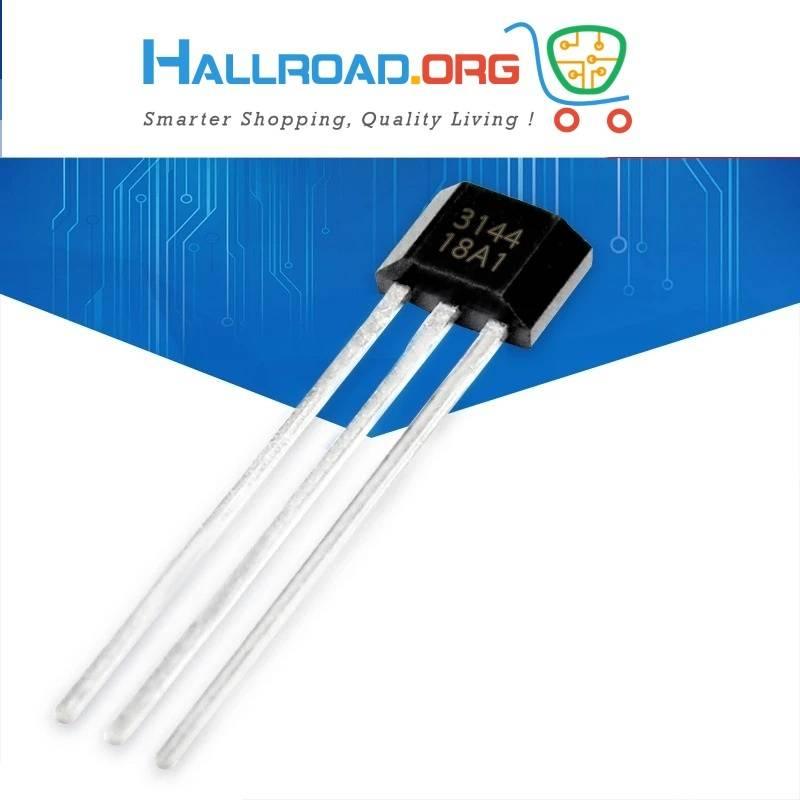

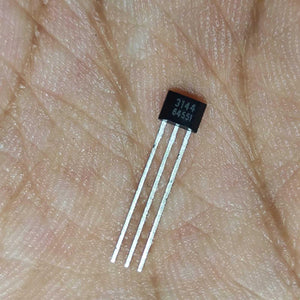

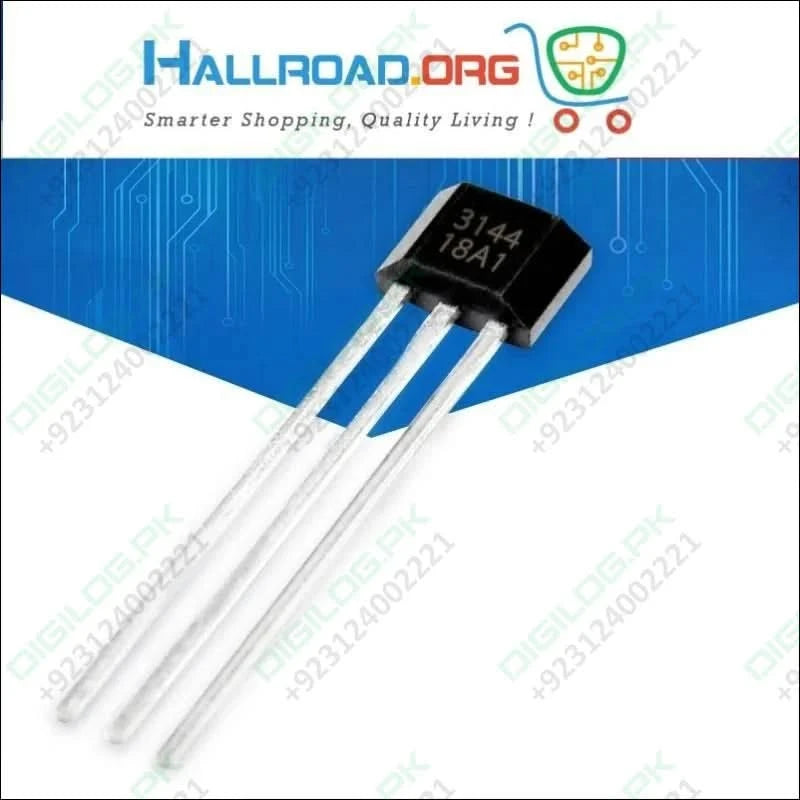

Features A3144E Hall Effect Sensor 44E In Pakistan:

1. 3.5V to 24V DC operation voltage
2. Low current consumption
3. Temperature compensation
4. Wide operating voltage range
5. Open-Collector pre-driver
6. 50mA maximum sinking output current
7. Reverse polarity protection
