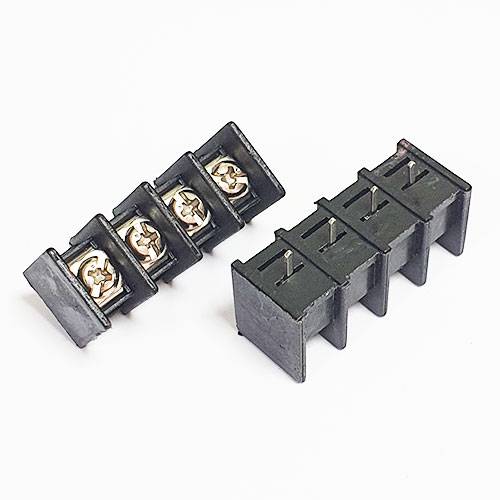

Kf-45 300V-25A 4 Pin Power Connector 25 Amp PCB Mount Power Connector - two black 4-pin PCB mount terminal blocks with metal screw terminals and bottom pins.

Kf-45 300V-25A 4 Pin Power Connector 25 Amp PCB Mount Power Connector

Rs 80

SKU: B733,L20,Th10,KRT

Pickup available at Digilog Electronics

Usually ready in 2 hours

Kf-45 300V-25A 4 Pin Power Connector 25 Amp PCB Mount Power Connector - two black 4-pin PCB mount terminal blocks with metal screw terminals and bottom pins.

Kf-45 300V-25A 4 Pin Power Connector 25 Amp PCB Mount Power Connector

Rs 80

KF45 Barrier Terminal Block 9.5mm Spacing

9.5mm spacing barrier terminals with side expandable slot. The terminal accepts wire gauge of 22~12AWG. Connectors are available in black PA66 material.

Brief Data:

Voltage Rating: 300V.
Current Rating: 25A.
Wire Gauge: 22~12 AWG.
Pin Spacing: 9.5mm.
Number of Poles: 2~24 (Stackable)
Housing Material: PA66UL94V-0.
Solder Pin: Tinned Brass.
Screw: M3 Steel Nickel plated.
Mounting Type: PCB thru-hole.
Rated impulse voltage: 2KV.
