Kf 128 2p 5mm Pitch 2 Pin Pcb Screw Terminal Block Connector - Digilog Pakistan
Kf 128 2p 5mm Pitch 2 Pin Pcb Screw Terminal Block Connector - Digilog Pakistan
Regular price
Rs 15
Regular price
Sale price
Rs 15
Unit price
per
Shipping calculated at checkout.
SKU:B696,IMP200,Th100,S
Couldn't load pickup availability

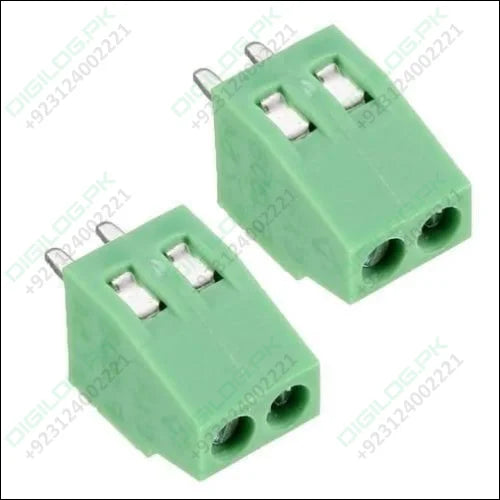

2 Pin 5.0mm PCB Screw Terminal Block Connector is a type of electrical connector where a wire is held by the tightening of a screw. 2 Pin 5.0mm PCB Screw Terminal Block Connector, commonly used to connect a chassis ground, such as on a record player or surge protector. Most public address systems in buildings also use them for speakers, and sometimes for other outputs and inputs. Alarm systems and building sensor and control systems have traditionally used large numbers of screw terminations.
Grounding screws are often color-coded green and, when used on consumer electronics, often have a washer with gripping "teeth".

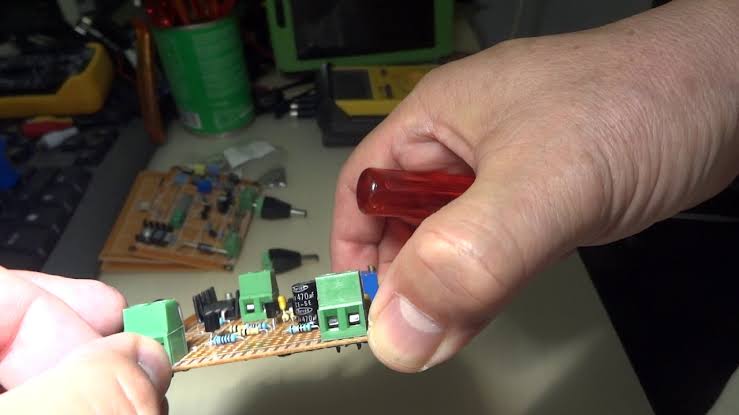

Printed circuit board (PCB) terminal blocks are specially designed with a copper alloy pin of suitable size and length and can be inserted in printed circuit boards to be soldered to allow electrical signals and current to flow to and from PCBs and electrical equipment. Some designs provide features that allow the flow of molten solder to ensure a better connection between the circuit traces of the board and the electrical equipment which is meant to be controlled or fed appropriate power.
Grounding screws are often color-coded green and, when used on consumer electronics, often have a washer with gripping "teeth".
Printed circuit board (PCB) terminal blocks are specially designed with a copper alloy pin of suitable size and length and can be inserted in printed circuit boards to be soldered to allow electrical signals and current to flow to and from PCBs and electrical equipment. Some designs provide features that allow the flow of molten solder to ensure a better connection between the circuit traces of the board and the electrical equipment which is meant to be controlled or fed appropriate power.
We are also selling 3 Pin TBlock, 4 Pin Block Connector, 5 Pin Block Terminal, 12 Pin Terminal Block etc.
Features:
- 100% Brand new and high quality.
- Compact, lightweight, and durable.
- Captive screws.
- Guided pin alignment.
- Double interlock mechanism for increased strength.

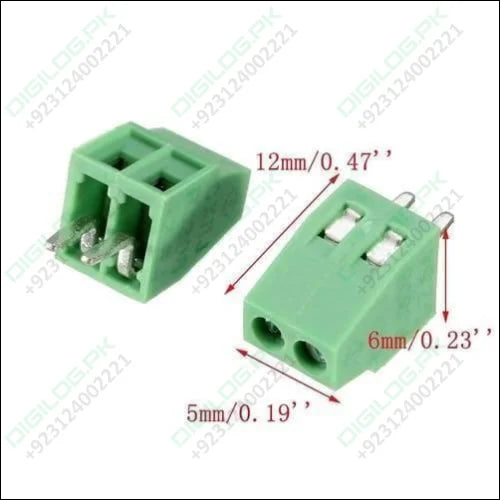

Specifications:
- Pitch: 5.0mm
- Poles: 2P
- Screw: M2.5/ Steel/ Zinc plated or Brass
- Wire cage: Steel Zinc plated or Brass Ni plated
- Pin header: Brass/ Tin Plated
Electrical:
- Rated voltage: 300V
- Rated current: 10A
- Withstanding voltage: AC2000V/1 Min
- Wire range: 22-12 AWG
Mechanical:
- Temperature range: -40℃ - +105℃
- MAX soldering: +250℃ for 5 sec.
- Torque: 0.4 Nm (3.5 lb. in)
- Strip length: 6-7mm
Why choose Digilog.pk?
- Widest range of electronic components in Pakistan
- Competitive prices
- Fast and reliable delivery
- Excellent customer service
- Secure online shopping
Buy 2 Pin PCB Screw Terminal Block Connector at Pakistan's Best Online Shopping store at cheap price. Here you get a wide range of PCB Connectors. We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.
Package Includes:
1 x 2 Pin PCB Screw Terminal Block Connector
other search words of this product are PCB Screw Terminal, Screw Terminal Block Connector, 2 Pin Screw Terminal, 5mm Pitch Connector, PCB Board Connector
