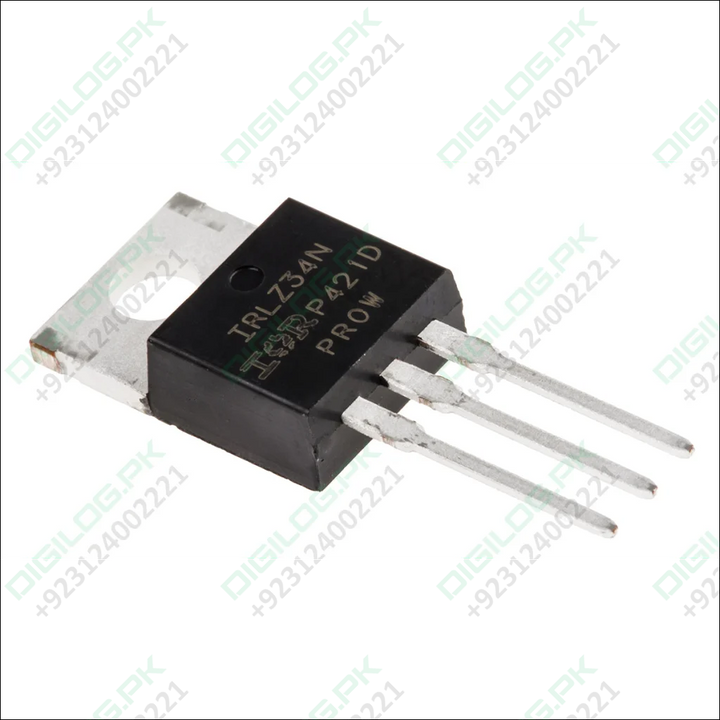

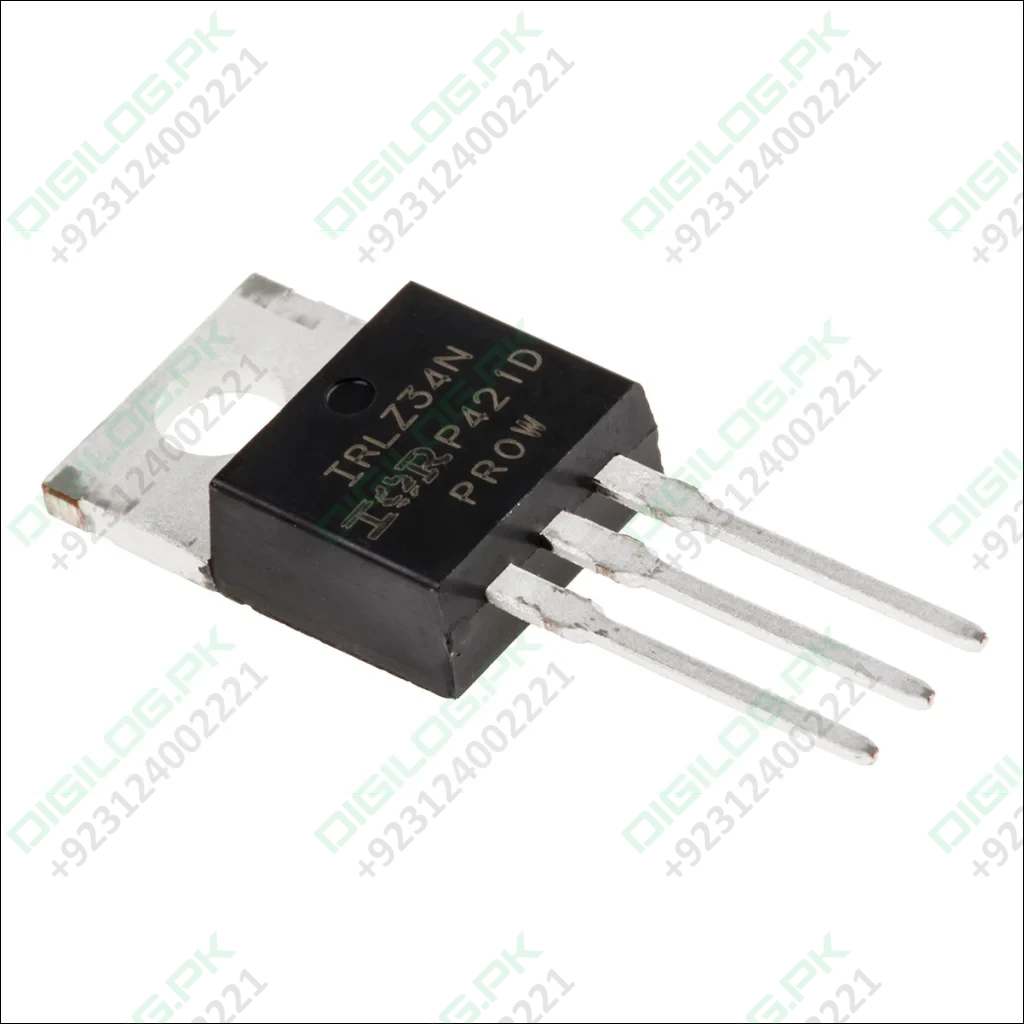

IRLZ34N N-channel MOSFET – 55V, 30A, Logic Level TO-220 Power Transistor - a black, three-pin TO-220 power transistor with a metal mounting tab, shown from an angled perspective.

IRLZ34N N-channel MOSFET – 55V, 30A, Logic Level TO-220 Power Transistor

Sale price Rs 90
SKU: b575
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

IRLZ34N N-channel MOSFET – 55V, 30A, Logic Level TO-220 Power Transistor - a black, three-pin TO-220 power transistor with a metal mounting tab, shown from an angled perspective.
+
1N5819 Schottky Diode - a black axial-lead electronic component with a silver band on one end and printed text on its cylindrical body.
+
0.1uF 100nF 104 50V Multilayer ceramic capacitor - shown as a single yellow disc-shaped capacitor with two long metal wire leads and the text 104 printed.
+
3.3V Zener Diode - shown as a technical circuit symbol with a triangle and bar, alongside a physical red cylindrical component with a cathode band.
3.3V Zener Diode - shown as a technical circuit symbol with a triangle and bar, alongside a physical red cylindrical component with a cathode band.
This item: IRLZ34N N-channel MOSFET – 55V, 30A, Logic Level TO-220 Power Transistor -
Sale price Rs 90
1N5819 Schottky Diode - a black axial-lead electronic component with a silver band on one end and printed text on its cylindrical body.
1N5819 Schottky Diode -
Sale price Rs 10
0.1uF 100nF 104 50V Multilayer ceramic capacitor - shown as a single yellow disc-shaped capacitor with two long metal wire leads and the text 104 printed.
0.1uF 100nF 104 50V Multilayer ceramic capacitor -
Sale price Rs 10
3.3V Zener Diode - shown as a technical circuit symbol with a triangle and bar, alongside a physical red cylindrical component with a cathode band.
3.3V Zener Diode -
Sale price Rs 10
Price for all:
Sale total price Rs 120

Pickup available at Digilog Electronics

Usually ready in 2 hours

IRLZ34N N-channel MOSFET – 55V, 30A, Logic Level TO-220 Power Transistor - a black, three-pin TO-220 power transistor with a metal mounting tab, shown from an angled perspective.

IRLZ34N N-channel MOSFET – 55V, 30A, Logic Level TO-220 Power Transistor

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
IRLZ34N N-channel MOSFET – 55V, 30A, Logic Level TO-220 Power Transistor - a black, three-pin TO-220 power transistor with a metal mounting tab, shown from an angled perspective.
IRLZ34N N-channel MOSFET – 55V, 30A, Logic Level TO-220 Power Transistor
Sale priceRs 90

📝 Product Description

The IRLZ34N is a logic-level N-Channel MOSFET designed for high-efficiency switching and amplification in low-voltage circuits. With a drain current of 30A, low RDS(on) of 35mΩ, and logic-level gate drive capability, it can be controlled directly from microcontrollers (like Arduino, STM32, ESP32) and IC outputs without needing additional driver circuits.

Packaged in a TO-220AB case, the IRLZ34N is widely used in DC motor control, LED dimming, power supplies, inverters, and battery management systems. Its high pulsed current rating (up to 110A) and rugged design make it suitable for demanding applications.

🔧 Key Features

  • N-Channel logic-level MOSFET

  • Low RDS(on): 0.035Ω

  • High drain current: 30A continuous, 110A pulsed

  • Gate drive: Compatible with TTL/CMOS logic levels

  • Rugged TO-220AB package for easy mounting and cooling

  • High power dissipation: 68W

  • Wide operating junction temperature: -55°C to +175°C

📋 Technical Specifications

Parameter Value
Transistor Type N-Channel MOSFET
Package Type TO-220AB
Vds (Drain-Source Voltage) 55V
Vgs (Gate-Source Voltage, max) ±16V
Id (Continuous Drain Current) 30A
Id (Pulsed Drain Current) 110A
RDS(on) (On-State Resistance) 35mΩ
Power Dissipation (Pd) 68W
Total Gate Charge (Qg) 25nC
Operating Junction Temp -55°C to +175°C

📍 Pinout (TO-220 Package)

  1. Gate (G) – Controls the transistor

  2. Drain (D) – Connected to the load

  3. Source (S) – Ground/return path

🌍 Applications

  • 🚗 Automotive Applications – Motor drivers, lighting control, electronic modules

  • ⚡ Power Supply Circuits – DC-DC converters, low-voltage regulators

  • 🔋 Battery Charger Circuits – Efficient charging systems for Li-ion & lead-acid batteries

  • 🔧 Battery Management Systems (BMS) – Current control and switching for safety

  • 🔌 Uninterruptible Power Supplies (UPS) – Backup power switching circuits

  • ☀️ Solar Power Supplies – Solar inverters and energy storage interfaces

  • 🔆 Solar Battery Chargers – Smart charging with efficient switching

  • 🎛 Motor Controllers – High-efficiency DC motor drivers and PWM controllers

  • 🔄 Inverter Circuits – AC/DC conversion for renewable and backup power

  • 🔋 Portable & Battery-Operated Devices – Low-voltage load switching

  • 🎵 Audio Amplifiers – High-current driver stages for speakers and subs

📦 Package Includes

  • 1 × IRLZ34N N-Channel MOSFET (TO-220AB Package)



You may also like
