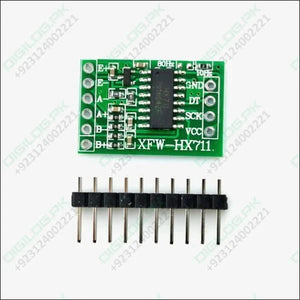

Hw29 Hw 29 Hx711 Weighing Sensor Load Cell Amplifier Module Analog To Digital Converter Pressure Sensor

Rs 150 PKR
SKU: b568,KRT44,IMP500,Th250,A
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

The HX711 Dual-Channel 24 Bit Precision A/D weight Pressure Sensor Load Cell Amplifier and ADC Module is a small breakout board for the HX711 IC that allows you to easily read load cells to measure weight. The HX711 uses a two-wire interface (Clock and Data) for communication. The load cell amplifier module communicates with the host via the TTL 232. By connecting the module to your microcontroller you will be able to read the changes in the resistance of the load cell and with some calibration. You’ll be able to get very accurate weight measurements. This pressure sensor can be handy for creating your own industrial scale, process control, or simple presence detection. It is commonly used to measure force, pressure, tension, torque, acceleration, and displacement used in aviation, machinery, electricity, chemistry, construction, medicine, and many other areas.

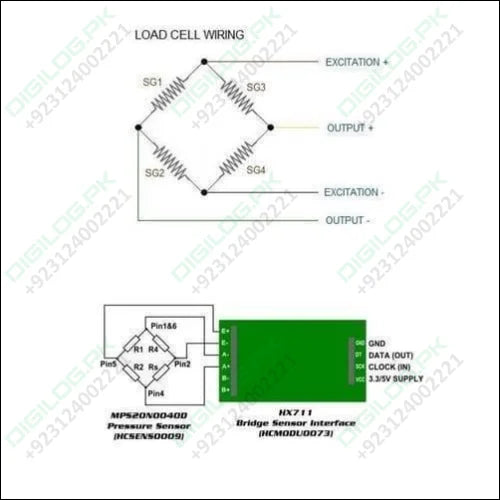

Load Cell Tutorial:

https://circuitjournal.com/four-wire-load-cell-with-HX711

Features Of Dual-Channel 24 Bit Precision A/D Module Pressure Sensor Module:

  • Two selectable differential input channels
  • On-chip power supply regulator for load-cell and ADC analog power supply
  • On-chip oscillator requiring no external component with optional external crystal
  • On-chip power-on-reset
  • Simple digital control and serial interface: pin-driven controls, no programming needed

Specifications Of HX711 Dual-Channel Weighing Sensor Module:

  • Separator Input Voltage: 40mV
  • Data Accuracy: 24 bit (24 bit A / D Converter Integrated)
  • Gain: 32, 64, or 128
  • 2 Channels
  • Digital Serial Output
  • Refresh Frequency: 80 Hz
  • Operating Voltage: 2.6 - 5.5V DC
  • Operating current: <10mA
  • Size: 38mm x 21mm x 10mm

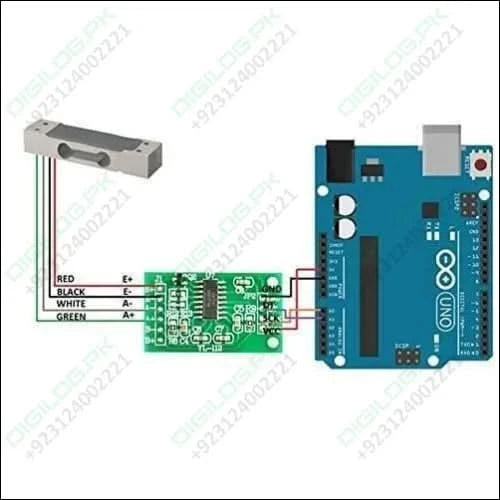

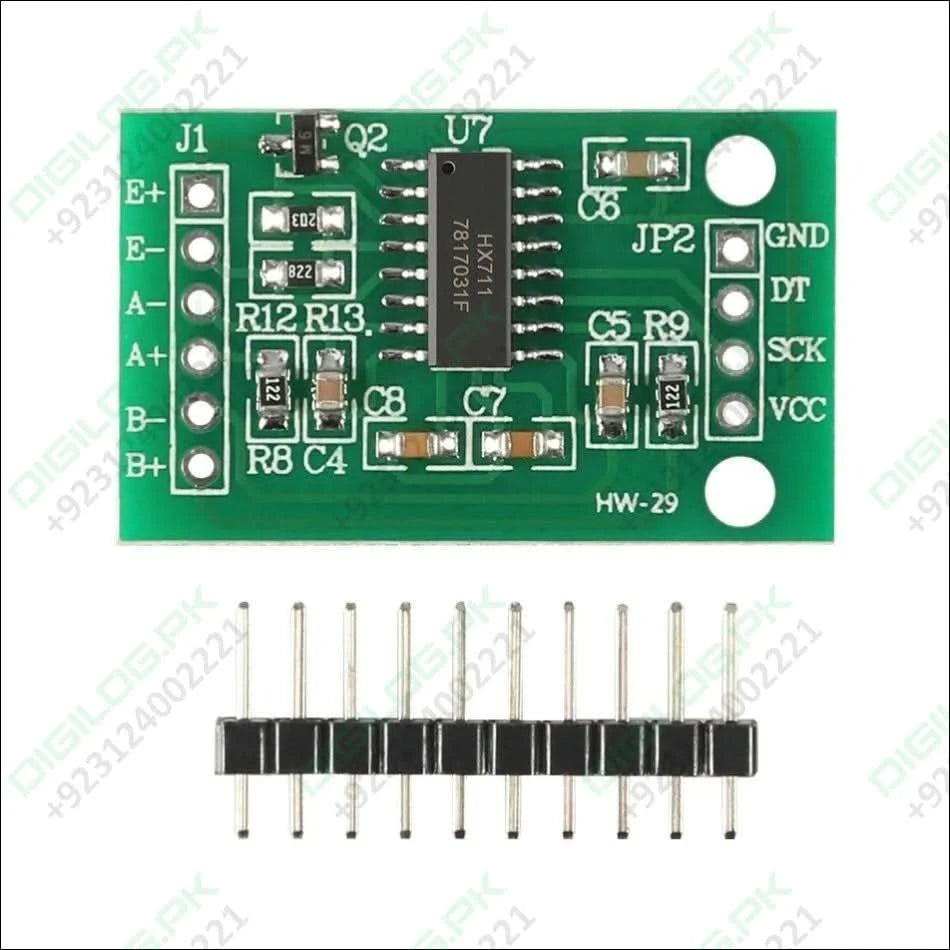

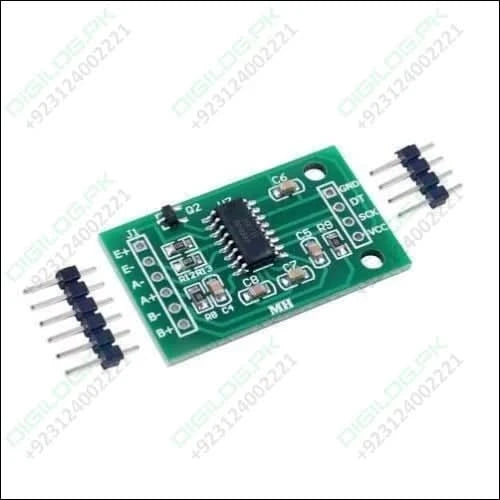

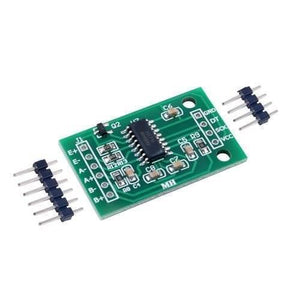

Pinouts :

Analog Side :

  1. E+: Excitation positive
  2. E-: Excitation negative
  3. A-: Channel A Negative Input
  4. A+: Channel A positive Input
  5. B-: Channel B Negative Input
  6. B+: Channel B positive Input

Digital Side :

  1. GND: 0V / Ground Power Connection
  2. DT: Data IO Connection
  3. SCK: Serial Clock Input
  4. VCC: Power Input

Package Includes :

  • 1 x HX711 Weighing Sensor Module
