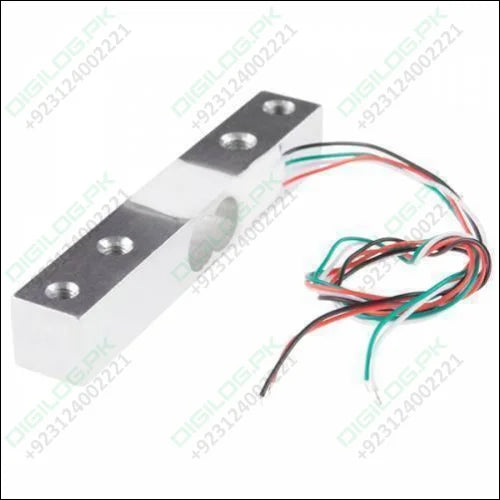

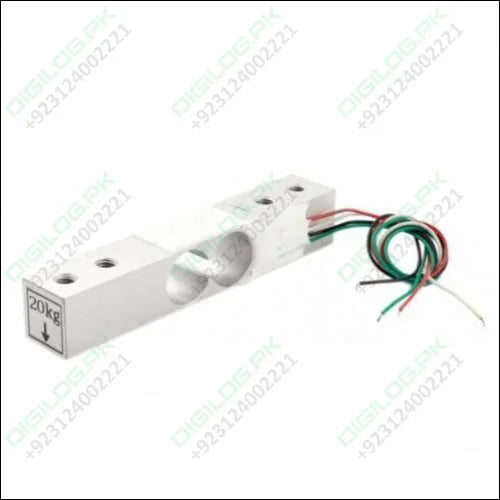

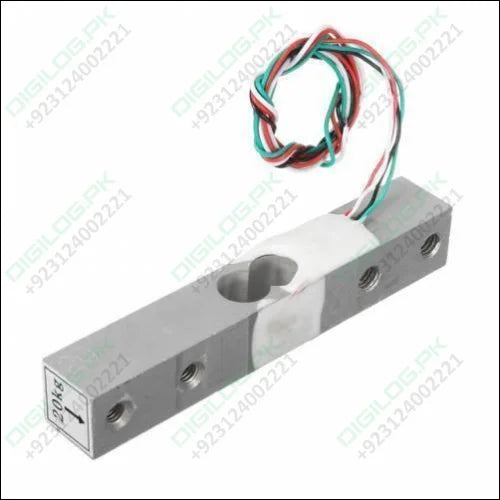

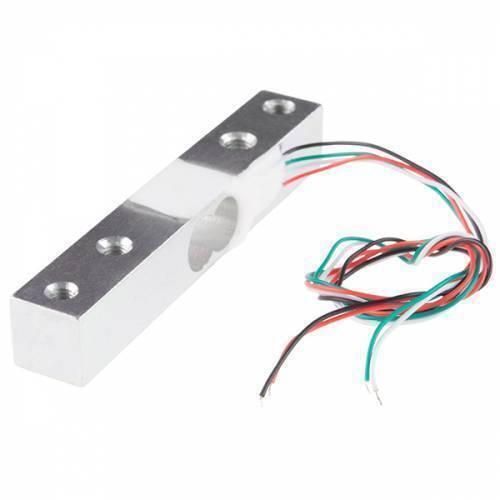

20kg Range Weighing Sensor Load Cell Sensor For Electronic Yzc-133

20kg Range Weighing Sensor Load Cell Sensor For Electronic Yzc-133

Regular price Rs 400
Regular price Sale price Rs 400
Sale Sold out
Shipping calculated at checkout.

SKU:B417,LIMP50,Th20,SL

NOTIFY ME WHEN IN STOCK

Four lead wires, easy to use, plus driving voltage 5-10V, force changes in the output voltage signal directly.
Installation: Sensor end through the screw hole fixed and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage.
Weighing Load Cell Sensor 20kg For Electronic YZC-133 With Wires.

Weight Sensor (Load Cell) 20KG – Lampa Tronics

Specifications :

  1. Rated Load: 20Kg
  2. Rated Output: 1.0 ±0.15mV/V
  3. Zero Output: ±0.1mV/V
  4. Cree: 0.03%F.S./30min
  5. Input End: Red+, Black-
  6. Output End: Green+, White-
  7. Input Impedance: 1115±10% Ω
  8. Output Impedance: 1000±10% Ω
  9. Maximum working voltage: 15V DC
  10. Operating temperature range: -20~60°C
  11. Total Size: 80 x 13 x 13mm/3.14 x 0.51 x 0.51″(L x W x H)

View full details

Description

Four lead wires, easy to use, plus driving voltage 5-10V, force changes in the output voltage signal directly.
Installation: Sensor end through the screw hole fixed and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage.
Weighing Load Cell Sensor 20kg For Electronic YZC-133 With Wires.

Weight Sensor (Load Cell) 20KG – Lampa Tronics

Specifications :

  1. Rated Load: 20Kg
  2. Rated Output: 1.0 ±0.15mV/V
  3. Zero Output: ±0.1mV/V
  4. Cree: 0.03%F.S./30min
  5. Input End: Red+, Black-
  6. Output End: Green+, White-
  7. Input Impedance: 1115±10% Ω
  8. Output Impedance: 1000±10% Ω
  9. Maximum working voltage: 15V DC
  10. Operating temperature range: -20~60°C
  11. Total Size: 80 x 13 x 13mm/3.14 x 0.51 x 0.51″(L x W x H)
