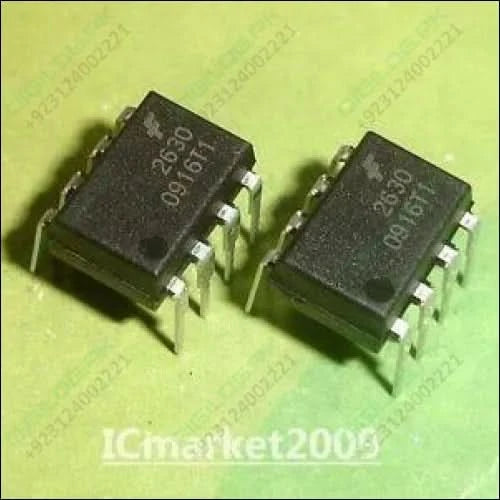

HCPL2630 2630 Optocoupler - two black 8-pin dual in-line package integrated circuits shown from a high-angle view on a green surface.

HCPL2630 2630 Optocoupler

Sale price Rs 210
SKU: B241,L5,Th2
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

HCPL2630 2630 Optocoupler - two black 8-pin dual in-line package integrated circuits shown from a high-angle view on a green surface.
+
6N137 High Speed Optocoupler - shown as a black, rectangular 8-pin integrated circuit component with metallic pins extending from its sides.
+
EL4N35 4N35 Optocoupler 6 Pin DIP - a black electronic component with six metallic pins arranged in a dual in-line package configuration.
+
Mach3 Breakout Board 5 Axes CNC Breakout Board - a green circuit board with a DB25 port, a USB port, a blue relay, and multiple terminal blocks.
Mach3 Breakout Board 5 Axes CNC Breakout Board - a green circuit board with a DB25 port, a USB port, a blue relay, and multiple terminal blocks.
This item: HCPL2630 2630 Optocoupler -
Sale price Rs 210
6N137 High Speed Optocoupler - shown as a black, rectangular 8-pin integrated circuit component with metallic pins extending from its sides.
6N137 High Speed Optocoupler -
Sale price Rs 90
EL4N35 4N35 Optocoupler 6 Pin DIP - a black electronic component with six metallic pins arranged in a dual in-line package configuration.
EL4N35 4N35 Optocoupler 6 Pin DIP -
Sale price Rs 40
Mach3 Breakout Board 5 Axes CNC Breakout Board - a green circuit board with a DB25 port, a USB port, a blue relay, and multiple terminal blocks.
Mach3 Breakout Board 5 Axes CNC Breakout Board -
Regular price Rs 1,320 Sale price Rs 960
Price for all:
Regular total price Rs 1,660 Sale total price Rs 1,300

Pickup available at Digilog Electronics

Usually ready in 2 hours

HCPL2630 2630 Optocoupler - two black 8-pin dual in-line package integrated circuits shown from a high-angle view on a green surface.

HCPL2630 2630 Optocoupler

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
HCPL2630 2630 Optocoupler - two black 8-pin dual in-line package integrated circuits shown from a high-angle view on a green surface.
HCPL2630 2630 Optocoupler
Sale priceRs 210

Applications

  • Isolated Line Receiver
  • Computer-Peripheral Interfaces
  • Microprocessor System Interfaces
  • Digital Isolation for A/D, D/A Conversion
  • Switching Power Supply
  • Instrument Input/Output Isolation
  • Ground Loop Elimination
  • Pulse Transformer Replacement

Features

  • High Speed: 10 MBd Typical
  • LSTTL/TTL Compatible
  • Low Input Current Capability: 5mA
  • Guaranteed ac and dc Performance over Temperature: -40oC to 85oC
  • Available in 8-Pin DIP, SOIC-8, Widebody Packages
  • Strobable Output (Single Channel Products only)
  • Safety Approval:

UL Recognized – 3750 V rms for 1 minute and 5000 V rms for 1 Minute (Option 020 only) per UL1577
CSA Approved?

  • Options available are:

020 = 5000 V rms/1 minute UL Rating Option
300 = Gull Wing Surface Mount Option
500 = Tape and Reel Packaging Option
XXXE = Lead Free Option
