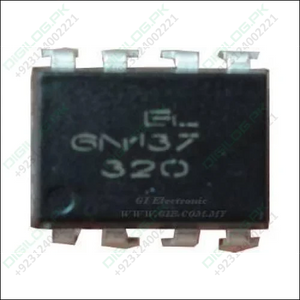

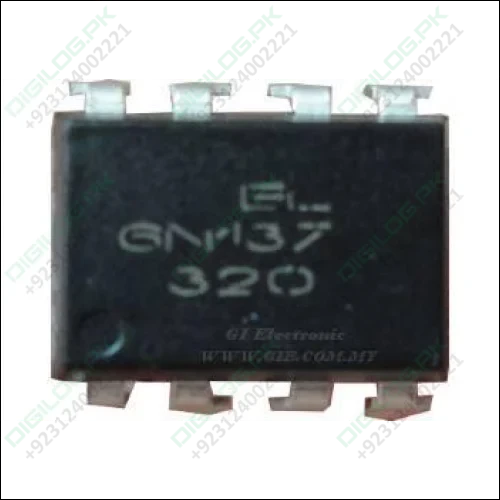

6N137 High Speed Optocoupler

6N137 High Speed Optocoupler

Regular price Rs 80
Regular price Sale price Rs 80
Sale Sold out
Shipping calculated at checkout.

SKU:DELL,B788

NOTIFY ME WHEN IN STOCK

IC, EL 6N137, Optocoupler, DIP8. It is single-channel and it consists of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photo-detector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs.

Features:

  Very high speed - 10 MBit/s
  Superior CMR - 10 kV/us
  Logic gate output
  Strobable output
  Wired OR-open collector

6N137 High Speed Optocoupler

Pin Configuration Details 6N137

The pinout diagram of 6N137 is shown here and details of all pins are listed in the table.

6N137 pinout diagram configuration

INPUT
NC Pin 1 Pin 1 is a no connection pin, which has no connection with the internal circuit and no usage with external circuit too.
ANODE Pin 2 Pin 2 is an anode pin used to give the logic input to the IR of the IC, to send the input data through IR transmission.
CATHODE Pin 3 Pin 3 is a cathode pin of the IR transmitter, mostly used as a common ground with sender circuit.
NC Pin 4 Pin 4 is also a no connection pin.
OUTPUT
GROUND Pin 5 Pin 5 is a ground pin for IR receiver within the optocoupler.
V0 Pin 6 Pin 6 is a logical output pin of 6N137 IC.
VE Pin 7 Pin 7 is the enable pin, which works with the output. The enable pin will be enabled by default.
Vcc Pin 8 Pin 8 is used to powerup the IC.

Alternative options

6N135 High Speed Optocoupler Pinout and Examples
