NPN SILICON TRIPLE DIFFUSED TRANSISTOR
FOR HIGH-SPEED HIGH-VOLTAGE SWITCHING

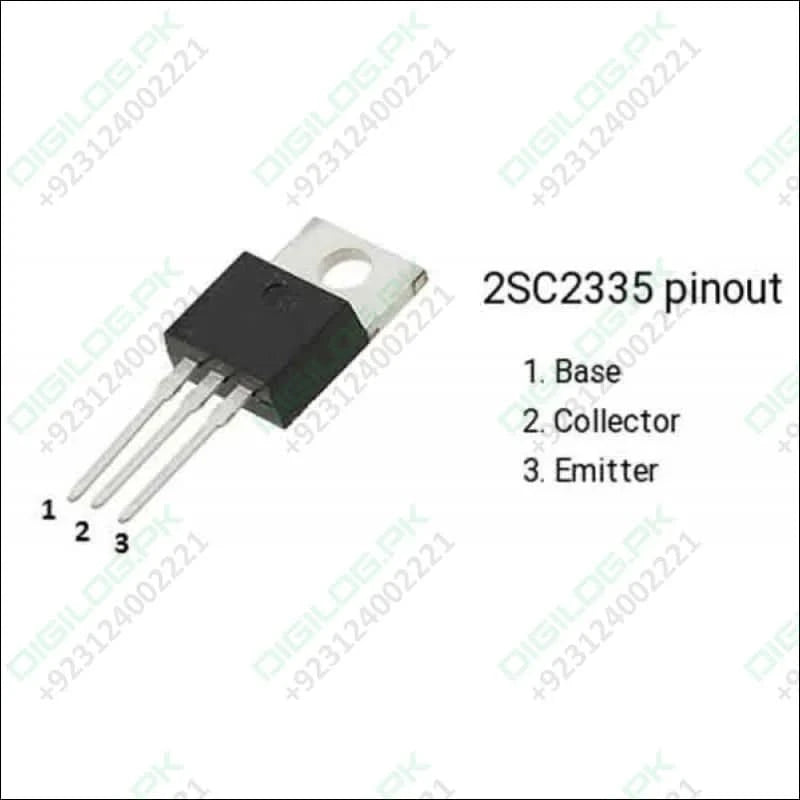

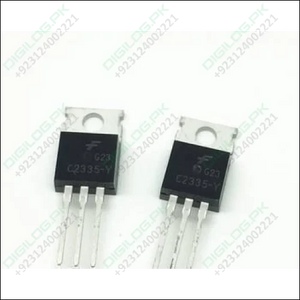

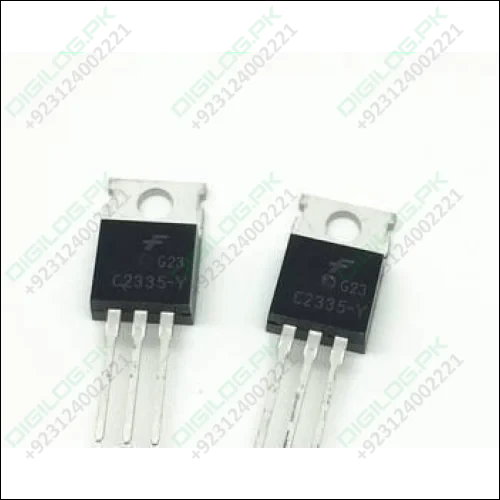

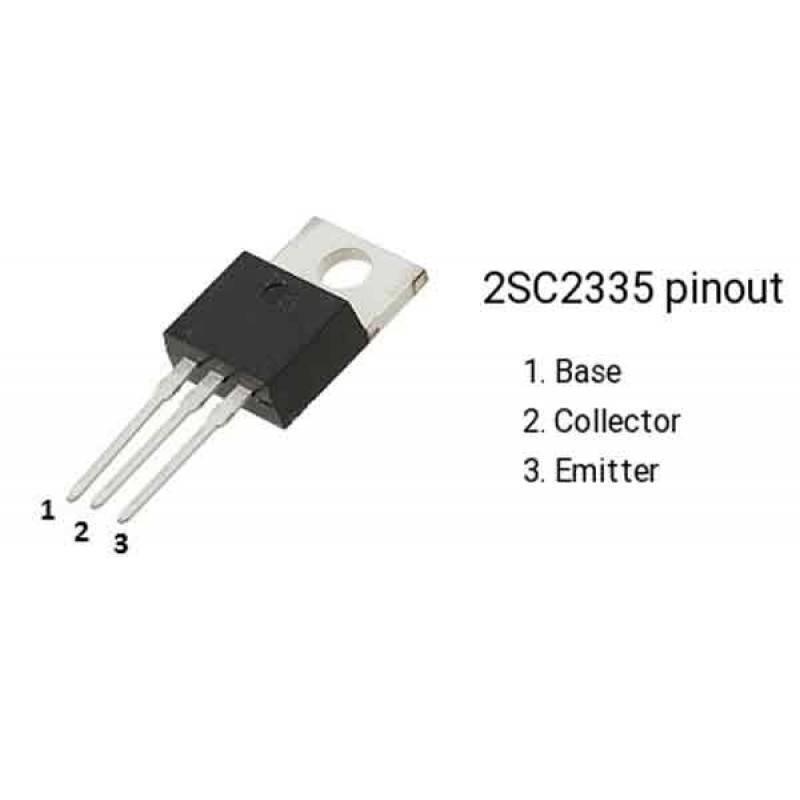

The 2SC2335 is a mold power transistor developed for high-speed
high-voltage switching, and is ideal for use as a driver in devices such
as switching regulators, DC/DC converters, and high-frequency power
amplifiers.
FEATURES
• Low collector saturation voltage: VCE(sat) = 1.0 V MAX. @IC = 3.0 A
• Fast switching speed: tf = 1.0 μs MAX. @IC = 3.0 A
• Wide base reverse-bias SOA: VCEX(SUS)1 = 450 V MIN. @IC = 3.0 A
ABSOLUTE MAXIMUM RATINGS (TA = 25°C)
Parameter Symbol Conditions Ratings Unit
Collector to base voltage VCBO 500 V
Collector to emitter voltage VCEO 400 V
Emitter to base voltage VEBO 7.0 V
Collector current (DC) IC(DC) 7.0 A
Collector current (pulse) IC(pulse) PW ≤ 300 μs,
duty cycle ≤ 10%
15 A
Base current (DC) IB(DC) 3.5 A
Total power dissipation PT TC = 25°C 40 W
TA = 25°C 1.5 W
Junction temperature Tj 150 °C
Storage temperature Tstg −55 to +150 °C
