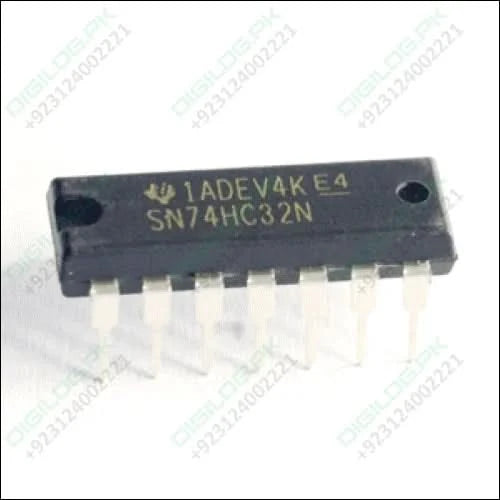

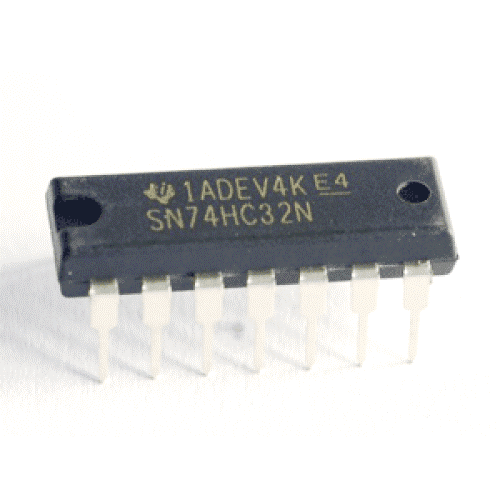

74ls32 74-ls32 74hc32 7432 Quad 2 Input Or Gate Dip Ic Sn74ch32n

74ls32 74-ls32 74hc32 7432 Quad 2 Input Or Gate Dip Ic Sn74ch32n

Regular price Rs 100
Regular price Sale price Rs 100
Sale Sold out
Shipping calculated at checkout.

SKU:b835

NOTIFY ME WHEN IN STOCK

This device contains four independent gates each of which performs the logic OR function. The 74LS32 is a 14 Pin Quad 2-Input OR Gate IC. The 74LS32 provides four independent 2-input OR gates with standard push-pull outputs. Featured by Sharvi Electronics The device is designed for operation with a power supply range of 2.0V to 6.0V. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Specifications:

  • Voltage Rating: 2.0 to 6.0V
  • Temperature Rating: 0 to 70ºC
  • Outputs Directly Interface to CMOS, NMOS, and TTL
  • Large Operating Voltage Range
  • Wide Operating Conditions
  • CMOS low power consumption
  • Schmitt Trigger Action at All Inputs
  • Number of: 14 Pins
  • Mounting: Through Hole

Package Includes:

  • 1 x 74LS32 74-LS32 74HC32 7432 Quad 2 Input OR Gate DIP IC
View full details

Description

This device contains four independent gates each of which performs the logic OR function. The 74LS32 is a 14 Pin Quad 2-Input OR Gate IC. The 74LS32 provides four independent 2-input OR gates with standard push-pull outputs. Featured by Sharvi Electronics The device is designed for operation with a power supply range of 2.0V to 6.0V. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Specifications:

  • Voltage Rating: 2.0 to 6.0V
  • Temperature Rating: 0 to 70ºC
  • Outputs Directly Interface to CMOS, NMOS, and TTL
  • Large Operating Voltage Range
  • Wide Operating Conditions
  • CMOS low power consumption
  • Schmitt Trigger Action at All Inputs
  • Number of: 14 Pins
  • Mounting: Through Hole

Package Includes:

  • 1 x 74LS32 74-LS32 74HC32 7432 Quad 2 Input OR Gate DIP IC
