7 Pin 2.5mm JST Xh Style PCB Mount Male Connector
These shrouded, 7-pin JST XH-style male connectors have straight leads and match the female connector on the 7-pin female XH-style cable, and they also work with other many other 0.1″-pitch female connectors, such as our female premium jumper wires. They are sold in packs of four units.
The B2B-XH-A(LF)(SN) is a part of XH series with a mounting height of 9.8 mm and it is applicable to PC Board thickness of 1.6 mm. It has an Operating Temperature range of -25° C to +85° C.
Product Features:
- Original folded beam contact
- Box-shaped shrouded header
- Header with a boss
- Interchangeability
- Conforming to the HA terminal
- Current Rating: 3A AC, DC(AWG #22)
- Voltage Rating: 250V AC, DC
- Contact Resistance: Initial value/10mΩ max.
- Insulation Resistance: 1000 MΩ min
- Withstanding voltage: 1000V AC/minute
- Applicable wire: AWG #30 to #22
Best online shopping website for 7 Pin 2.5mm JST XH Style PCB Mount Male Connector in a cheap price in Lahore, Islamabad, Karachi, Faislabad, Multan, Quetta, Sukkur, Peshawar, Rawalpindi and all over Pakistan.
Frequently Bought Together
7 Wires 2.54mm Pitch Female To Female JST Xh Connector Cable Wire 6 Inch

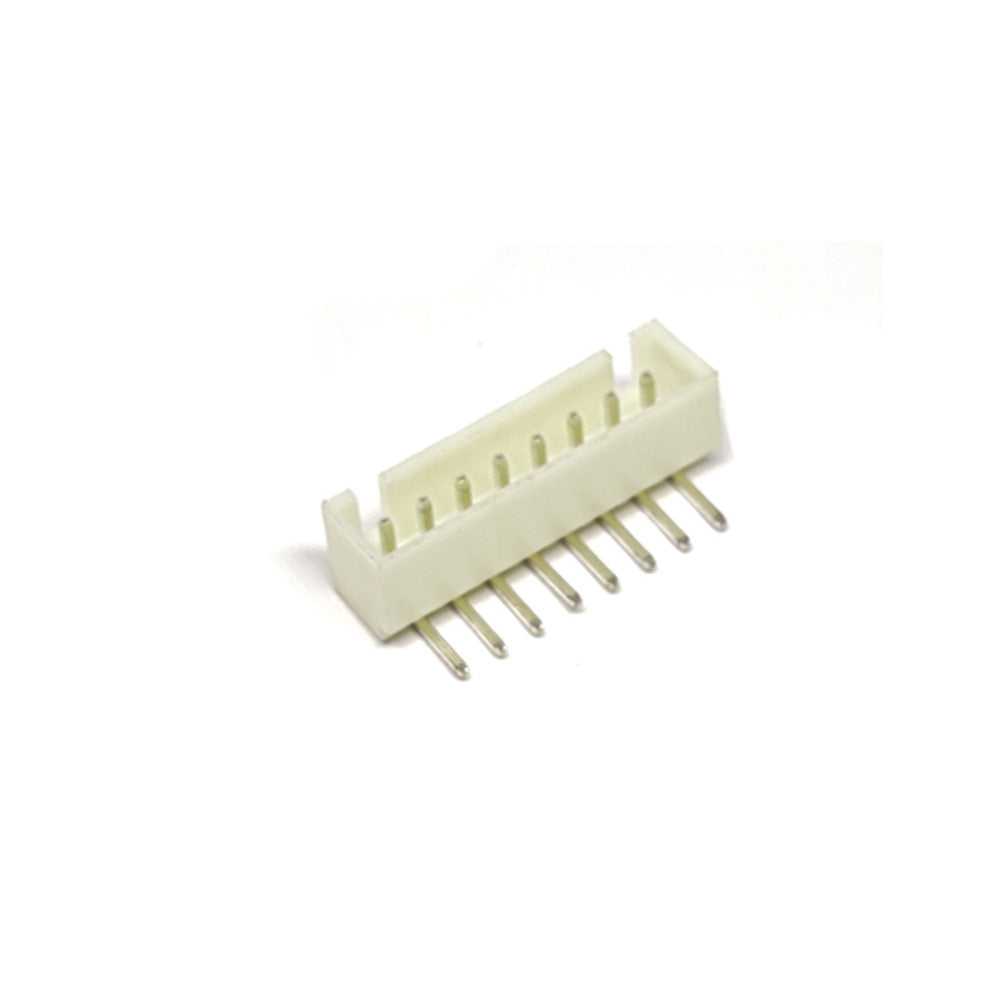

8 Pin JST Male Connector 90 Degree 2.54mm Pitch
