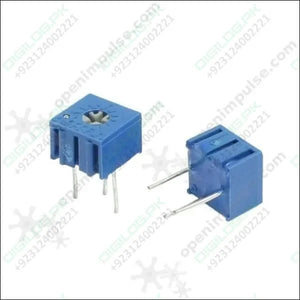

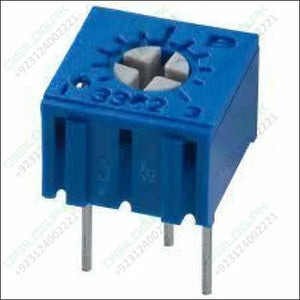

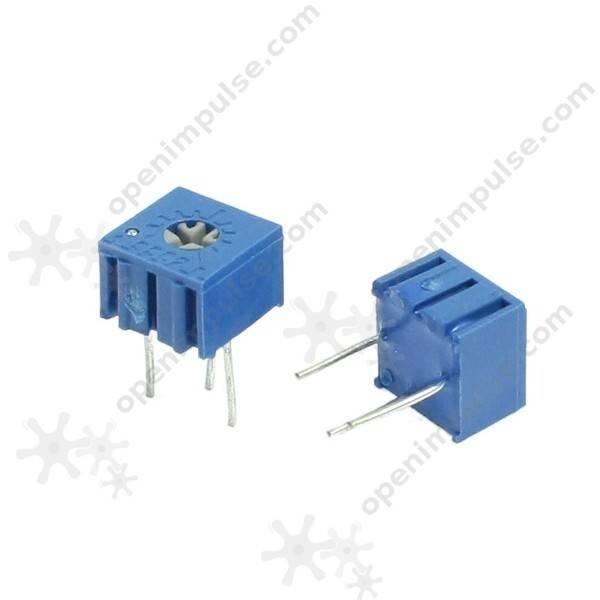

1M 3386 Single Turn Variable Potentiometer
1M 3386 Single Turn Variable Potentiometer

1M 3386 Single Turn Variable Potentiometer

Rs 50 PKR
SKU: B722
Availability: In Stock In Stock Out of stock
Add to Wishlist
Description

3386 Single Turn Variable Potentiometer Trimmer Resistor is a high accuracy variable resistor. In addition Variable Potentiometer Trimmer Resistor, PCB mountable with 3 terminal pins. Moreover the voltage between the terminal varies as the trimpot is rotate.

Although the Variable resistors are use for variating voltage as per the need in a circuit. Hence the outer two pins are connect to Vcc and 0V, and centre pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.

Features of 3386 Single Turn Variable Potentiometer Trimmer Resistor:

  1. Trimmer is a high accuracy variable resistor and also PCB mountable with 3 terminal pins.
  2. The voltage between the terminal varies as the trimpot is rotate.
  3. The Variable resistors are use for variating voltage as per the need in a circuit.
  4. In addition the outer two pins are connected to Vcc and 0V, and centre pin outputs a variable voltage between 0 v and Vcc as the rotary cermet is rotated.

Specifications of 3386 Single Turn Variable Potentiometer Trimmer Resistor:

  1. Track Resistance: Select Value
  2. Resistance Tolerance: ± 5%
  3. Temperature Coefficient: ± 50 ppm/°C
  4. Potentiometer Mounting: Through Hole
  5. Adjustment Type: Top
  6. Contact Resistance Variation +: 1%
  7. Full Power Rating Temperature: 85°C
  8. Lead Diameter: 0.5mm
  9. Operating Temperature Range: -55°C to +125°C
  10. Resistance: 1K ohm, 2k ohm,5k ohm, 10k ohm, 20k ohm, 50k ohm, 100k ohm, 500k ohm, 1 Megohm
  11. Resistor Element Material: Variable Rotary Trimmer

        Image result for 3386 Trimmer Resistor

        Image result for 3386 Trimmer Resistor

Applications:

  1. Industrial
  2. Consumer Electronics
  3. Portable Devices
  4. Power Management

Package Includes:

1 x 3386 Single Turn Variable Potentiometer Trimmer Resistor
