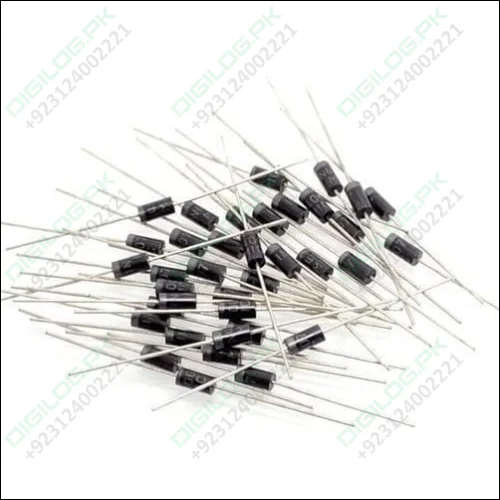

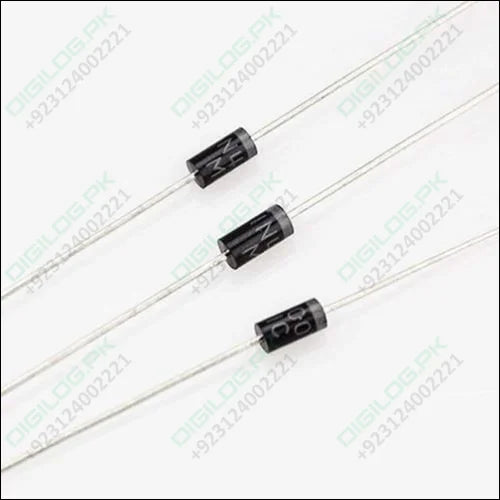

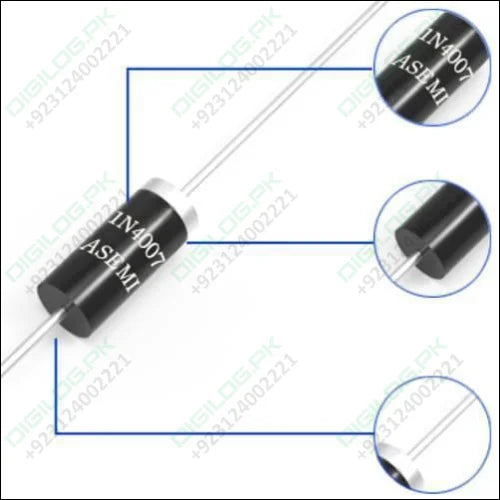

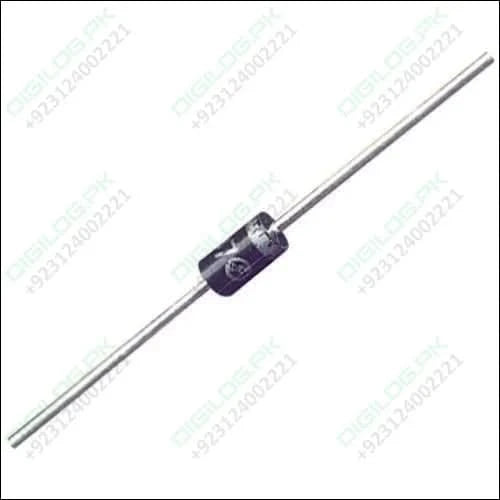

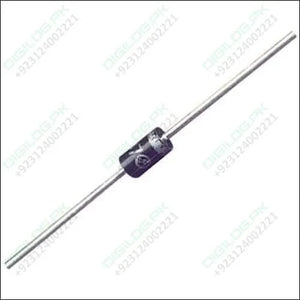

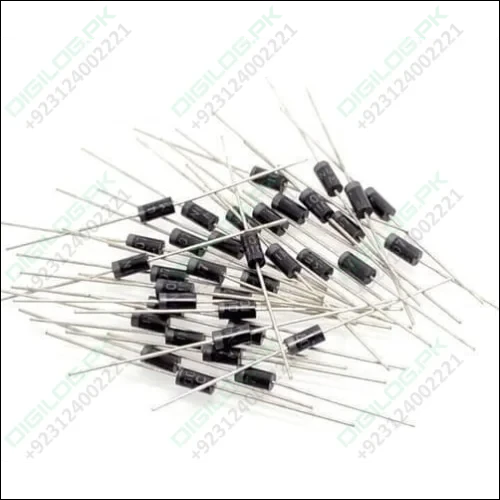

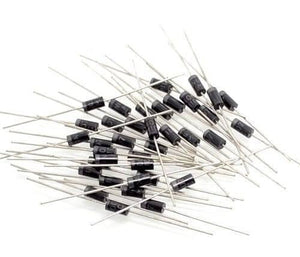

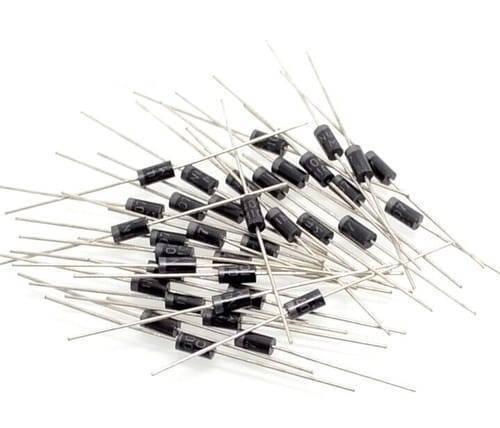

1n4007 Rectifier Diode

1n4007 Rectifier Diode

Regular price Rs 2
Regular price Sale price Rs 2
Sale Sold out
Shipping calculated at checkout.

SKU:B20,TMD1000,Th200,KRT

NOTIFY ME WHEN IN STOCK

1N4007 Bridge Rectifier Diode is a general-purpose silicon diode. 1N4007 Bridge Rectifier Diode is a p–n diode which is a type of two-terminal semiconductor diode based upon the p–n junction that conducts current in only one direction, made by joining a p-type semiconducting layer to an n-type semiconducting layer. Typical applications for use in general-purpose rectification of power supplies, inverters, converters, and freewheeling diodes application.

We have also a large variety of different rectifiers like 1N5408 1A, uF4007, 10 10A, etc.

Features of 1N4007 Bridge Rectifier Diode:

  • Diffused junction.
  • High current capability and low forward voltage drop.
  • Surge overload rating to 30A peak.
  • Low reserve leakage current.
  • Lead-free finish, RoHS compliant.

Specifications of 1N4007 Bridge Rectifier Diode:

Product Category Rectifiers
Product Standard Recovery Rectifiers
Configuration Single
Reverse Voltage 1000V
Forward Voltage Drop 1.1V
Recovery Time 2000ns
Forward Continuous Current 1A
Max Surge Current 30A
Reverse Current IR: 5uA
Mounting Style Through Hole
Maximum Operating Temperature +175C
Minimum Operating Temperature -65C

1N4007 Rectifier Diode

Applications:

  • Half-wave Rectifier.
  • Full Wave Rectifier.
  • Bridge Rectifier.
  • DIY projects requiring voltage rectification.

Package Includes:

1 x 1N4007 Bridge Rectifier Diode

View full details

Description

1N4007 Bridge Rectifier Diode is a general-purpose silicon diode. 1N4007 Bridge Rectifier Diode is a p–n diode which is a type of two-terminal semiconductor diode based upon the p–n junction that conducts current in only one direction, made by joining a p-type semiconducting layer to an n-type semiconducting layer. Typical applications for use in general-purpose rectification of power supplies, inverters, converters, and freewheeling diodes application.

We have also a large variety of different rectifiers like 1N5408 1A, uF4007, 10 10A, etc.

Features of 1N4007 Bridge Rectifier Diode:

  • Diffused junction.
  • High current capability and low forward voltage drop.
  • Surge overload rating to 30A peak.
  • Low reserve leakage current.
  • Lead-free finish, RoHS compliant.

Specifications of 1N4007 Bridge Rectifier Diode:

Product Category Rectifiers
Product Standard Recovery Rectifiers
Configuration Single
Reverse Voltage 1000V
Forward Voltage Drop 1.1V
Recovery Time 2000ns
Forward Continuous Current 1A
Max Surge Current 30A
Reverse Current IR: 5uA
Mounting Style Through Hole
Maximum Operating Temperature +175C
Minimum Operating Temperature -65C

1N4007 Rectifier Diode

Applications:

  • Half-wave Rectifier.
  • Full Wave Rectifier.
  • Bridge Rectifier.
  • DIY projects requiring voltage rectification.

Package Includes:

1 x 1N4007 Bridge Rectifier Diode
