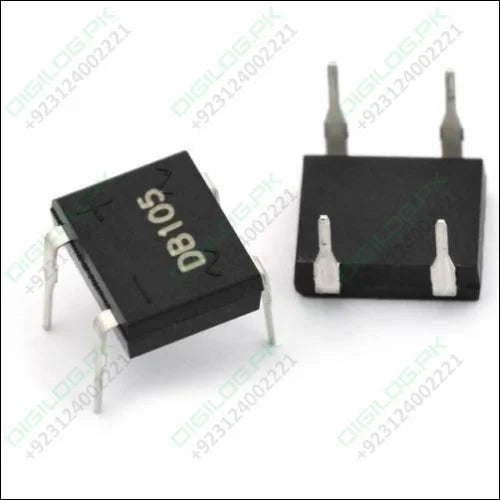

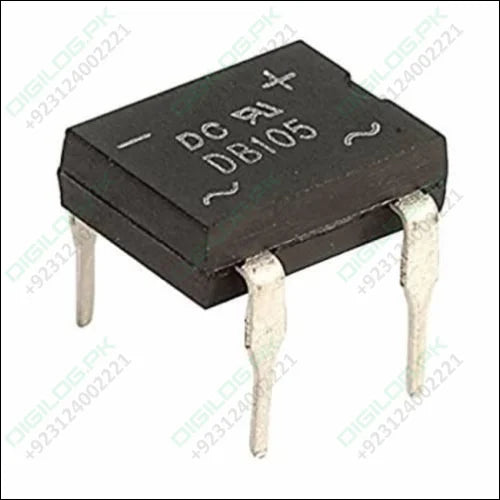

1amp 1000v Bridge Rectifier Ic in Pakistan

1Amp 1000V Bridge Rectifier IC is good for automation insertion surge overload rating. However 1-ampere IC rectifier is ideal for printed circuit board reliable low-cost construction utilizing moulded glass passivated device . Although Polarity symbols moulded on body Mounting position. Moreover this IC rectifier chip leads solderable per MIL-STD-202 and method 208 guaranteed.

Although Designed for demanding applications, this rectifier efficiently converts AC to DC power. Ideal for low-current, high-voltage circuits, it's perfect for industrial equipment, power supplies, and also electronic devices. SO Available in Pakistan!  meanwhile Trust in the reliability of this component for your critical applications.

Features Of Single Phase 1Amp Dip Glass Passivated Bridge Rectifier :

• Good for automation insertion.
• Surge overload rating – 40 amperes peak.
• Ideal for the printed circuit board.
• Reliable low-cost construction utilizing moulded.
• Glass passivated device.
• Polarity symbols moulded on the body.
• Mounting position: Any.
• Weight: 1.0 gram.

Specifications Of 1000V IC Bridge Rectifier :

1. Bridge Type: Single Phase
2. Peak Average Forward Current: 1A
3. Peak Reverse Repetitive Voltage: 1000V
4. Mounting Type: Through Hole
5. Package-Type: DB
6. Pin Count: 4
7. Configuration: Single
8. Maximum Operating Temperature: 150°C
9. Minimum Operating Temperature: -55°C
10. Peak Forward Voltage: 1.1V
11. Peak Reverse Current: 500uA
12. Length: 8.8mm
13. Height: 3.4mm
14. Junction Capacitance: 25pF
15. Width: 6.5mm
16. Dimensions: 8.8 x 6.5 x 3.4mm

Package Includes:

• 1 x 1Amp 1000V Bridge Rectifier IC (Part no can be changed like DB102, DB103, DB104, DB105 OR ANY OTHER With same technical specs)

Hence Best Online Shopping website for 1Amp 1000V Bridge Rectifier IC DB105 in cheap price in Karachi, Lahore, Islamabad, Rawalpindi, Sukkur, Peshawar, Multan, Quetta, Faisalabad and all over Pakistan.
