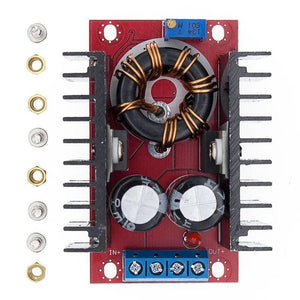

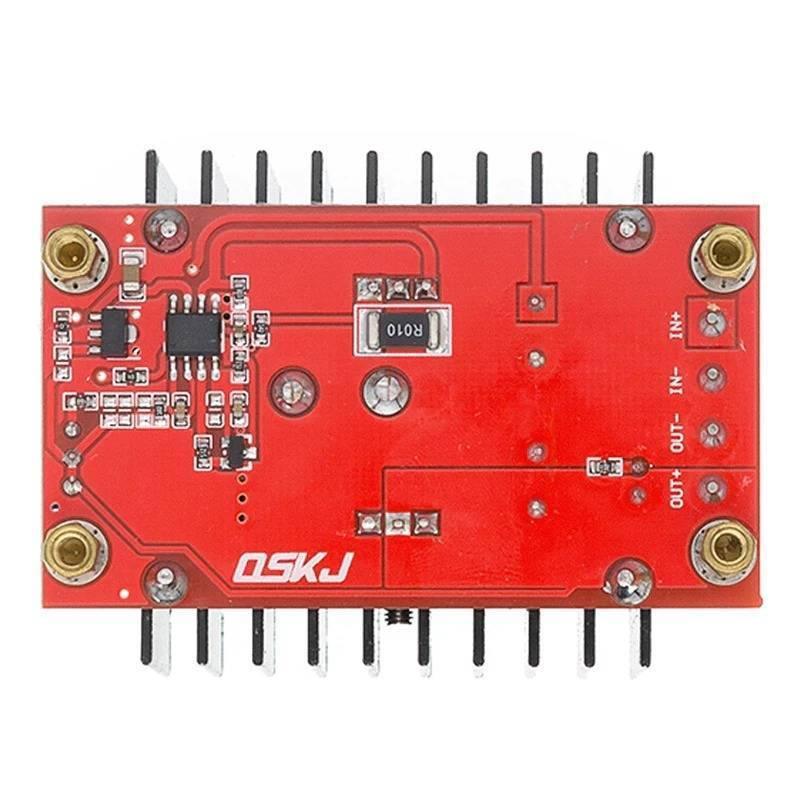

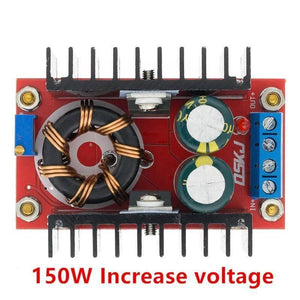

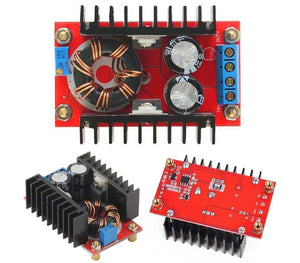

This 150W DC-DC Boost Converter 10-32V to 12-35V module allows you to step up an input voltage as low as 10V and set the output to 12V-35V.Β The output voltage will be higher than the input voltage.Β In addition the boost converter design is based on popular Texas Instrumentβs UC3844 current mode PWM controller chip.
Applications of 150W DC-DC Boost Converter :
- Run Laptop on DC12V Car battery. (Laptops usually require 17V β 18V DC.)
- Run Communication equipment on a single 12V lead-acid battery that is rated for operation at 24V to 35V
- Run Higher voltage (24V β 35V) DC motors also used in Robots using single 12V batteries
Technical Specifications:
- Input Voltage: 10v β 32v DC
- Output Voltage: 12v β 35v DC
- Output Current: 6A MAX
- InputΒ Current:Β 10AΒ (MAX)
- Output Ripple: 2% MAX
- Working Temperature: Industrial β 40C to +85C (Environmental temperature, more than 40C, reduce load wattage or enhance cooling)
- Full-Load temperature: 45 degrees.
- No-load current: 25mA typical.
- Voltage regulation: Β± 0.5%.
- Load regulation: Β± 0.5%.
- Dynamic response speed: 200uS 5%.
- ShortΒ circuitΒ protection:Β NoneΒ (PleaseΒ InstallΒ fusesΒ andΒ protectionΒ circuitsΒ at the InputΒ port.)
- InputΒ ReverseΒ PolarityΒ Protection:Β NoneΒ (PleaseΒ SeriesΒ diodeΒ atΒ theΒ inputΒ port.)
- Size: 2.60 in (L),Β Β 1.85 in (W) , 1.1 in (H)
- Weight: 2.30 oz (66 g)
[!] Warnings
- Do NOT limit current, also do not overload!
- Although The maximum rated values should NEVER be continuous from the load or else the module will be damaged.
- Be sure to install correct circuit protection, such as fuses, to the input of the module to avoid overloading and the potential for fire.
- PleaseΒ enhanceΒ heatΒ dissipation above 50W
- Hence Failure to take these precautions and incorrect use of this module may result in damage, fire, and/or personal injury.
Documents and Downloads
- UC3844 Current mode PWM controllerΒ Datasheet
- UC3844 Based Boost ConverterΒ Schematics
Package Includes
- 1xΒ OSKJ 150W DC-DC Boost Converter 10-32V to 12-35V β 6A OutputΒ module
Documents and Downloads
- UC3844 Current mode PWM controllerΒ Datasheet
- UC3844 Based Boost ConverterΒ Schematics
Package Includes
- 1xΒ OSKJ 150W DC-DC Boost Converter 10-32V to 12-35V β 6A OutputΒ module
