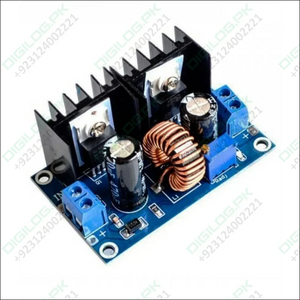

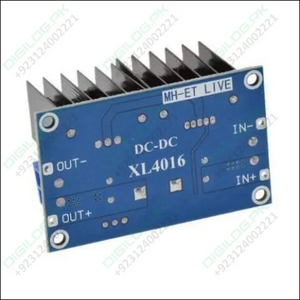

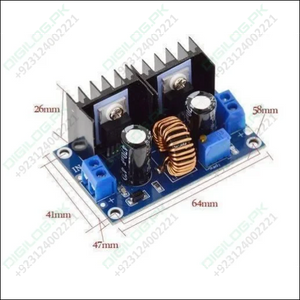

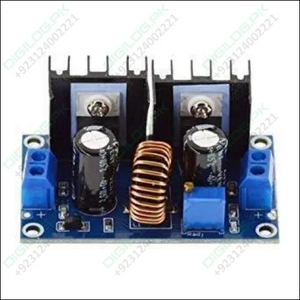

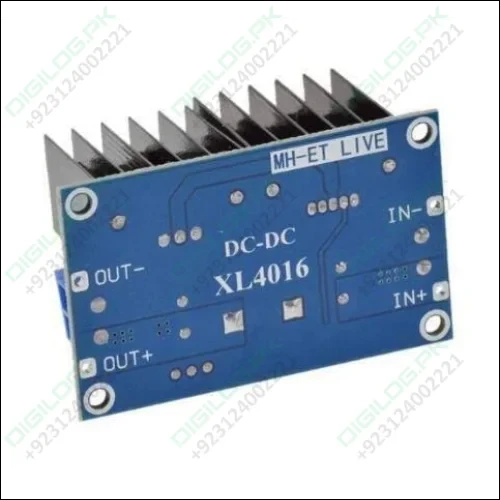

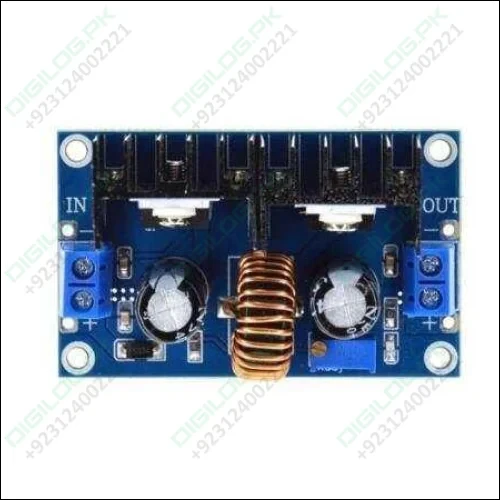

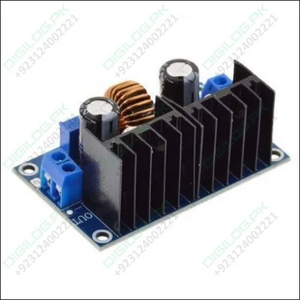

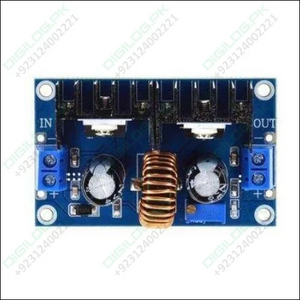

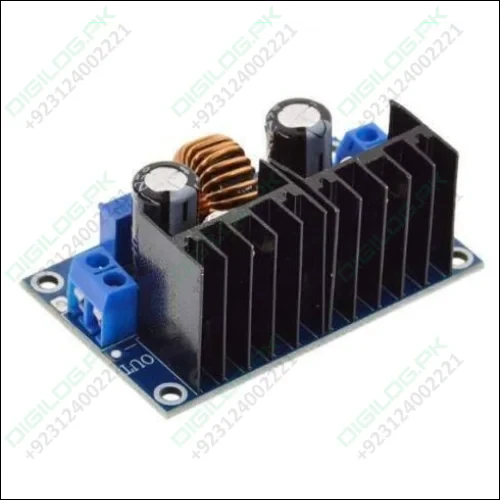

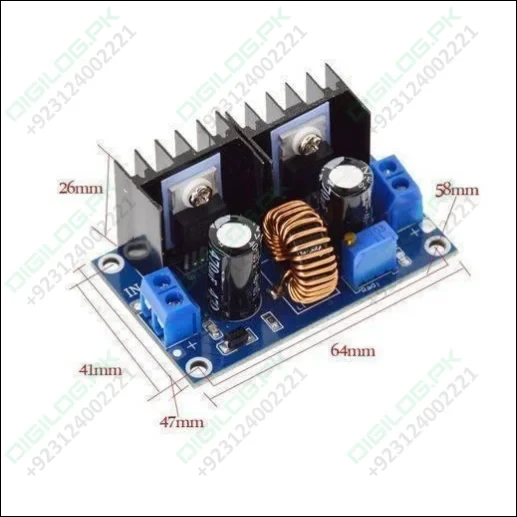

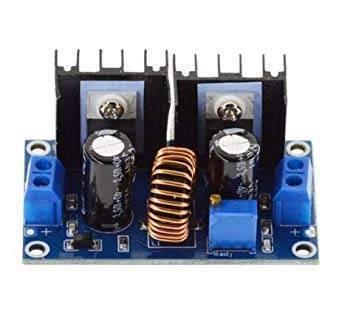

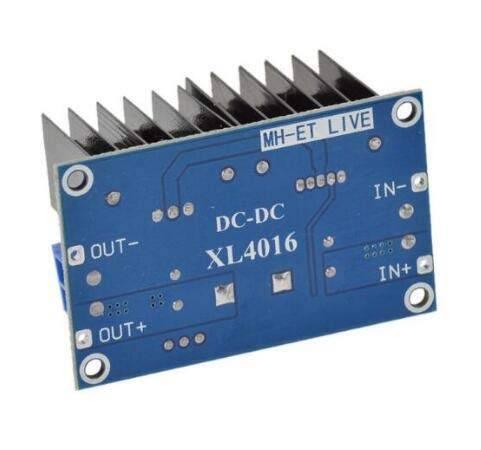

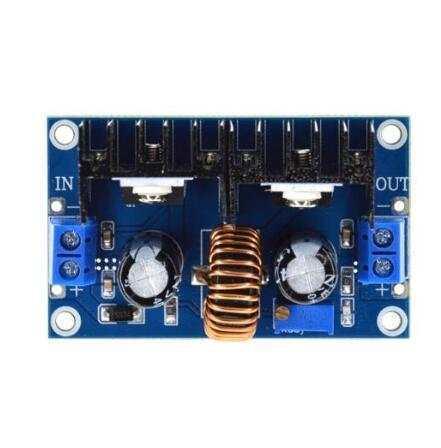

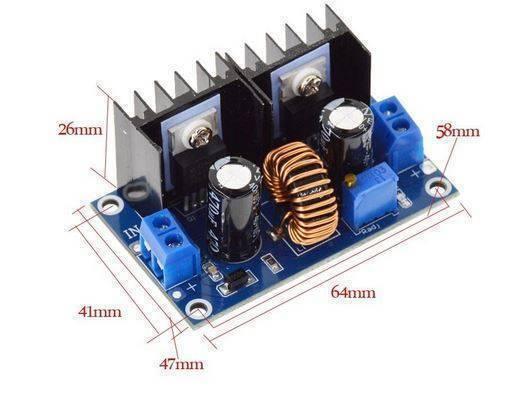

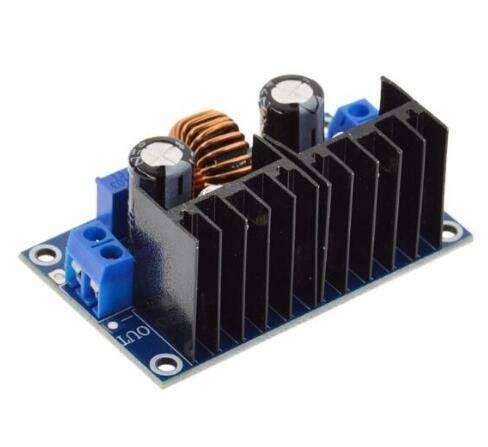

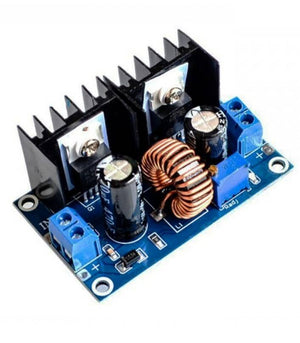

XH-M407 XL4016E1 DC To DC Buck Voltage Regulator 8A Module

The XL4016 is a 180 kHz fixed frequency PWM buck (step-down) DC/DC converter module, capable of driving an 8A load with high efficiency, low ripple, and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An overcurrent protection function is built inside. When short protection function happens, the operation frequency will be reduced from 180KHz to 48KHz. An internal compensation block is built in to minimize external component count.

Features:

1. Wide 4V to 38V Input Voltage Range
2. Output Adjustable from 1.25V to 36V
3. Maximum Duty Cycle 100%
4. Minimum Drop Out 0.3V
5. Fixed 180KHz Switching Frequency
6. 8A Constant Output Current Capability
7. Internal Optimize Power MOSFET
8. High efficiency up to 96%
9. Excellent line and load regulation
10. Built-in thermal shutdown function
11. Built-in current limit function
12. Built-in output short protection function
13. Built-in input over-voltage protection

Precautions:

1. Keep the input and output differential pressure above 2V
2. Long-running current is recommended in 5A, in case of power too much Please increase the fan or other ways to strengthen the heat
3. This module is a step-down module that is not a boost module

Buy DC to DC Buck Voltage Regulator 8A Module XL4016E1  at Pakistan's Best Online Shopping Store at cheap price. Here you get a wide range of Buck Converters We Deliver in Gujranwala, Karachi, Lahore, Islamabad, Rawalpindi, Multan, Quetta, Faisalabad and all over Pakistan.

Package Include:

1x DC to DC Buck Voltage Regulator 8A Module XL4016E1
