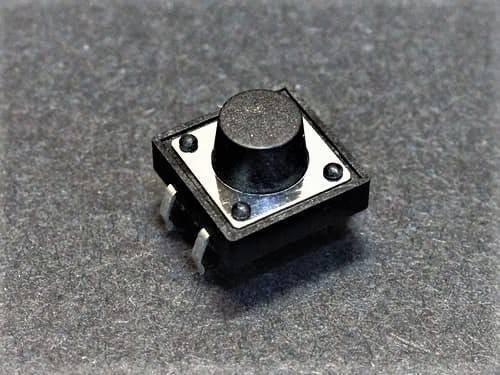

12x12x7.5mm Tactile Push Button Switch - a black square tactile switch with a round center button and four metal pins, shown in a close-up view.

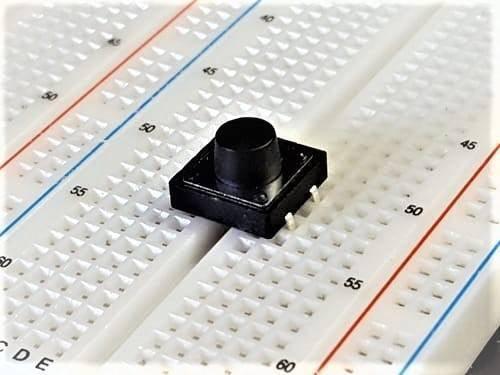

12x12x7.5mm Tactile Push Button Switch - a black square tactile button with a round top plunger mounted on a white breadboard.

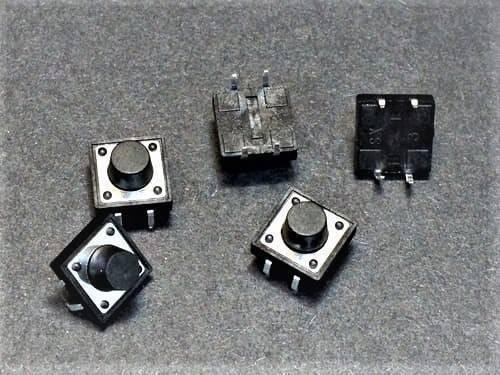

12x12x7.5mm Tactile Push Button Switch - five black square tactile switches with circular push buttons arranged on a grey surface.

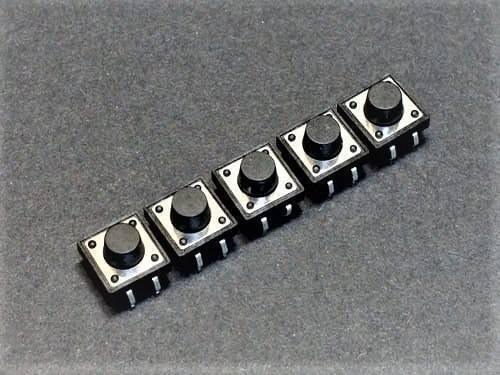

12x12x7.5mm Tactile Push Button Switch - a row of five square black tactile push button switches with metal tops on a dark grey surface.
12x12x7.5mm Tactile Push Button Switch - a black square tactile switch with a round center button and four metal pins, shown in a close-up view.
12x12x7.5mm Tactile Push Button Switch - a black square tactile button with a round top plunger mounted on a white breadboard.
12x12x7.5mm Tactile Push Button Switch - five black square tactile switches with circular push buttons arranged on a grey surface.
12x12x7.5mm Tactile Push Button Switch - a row of five square black tactile push button switches with metal tops on a dark grey surface.

12x12x7.5mm Tactile Push Button Switch

Sale price Rs 20
SKU: B567,TMD,Th200
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

12x12x7.5mm Tactile Push Button Switch - a black square tactile switch with a round center button and four metal pins, shown in a close-up view.
+
12x12x9mm Tactile Push Button Switch - a square black electronic component with a central circular button and four metal pins on a grey textured surface.
+
Ca 1 Digit 7 Segment 0.7 Inch LED Common Anode Display - a single-digit white LED display module with a black face and ten metal pins underneath.
+

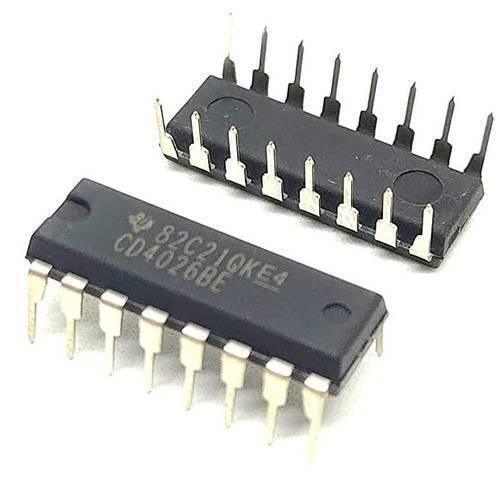

CD4026 4026 Johnson Decade Counter IC - two black 16-pin dual in-line package integrated circuits with silver pins on a white background.
CD4026 4026 Johnson Decade Counter IC - two black 16-pin dual in-line package integrated circuits with silver pins on a white background.
This item: 12x12x7.5mm Tactile Push Button Switch -
Sale price Rs 20
12x12x9mm Tactile Push Button Switch - a square black electronic component with a central circular button and four metal pins on a grey textured surface.
12x12x9mm Tactile Push Button Switch -
Sale price Rs 10
Ca 1 Digit 7 Segment 0.7 Inch LED Common Anode Display - a single-digit white LED display module with a black face and ten metal pins underneath.
Ca 1 Digit 7 Segment 0.7 Inch LED Common Anode Display -
Sale price Rs 30
CD4026 4026 Johnson Decade Counter IC - two black 16-pin dual in-line package integrated circuits with silver pins on a white background.
CD4026 4026 Johnson Decade Counter IC -
Sale price Rs 160
Price for all:
Sale total price Rs 220

Pickup available at Digilog Electronics

Usually ready in 2 hours

12x12x7.5mm Tactile Push Button Switch - a black square tactile switch with a round center button and four metal pins, shown in a close-up view.

12x12x7.5mm Tactile Push Button Switch

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
12x12x7.5mm Tactile Push Button Switch - a black square tactile switch with a round center button and four metal pins, shown in a close-up view.
12x12x7.5mm Tactile Push Button Switch
Sale priceRs 20

12x12x7.5mm Tactile Push Button Switch is used as general-purpose PCB tactile pushbutton. Tactile Push Button Switch colour may differ from the image. This is a standard 12mm square momentary button. What we really like is the large button head and good tactile feel (it ‘clicks’ really well). This button is great for user input on a PCB or a good, big reset button on a breadboard. Breadboard friendly!

Features of 12x12x7.5mm Tactile Push Button Switch:

  1. NO (Normally Open) contacts.
  2. Good snap action feels with an audible click.
  3. 4-terminal, these switches are 4-terminal normally open pushbuttons.  Pins are formed solder type on 5.08mm (0.2″) centres on one side x 12.7mm (0.5″) and are breadboard friendly.
  4. Breadboard friendly.
  5.  The 4-pin layout works well in solderless breadboards or perf boards.

Specifications :

Main Colour Black, Silver Tone
Product Name Tactile Switch
Net Weight 10g
Country of Manufacture CHINA
Switch Size 12x12x7.5mm
Material Plastic, Metal, Electric Part
Withstand Voltage 50Hz/min
Rated current 50mA 12VDC
Contact resistance 30mΩ max
Insulation resistance 100mΩ min
Operating temperature  -30  to + 70
Operating Force 100~350g
Life 100000times



Size

Package Includes:

1 x 12x12x7.5mm Push Button Switch
