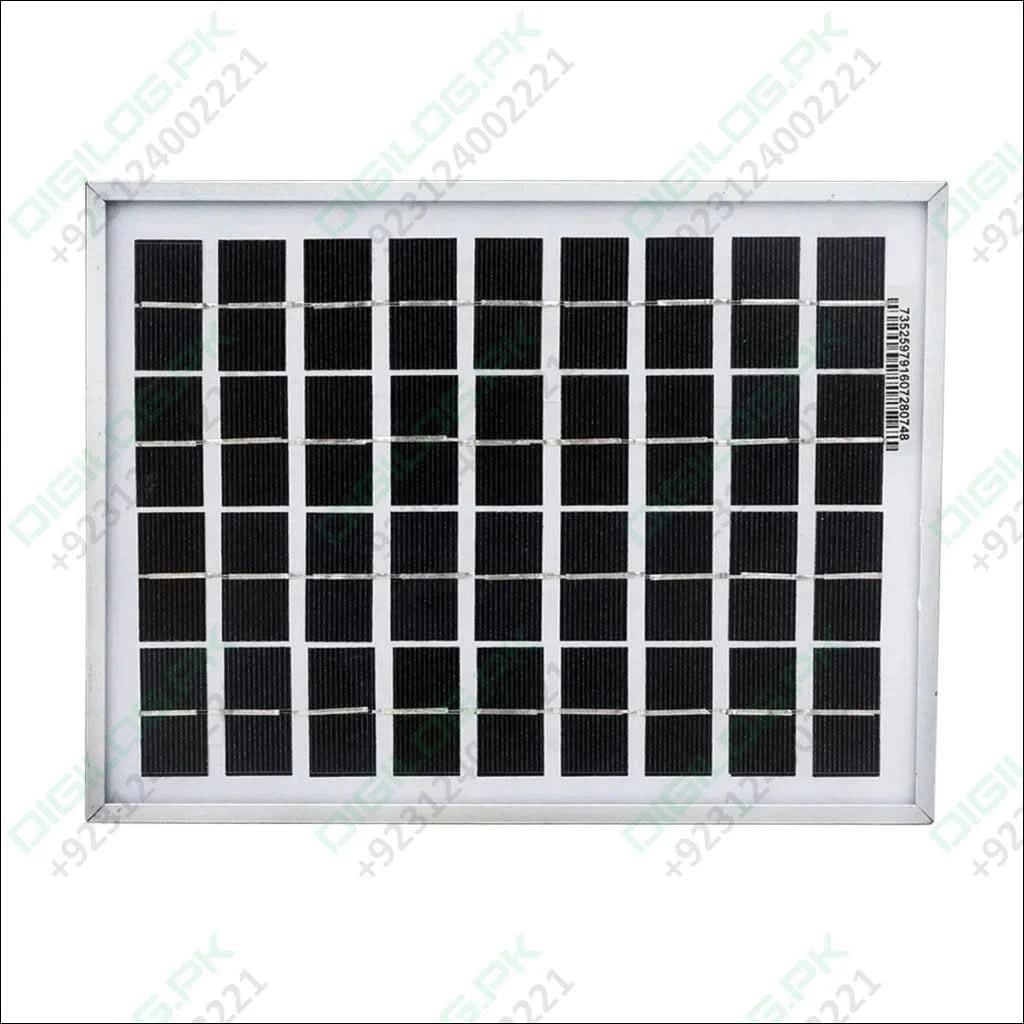

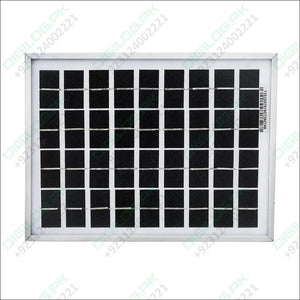

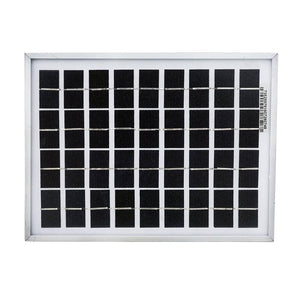

10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel - a rectangular solar panel with a silver metal frame and a grid of black photovoltaic cells.

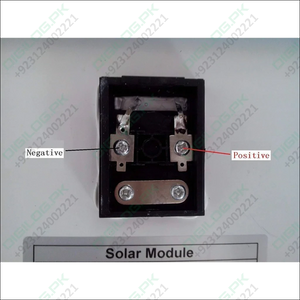

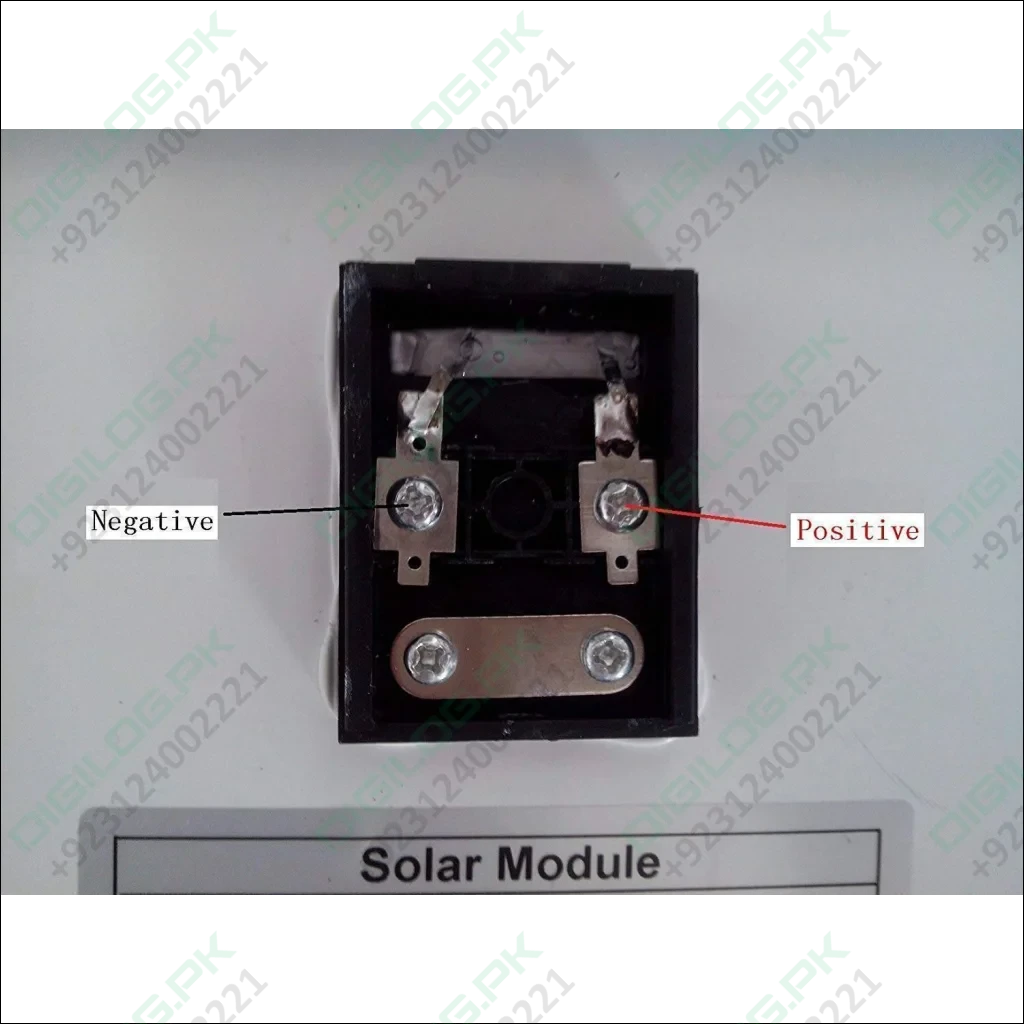

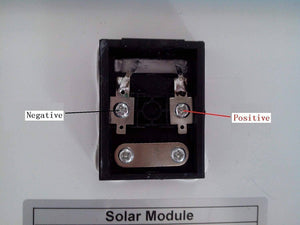

10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel - close-up of the black plastic junction box showing the labeled negative and positive screw terminals.

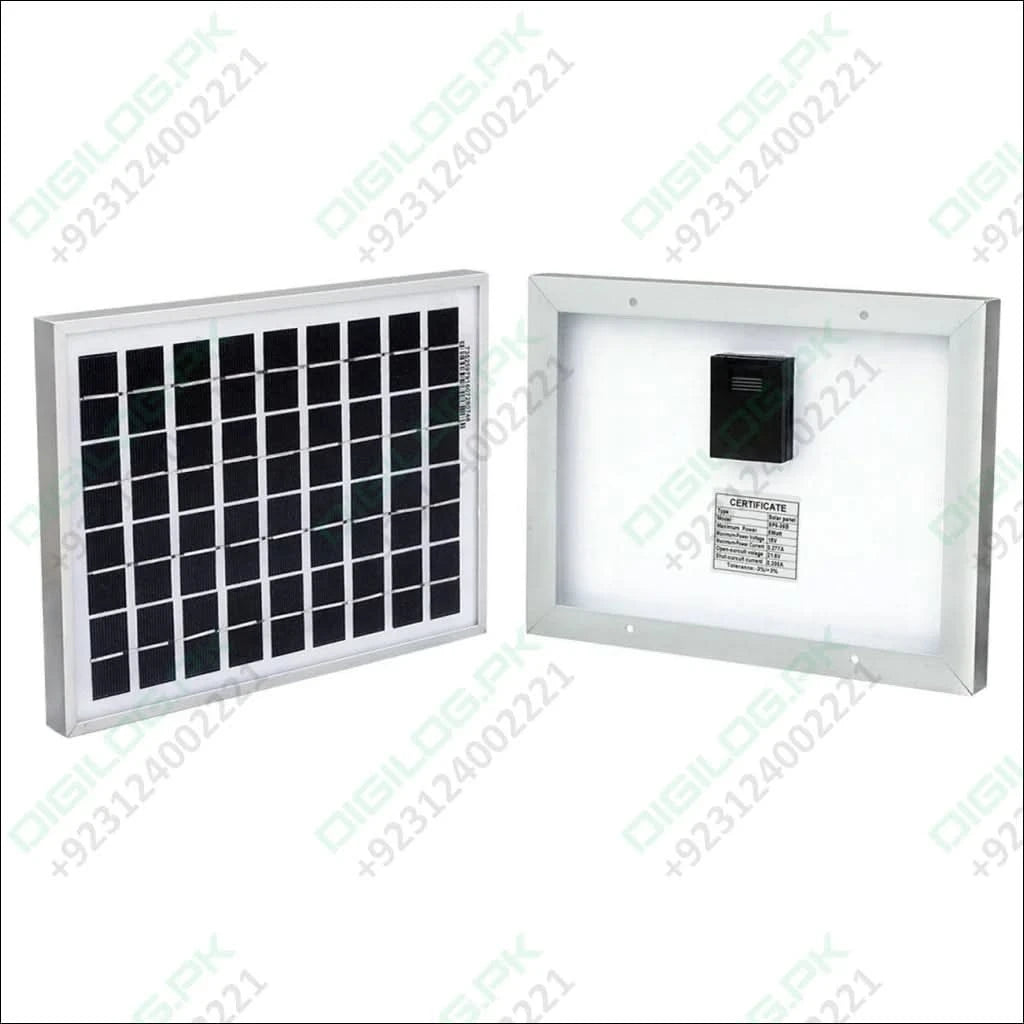

10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel - the front grid of solar cells and the rear side with a black junction box and a technical specification label.
10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel - a rectangular solar panel with a silver metal frame and a grid of black photovoltaic cells.
10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel - close-up of the black plastic junction box showing the labeled negative and positive screw terminals.
10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel - the front grid of solar cells and the rear side with a black junction box and a technical specification label.

10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel

Sale price Rs 3,030
SKU: L2,Th1,No
Log in to use Wishlist
Add to Compare

Frequently Bought Together

Customers building this project usually buy these together.

10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel - a rectangular solar panel with a silver metal frame and a grid of black photovoltaic cells.
+
12V 24V 10A Solar Charge Controller Dy-002 - a blue and black rectangular device with a central LCD screen, three buttons, dual USB ports, and terminals.
+
5A Range Current Sensor Module ACS712 - a blue rectangular circuit board with a green two-pin terminal block and three header pins.
+
DC 0 To 25V Voltage Sensor Module - a blue circuit board with a two-terminal screw connector, a circular component, and three output pins.
DC 0 To 25V Voltage Sensor Module - a blue circuit board with a two-terminal screw connector, a circular component, and three output pins.
This item: 10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel -
Sale price Rs 3,030
12V 24V 10A Solar Charge Controller Dy-002 - a blue and black rectangular device with a central LCD screen, three buttons, dual USB ports, and terminals.
12V 24V 10A Solar Charge Controller Dy-002 -
Sale price Rs 910
5A Range Current Sensor Module ACS712 - a blue rectangular circuit board with a green two-pin terminal block and three header pins.
5A Range Current Sensor Module ACS712 -
Sale price Rs 330
DC 0 To 25V Voltage Sensor Module - a blue circuit board with a two-terminal screw connector, a circular component, and three output pins.
DC 0 To 25V Voltage Sensor Module -
Sale price Rs 60
Price for all:
Sale total price Rs 4,330

Pickup available at Digilog Electronics

Usually ready in 2 hours

10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel - a rectangular solar panel with a silver metal frame and a grid of black photovoltaic cells.

10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel

  • Digilog Electronics

    Pickup available, usually ready in 2 hours

    🏢 Digilog Electronics 13th the RegalStreet,
    Back side of KFC, Near Abubakar Masjid Mall Road
    Lahore
    Pakistan

    +923124002221

    Check this on google map
10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel - a rectangular solar panel with a silver metal frame and a grid of black photovoltaic cells.
10W Solar Panel 18 Volt PV Solar Module Solar Cell Panel
Sale priceRs 3,030

18v Solar Cell Panel is Polycrystalline high-performance solar module with optimized low-light and temperature features. Shock-resistant and hardened solar glass with a self-cleaning surface and sturdy aluminum frame. A panel is designed to absorb the sun's rays as a source of energy for generating electricity or heating.

Features of 18v Solar Cell Panel:

  1. Highly efficient power output
  2. Performs well with limited sunlight
  3. High power, the waterproof regulator increases solar panels capacity
  4. Used for 18V solar home system solar panel kits
  5. Can be applied to various DC appliances, which are ideal for everyday use.
  6. High-efficiency A-grade solar cells are small in size and easy to take.

Specifications:

Maximum Power (Wp)

10Wp

Maximum Power Voltage (V)

18.00V

Maximum Power Current (A)

0.56A

Open Circuit Voltage (V)

21.7V

Short Circuit Current (A)

0.62A

Number of Cells (pcs)

36(4*9)pcs

Size of Cell (mm)

26*156mm

Size of Module (mm)

350*285*17mm



Package Includes:

  • 1 x 10W Solar Panel 18 Volt Pv Solar Module Solar Cell Panel
